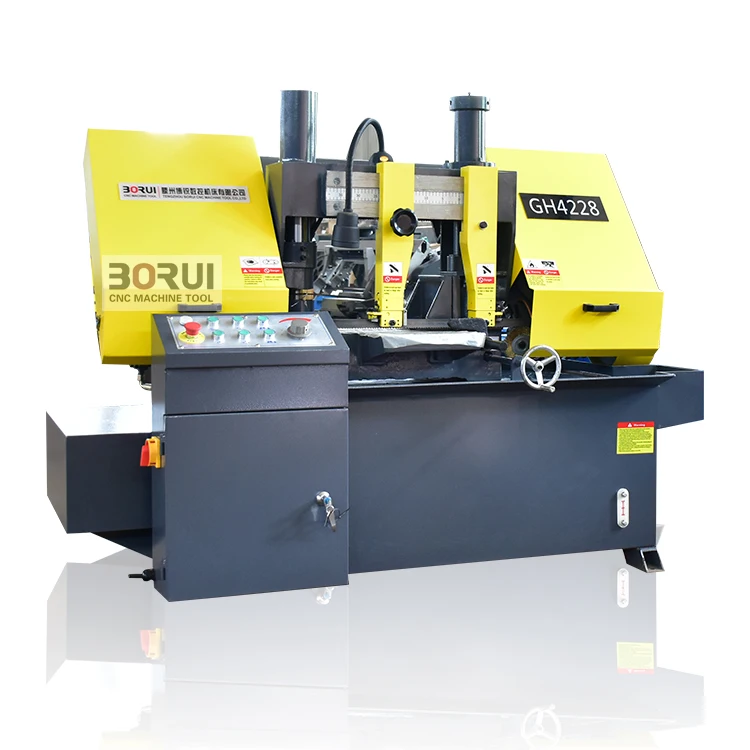

Double column horizontal metal band sawing machine 1. Hydraulic control sawing feed rate, stepless adjustable 2, the workpiece is tightened by hydraulic clamping 3, band saw blade uses rolling bearings and carbide guide to extend the life of the saw blade 4 electric feeding frame (optional) Application: Automatic Metal Cutting Band Saw Machines GH4228 GH4235 For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive. Product main technical specifications:
Product main technical parameters:
MODEL NO
GH4228
GH4235
Cutting capacity(mm)
280-280×280
350-350×350
Blade size(mm)
3505×34×1.1
4115×34×1.1
Blade speed(m/min)
27,45,69
27,45,69
Clamping type
Hydraulic
Hydraulic
Motor main(kw)
2.2
3
Motor hydraulic(kw)
0.55
0.55
Coolant pump(kw)
0.04
0.04
Overall dimension(mm)
1860×1000×1400
2000×1000×1500
Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company? A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there? A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms? A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set )
