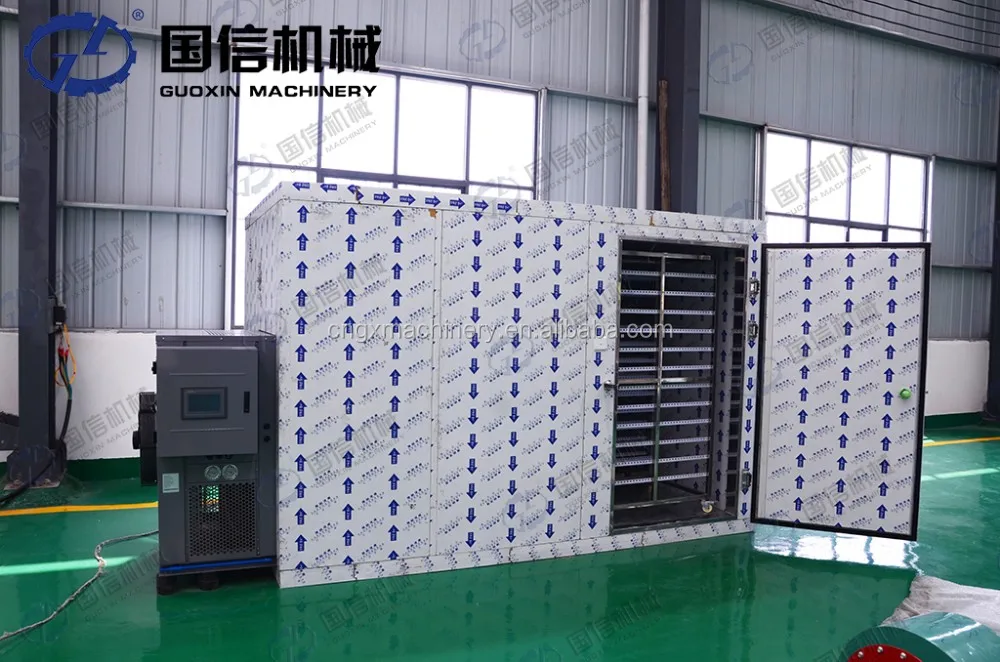

High Efficiency Electric Hot Air Bamboo Shoots Drying Chamber

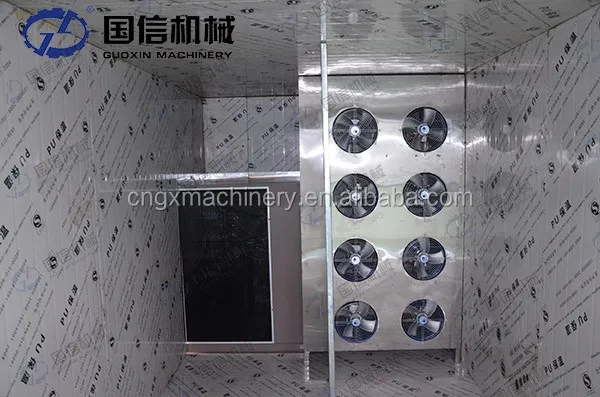

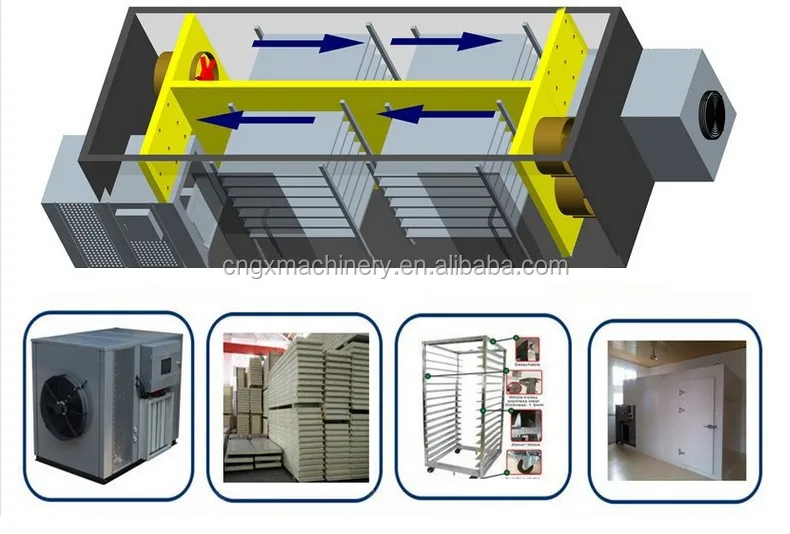

Bamboo Shoots Drying Chamber is a high-temperature heat pump dryer unit, the working principle is: Compress the refrigerant through the compressor to form the high temperature and high pressure gas, this gas went into the condenser to release heat , the heat would be send into the barn with by circulating fan to heat the barn air (maximum air temperature up to 80 ℃). With the air temperature increases, the moisture in the drying material will gradually evaporate, and then exhaust of moisture by the fresh air dehumidification system, to achieve the effect of drying.

There is a heat recovery device in the dehumidification system, the recycled heat used to heat the new air, to save the 60%-70% fresh air preheating energy consumption.

High Efficiency Electric Hot Air Bamboo Shoots  Drying Chamber Model:can be customized
MODEL	ROOM SIZE:MM	WORKING TEMPERATURE	POWER:KW	TRAY SIZE:MM	TRAY NUMBER
GX-3P	3500*2100*2200	≥-10℃	4.5	730*430	96
GX-7P	4900*2200*2200	≥-10℃	6.5	600*800	144
GX-14P	8400*3000*2200	≥-10℃	16.5	600*800	288

Bamboo Shoots Drying Chamber Application:
Bamboo Shoots drying chamber can be used for a wide range of materials. Suitable used for a wide range of materials with tolerable temperatures of between 20 and 80 ° C, or although the material which can withstand higher temperatures, and more efficiency and safe with heat pump dryer.
Such as wood, grain, seeds, edible fungi, herbs, seafood, sausages, fruits and vegetables, tobacco, paper, Buddha incense ... and so on.

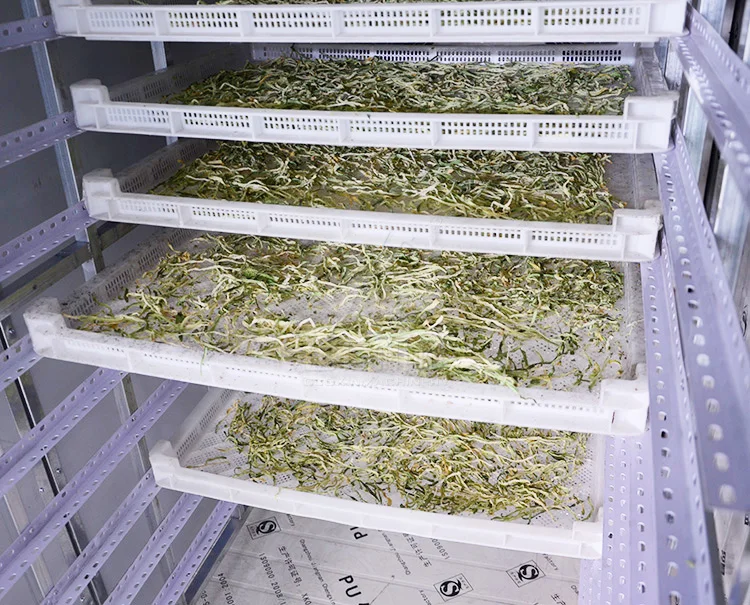

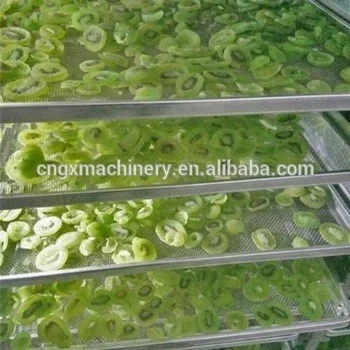

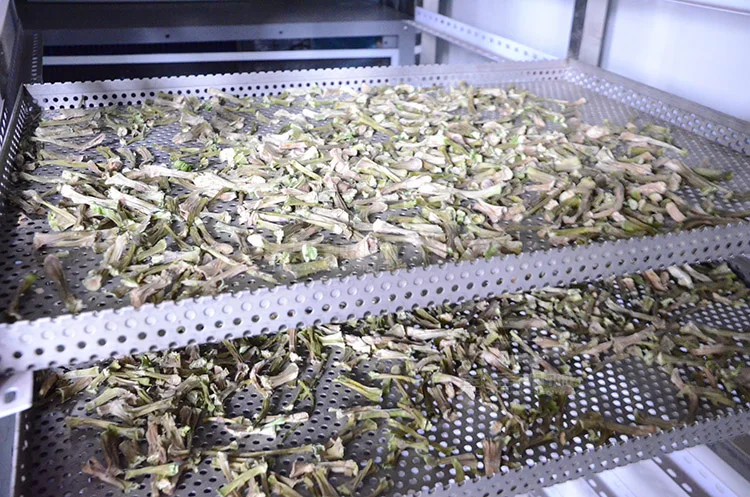

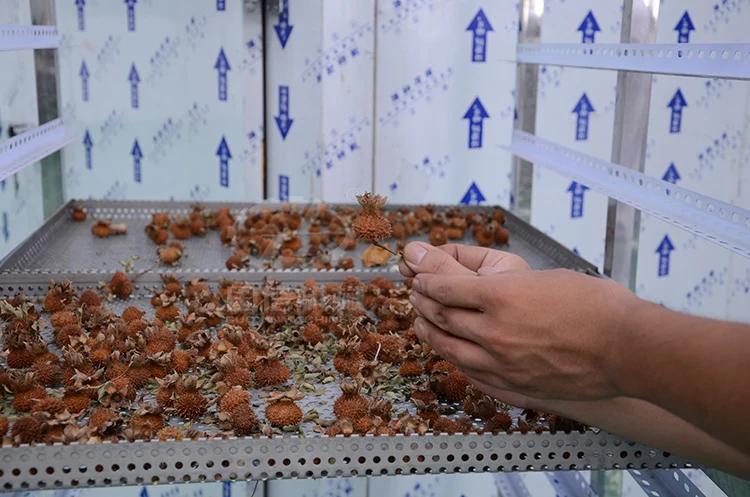

High Efficiency Electric Hot Air Bamboo Shoots Drying Chamber Sites:

High Efficiency Electric Hot Air Bamboo Shoots Drying Chamber Main Features:

1,Wide temperature range,high effciency,enhaced vapor injection compressor;
2,High energy display control,high precision configuration,efficient heat recovery;
3,Modular stitching,transport,installation and removal are easier and more efficient.;
4,Environmentally friendly,energy saving,saving time;
5,The drying parameters are easy to control and wide adjustable range,drying quality is good;

6,Reasonable structure design: site survey, scientific planning, optimize investment costs, to ensure drying quality; easy installation and maintenance, smooth operation, easy to use.

7,Automatic temperature control,safe and environment protection,

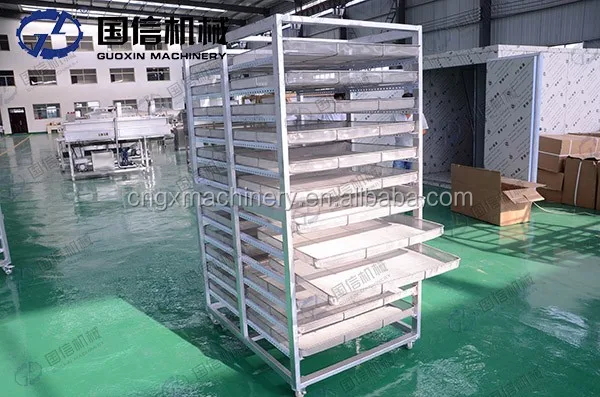

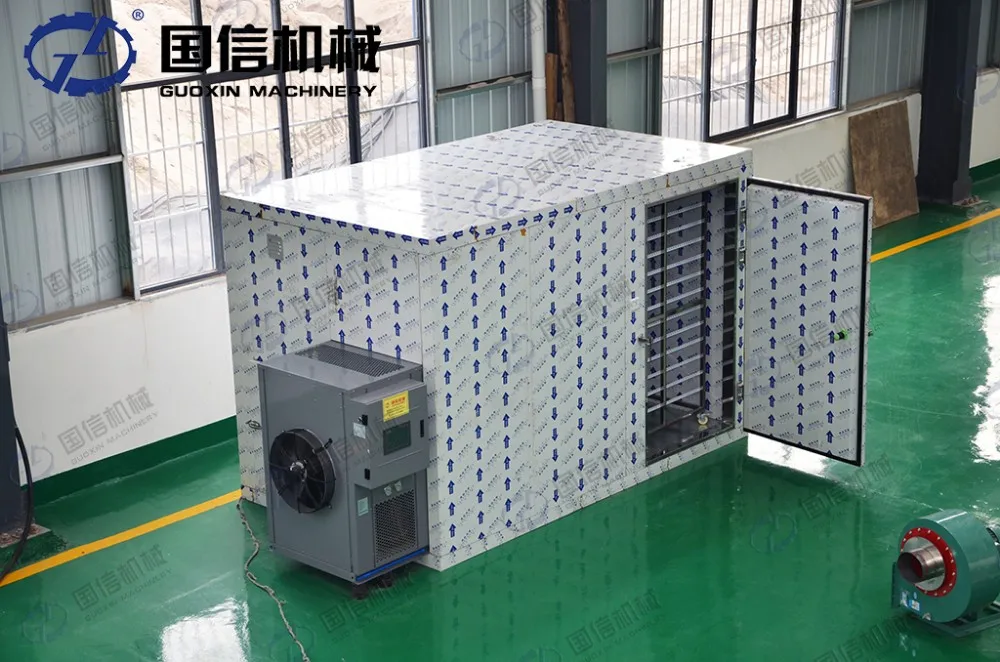

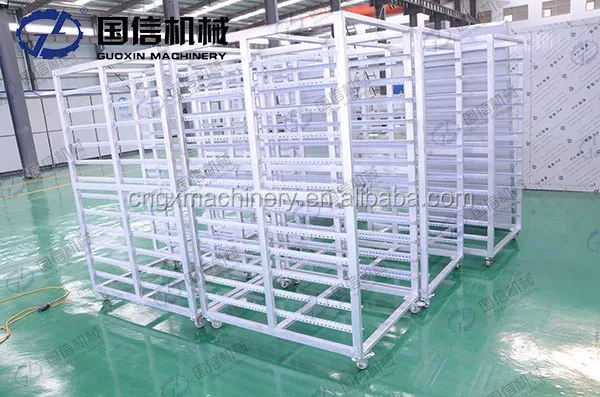

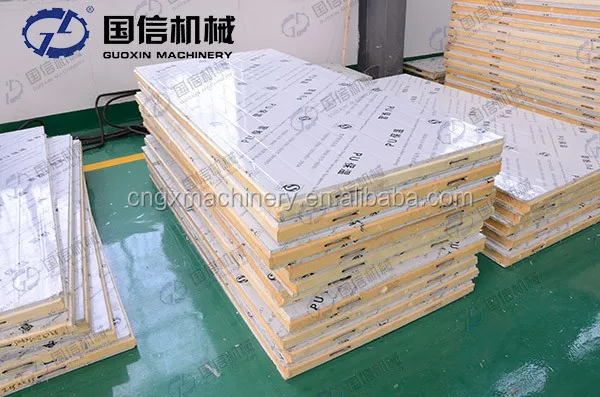

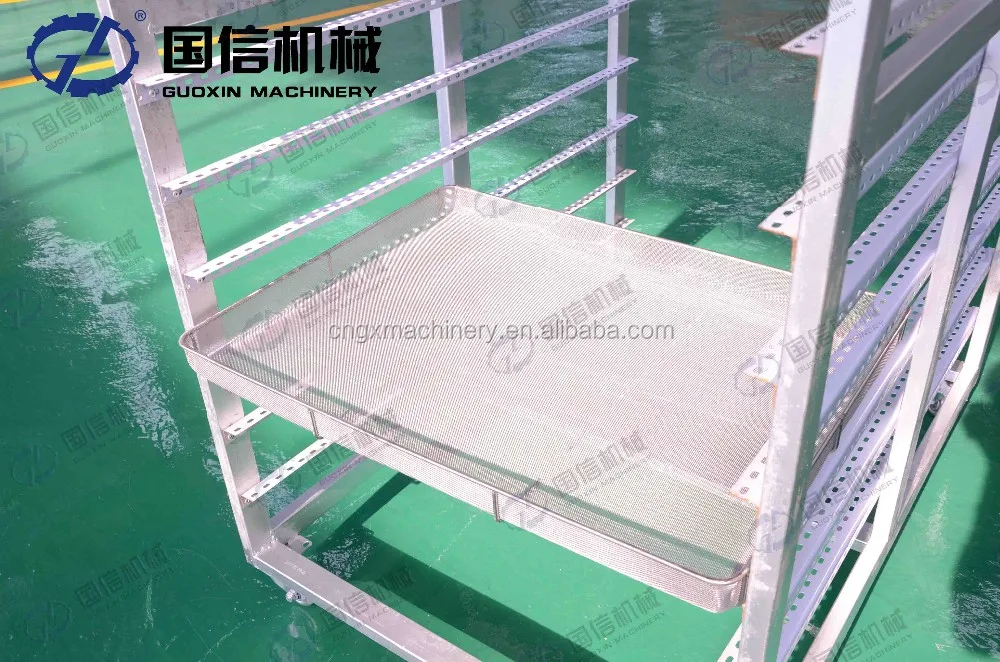

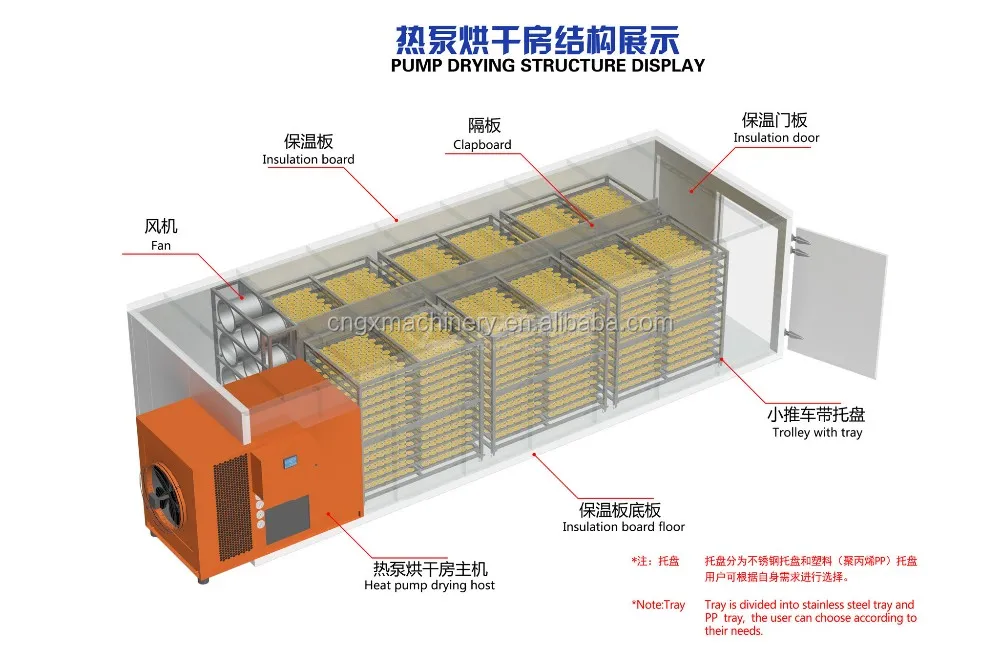

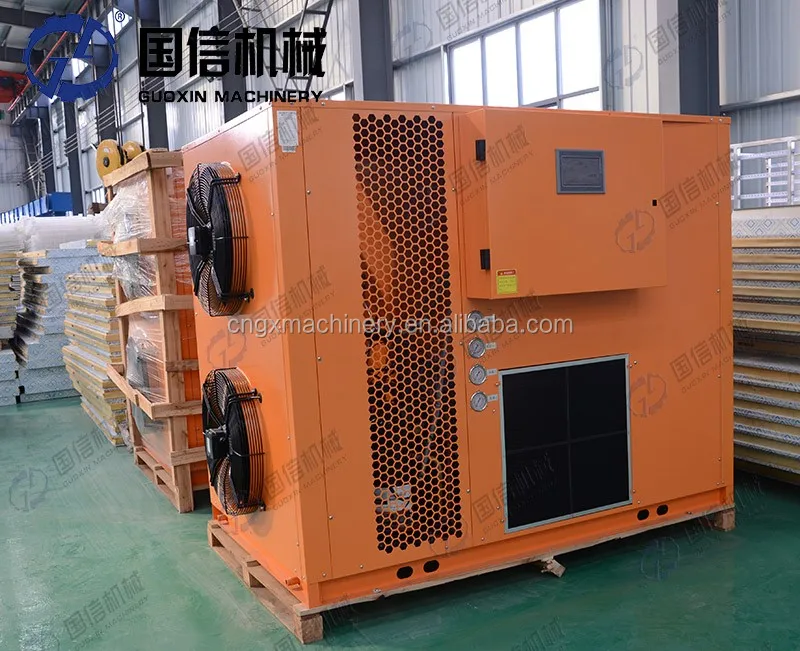

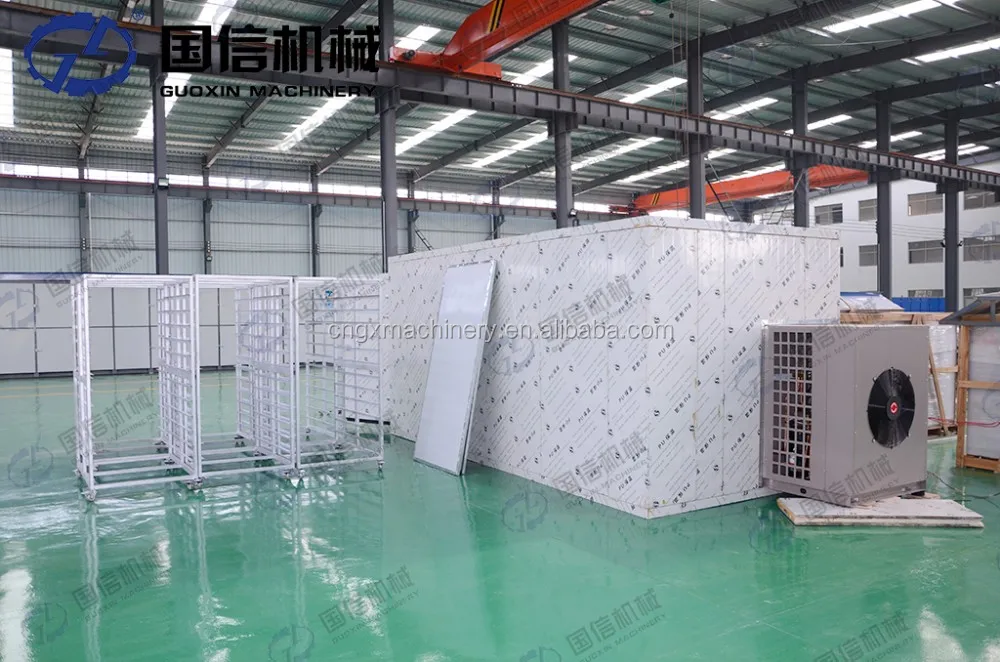

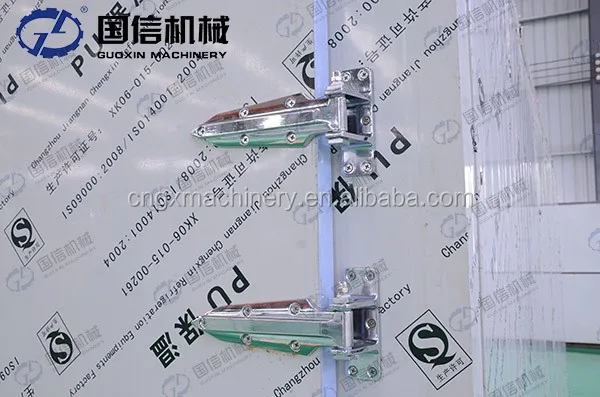

High Efficiency Electric Hot Air Bamboo Shoots Drying Chamber Details:

Certifications

Our Service

Pre-Sales Service

1) Production arrangement.
2) Production planning provided.
3) Workshop visiting available.
4) Detailed specifications of machines provided.
5) Able to provide deatield Solutions.

6)Special machine can be supplied as customer's request.

After-Sales Service

1) Assistance to build factory.
2) Repairing and maintenance if any problem occur in warranty.
3) Installation and clerks training.
4) Spare and wearing parts for free or with discounts.
5) Inspections in factory.

Packing & Delivery

Related Products

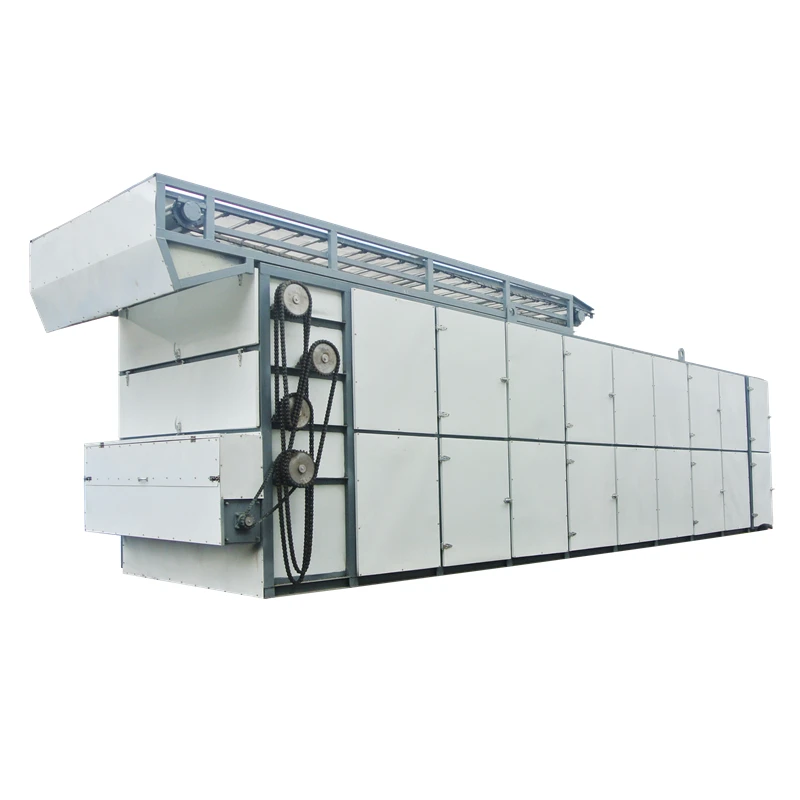

 Mesh Belt Dryer

https://www.alibaba.com/product-detail/Continuous-Conveyor-High-Capacity-Hot-Air_60782042045.html?spm=a2747.manage.list.13.782b71d2TBrxcs

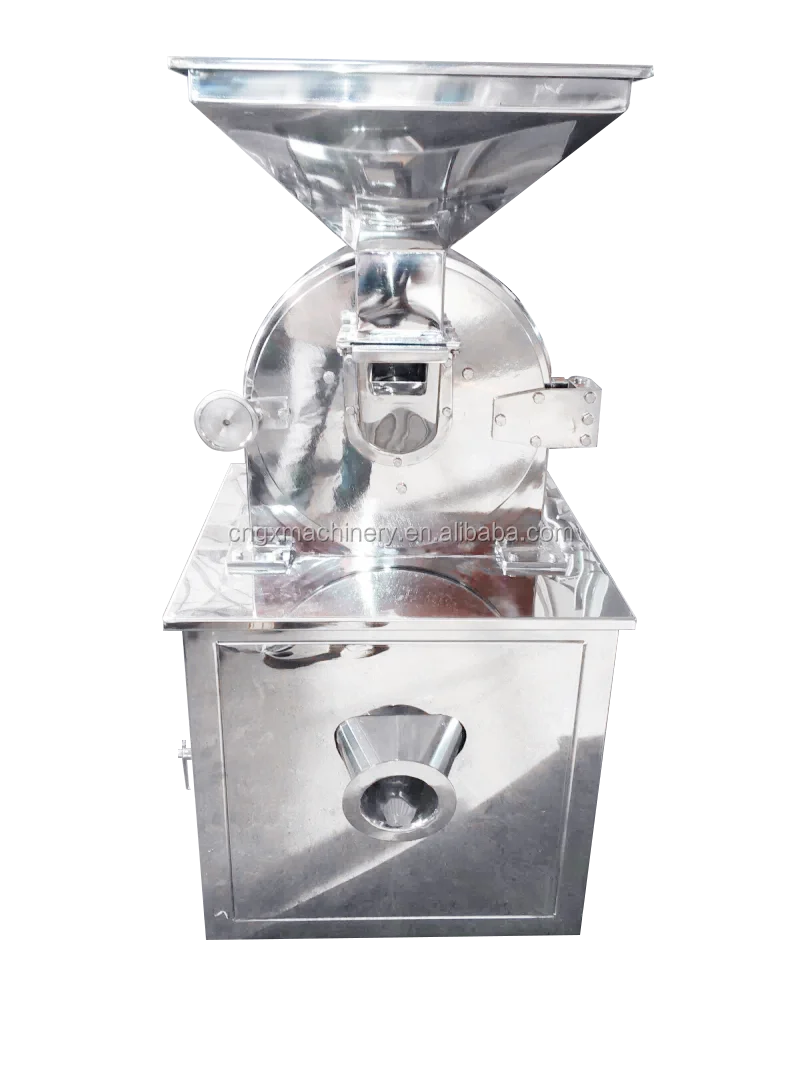

           Make Powder

https://www.alibaba.com/product-detail/Automatic-Low-Price-Ginger-Flour-Mill_60783790338.html?spm=a2747.manage.list.4.782b71d2TBrxcs

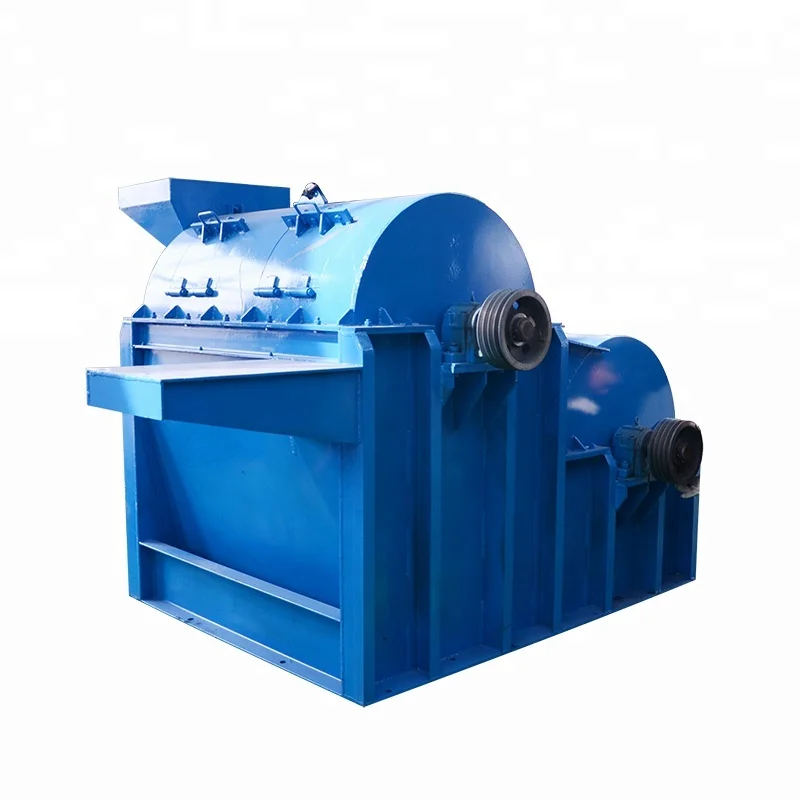

      Fiber Extracting Equipment
