Shandong TFL famous brand 6200ZZCM 6200 2RS deep groove ball bearings for industry machine
- Category: >>>
- Supplier: Shandong Tefule Bearing Co. Ltd.
Share on (60816717069):
Product Overview
Description

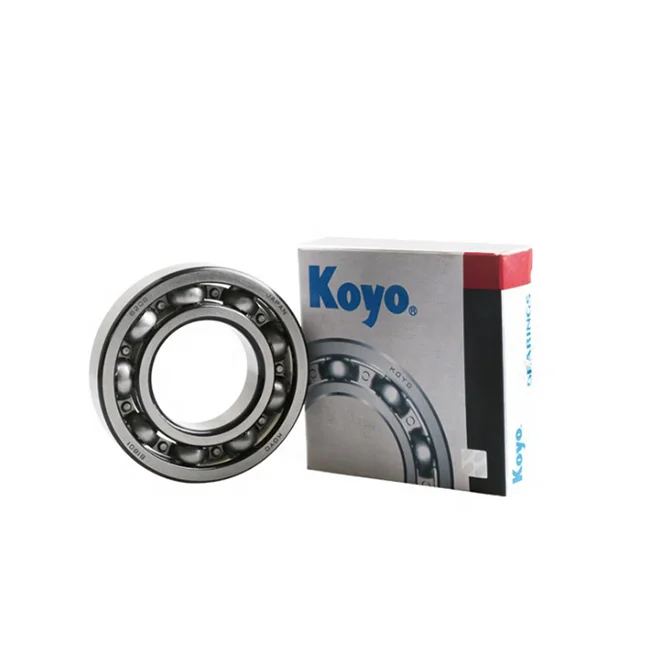

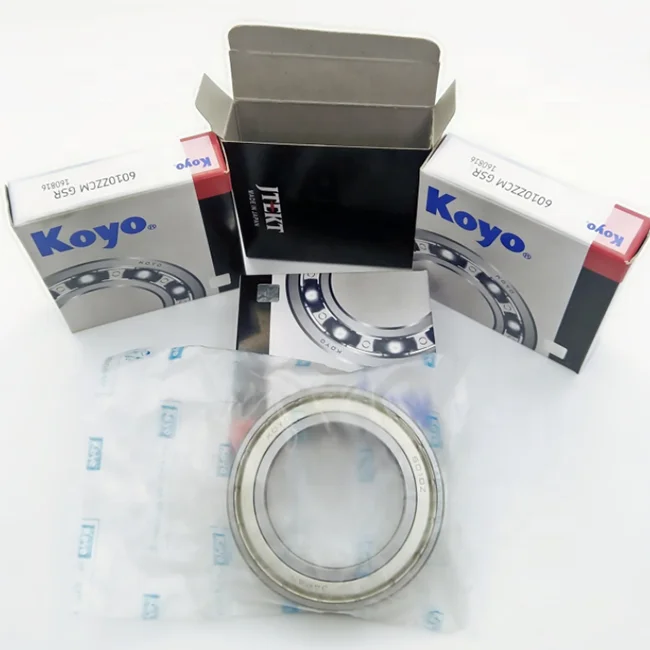

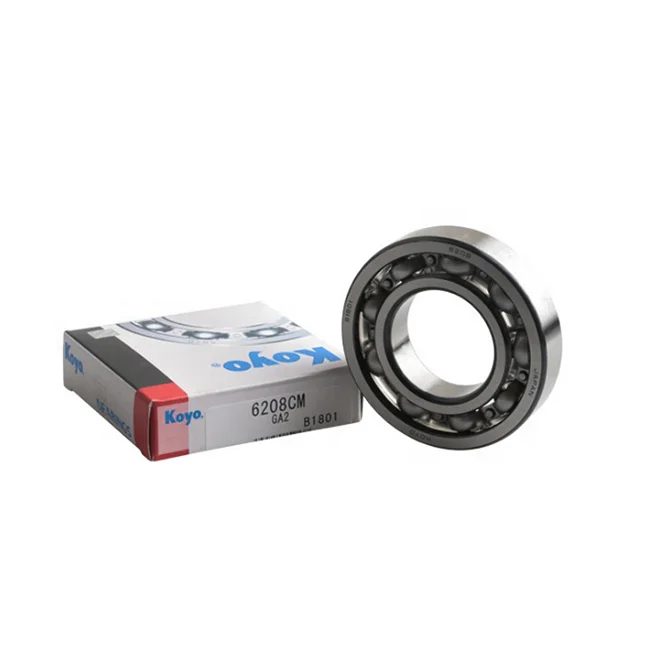

Shandong TFL famous brand 6200ZZCM 6200-2RS deep groove ball bearings for industry machine
Product Description
Original Quality 6200ZZCM 6200-2RS deep groove ball bearing in japan
Deep groove ball bearings are the most common type of rolling bearings.
The deep groove ball bearing of deep groove ball bearings is made up of an outer ring, an inner ring, a set of steel balls and a group of retaining structures. There are two types of deep groove ball bearings, single and double row, deep groove ball structure is also divided into two kinds of sealing and opening, the open type is the bearing without sealing structure, sealed type deep groove ball is divided into dust proof seal and oil proof seal. The material of the dust-proof sealing cover is steel stamping, and it only plays a simple way to prevent dust from entering the bearing raceway. The oil proof type is the contact type oil seal, which can effectively prevent the grease overflow in the bearing.
The deep groove ball bearing of deep groove ball bearings is made up of an outer ring, an inner ring, a set of steel balls and a group of retaining structures. There are two types of deep groove ball bearings, single and double row, deep groove ball structure is also divided into two kinds of sealing and opening, the open type is the bearing without sealing structure, sealed type deep groove ball is divided into dust proof seal and oil proof seal. The material of the dust-proof sealing cover is steel stamping, and it only plays a simple way to prevent dust from entering the bearing raceway. The oil proof type is the contact type oil seal, which can effectively prevent the grease overflow in the bearing.
| aring No. | I.D | O.D | W | Loading Rating(KN) | Steel Ball Parameter | Max Speed | ||||||
| d | D | B | Dynamic | Static | No. | Size | Grease | Oil | ||||
| mm | inch | mm | inch | mm | inch | Cr | Cor | mm | r/min | r/min | ||
| 6200 | 10 | 0.3937 | 30 | 1.1811 | 9 | 0.3543 | 5.10 | 2.39 | 8 | 4.763 | 25000 | 30000 |
| 6201 | 12 | 0.4724 | 32 | 1.2598 | 10 | 0.3937 | 6.10 | 2.75 | 7 | 5.953 | 22000 | 26000 |
| 6202 | 15 | 0.5906 | 35 | 1.3780 | 11 | 0.4331 | 7.75 | 3.60 | 8 | 5.953 | 19000 | 23000 |
| 6203 | 17 | 0.6693 | 40 | 1.5748 | 12 | 0.4724 | 9.60 | 4.60 | 8 | 6.747 | 18000 | 21000 |
| 6204 | 20 | 0.7874 | 47 | 1.8504 | 14 | 0.5512 | 12.80 | 6.65 | 8 | 7.938 | 16000 | 18000 |
| 6205 | 25 | 0.9843 | 52 | 2.0472 | 15 | 0.5906 | 14.00 | 7.85 | 9 | 7.938 | 13000 | 15000 |
| 6206 | 30 | 1.1811 | 62 | 2.4409 | 16 | 0.6299 | 19.50 | 11.30 | 9 | 9.525 | 11000 | 13000 |
| 6207 | 35 | 1.3780 | 72 | 2.8346 | 17 | 0.6693 | 25.70 | 15.30 | 9 | 11.112 | 9800 | 11000 |
| 6208 | 40 | 1.5748 | 80 | 3.1496 | 18 | 0.7087 | 29.10 | 17.80 | 9 | 12.000 | 8700 | 10000 |
| 6209 | 45 | 1.7717 | 85 | 3.3465 | 19 | 0.7480 | 32.50 | 20.40 | 10 | 12.000 | 7800 | 9200 |
| 6210 | 50 | 1.9685 | 90 | 3.5433 | 20 | 0.7874 | 35.00 | 23.20 | 10 | 12.700 | 7100 | 8300 |
| 6211 | 55 | 2.1654 | 100 | 3.9370 | 21 | 0.8268 | 43.50 | 29.20 | 10 | 14.288 | 6400 | 7600 |
| 6212 | 60 | 2.3622 | 110 | 4.3307 | 22 | 0.8661 | 52.50 | 36.00 | 10 | 15.081 | 6000 | 7000 |
| 6213 | 65 | 2.5591 | 120 | 4.7244 | 23 | 0.9055 | 57.50 | 40.00 | 10 | 16.669 | 5500 | 6500 |
| 6214 | 70 | 2.7559 | 125 | 4.9213 | 24 | 0.9449 | 62.00 | 44.00 | 11 | 16.462 | 5100 | 6000 |
| 6215 | 75 | 2.9528 | 130 | 5.1181 | 25 | 0.9843 | 66.00 | 49.50 | 11 | 17.462 | 4800 | 5600 |
| 6216 | 80 | 3.1496 | 140 | 5.5118 | 26 | 1.0236 | 72.50 | 53.00 | 11 | 18.256 | 4500 | 5300 |
| 6217 | 85 | 3.3465 | 150 | 5.9055 | 28 | 1.1024 | 83.50 | 64.00 | 11 | 19.844 | 4200 | 5000 |
| 6218 | 90 | 3.5433 | 160 | 6.2992 | 30 | 1.1811 | 96.00 | 71.50 | 10 | 22.225 | 4000 | 4700 |
Packaging & Shipping
Shipment
1. By FedEx /DHL /UPS /TNT /EMS door to door services.
2. By Air or by Sea for batch goods; for FCL. You'll have to pick up the goods at the airport or port.
3. Customers specifying freight forwarders or negotiable shipping methods are available.
Payment
1. Payment: 100% T/T, Western Union, PayPal or Alibaba Secure Payment in advance;
Company Information
Shandong Tefule Bearing Co.,Ltd
is a professional bearing manufacturer and dealer in china.We have been engaged in bearing industry for 10 years and made international trade of bearing import and export for more than 8 years.We have our own brand "TFL" and applied ISO9001:2000 certificate for certification authority.We attend international bearing fairs, put in many B2B website and achieve many customers all over the world also bulid up good reputation from our customers.
Our company is specialized in ball bearing,roller bearing,housing units, wheel hub bearing,bearing parts and accessories, cross roller bearing.Also we can customize various large non-standard products such as the most competitive products according to customers' demands.
About Factory
FAQ
Q: Are you trading company or manufacturer?
A: We are factory. Shandong Tefule Bearing Co.,Ltd integrates production, trade, investment and sales.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods out of stock, depends on order quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could provide free samples, but freight collect.
