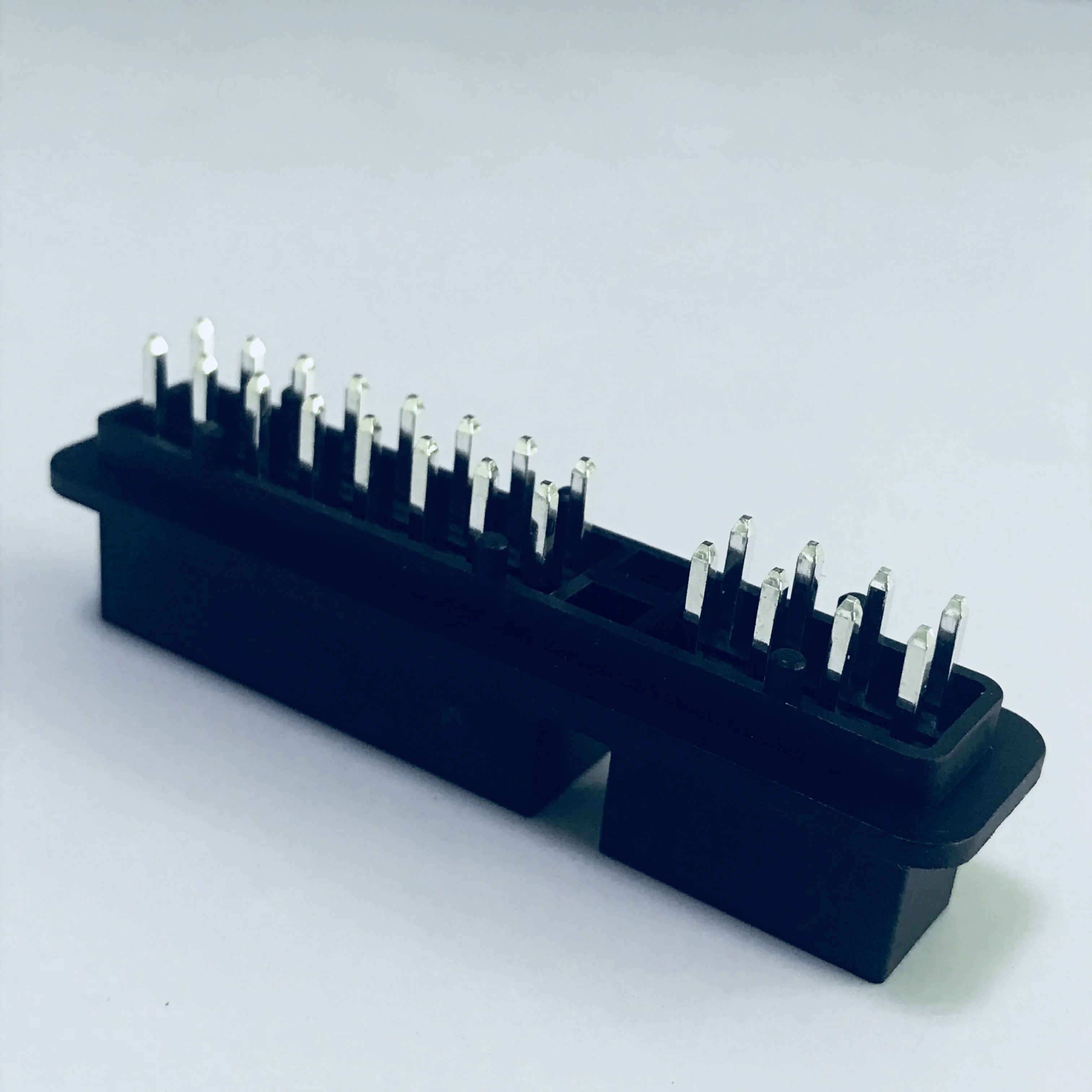

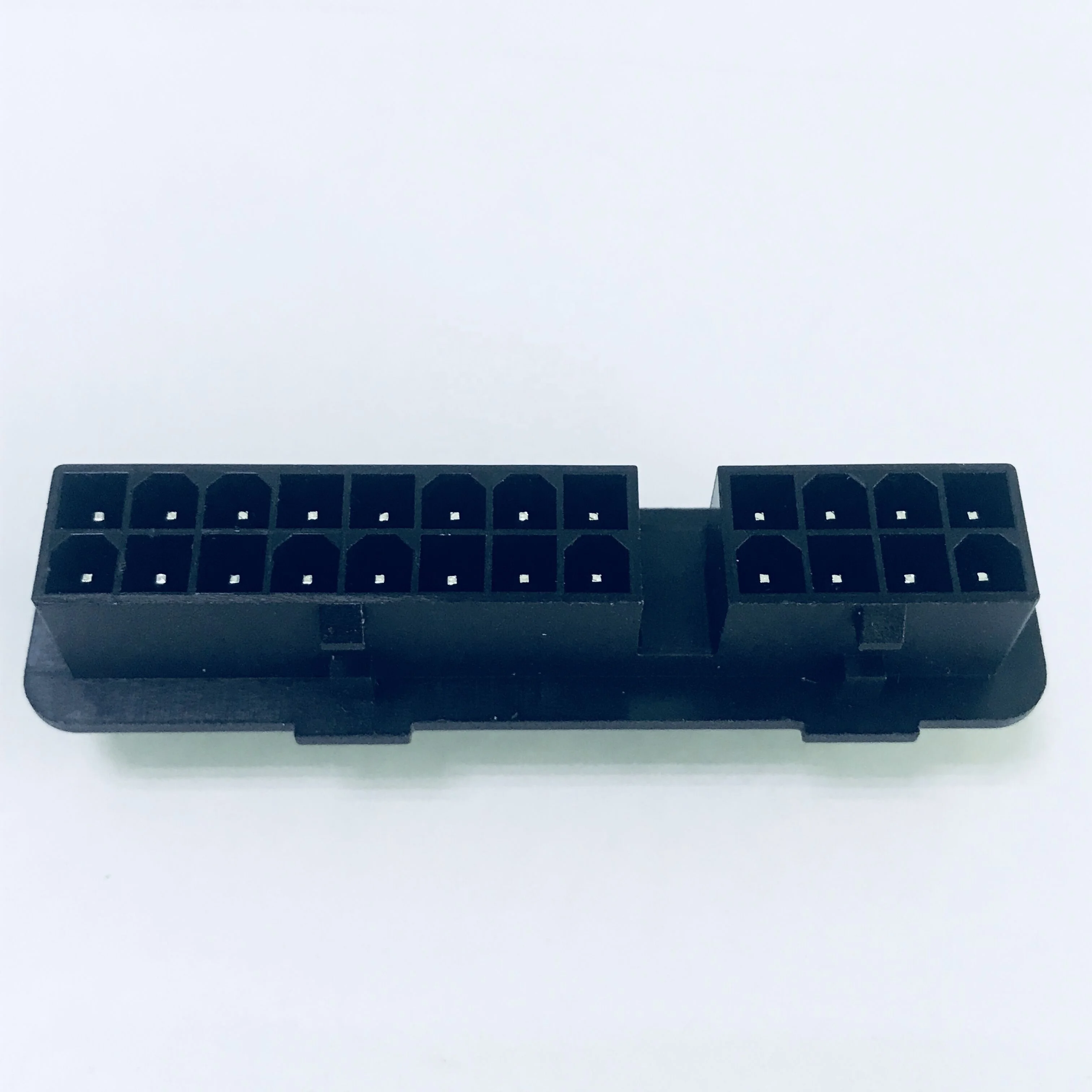

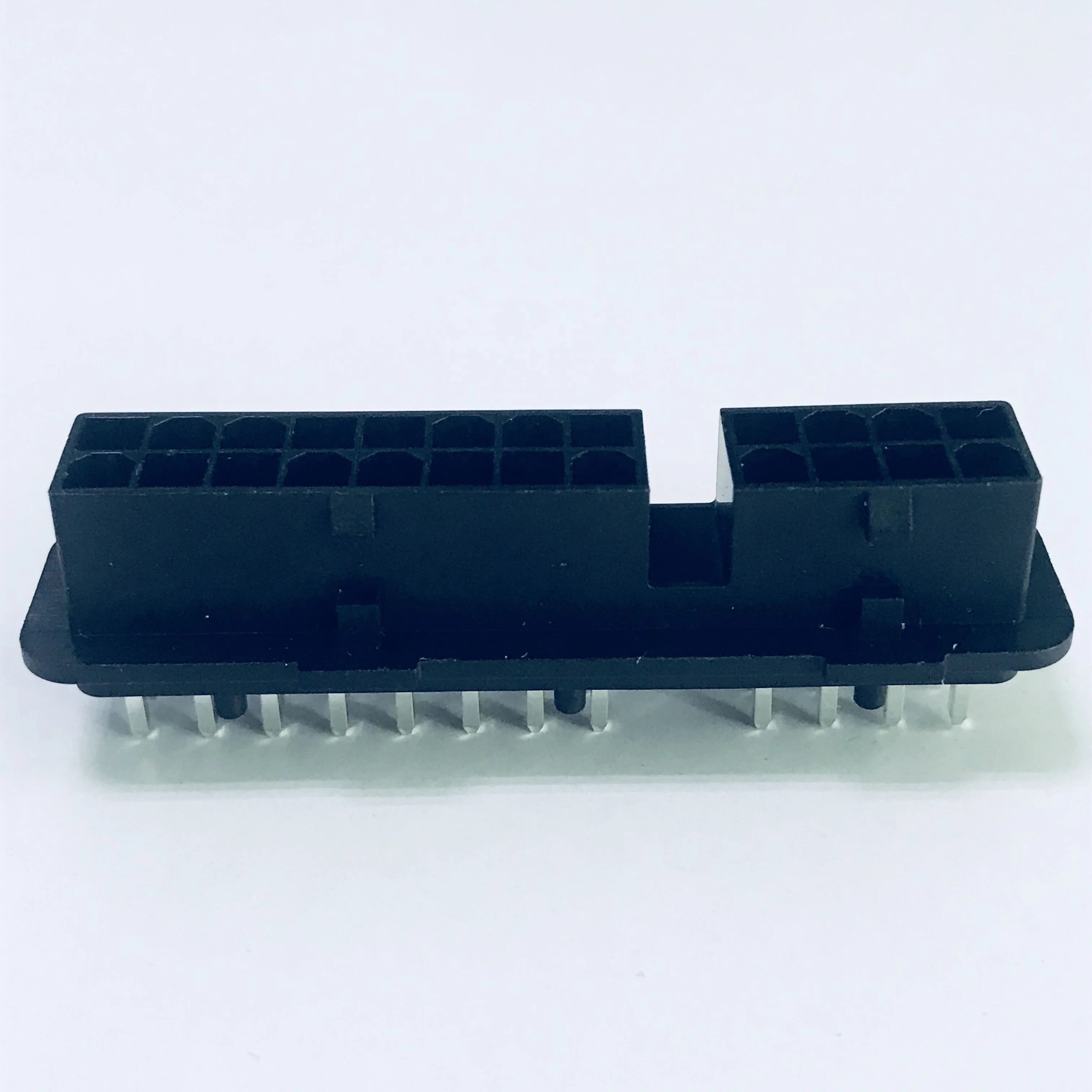

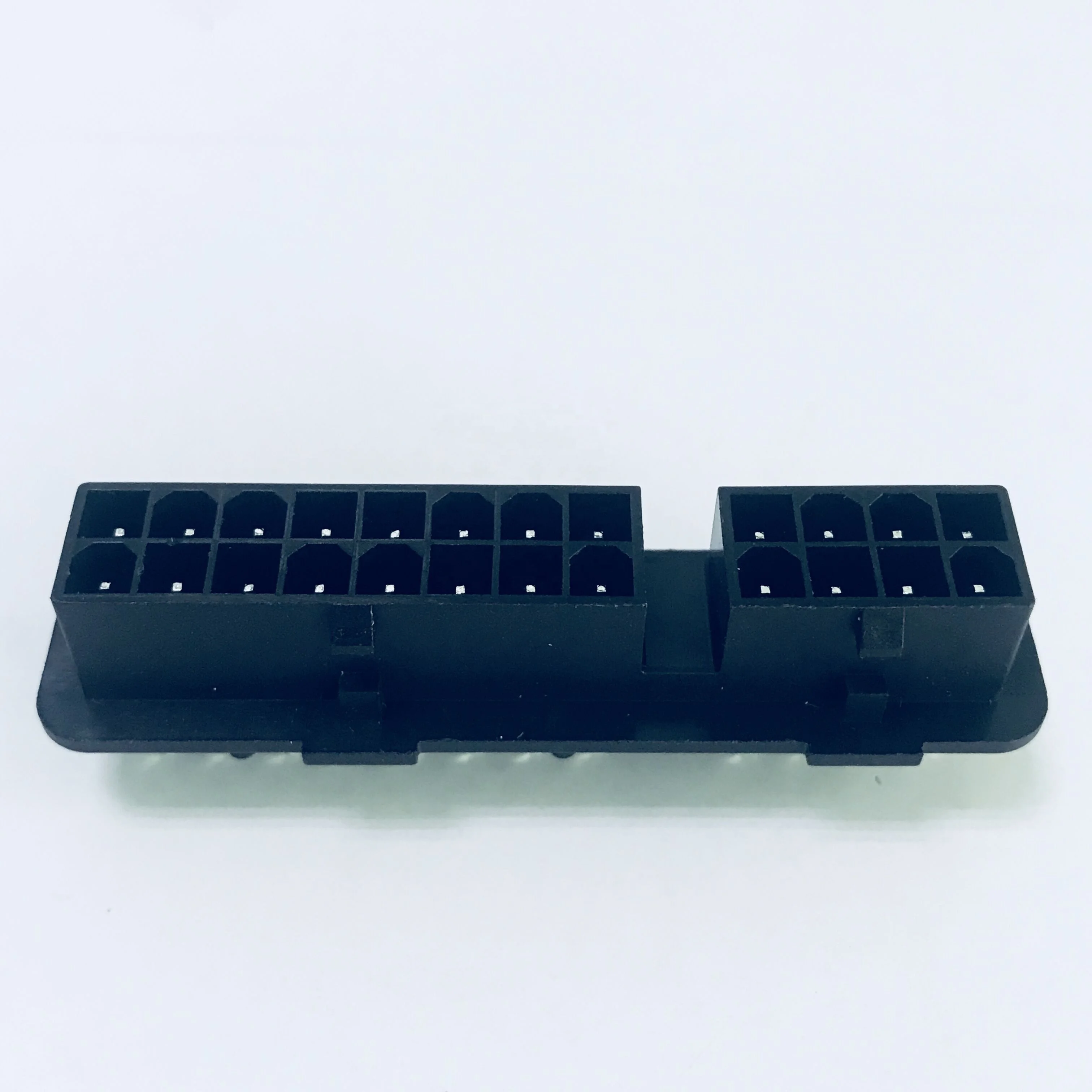

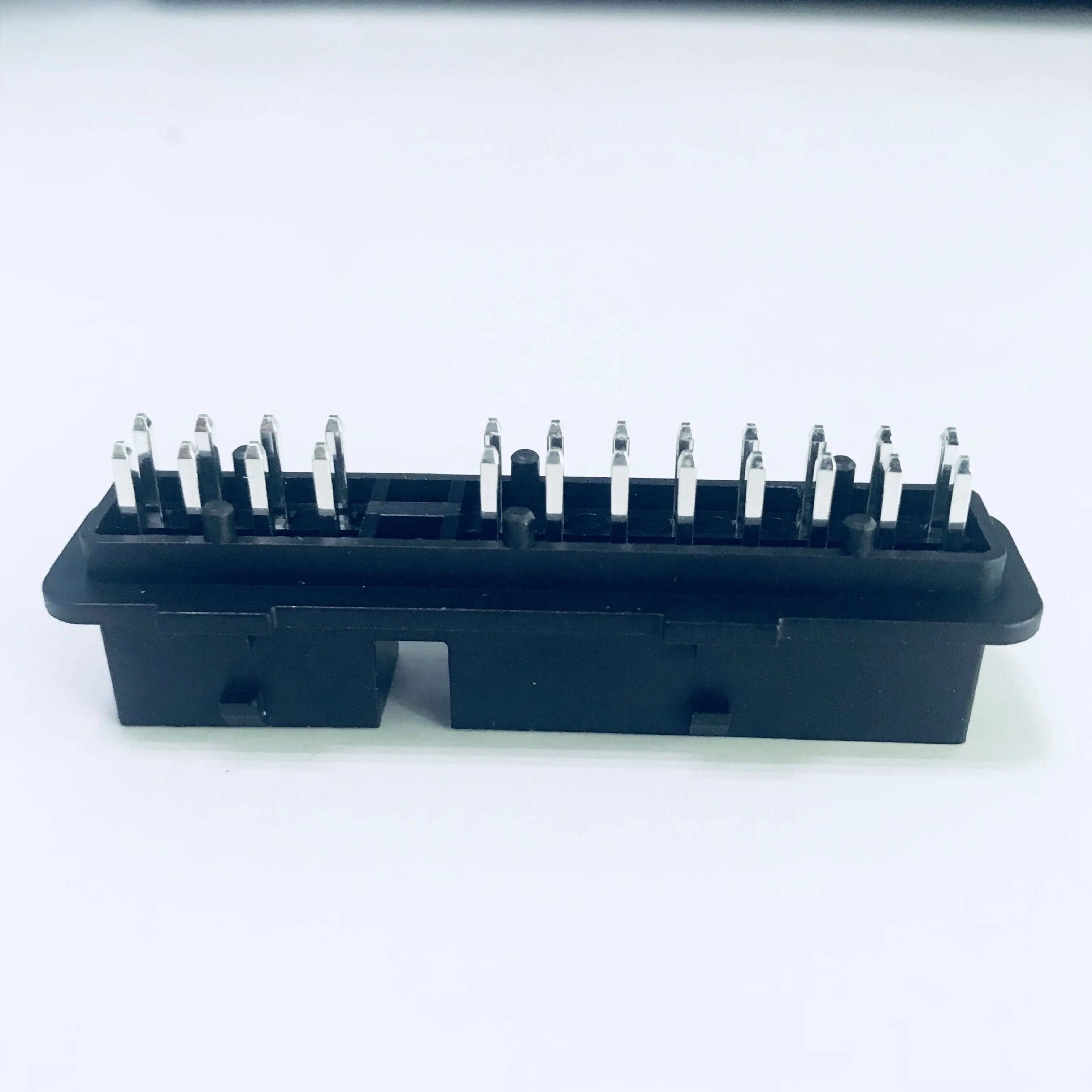

Mega Fit type Wafer ATX 4.2 Power connector Pitch 4.2mm 2*12 Pin Tin mating gold for electrombile automobile power PCB board

Product Overview

Description

Product Description



We are connector supplier in Dongguan,China,over 14 years experience,provide different types of connector,and also could customize the product based on your requirement,accept OEM/ODM,so if possible,pls just send me email about your inquiry,we will provide the most competitive price,high quality and best service,thanks!



Contact Name: Luis Lee
Trade manager : cn1524712844ipgg

Phone/QQ :86-13763135492   QQ: 760024789

E-mail : sales04 [at] cylconn.com



Key Specifications/Special Features:

Plug male Wafer ATX 4.2 Power connector Pitch 4.2mm 2*12 Pin Tin mating gold for electrombile automobile power PCB board RoHsREACH ISO9001 ISO14001,UL approved



Plug male Wafer ATX 4.2 Power connector Pitch 4.2mm 2*12 Pin Tin mating gold for electrombile automobile power PCB board

Specifications:

01. Model: WH420-212-001
02. Positions: 2x2 pins-2x50pins available
03. Plastic height:  Optional
04. Plastic width:  Optional
Length:43.8mm
05. Pitch: 4.2mm
06. Current rating: 5A
07. Insulation-resistance: 1000MΩ min
08. Dielectric withstanding voltage: 500V AC
09. Contact-resistance: 20mΩ max
10. Operating temperature: -40 to + 105°C
11. Insulation material: LCP+30%GF UL94V0
12. Contact material: copper
13. Plating: nickel+Au
14. Maximum processing temperature: 260°C
15. Insertion force: 80 to 200g
16. Withdrawal force: 70 to 200g
17. Mechanical life/durability:
18. Packing: tube, tray, plastic bag, tape and reel optional
19. Carton size: customized
20. Carton quantity: customized
21. Carton weight: customized
22. Free sample available
23. 100% tested before shipment
24. Payment terms: T/T, Western Union, L/C, MoneyGram, PayPal, cash
25. Shipping ways: FedEx, DHL, UPS, TNT, air, sea
26. Delivery lead-time: within 5-30 days, depends on order quantity
27. We are professional manufacturer majoring in the board to board connectors, wire to board connector, pin header, female header, box header, ejector header, wafer, FFC, 000FPC, D-sub, USB, RJ45, SD card, SIM card, IC socket, terminal block, jumper cap, 000 cables
28. OEM/ODM/customized products are welcome
29. If any questions, feel free to contact us

30. For drawings, send an inquiry to Luis Li 's Email: sales04[at]cylconn.com
