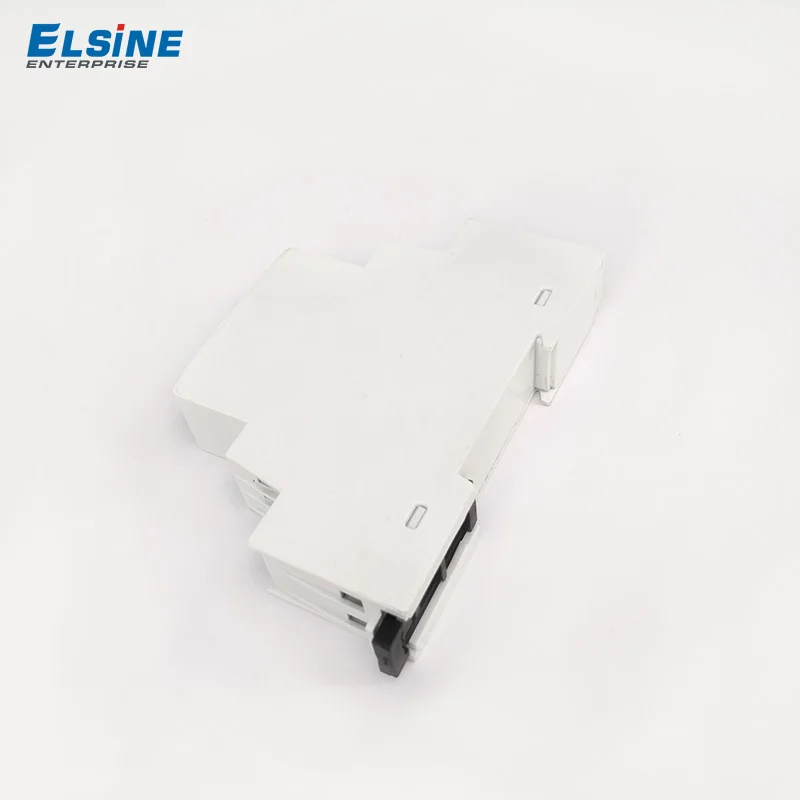

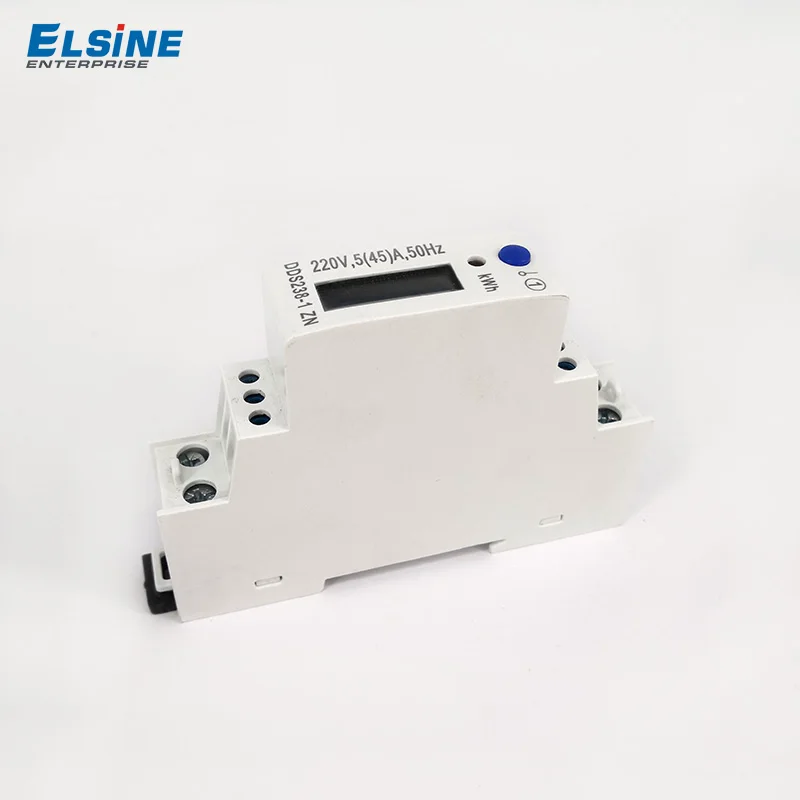

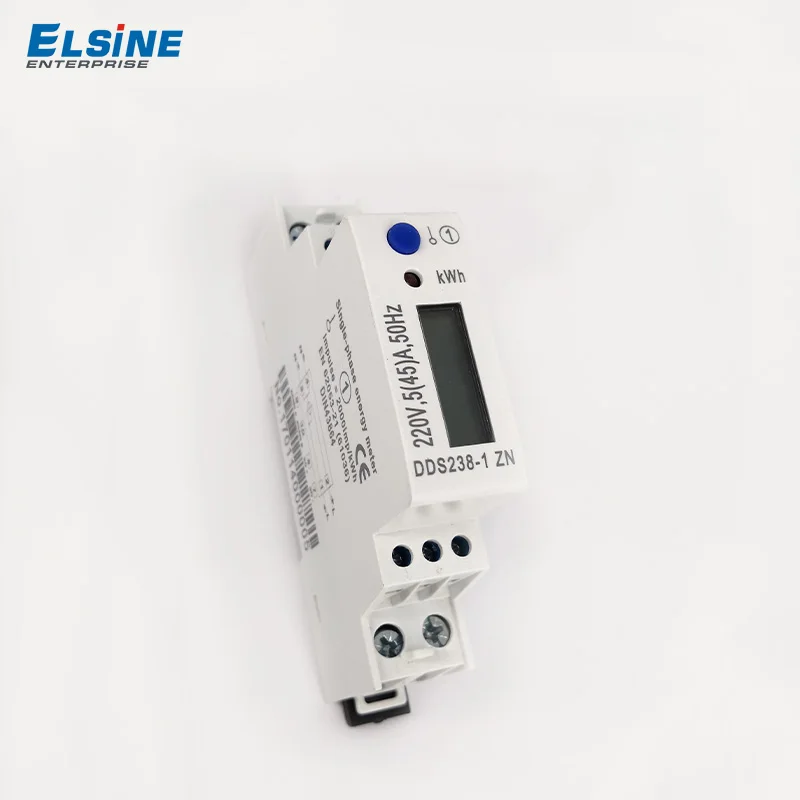

RS485 single phase 2 wire of electric energy meter DDS238-1 ZN
Application
Application
The meter is designed to measure single phase two wire AC active energy like residential , utility and industrial application. It has remote read communication port RS485 . It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .
Product features
Basic Function
- LCD display with backlight
- Bi-directional total active energy ,reverse active energy measure in the total active energy
- The meter also display real voltage , real current , real power , real power factor , real frequency ,import active energy , export active energy
- keypad for LCD display step by step
- reset energy function (the reset energy kWh display is dependent with the total energy display, this reset will not affect the total energy )
- RS485 communication port , MODBUS-RTU protocol
- Pulse LED indicates working of meter,Pulse output with optical coupling isolation
- Energy data can store in memory chip more than 15 years after power off
- 35mm din rail installation
Optional Function
- Other function also can be special design as customer requirement
other voltage , current are also available
Specifications
Technical Data
Rate voltage | 110V,120V,220V,230,240V |
Working voltage range | 0.8~1.2Un |
Rate Current | 5(40)A,5(45) |
Frequency | 50Hz or 60Hz +10% |
Connection mode | Direct type |
Display | LCD |
Accuracy class | 1.0 |
Power consumption | <1W/10VA |
Start current | 0.004Ib |
AC voltage withstand | 4000V/25mA for 60 sec |
Impulse Voltage | 6kV 1.2μs waveform |
Over current withstand | 30Imax for 0.01s |
IP grade | IP20 |
Constant | 2000 imp/kWh |
Pulse output | Passive pulse, pulse width is 80+5 ms 5~27VDC , Max current input 27mA DC |
Communication port | RS485 port , baud rate 1200~9600 bps ,default is 9600bps ,address 1~247,None parity , stop bits 1 , data bits 8 . |
Executive standard | DIN 43880,IEC62053-21,IEC62052-11,MODBUS-RTU |
Outline dimension LXMXH | 119x18x62mm(long terminal cover) |
Weight | Approx 0.09kg |
Accuracy
Voltage | 0.5% |
Current | 0.5% |
Frequency | 0.5% |
Power Factor | 1% |
Active power | ±1% |
Reactive Power | ±2% |
Active Energy (kWh) | Class 1.0 |
Environment
Operating temperature | -25℃~55℃ |
Storage temperature | -40℃~80℃ |
Reference temperature | 23℃+2℃ |
Relative humidity | 0 to 95% , non-condensing |
Altitude | Up to 2500m |
Warm up time | 10s |
Mechanical Environment | M1 |
Electromagnetic Environment | E2 |
Degree of pollution | 2 |
Packing
Carton size(cm) : 51.5*22*15.5
Quantity : 100PCS/CTN
G.W : 11KG
N.W : 9KG
Product details

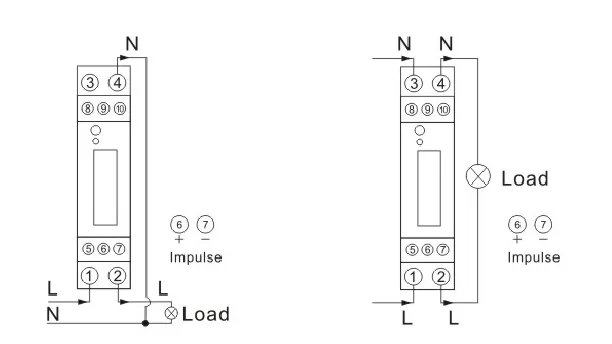

Wire connection

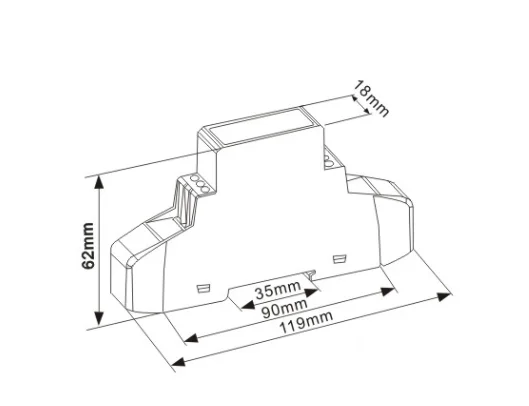

Outline dimension
