Новый тип высокоскоростной интеллектуальной вязальной машины для перчаток 15 г

Product Overview

Description



Main character:

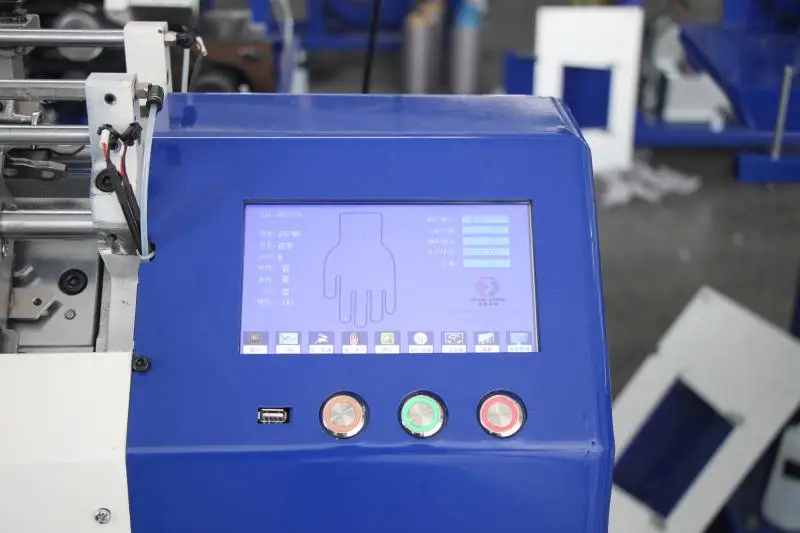

1.   Adopt CORTEXT-M4-32 bits Micro controller , full control machine running , to reduce machines’ fault rate . Operation panel with 7 inch Blue-Ray LCD touch , USB copy output , simple and convenient .

2. The lightweight ultra-small and ultra-thin machine head can reduce the operating load, reduce the inertia impact, thus achieving high-speed rotation, high-speed operation, saving power consumption of more than 30%

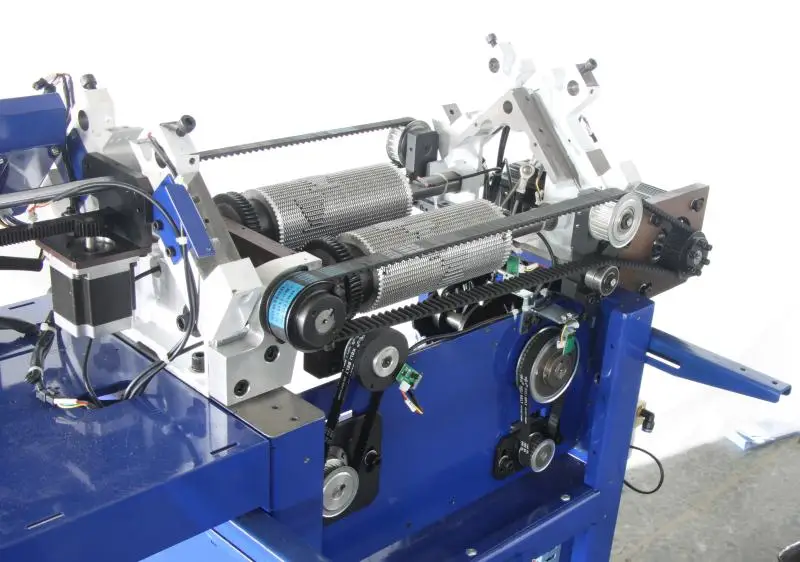

3. Servo motor with belt drive , change the machine head itinerary , efficient and stable ,improve more than 30% output .

4. All sizes knitting , stepping advancing motor to control sub-finger system , 1 key to control stitch holder ,cutter press location , change glove size freely .

5. Stepping advancing motor density system to realize every line every part different knitting density ,rich knitting technology.

6. Stepping advancing motor cutter control system ,hook yarn ,cut yarn and put yarn in any place .

7. Needle selection drum use screw linkage , to make sure front and back needle position ,to reduce maintenance rate .

8. Stepping motor elastic yarn giving yarn system, computer control wrist size ,giving yarn average .

9. Intelligent oil supply system , lubricate frication position anytime .

10. Broken fingers reweave knitting system , reduce materials loss .

10G

Main Technology ParametersExample Of 15G

Gauge	15G
Output/Set	200 pairs/day
Control Sets	40-60/Set/person
Voltage, power	220V 140W
Dimension	1000×600×1700mmL×W×H
Weight	160 KGS
