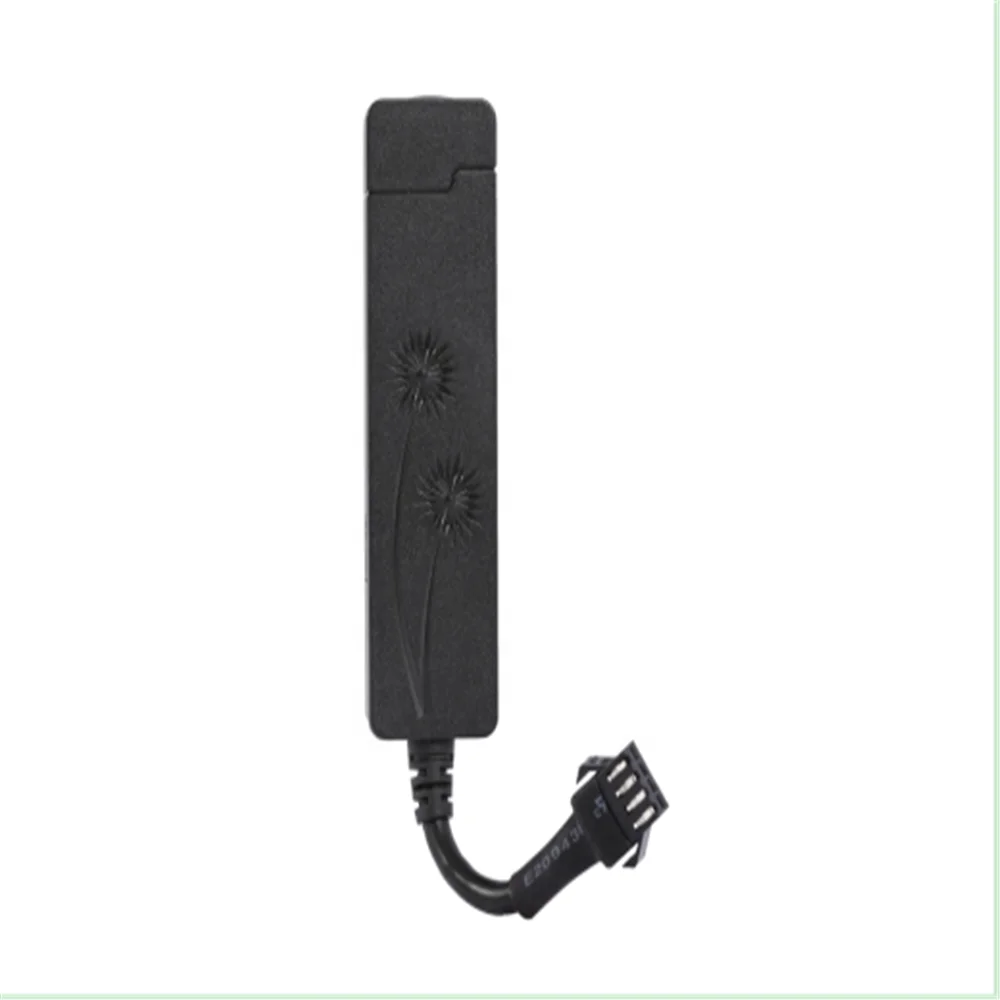

Small size GPS Vehicle Tracker KM 02
- Category: GPS Tracker >>>
- Supplier: High Cloud Electroics S&T Co. Ltd.
Share on (60816824366):
Product Overview
Description
1. Products Components and Port Definition
1.1 Product Introduction
Name | GPS Vehicle Tracker |
Type | KM-02 |
Size | 83*23*12.5mm |
KM-02 Vehicle GPS Tracker is a practical and easy-to-use GPS tracker with small size and accurate location specially designed for vehicle tracking. It combines GPS+LBS communication technology. With EPO technology, this device can easily achieve extreme fast positioning.
1.2 Product Configuration List
No | Name | Quantity | Unit | Remark |
1 | KM-02 host | 1 | Pcs |
|
2 | User manual; Warranty card; Certificate of approval | 1 | Pcs |
|
3 | Package box | 1 | Pcs |
|
4 | Power cable (4PIN) | 1 | pcs | With fuse |
2. Specifications and functions
2.1 Specifications
Item | Specifications |
Working Voltage | DC 9V - 90 V (wide voltage range) |
Material | Plastic |
Working Current | 25mA @12V(static current10mA) |
Standby Battery | 0.5 hours (3.7V/50mAH) |
Size | 83*23*12.5mm |
Location Accuracy | <10 meter |
Communication | GPS |
Working Temperature | -25℃+75℃ |
Storage Temperature | -40℃+85℃ |
GPS chip | MTK |
Communication Network | GPRS GSM:850/900/1800/1900 MHz |
Net Weight | 25g |
Gross weight | 140g |
Communication ways | TCP |
Warranty | 1 years |
OEM&ODM Service | Provided |
2.2 Functions
Functions | Function details | Description |
Tracking | Real time tracking | According to the stetted time update the Long and Lat information. |
Vehicle status detection | Car ACC on/off status. | Every time when the device uploaded data will include the ACC on/off status. |
Power down alarm | When device checking the voltage is lower than 10V it will have alarm | |
Over speed Alarm | When speed is over than the set speed, device will send message to user. | |
Oil checking | Cut off /open oil engine remotely through server and message | |
Geo-fence | You can use the mouse to draw a circle on the platform to set the Geo-fence, if the car drive over that circle, the device will send the message to the server to remind you. | |
Other functions | Blind area uploading data | Storage for almost 600pcs and it will upload the date when the signal is regular |
EPO located for assistance | Enhanced positioning effect | |
Inflexion upload | When the angle that vehicle turned is more than a normal scale it will send a message to optimize the playback | |
Remote upgrading | With a software | |
Low power consumption | Static mode | When sensing the car is moving it will change to motor pattern, when the car is stopping more than 5 minutes it will change to static mode and close the GPS module, it will change to motor pattern automatically when it feels moving. |
