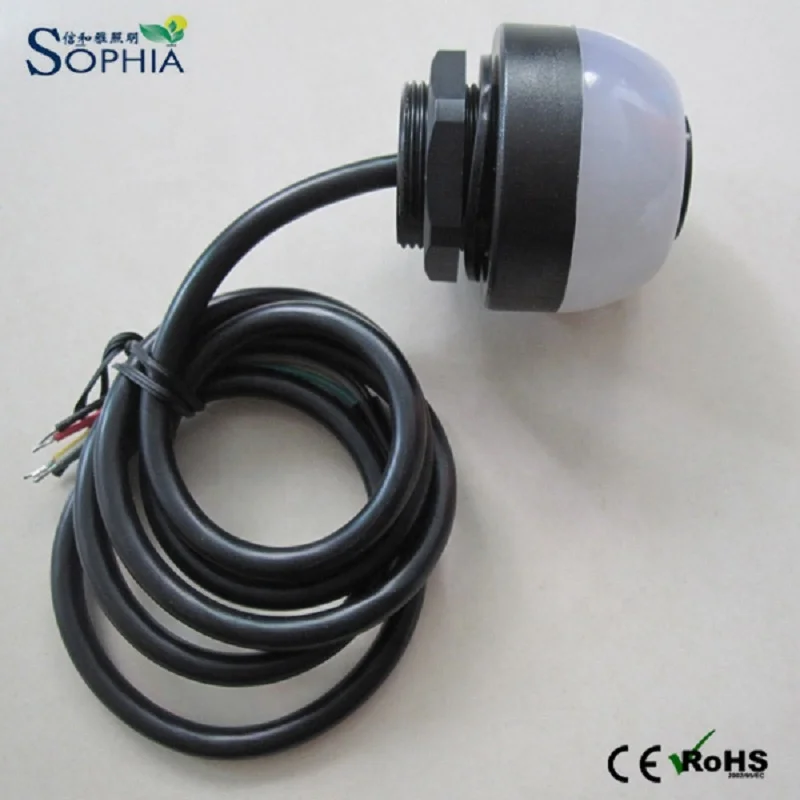

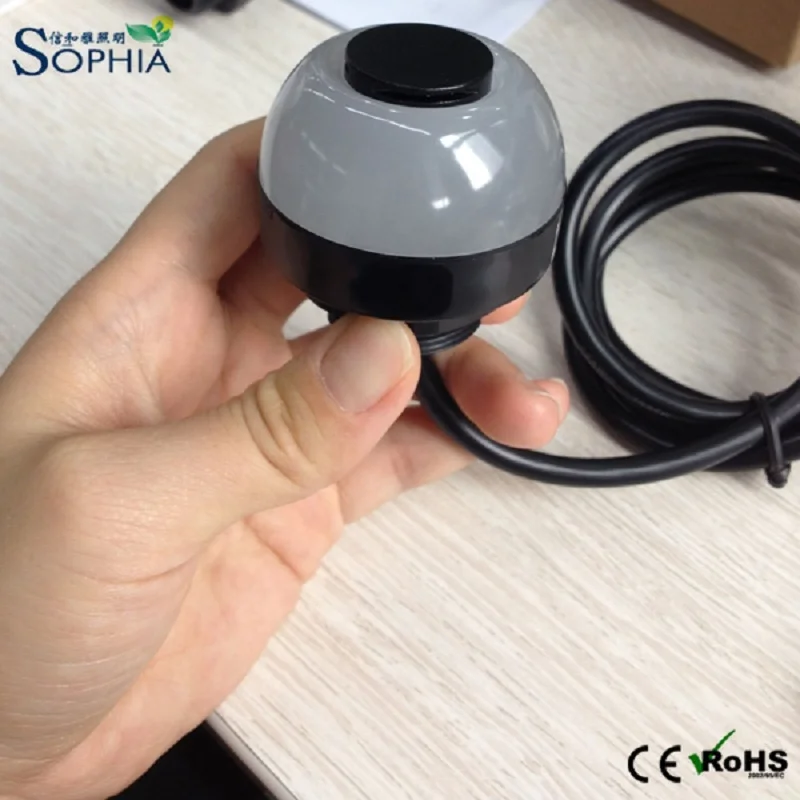

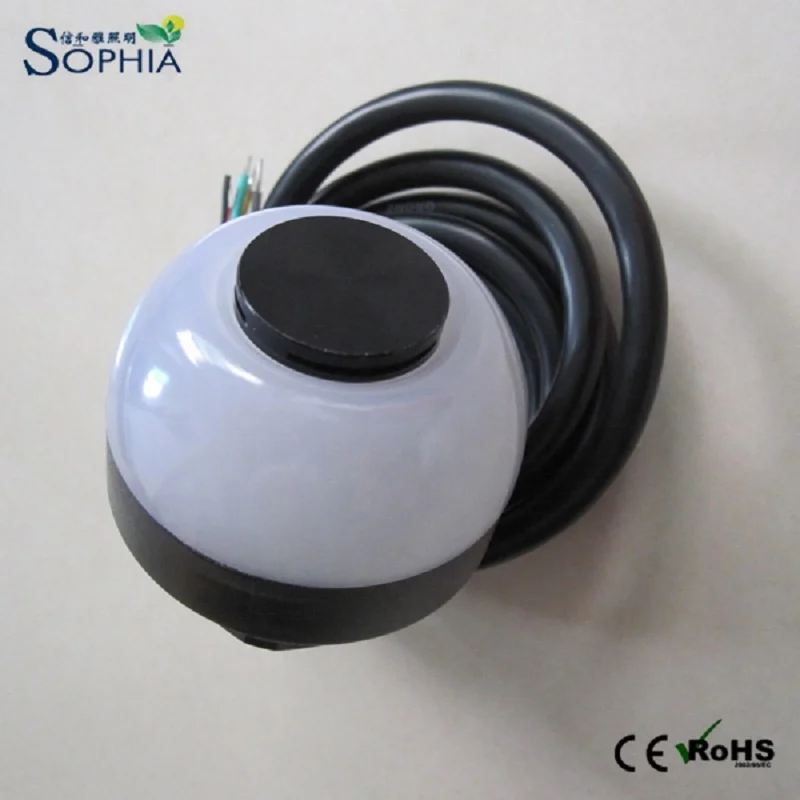

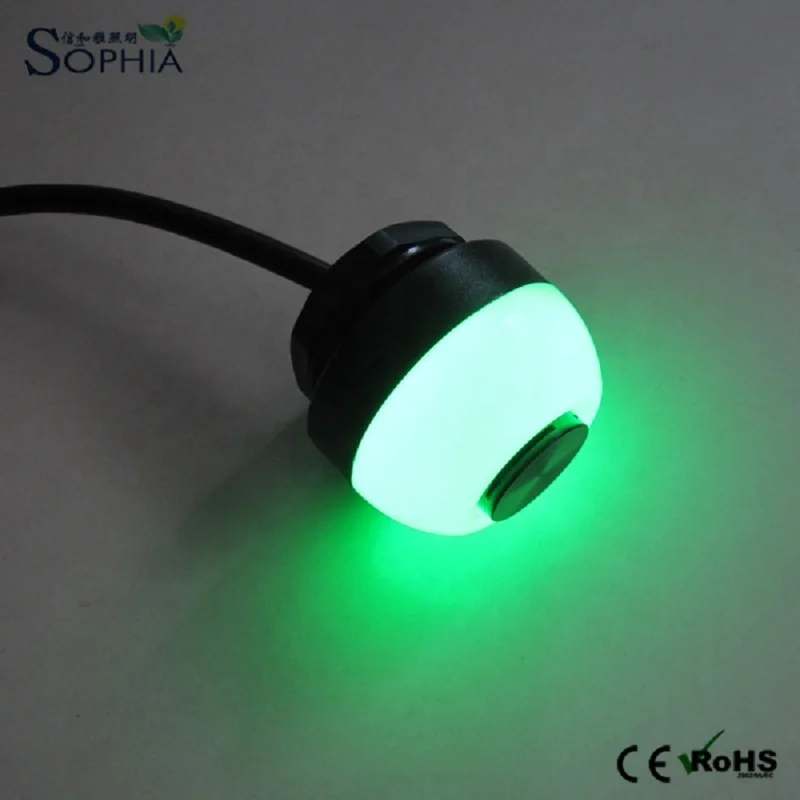

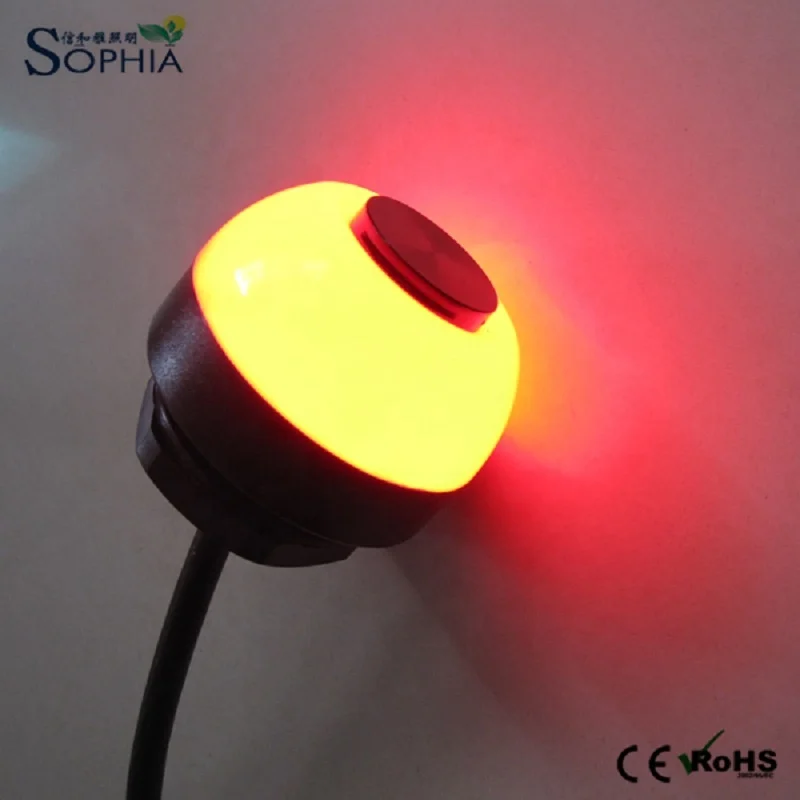

Sophia 50mm led dome indicator light with siren
- Category: >>>
- Supplier: Shenzhen Sophia Lighting Co. Ltd.
Share on (60816890706):
Product Overview
Description
Sophia 50mm diameter 12V/ 24 V/100-240V led signal beacon light, dome indicator light with buzzer, for Automation, CNC, Pharmacy, Packing machines, logisitic, warehouse management system etc
M30x1.5 thread with Nut, Gasket for direct mount

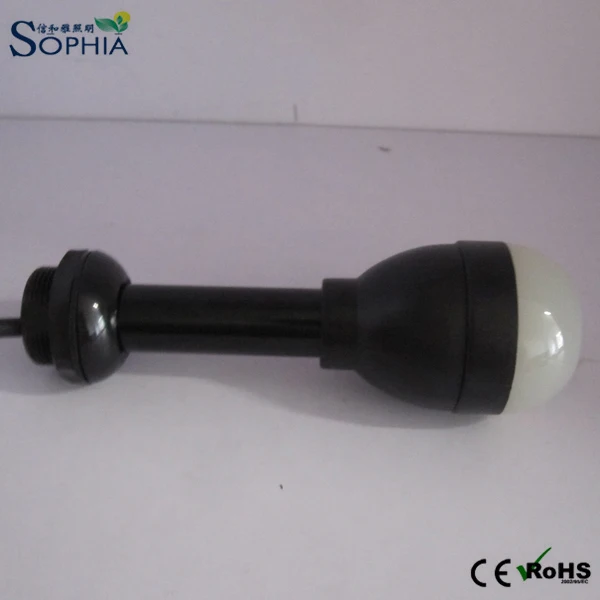

The indicator can also fixed on Sophia aluminum pole, foldable base & fixed base
Off Light
Item No.: RL50-Buzzer Series
Power: Less 5W;
Input: DC12V/24V/100-240V(External PSU);
Maximum current for each color: 12V,80mA, 24V 40mA;
Buzzer: Yes;
Color: Red/Orange/Yellow/Green/Blue/White(optional);
Performance:a On steay, b Flash,
Mounting: Direct install/aluminum pole/base/metal bracket(Optioanl);
Dimension:Ø50x H52mm ;
IP rating: IP53;
Approval: CE, RoHS, FCC;
Warranty: Two years
RL50-Buzzer series | |
Standard voltage | 12V dc(10% fluctuation), 24V dc(10% fluctuation) |
Maximum current(LED color) | 160mA@12V dc; 80mA @24V dc |
Maximum current(Buzzer) | 15mA(Optional) |
Color options | Four: Red, Yellow, Green or Blue. Each color control separately, and can combine randomly |
Polarity | No |
Response time(on/off) | <10 ms |
Body color | Black |
Lens color | Milk color |
Siren | standard buzzer |
Audible intensity | 95db at 1m |
Audible alarm type | Continuous or intermittent(optional) |
Connection | Integral QD or 30cm cables(5 pins or 7 pins) |
Working temperature (℃) | -40℃~50℃(no buzzer); -20℃~50℃(with buzzer) |
Max Op. Relative Humidity | 95% at 50℃ |
IP rating | IP53(with buzzer) |
Dimension | 50mmx51mm(ODxH) |
Mounting thread | M30x1.5mm |
Material | ABS and Polycarbonate |
Approval | CE FCC |
Feature | The smooth 50 mm diameter dome gives uniform illumination from all directions. These indicators are completely epoxy encapsulated, which protects the electronics from the harshest environments, making them nearly indestructible. The neutral color when in the off condition eliminates false indication from surrounding ambient light. Up to five colors in one device with many different color combinations Long-lasting, energy-efficient LEDs for years of operation with zero maintenance. Up to IP69K to handle high-pressure washdown environments. External threads allowing for a variety of mounting methods. |
More Similar Products:

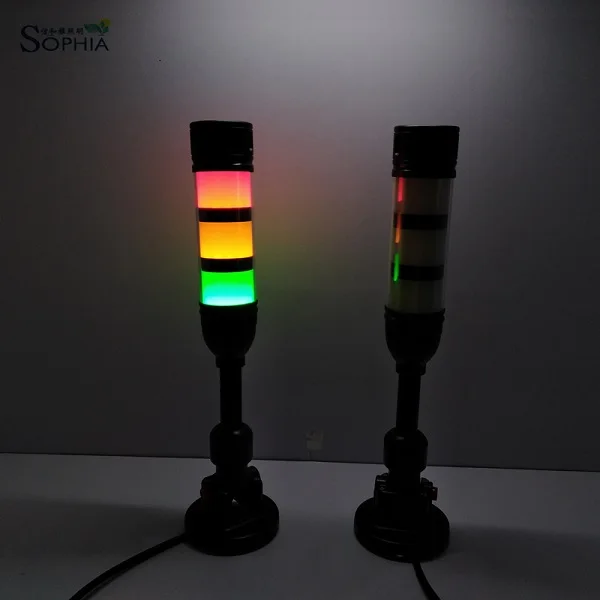

TL50 Signal light

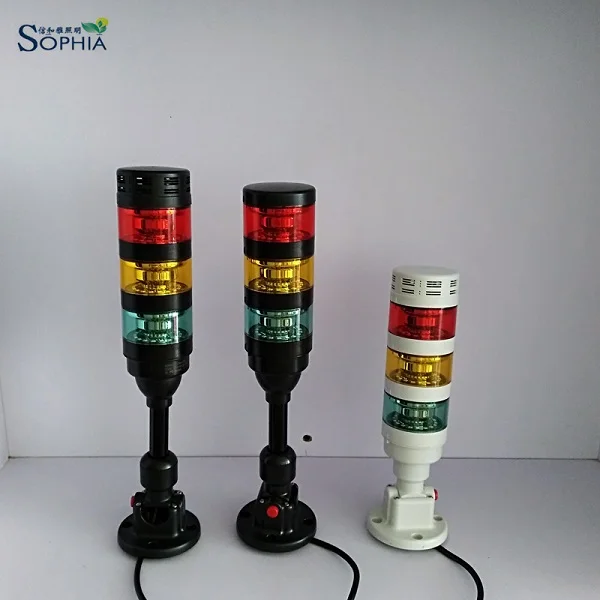

TL70 LED tower light
Linear Machine Work Light, IP67

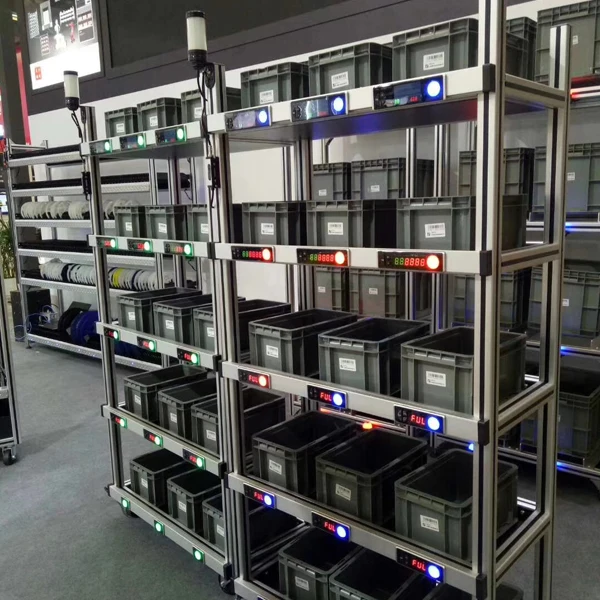

Pick To Light
Our Services
Shenzhen Sophia Lighting principle is Quality comes firstly, Speed secondly.
Our LED tower lights, Pick To Light, machine work lights etc are designed by our excellent engineers.
We are concentrates on provide quality and reliable products, try to save time, money, efforts for our valued partners and customers.
Company Information
Shenzhen Sophia lighting Co.,Ltd was founded in 2009, which specializes in researching, developing, producing and exporting first class professional lightings. Our products are produced with CE & RoHS compliance which include led signal tower light, machine light, indicator light, drag chain etc.
Our LED signal tower light can make maximum eight stacks, diameter from 25mm to 100mm.

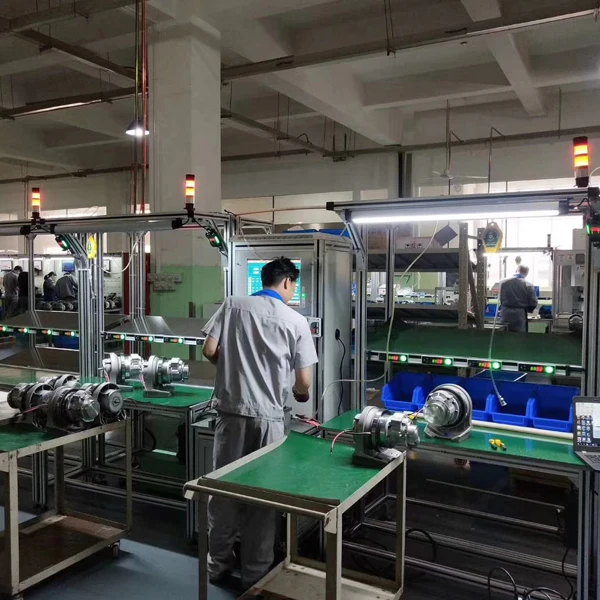

Our IP69K indicator light are widely used in automatic workshop, customer include Benz, Das- Auto etc. We are the very few manuacturers in China produce the Pick to Light.
