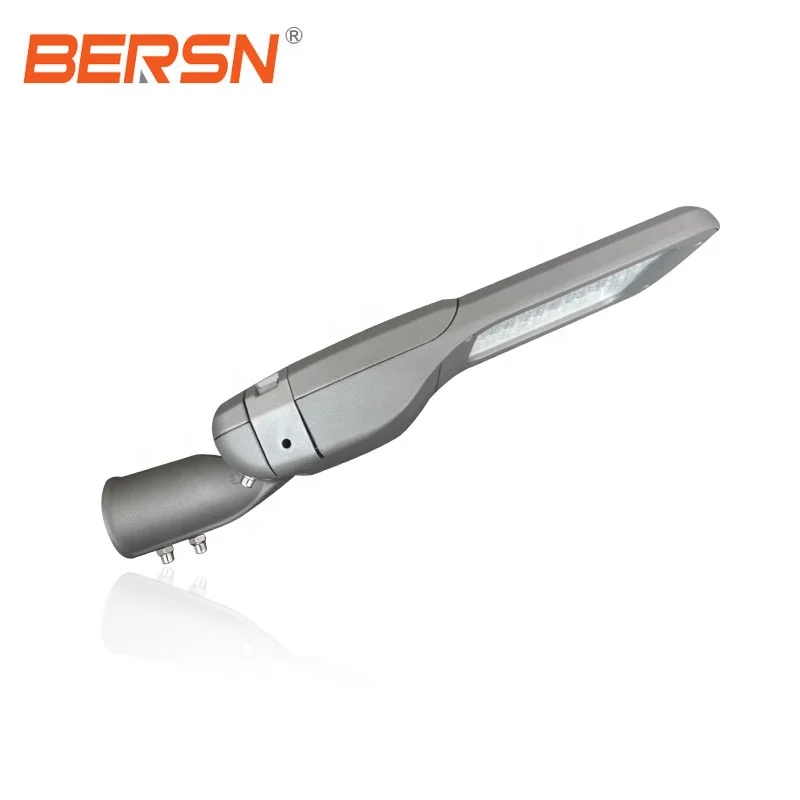

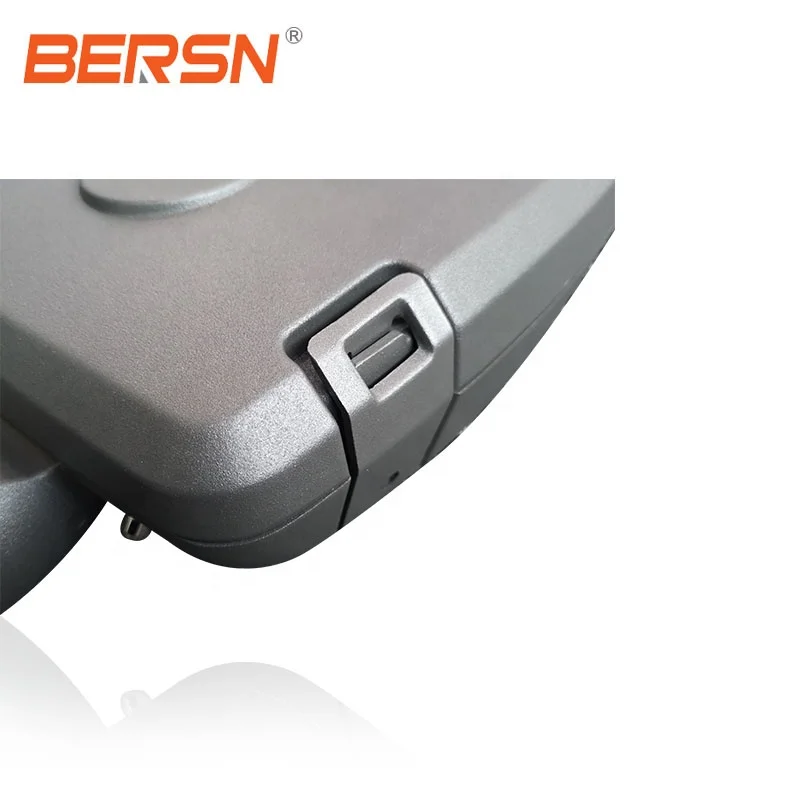

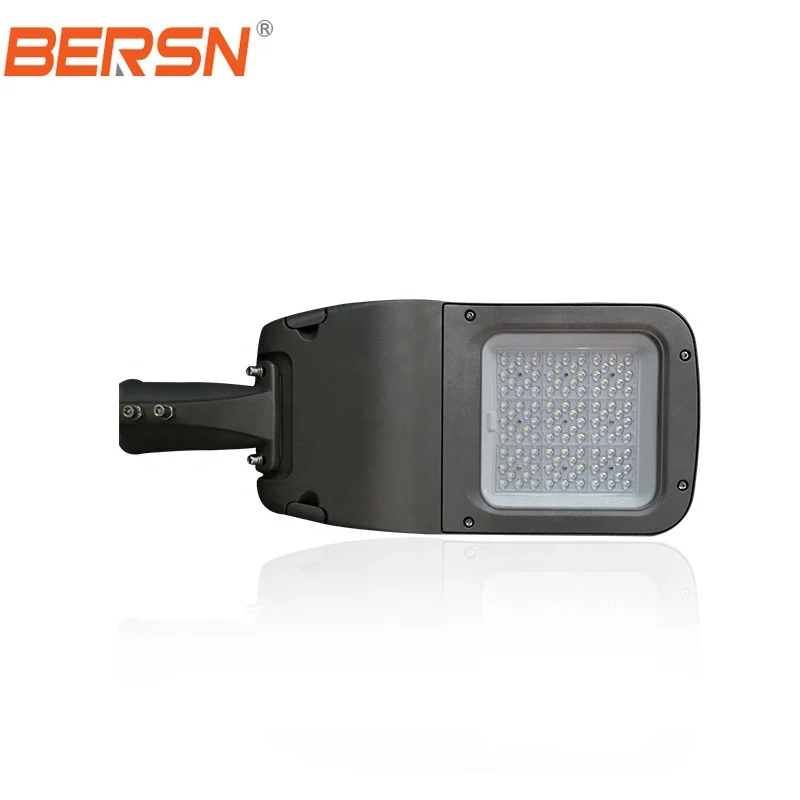

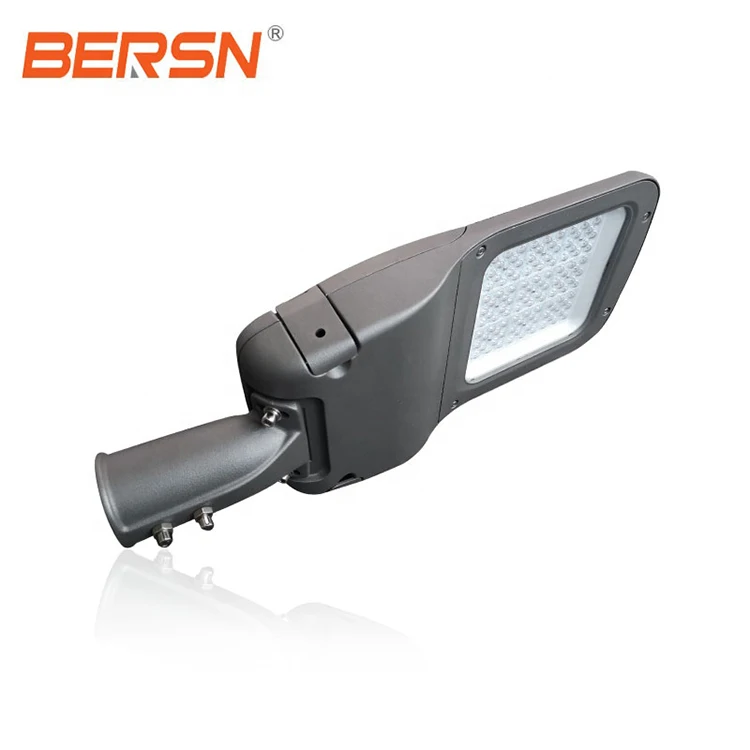

Customized Professional led lamps wholesale china led 150w street lights 50w 40w
- Category: >>>
- Supplier: Shenzhen Bersn Opto-Electronics Co. Ltd.
Share on (60816913208):
Product Overview
Description
| Model | Power | Luminous Efficacy | Luminous Flux | CCT | CRI | N.W | G.W | Lamp Size | Life Time | Input Voltage |
| 120 lm/W | >120lm/W | 4000K | 50,000hrs | AC220~240V | ||||||
| BS-FT40 | 40W | 5000 lm | (3000-6500K) | >70 | 3.9 kg | 4.9 kg | 583x244x120mm | AC100-277V | ||
| BS-FT60 | 60W | 7200 lm | Available | >70 | 3.9 kg | 4.9 kg | 583x244x120mm | |||
| BS-FT80 | 80W | 10000 lm | >70 | 5.2 kg | 6.5 kg | 688x270x120mm | ||||
| BS-FT100 | 100W | 12000 lm | >70 | 5.2 kg | 6.5 kg | 688x270x120mm | ||||
| BS-FT120 | 120W | 13200 lm | >70 | 5.2 kg | 6.5 kg | 688x270x120mm | ||||
| 130 lm/W | >130lm/W | |||||||||
| BS-FT20H | 20W | 2600 lm | >70 | 3.9 kg | 4.9 kg | 583x244x120mm | ||||
| BS-FT40H | 40W | 5200 lm | >70 | 3.9 kg | 4.9 kg | 583x244x120mm | ||||
| BS-FT60H | 60W | 7800 lm | >70 | 3.9 kg | 4.9 kg | 583x244x120mm | ||||
| BS-FT80H | 80W | 10400 lm | >70 | 5.2 kg | 6.5 kg | 688x270x120mm | ||||
| BS-FT100H | 100W | 13000 lm | >70 | 5.2 kg | 6.5 kg | 688x270x120mm | ||||
| BS-FT120H | 120W | 15600 lm | >70 | 5.2 kg | 6.5 kg | 688x270x120mm |
| Power Consumption | 20w-120w | |
| Light source | LUXEON 3030 | |
| LUXEON 5050 | ||
| Correlated Color Temperature | 4000K (3000 ~ 6500K available) | |
| Luminous Flux * | 2600--15600 lm | |
| Luminous Efficacy * | 120lm/W 130 lm/W | |
| LED Driving Current * | 700 mA--2.2A | |
| Color Rendering Index | >70 Ra | |
| Light Distribution | Type II/III-S | |
| LED Chip Manufacturer | LUMILEDS | |
| Nominal Input Voltage | 220 ~ 240 Vac 100-277 Vac | |
| Operation Voltage | AC | 165~275Vac |
| Power Factor | ≥0.95 at Max load | |
| Frequency | 50 / 60 Hz | |
| Surge Protection | Line-Line 4KV, Line-FG 6KV 120lm/W | |
| Line-Line 6KV, Line-FG 8KV 130lm/W | ||
| Driver Type | Xi FP 20-120W 0.3-1.0A/CC | |
| Driver Brand | PHILIPS | |

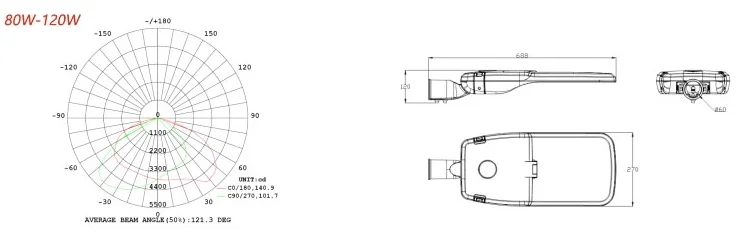

| Size ( L x W x H ) | Lamp/Ctn | 583*244*120(mm)/640*290*155(mm) 20-80W |
| 688*270*120(mm)/640*320*155(mm) 100-120W | ||
| Weight (Driver included) | 10.5 Kg/11.5 Kg | |
| Body | Pressure Die-cast Aluminium | |
| Material | Optic | Lens |
| Cover | Tempered Glass | |
| Finish | Powder Coating | |

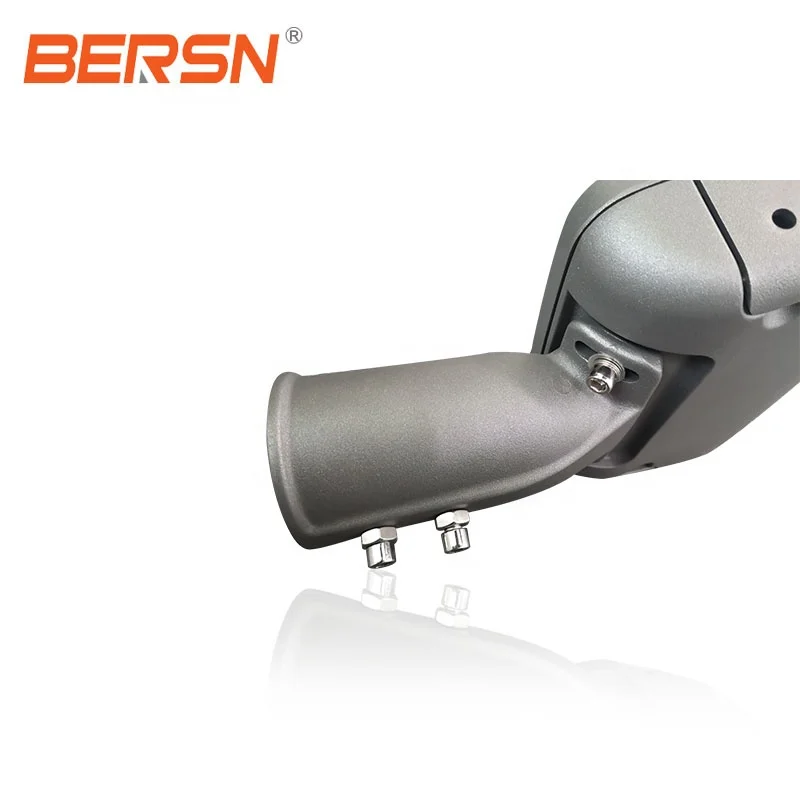

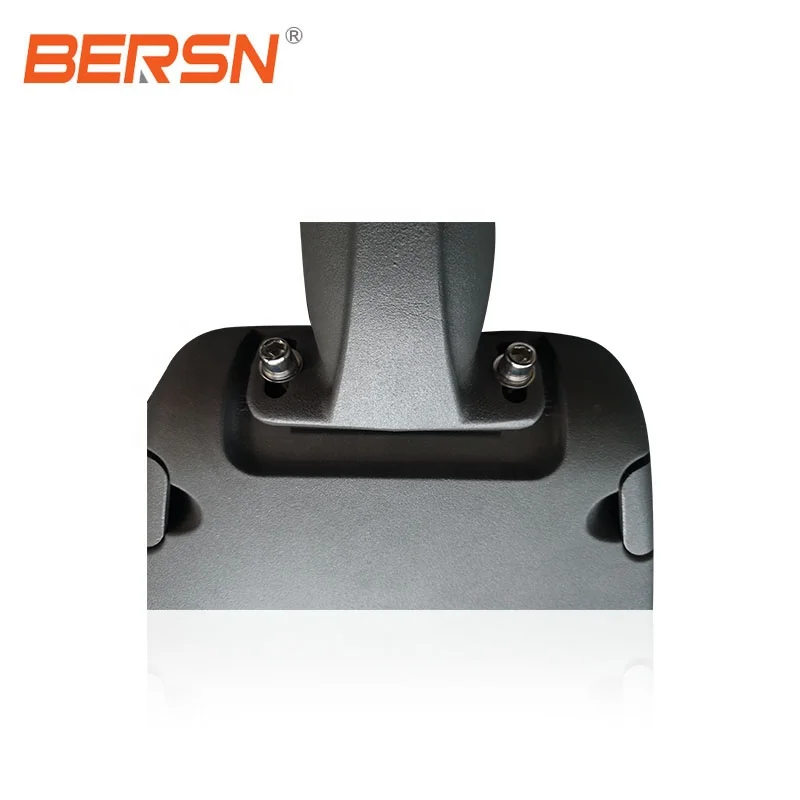

| Mounting Option | Horizontal Tenon Mount | |
| Mount Hole | Ø2.38 inch Pipe Applied | |
| Ø60.5 mm Pipe Applied | ||
| Operating Temperature | -22°F ~ 140°F -30°C ~ 55°C | |
| Life Time | 50,000 Hours (@77°F / 25°C) | |
| Warranty | 5 Years (12 hours usage per day) |
