LR5201 2RS LR5201 NPPU Yoke Cam Roller Yoke Track Roller Bearing 12x35x15.9 mm

Product Overview

Description

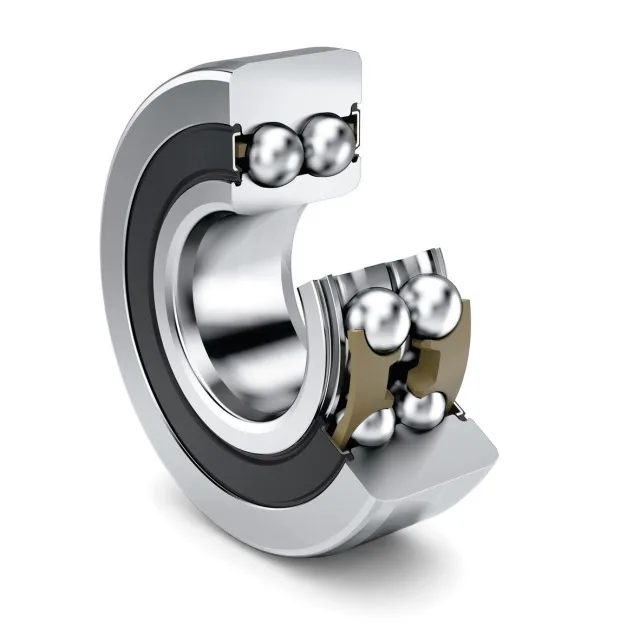

LR5201 2RS LR5201 NPPU Yoke Cam Roller Yoke Track Roller Bearing Size 12x35x15.9 mm





•  ultra clean bearing race and steel balls

•  glass fiber reinforced nylon 66 cage

•  lip seals on both side

•  Shell Alvania S2 grease

•  temperature range from -20°C up to 120°C

•  precision running accuracy 0.02mm

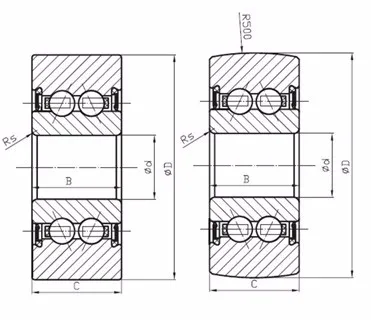

Number	Dimensions(mm)					Rating Load			Speed limit		Mass
	d	D	B/C	Rs	R	Dynamic	Static	Fatigue	seals	shields	g
LR5200-2RS	10	32	14	0.6	500	6800	4050	168	8000	11000	70
LR5201-2RS	12	35	15.9	0.6	500	8600	5100	211	7500	10000	80

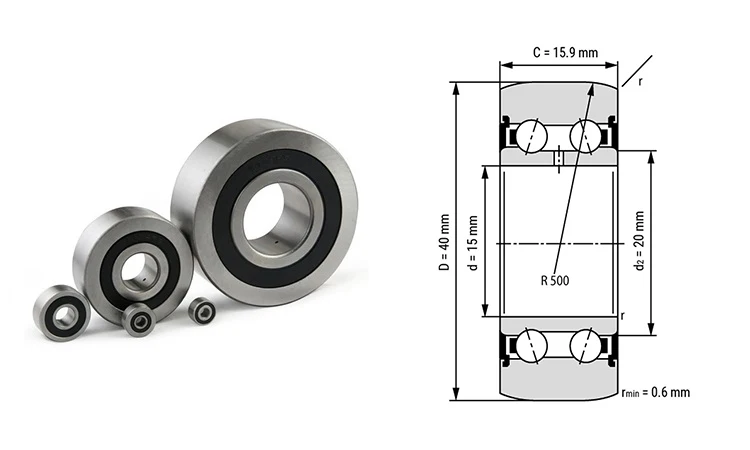

LR5202-2RS	15	40	15.9	0.6	500	9800	6200	258	7000	10000	110
LR5203-2RS	17	47	17.5	0.6	500	12600	8200	342	5500	7500	170
LR5204-2RS	20	52	20.6	1	500	15800	10500	433	5000	7000	230
LR5205-2RS	25	62	20.6	1	500	18500	13000	532	4500	6500	340
LR5206-2RS	30	72	23.8	1	500	24600	21400	880	3500	5000	510
LR5207-2RS	35	80	27	1.1	500	30500	22400	927	2800	3900	660
LR5208-2RS	40	85	30.2	1.1	500	34500	25500	1060	2500	3500	750



•  Industrial machinery: printing machinery, paper machinery, automation machinery, textile machinery, vending machines, woodworking machinery, packaging machinery

•  Electronic equipment: mechanical arm, measuring equipment, X-X platform, medical equipment, factory automation equipment

•  Rotation machinery: metal heat treatment designed nuclear reactor, brakes, etc

•  Aerospace industries: aircraft flaps brakes, seat brakes, missiles, airport apparatus and other equipment

•  Other: radio antenna brakes, door and window control, medical bed control, parking facilities, machine tool doors, laboratory automation, etc.
