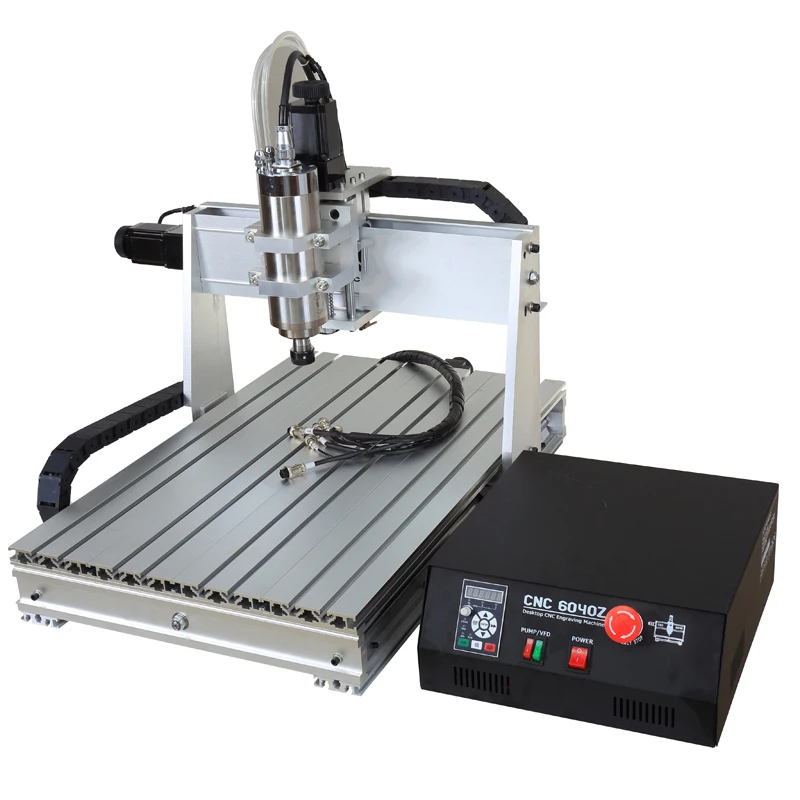

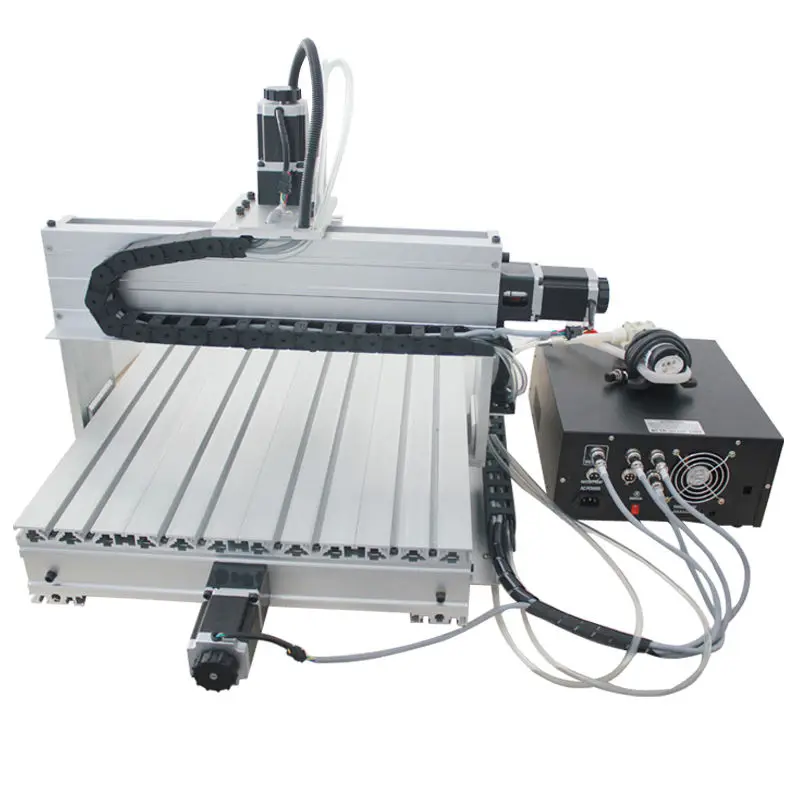

China 3D 6040 mini CNC Engrave Router 3 Axis 1.5KW Water cooling spindle For wood PCB acrylic aluminum
Product Description
Brief introduction
A. What area it can used for?
CNC 6040 4 axis 1.5KW router is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes.
B. What materials it can used for?
It can work for Wood, acrylic,plastic,Jade, PCB ,PVC,Aluminum, Copper, Acetate Sheet.
C. Samples
The Hardware Capabilities : 1. Limited switch added. 2. Auto checking function added. 3. 1500W spindle. 4. USB or parllerl port. 5. Control box can be 3 axis and 4 axis universal. 6. Water cooling spindle, less noise. 7. Bigger Z axis area 105mm (bigger than other's 65mm). Soft service : 1. Got CE approval. 2. Youtube cnc machine video support. 3. Technical team always available. 4. English manual available. 5. USB CNC or Mach 3 software available. 6. From reliable & trustable profesional China mini CNC router machine manufacturer.
Other features: 1. Independent power supply for mainboard, prolong using life. 2. With strong aluminum alloy frame materials. 3. Cover plates reducing pollution for the screws and shafts. 4. steady and strong support structure Spindle motor knob. 5Use with a computer which connets with a cable (parallel or usb cable).
Customers need to prepare G codes,then lead it to the MACH3 or USB software and start to run the machine.
Specifications
Effective working travel
400(X)mm*600(Y)mm*105(Z)mm
Shape dimension
920*690*640mm

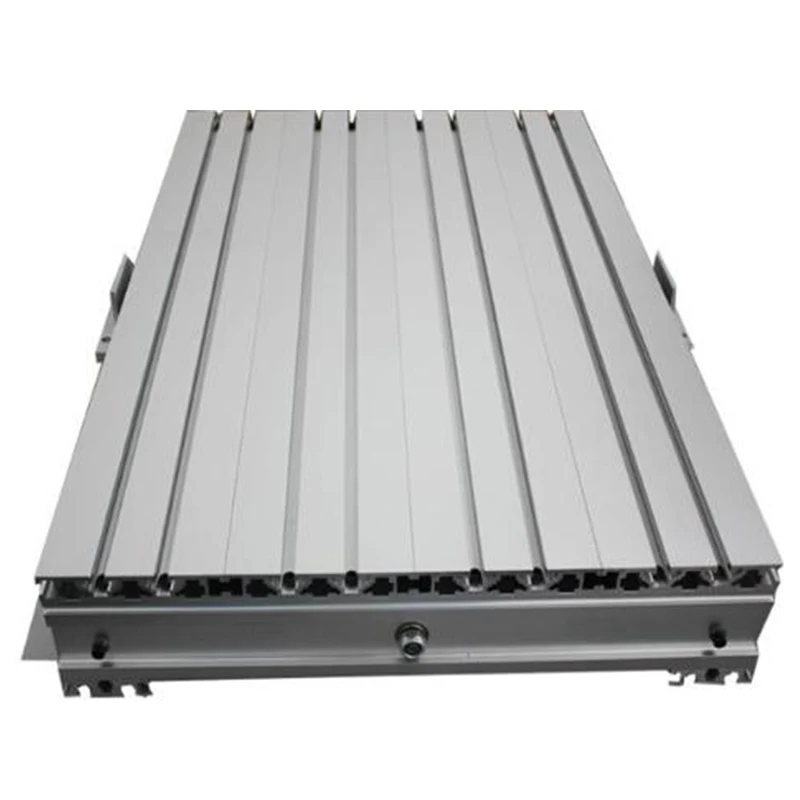

Work table dimension
742mm*480mm

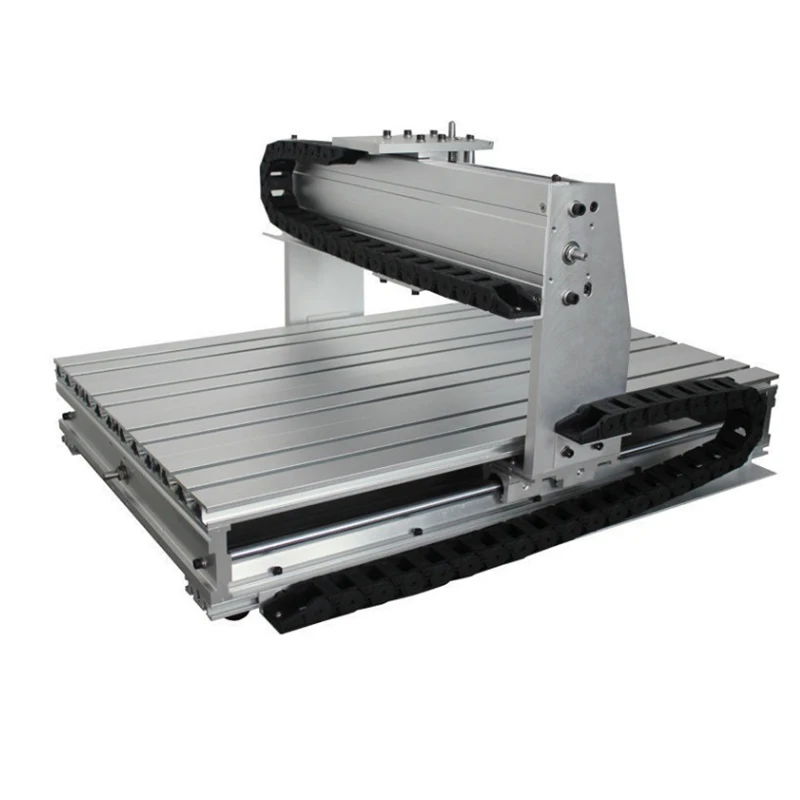

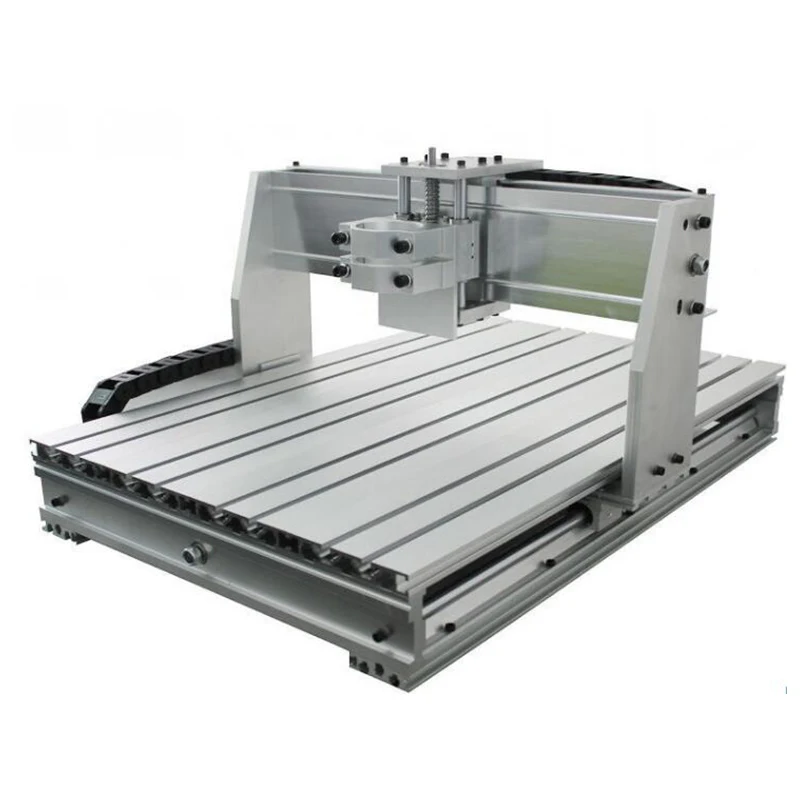

Frame materials
Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs
acceptable material thickness
≤145mm

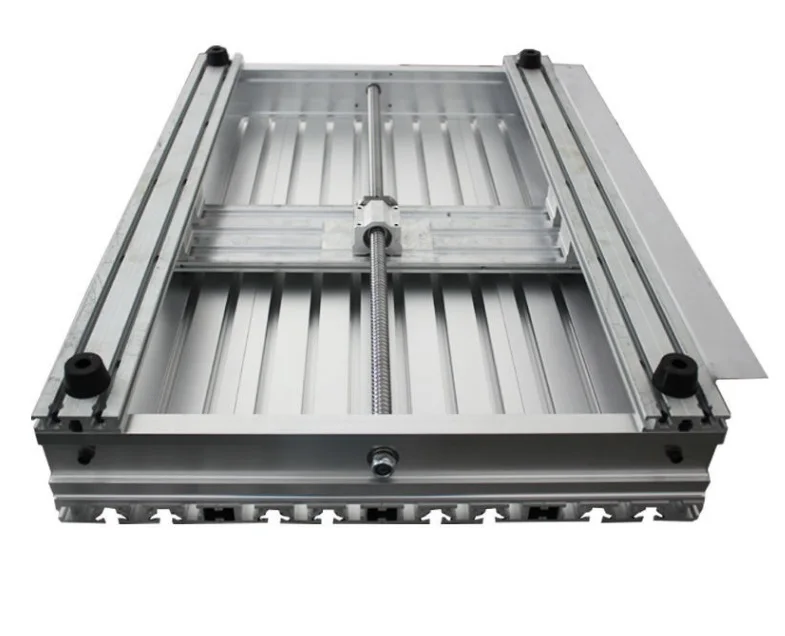

Driving units
X/Y/Z axis
SFUR1605-DFC7-P0 ball screw
Sliding units
X axis
Dia.20mm chrome plate shafts
Y axis
Dia.16mm chrome plate shafts

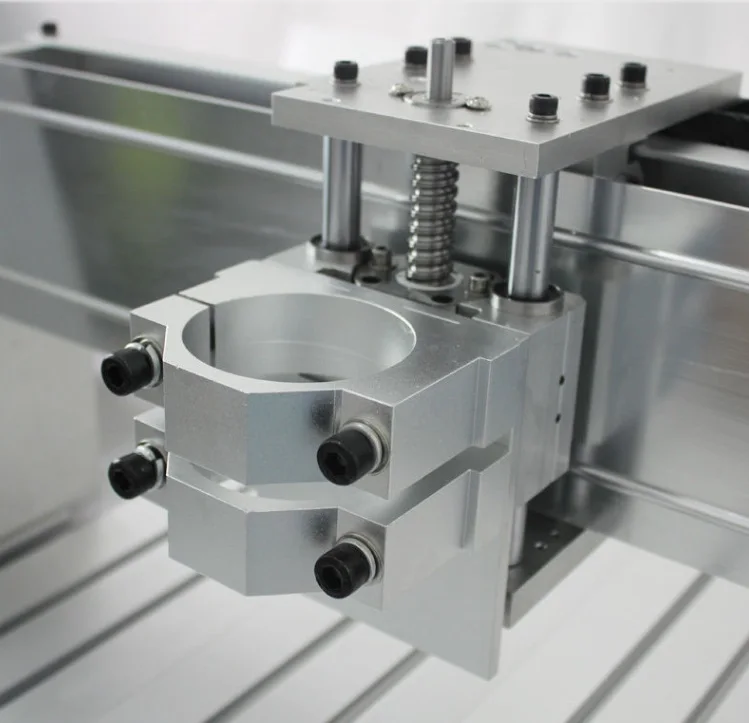

Z axis
Dia.13mm chrome plate shafts
Stepping motor type
57 two-phase 3A 150N.cm
Spindle motor
Brand new 1500W water cooling spindle, 24000RPM
Principal axis collet
ER-11 1-7mm
Repeat accuracy
0.05mm
Spindle precision
radial beat accuracy0.03 mm
Software environment
MACH3 Support windows XP, USBCNC support Windows 10
Maximum speed
0-4000mm/min
Control unit
E100S2R2B + JMC542 3axis drive board
Computer connection
USB port and Parallel port
Command code
G code, or any MACH3 support format file
Protection
Emergency stop button
Operating Voltage
AC220V/110V
Accessories
Pump, Auto checking tool , cutter, same as accessories photo
Warranty
1 Year
Package size
Two Cartons package , 60*52*43cm and 80*22*63cm
Gross weight
66KG
Detailed Image
Packaging & Shipping
Packing Method: 1. Carton box for small items and some machines. 2. Package size: 62*50*51cm/ 83*21*66cm ,weight 66KG,Carton.
Shipping Methods: 1. 1)Express(door to door):DHL/Fedex/TNT / EMS / Post Air Mail etc. 2)Air/Sea Shipment: Please provide us your air port information. 2. The shipping cost depends different weight,we will choose the cheapest and safest way according your order. 3. Shipping time:Usually it will take around 4-5days by Express from China to destination country.Please note that 1-3 more days will be needed for some remote place. Shipment Time: 1. For samples within 1-3 workdays 2. Wholesales Orders : 2-5 workdays according to different quantities 3. OEM orders:7-10 days after receiving your sample confirmation and payment.
