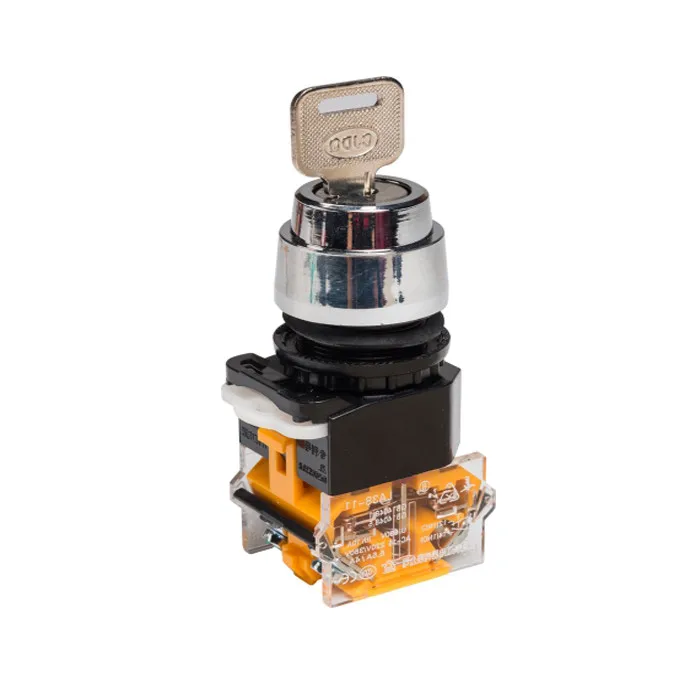

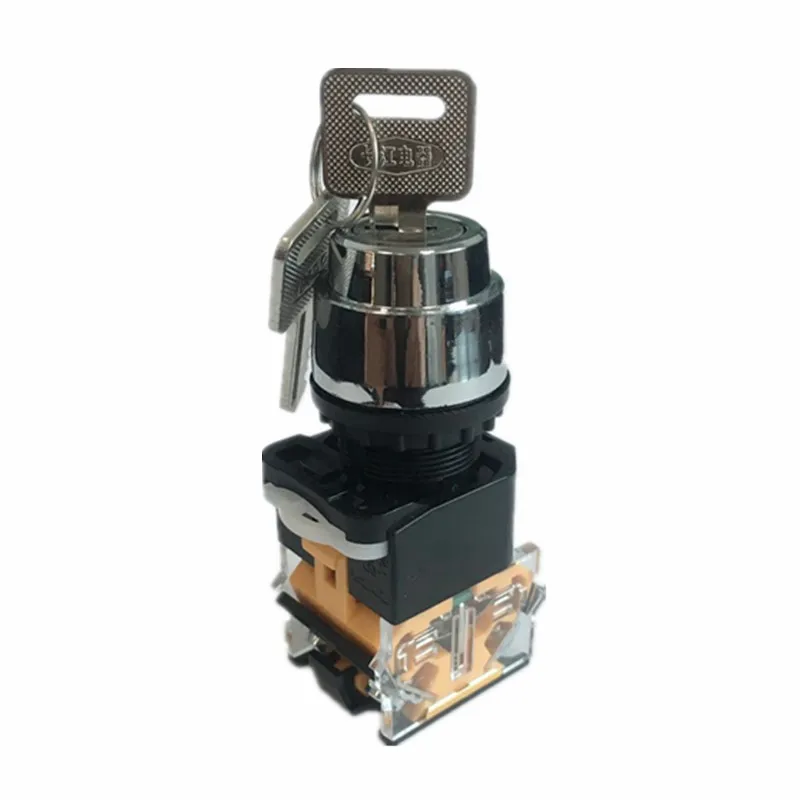

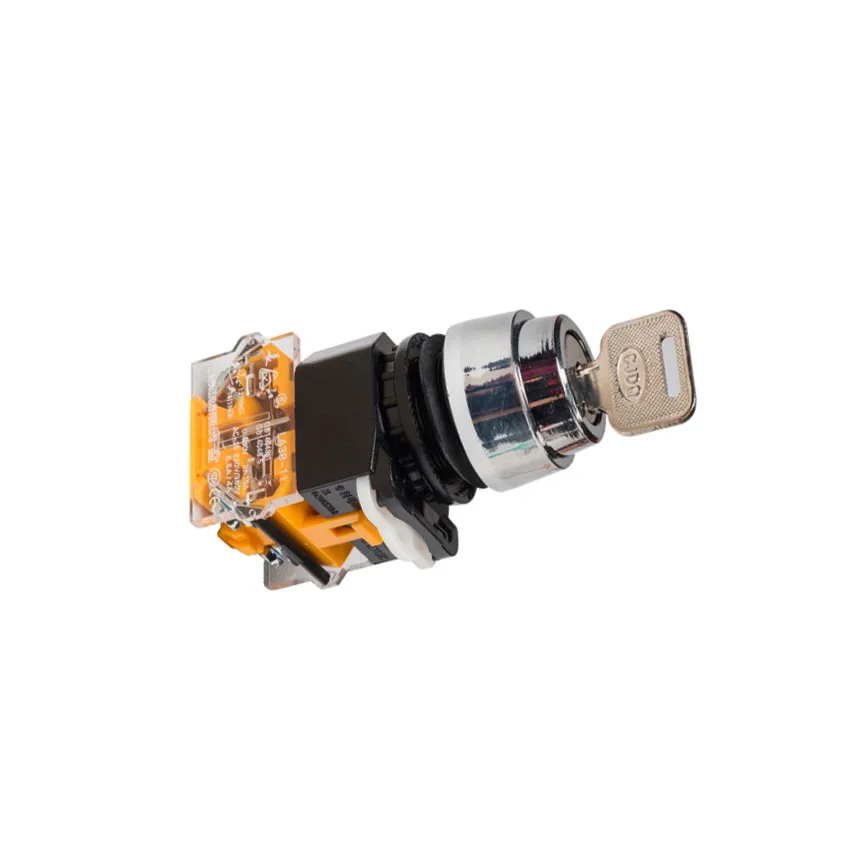

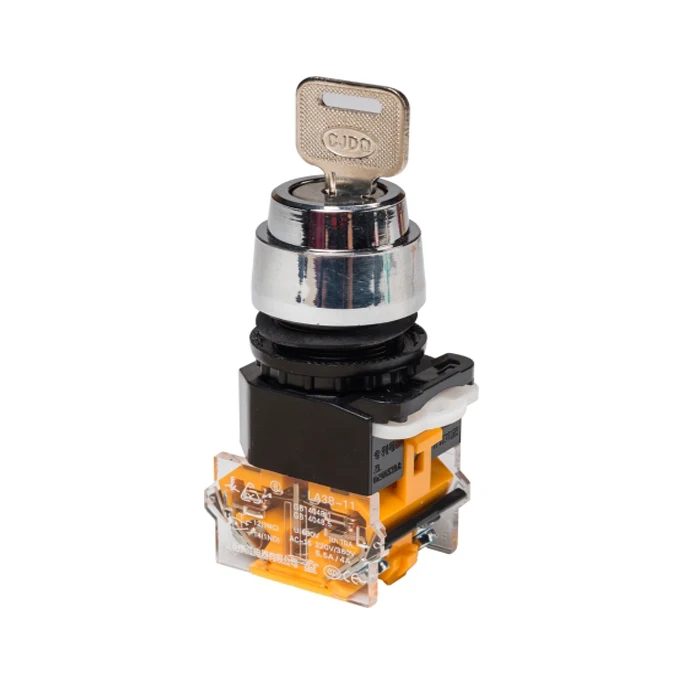

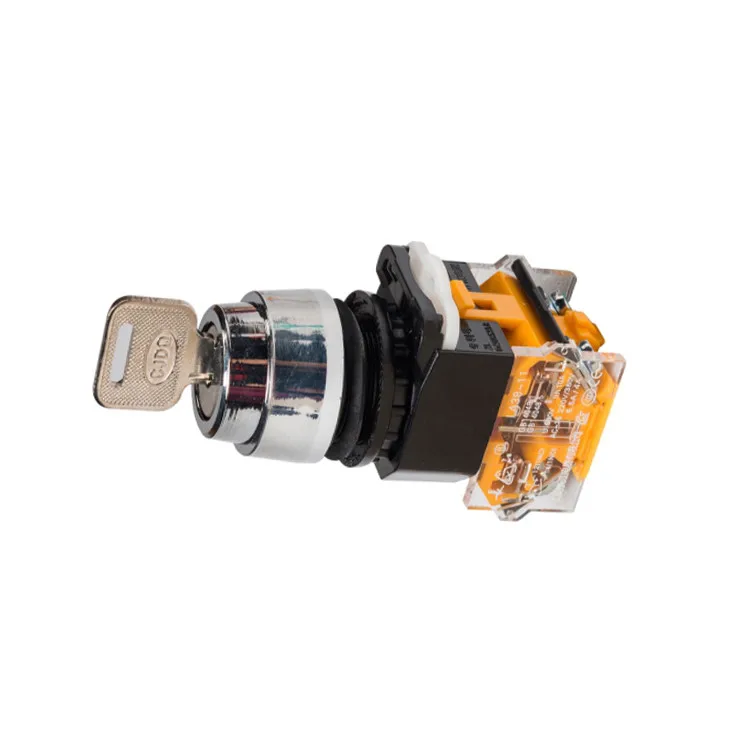

LA38 series 22mm Key Lock Switch 2 Position Spring Return Key Switch latching switch
- Category: >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (60816966260):
Product Overview
Description
22mm key rotary push button switch position selector switch
China Shanghai institute of electrical science carried out a strict full set type tests for our push button switch products.Products are identified by the experts in the industry.Finally we got the LA38 product model in October 17, 1996. When you are purchasing, please identify the LA38 series button switch produced by Jiangyin Changjiang electric appliance co.,ltd

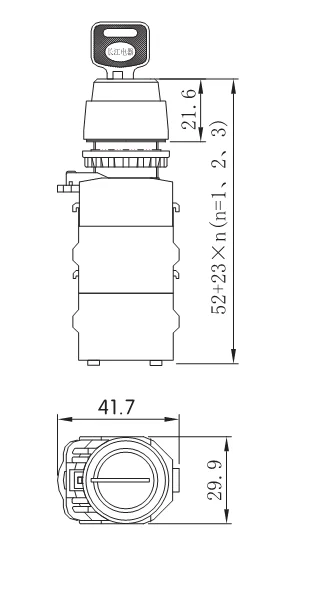

Outline & Size of mounding hole
LA38-**Y2/209B | ||||||||||
Name | 2 or 3 position key rotary switch | |||||||||
Products Standard | GB/T14048.5 IEC60947-5-1 | |||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | ||||
≤2000m | -25℃~+55℃ | -40℃~+70℃ | ≤90% | 3 | Ⅲ | |||||
Main technical index |
| Rated insulated Voltage | 500V | |||||||
Insulated resistance | Ui≤60V | ≥5MΩ | ||||||||
60V | ≥50MΩ | |||||||||
Front protect class | can custom IP65 | |||||||||
Withstand Voltage | 1.89KV/5S | |||||||||
Work Frequency | 50Hz | |||||||||
button parameter | Stipulated hot current Ith | 10A | ||||||||
Contact resistance | ≤50mΩ | |||||||||
Rated working Voltage /Current | AC-15 | DC-13 | ||||||||
220V/5.5A | 110V/1 A | |||||||||
380V/4A | 220V/0.45 A | |||||||||
Electrical life | 10E4 times | 10E4 times | ||||||||
Mechanical life | 20E4 times | |||||||||
Certificate
About us
Our company was founded in 1992, it is a strong capital and continuous innovation manufacturer,This enables us to provide the most advanced and competitively-priced products and services available today.OEM can also available, Customers' designs are warmly welcome.
Company history
1972-1992 Jiangyin transistor factory
1992-1993 Jiangyin Changjiang electronic industrial company
1993-1996 Jiangyin Changjiang electronic industrial corporation
1997-2002 Jiangyin Changjiang electric appliance Co., Ltd.
Jiangyin Changjiang electronic industry Co., Ltd.
2003- Jiangyin Changjiang electric appliance Co., Ltd.
Department and production line
FAQ
Q:Why choose us?
A:1. We are the professional manufacturer with competitive price ,and lower freight rate and the faster speed delivery.
2.Strict quality control.,and every product is inspected 100% by our QC team before delivery.
3.Certified by ISO9001:2015/CCC/CE/ROHS
Q:After-sale service
1. Indicator light:2 years' warranty; switch: 18 months' warranty.
2. Parts replacement for free
3. Free tech support.
Q:How long is your delivery time?
A:Door to door international express costs 5-7days in general.
.
Q:Do you provide samples?is it free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment?
A:We accept Multiple payment methods such us T/T in advance,Western Union,Alitrade assurance and so on.
Q:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
Contact us for more details about price,packing,shipping and discount.
