3 Inch Semi Trash Diesel Water Pump (WP30D)
- Category: >>>
- Supplier: Yancheng Talos Engine Equipment Co. Ltd.
Share on (60816966968):
Product Overview
Description
Product Description

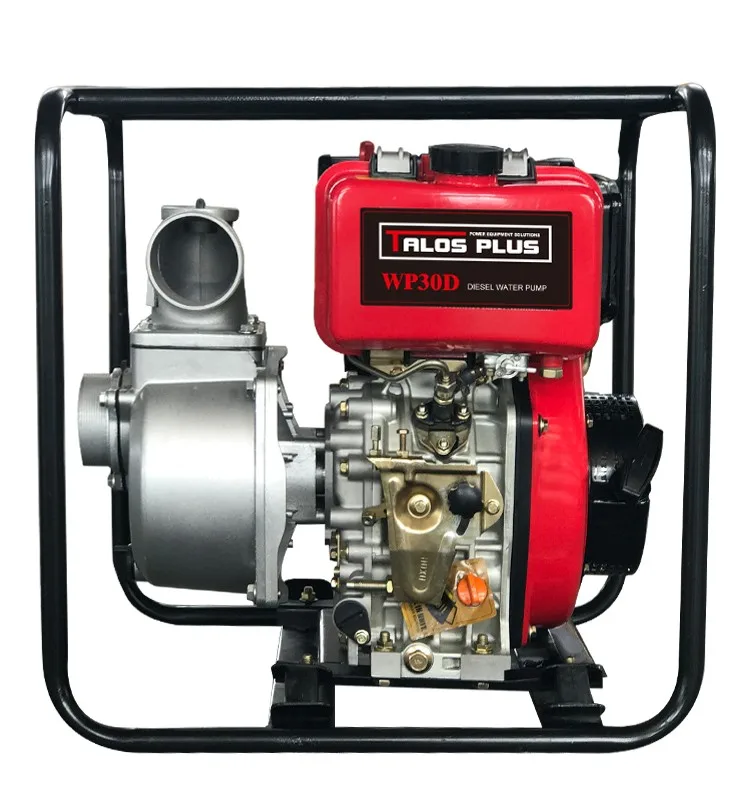

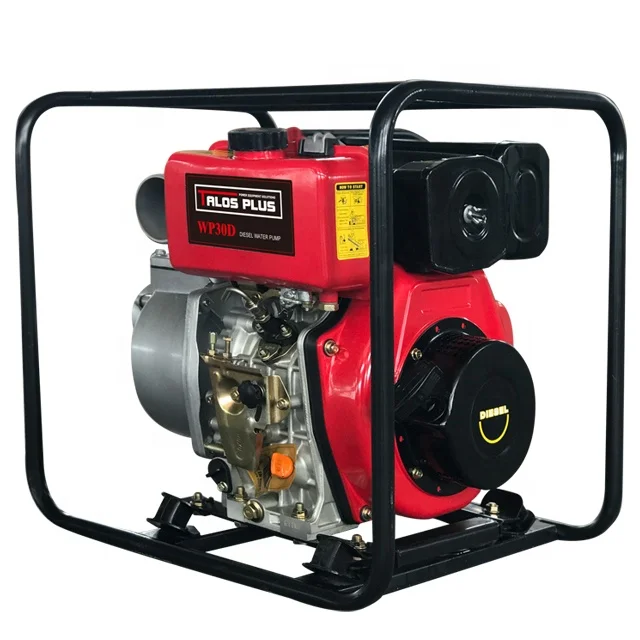

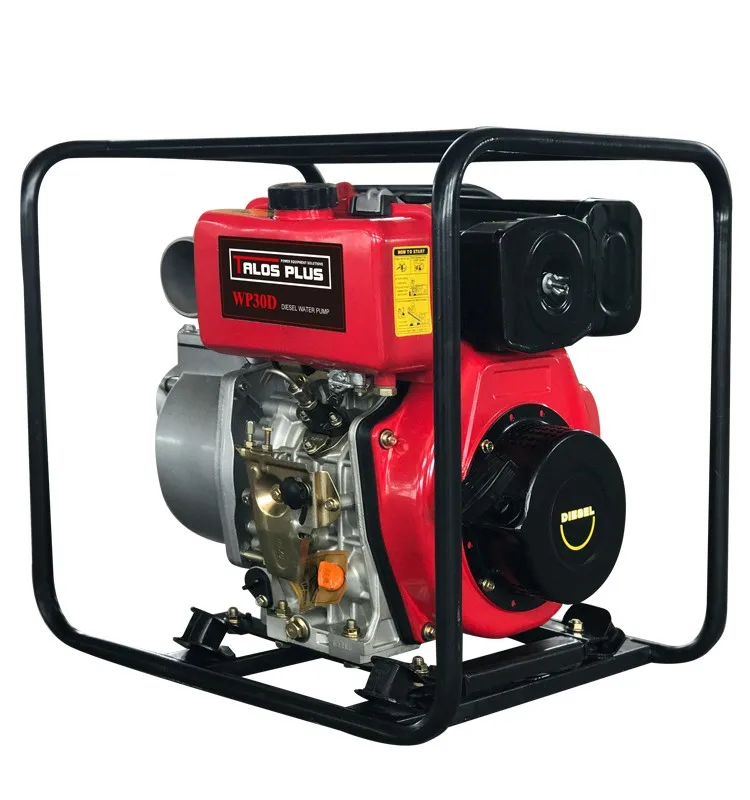

3 Inch Semi-Trash Diesel Water Pump (WP30D)
The Water Pump is rugged and powerful with an easy-starting 296cc engine and 60m3/H (1000 L/min) flow rate. The sturdy frame protects the pump and provides a tie-down location during transportation. The cast iron volute and impeller increase the pump life.
Key Specifications
Model | WP20D | WP30D | WP40D | ||
Brand | Talos Plus | Talos Plus | Talos Plus | ||
Inlet & Outlet Diameter | 2" x 2" (50 x 50mm) | 3" x 3" (80 x 80mm) | 4" x 4" (100 x 100mm) | ||
Flow | 36m3/H | 60m3/H | 100m3/H | ||
Suction Head | 8m | 8m | 8m | ||
Maximum Lift Head | 26m | 25m | 22m | ||
Max. Total Head | 34m | 33m | 30m | ||
Pump Type | Centrifugal, self-priming | Centrifugal, self-priming | Centrifugal, self-priming | ||
Engine Model | TD170F(4HP) | TD178F(7HP) | TD186FA(10HP) | ||
Engine Type | Air cooled, diesel | Air cooled, diesel | Air cooled, diesel | ||
Displacement | 211cc | 296cc | 418cc | ||
Starting System | Recoil start | Recoil start | Recoil start | ||
Fuel Tank Capacity | 2.5L | 3.5L | 5.5L | ||
Impellers | Cast iron | Cast iron | Cast iron | ||
Volute | Cast iron | Cast iron | Cast iron | ||
Pump Head | Aluminum | Aluminum | Aluminum | ||
Seal | Ceramic mechanical | Ceramic mechanical | Ceramic mechanical | ||
N.W./G.W. | 37/39 kg | 50/52 kg | 69/71 kg | ||
Dimension(L x W x H) | 510 x 430 x 540mm | 580 x 470 x 570mm | 665 x 490 x 620mm | ||
Available Options | Handles, wheels, hose, electric start, silicon carbide mechanical. | ||||
Features + Benefits
Forging steel crankshaft.
Cast iron cylinder sleeve.
Heavy-duty fuel pump and injection.
Low vibration from precision-engineered components.
Rigid-mount cast iron volute reduces case wear, increasing the life of the pump.
Durable commercial-grade engine is easy to start and provides ample power for the toughest conditions.
Heavy-duty full-frame protection protects the pump and offers a convenient tie down location for transport.
Cast iron cylinder sleeve.
Heavy-duty fuel pump and injection.
Low vibration from precision-engineered components.
Rigid-mount cast iron volute reduces case wear, increasing the life of the pump.
Durable commercial-grade engine is easy to start and provides ample power for the toughest conditions.
Heavy-duty full-frame protection protects the pump and offers a convenient tie down location for transport.
Detailed Images
Packing & Delivery
Durable carton box.
Available option: color box with pallet.
Package dimension(L x W x H): 580 x 470 x 570mm.
Gross weight with package: 50kg.
Lead time: regular 30 days after got deposit.
