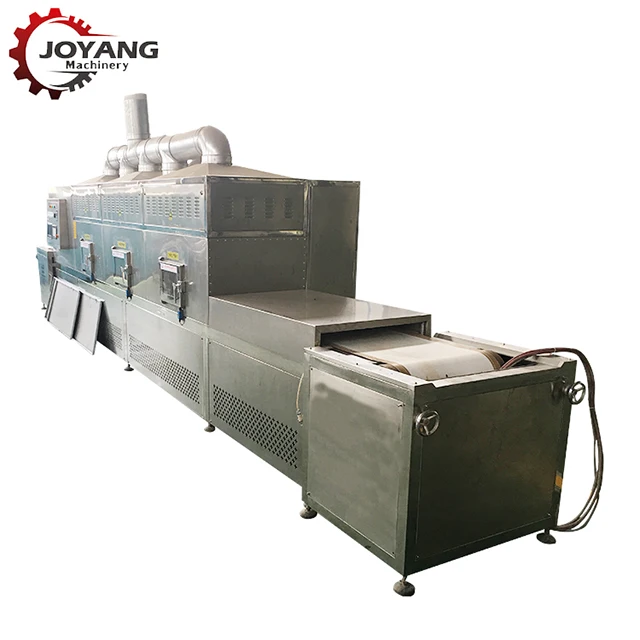

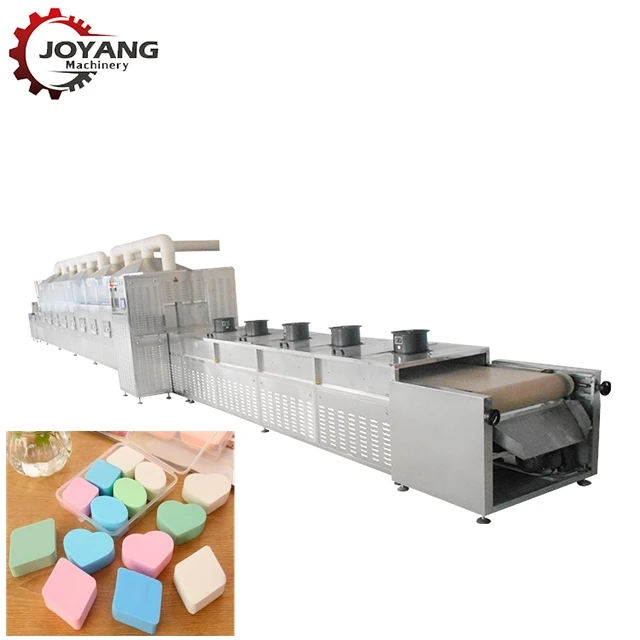

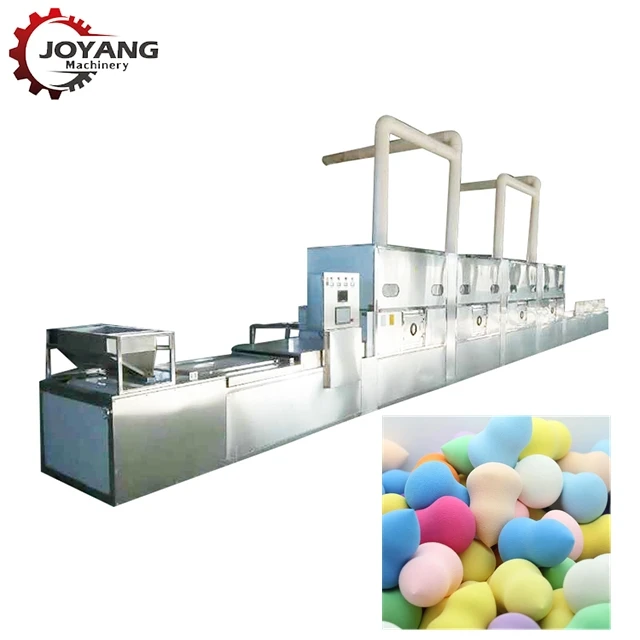

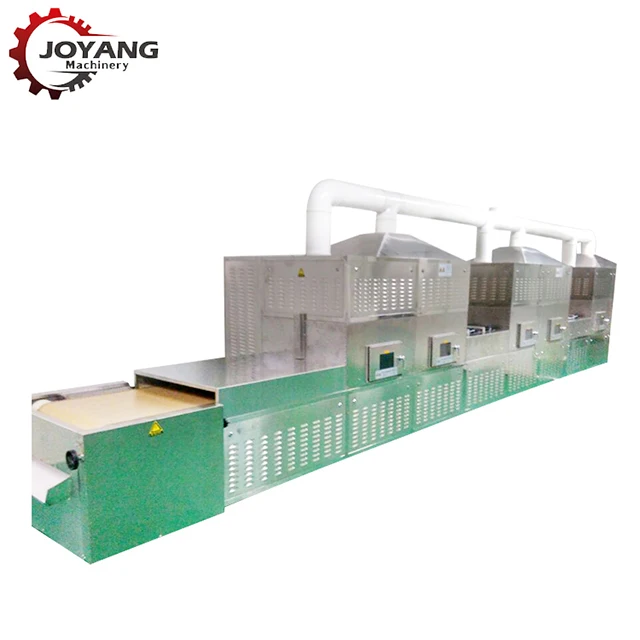

12KW Tunnel Belt Type Make Up Sponge Microwave Dryer

Microwave is an electromagnetic wave that produces high-frequency electromagnetic fields. The heated medium material is composed of polar molecules and non-polar molecules. The water molecules in the material are polar molecules. Under the action of electromagnetic field, the polar molecules are shifted from the original random distribution state to the polarity according to the polarity of the electric field. The movement of the molecules and mutual friction generate energy, which makes the temperature of the material continuously increase. Producing a series of physicochemical processes for heating and puffing to achieve the purpose of heat drying and drying.

Microwave drying dewatering equipment is mainly used for quick-drying powder, granule, sheet, strip, tubular material such as food (fruits, vegetables, grains, Preserved fruit, seafood, spices, tea, nutrition powder etc), wood (logs, sawdust, wood products, wood floors, large furniture), paper products (cardboard, paper tubes, corrugated paper, etc.), chemicals, herbs, insects, pet feed, etc.

Features & Advantages of Microwave Machine

1. Fast and evenly. It no need heat exchange. The microwave dryer can pass the food immediately. The wave can changed to be heat within several seconds. Immediately, Microwave dryer has the selective character which can heat the food more evenly.
2. High effciency. As the microwave dryer can be absorbed easily by the materials which contain moisture, there is very few wave wasted. Compared with the traditionalultrared rays heating ways, it will save energy at least 30%.
3. Keeping fresh. The Sterilization is with lower temp, so the nutritions of food can be protected well.
4. Easy to control. The microwave only need water and electricity, can be controlled easily. So it can be used to dry the food continuously to save labor.

Technical Parameter

No	Model	Power	Dehydration Capacity	Sterilization Capacity	Size (LxWxH)
1	JY-12KWSP	12KW	12 KG/H	120-150 kg/h	7x0.84x1.75m
2	JY-20KWSP	20KW	20 KG/H	180-240 kg/h	9.4x0.84x1.75m
3	JY-30KWSP	30KW	30 KG/H	300-375 kg/h	11.7x0.84x1.75m
4	JY-40KWSP	40KW	40 KG/H	400-500 kg/h	10.52x1.06x1.75m
5	JY-50KWSP	50KW	50 KG/H	500-630 kg/h	11.7x1.06x1.75m
6	JY-60KWSP	60KW	60 KG/H	600-750 kg/h	12.86x1.06x1.75m
7	JY-70KWSP	70KW	70 KG/H	700-870 kg/h	14.03x1.06x1.75m
8	JY-80KWSP	80KW	80 KG/H	800-1000 kg/h	14.86x1.2x1.75m
9	JY-100KWSP	100KW	100 KG/H	1000-1250 kg/h	15.2x1.2x1.75m
10	JY-150KWSP	150KW	150 KG/H	1500-1875 kg/h	21.05x1.2x1.75m

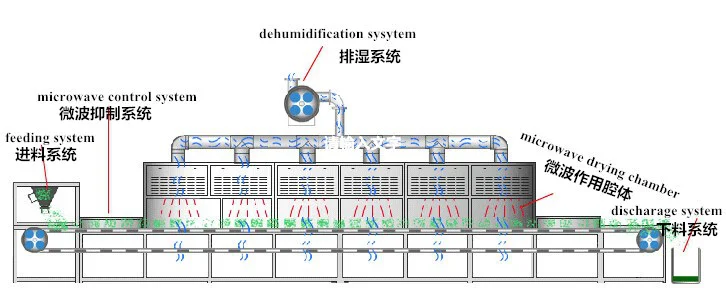

Detailed Images

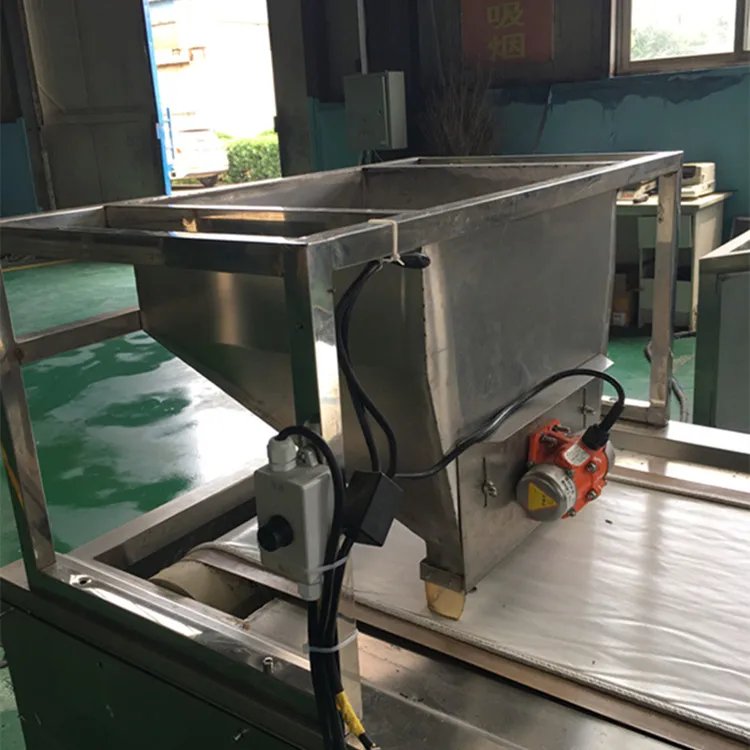

Feed port

Different inlet types are set according to different materials.

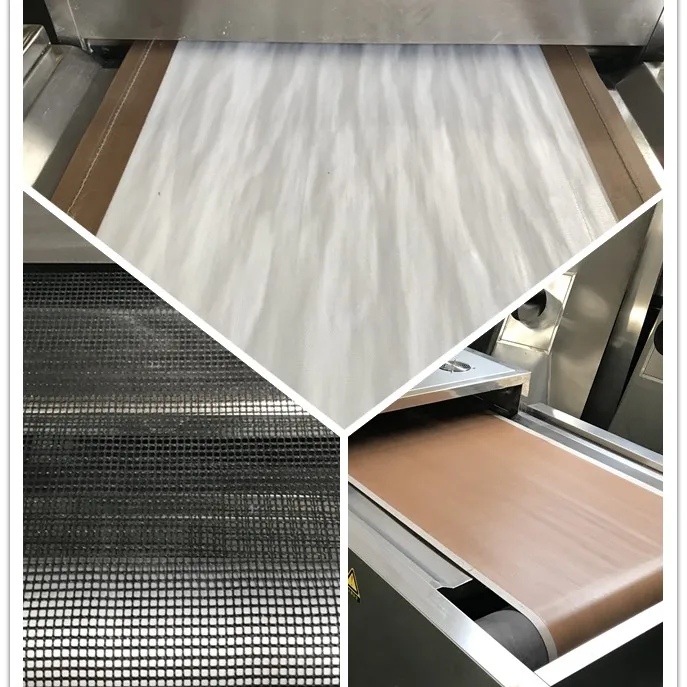

Conveyor belt

There are many types and speed can be adjusted.

There are rails under the mesh belt to prevent deviation.

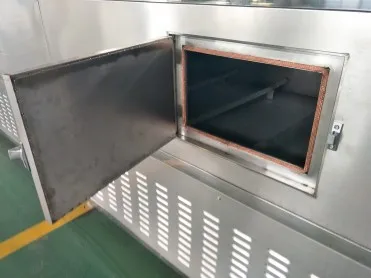

Observation window

Observe the material and facilitate the cleaning of the mesh belt.

Water cooling system

24 hours of continuous work, fast heat dissipation, suitable for large equipment.

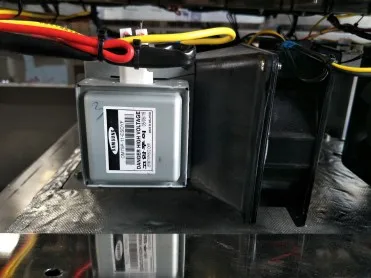

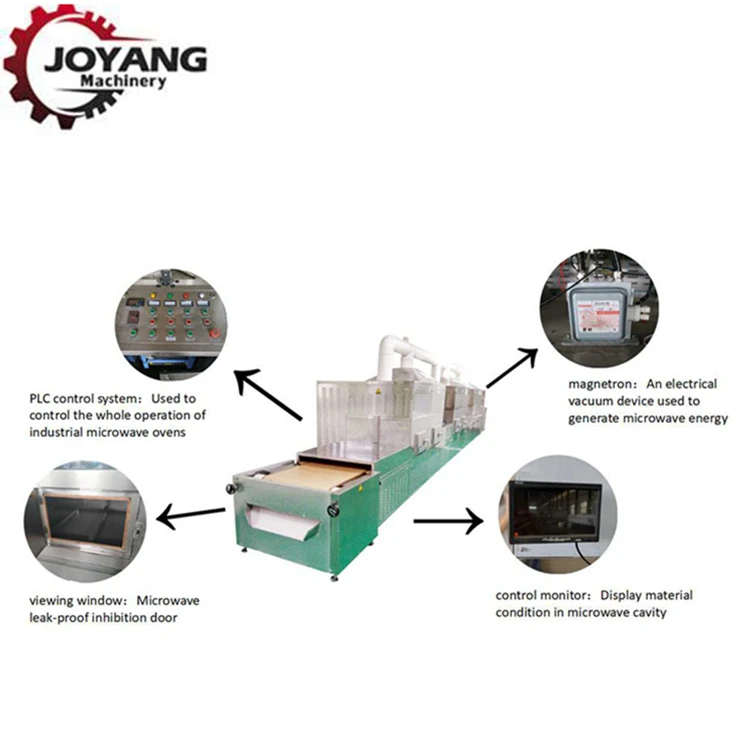

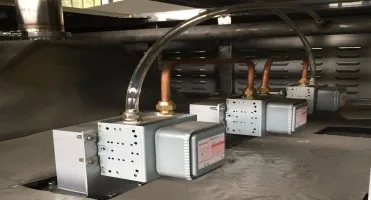

Magnetron

An electrical vacuum device used to generate microwave energy.

There are three brands of magnetrons: Samsung, Toshiba, Panasonic

Our Company

Shandong Joyang Machinery Co., Ltd. is a professional supplier of industrial microwave machines. Our company's motto is :" Service and quality are equally important". We offer to cooperate with our customers for mutual and beneficial development. All inquiries are welcome.

We are located in Jinan, the Capital of Shandong Province. Shandong Joyang Machinery Co., Ltd. is vested with many staffs with many years of experience in various applications of microwave machines.

Our main products include tunnel microwave machine, cabinet microwave machine, vaccum microwave machine, thawing microwave machine, drying and sterilizing microwave machine etc. The microwave machines are customized machines, our professional engineers will supply the most suitable solution to different customers to meet their various demand.

Packing & Delivery

Packing:
Inside: plastic bag for microwave machine.
Outside: wooden case (adopt the wooden case or wooden pellets depended on clients' requirement).

Transportation:
Shipping, train, express, or upon clients' demands.

Our Service

We will provide the most thoughtful services for our clients:

Before sale services:
1.Provide the free consultation of the equipment
2.Provide the standard device and the flow chart
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.

Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients' factory.
3.Inspect the machine before leaving the factory.

After sale services:
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.

FAQ

Q: How long is your delivery time?
A: Generally speaking, it is 7 days if the machines are in stock. Or it is 25 days if the goods are out of stock.

Q: Could you supply all the parameters about the machines?
A: Of course. We are delighted to supply all the information that you want to know.

Q: How about the after sale service?
A:  We will send our engineers to your factory for installation and training.
