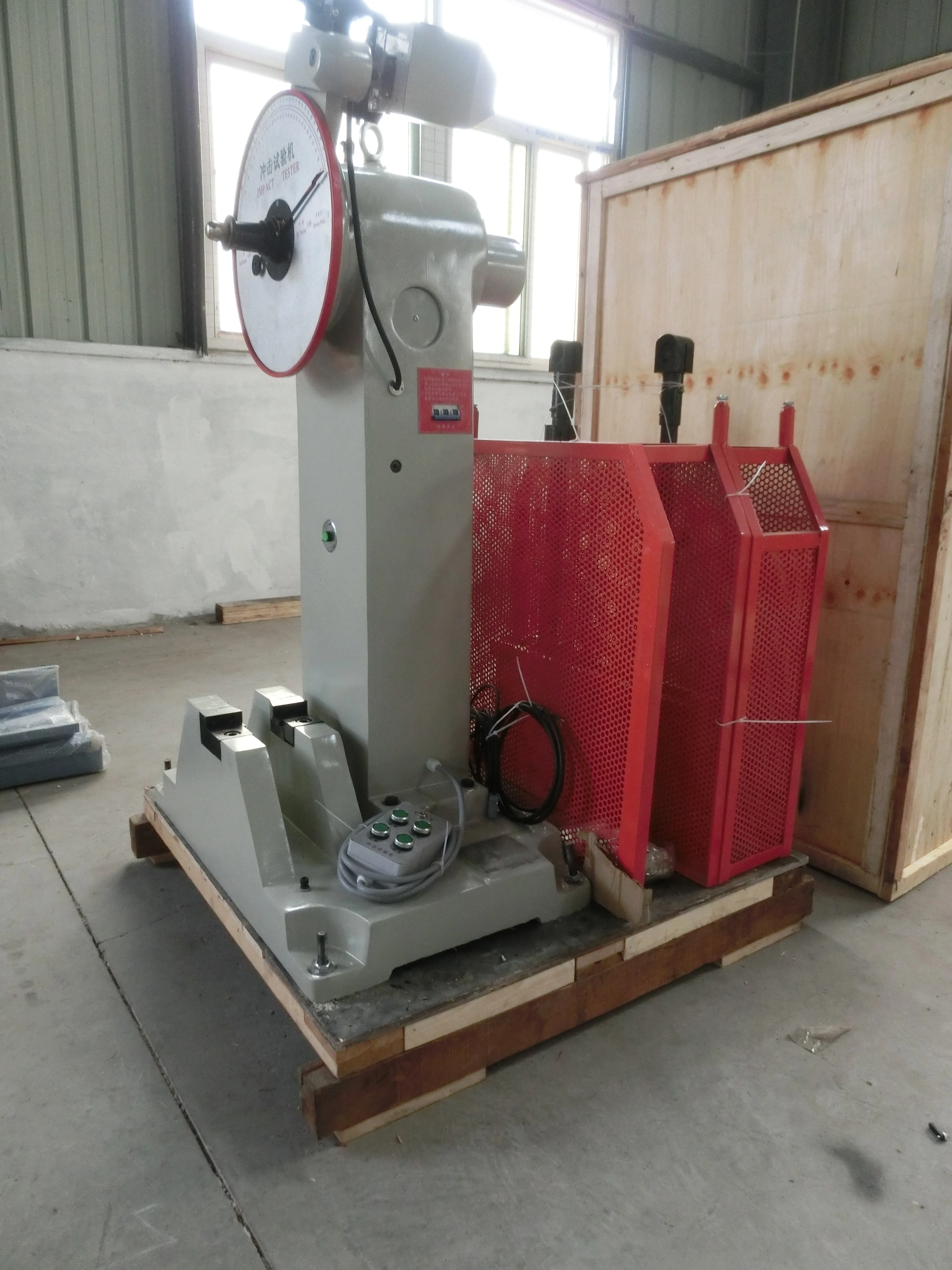

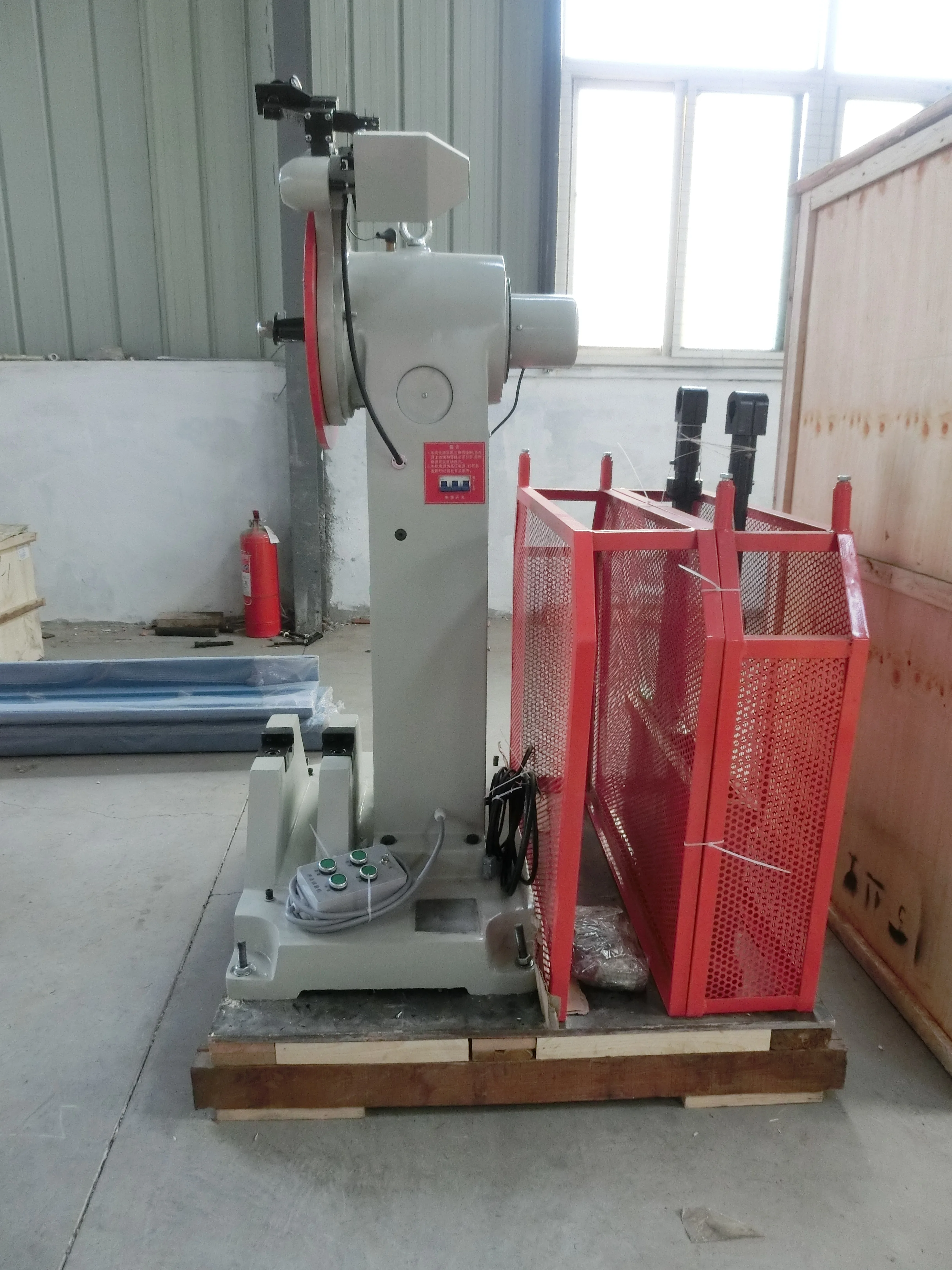

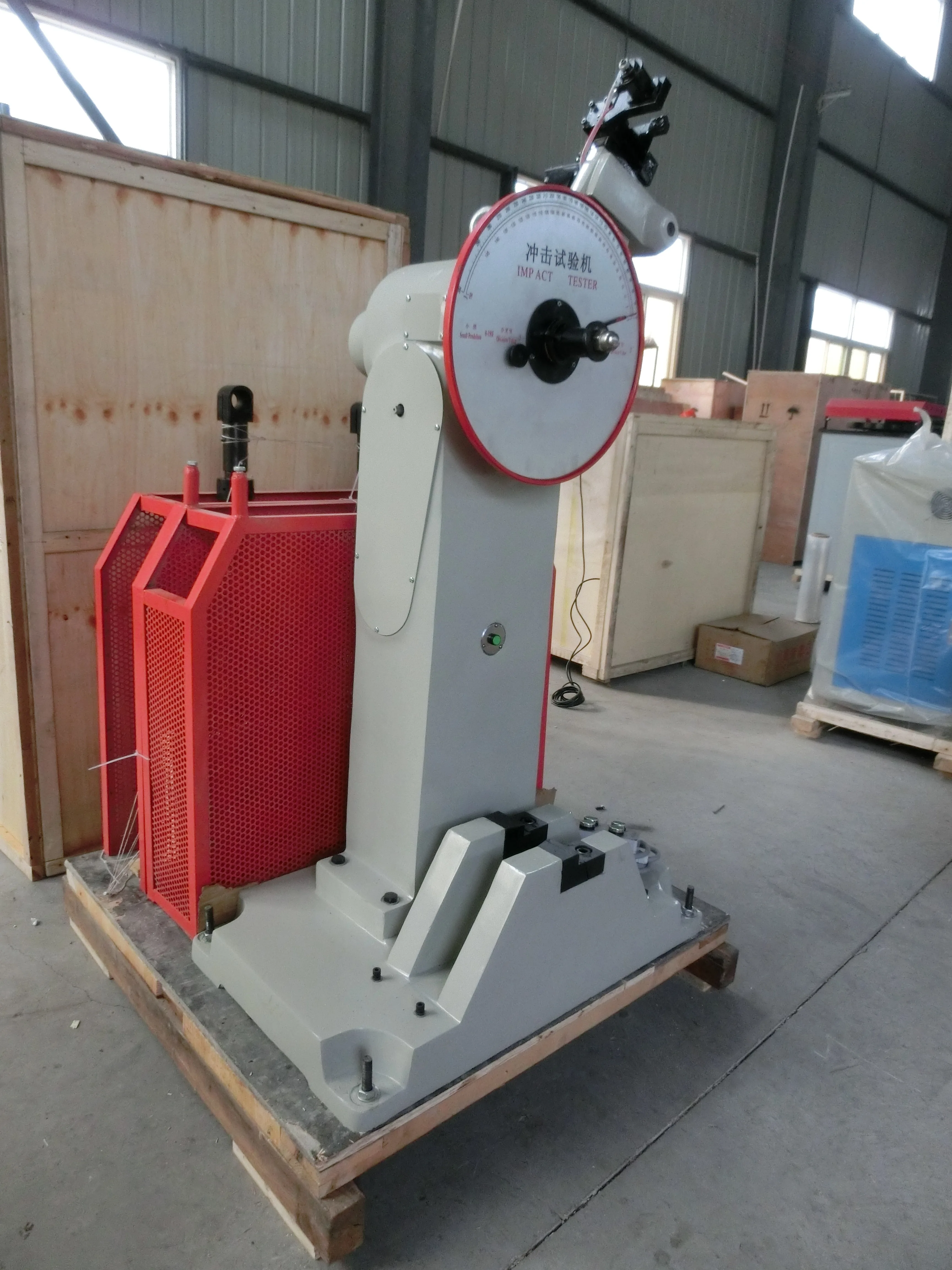

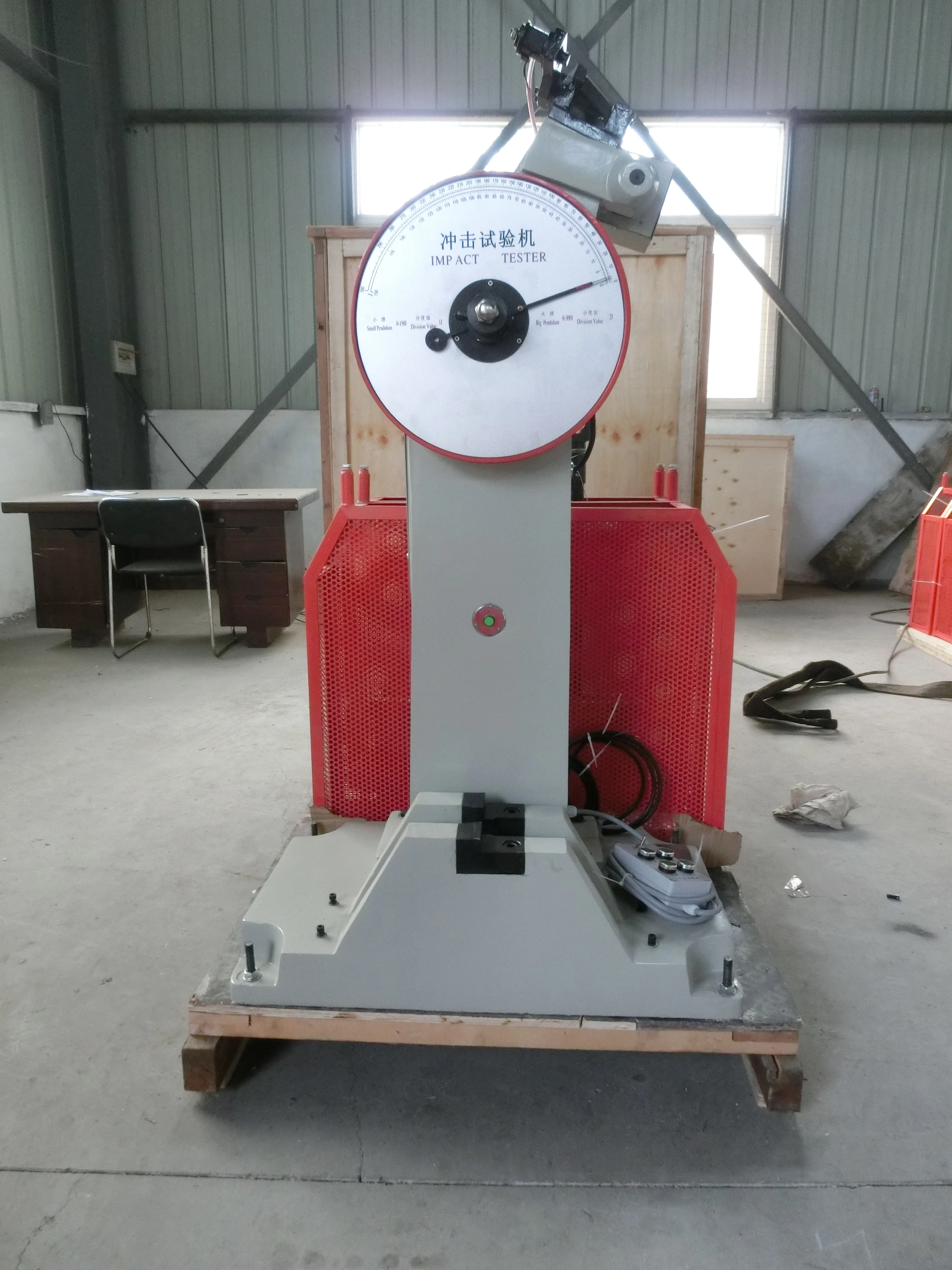

JB-500B Semi-automatic Pendulum Impact Tester Charpy 500J
Impact Testing Machine, Impact Equipment
1.Application
Charpy Impact Testing Machine is mainly used to determine the anti-impact capability of metal materials with high toughness,
especially for steel and iron and their alloy, under dynamic load.
2.Technical Parameters
Model | JB-500B |
Impact energy | 250J & 500J |
Impact velocity | 5.4 m/s |
Raised angle | 150º |
Standard span | 40 mm |
Distance between pendulum rotating center and specimen center | 750 mm |
Round angle of jaws | R1.0-1.5 |
Round angle of striking edge | R2.0-2.5 or R8 |
Size of specimen | 10 x 10 x 55mm |
Power supply | 3phs, 380V, 50Hz/60Hz |
Dimensions (mm ) | 2144x 736 x 1390 |
Gross weight(KG) | 750 |

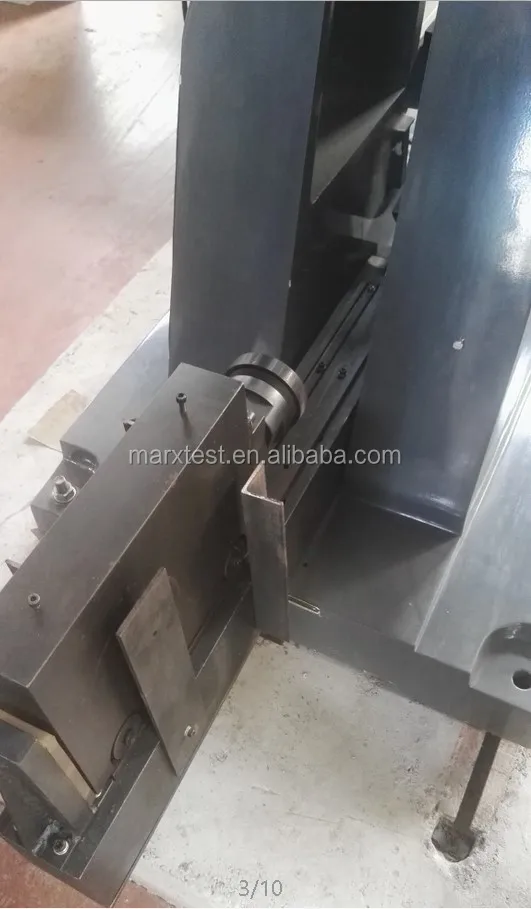

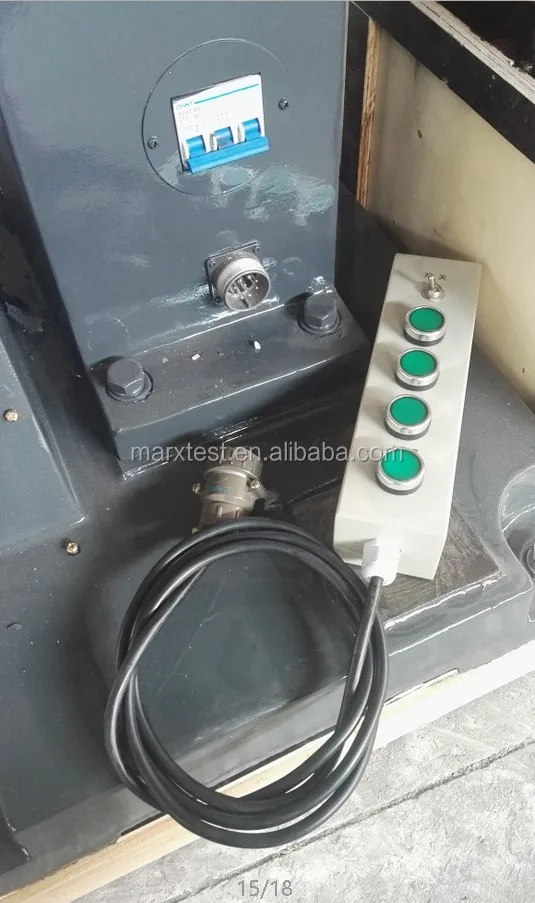

Detailed Images
Related Products

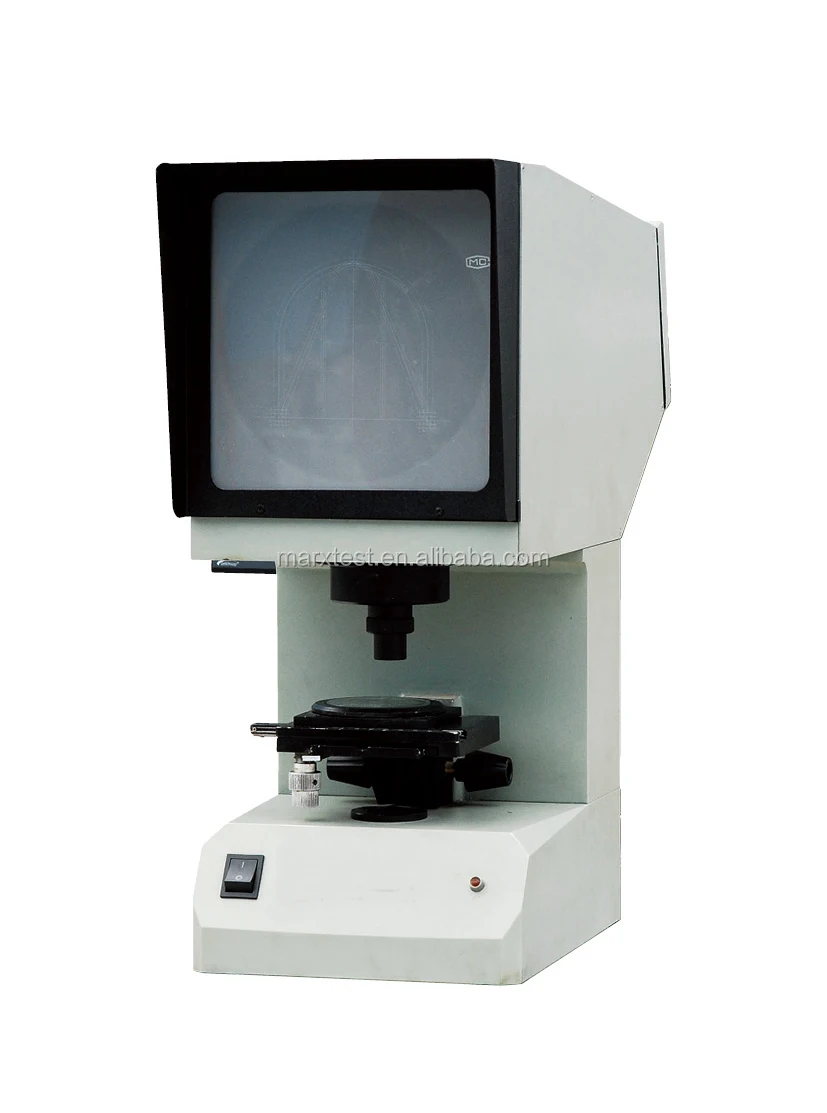

Impact Specimen UV Notch Profile Projector

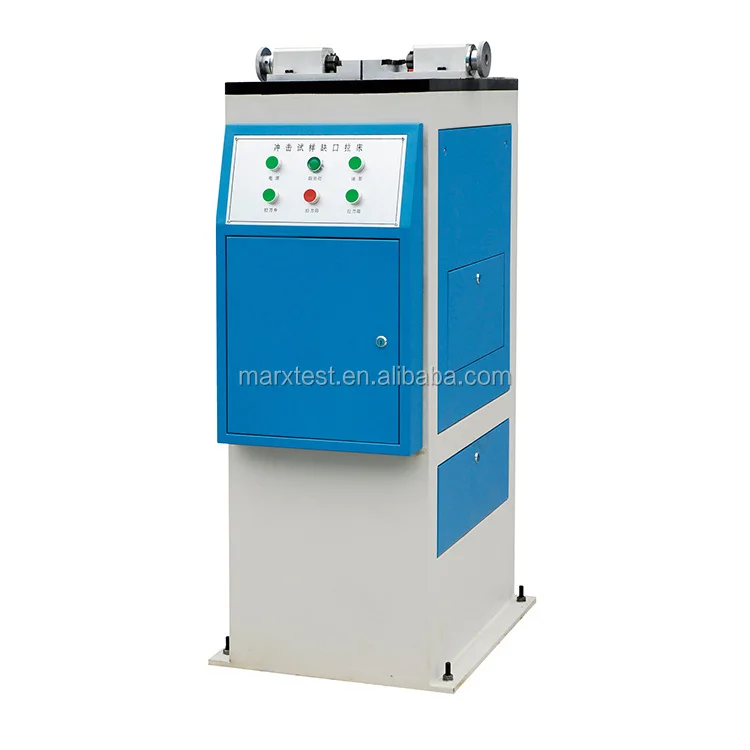

Impact Test UV Notch Broaching Machine

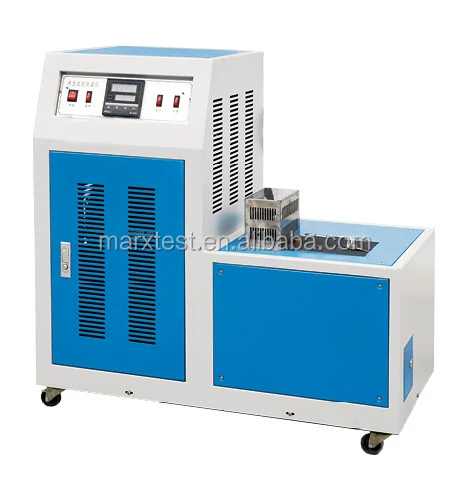

Impact Specimen Low Temperature Chamber

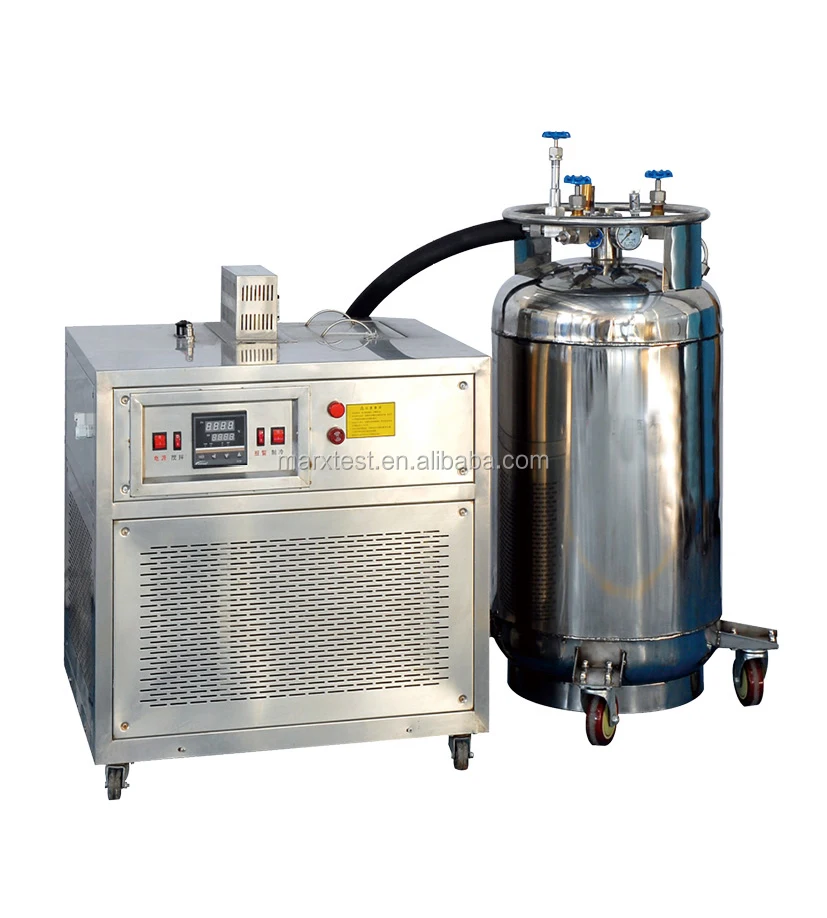

DWC-196 Liquid Nitrogen Cooling Chamber
