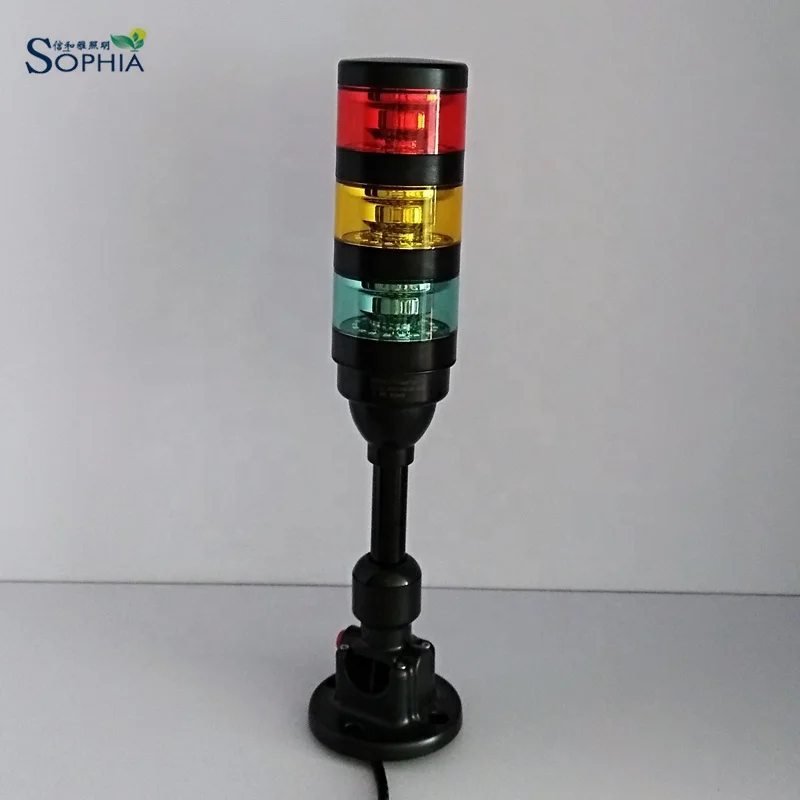

New 70mm 12V 24v led beacon tower light for crane

Product Overview

Description

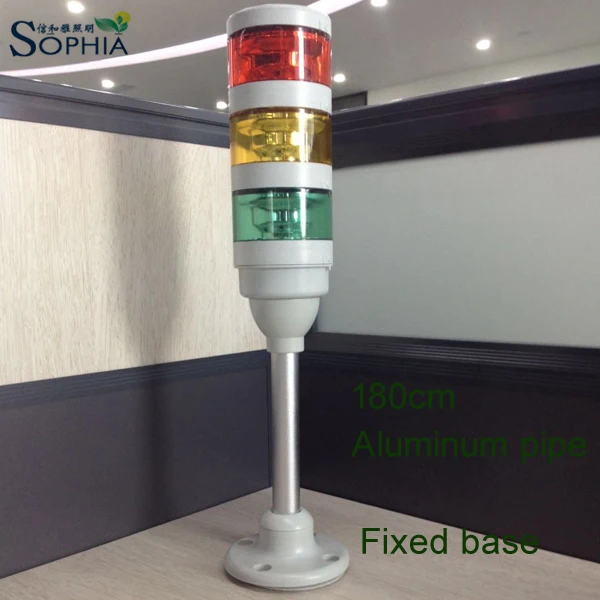

TL70 Tower Light, Red, Amber, Green, 24V, continue on, No Buzzer, with 90mm aluminum tube, swivel base



Red/Yellow/Green





Red/Yellow/Blue

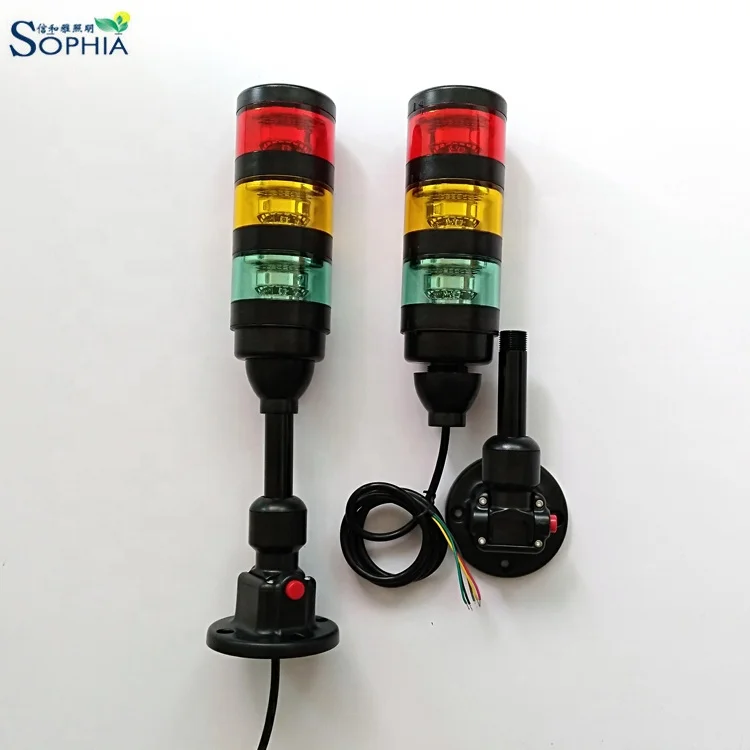

Six different mountingings available





Comparison





Wiring diagram

Application

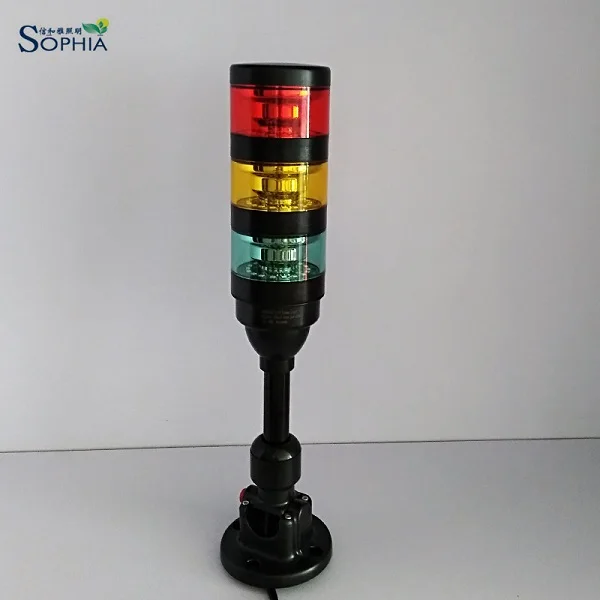

Item No.	TL70-Three-BLK  series
Stack	Three
Input	12V/24VDC
Current	12VDC 240mA; 24VDC 120mA
Buzzer	30mA
Color	Red/Orange/Yellow/Green/Blue/White, random combination

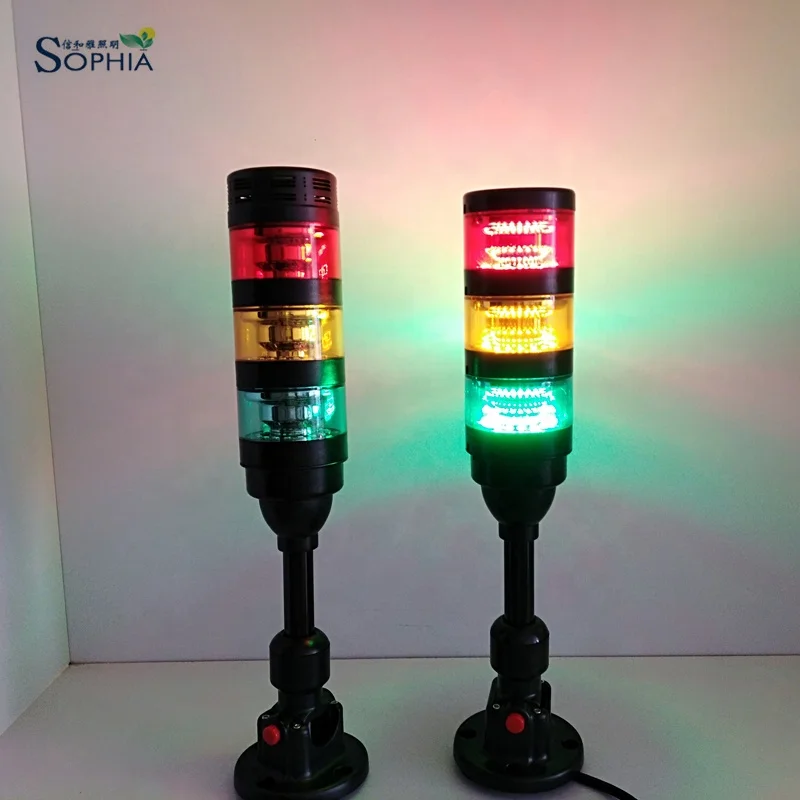

Performance	a Revolving; b flash; c jump; d constant color
Electric protection	Protected again reverse polarity
Response time	<10milli seconds
Buzzer frequency	2.5KHz+/-500Hz, 95db
Working temperature (ºC)	-40ºC~50ºC(no buzzer);-20ºC~50ºC(with buzzer)
IP rating	IP67
LED life span (H)	100000 hours
Dimension(mm)	Ø70x H206mm (not include installation base)
Installation accessory	Foldable base/ fixed plate/ pole with plate/nut
Material	Powerful SMD LED, high transmittance and reinforced ABS and polycarbonate housing, Surface very smooth and flat, high transmittance, unique designed driver, can recognize various performance and maximum five stacks
Feature	Compact and patented design, waterproof. Corrosion proof, oil proof. Housing and surface is different from normal one in market, very smooth and flat, increase the brightness. Excellent driver, can make maximum five stacks with various performance. Module design, easy to maintain. Base with 30mm thread, very easy and convenient to install.
Approval	CE, FCC



More Similar Products

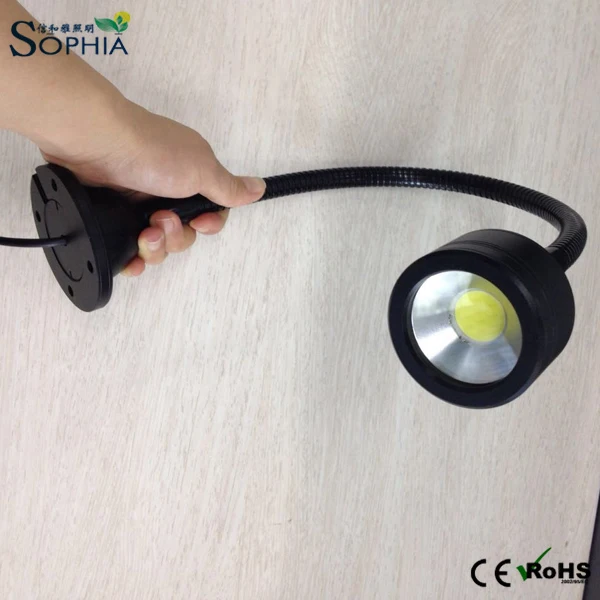

7W COB flexible arm light







RL50 Indicator light





TL50 LED tower light





Linear Machine Work Light



 Pick To Light

FAQ

Dear Customers, thanks for your attention the following:

1 Red, Yellow, Green or Red,Green,blue, Price is same, standard is Red, Yellow, Green light.

2 Standard is 24Vdc. If need DC12V input, price increase USD2.0/pc;

3 Usually, lamp with 1 meter cable. If need M12 QD(quick disconnect, price increase USD5.5/piece);

4 Standard light is continue on, if need flashing, price keep same.

5 For Rotating/ Revolving performance, price increase USD2.5/color.

6 If need buzzer, price reduce USD5.5/piece.

7 If no need swivel base, aluminum tube, connectors, price reduce USD3.8/piece.
