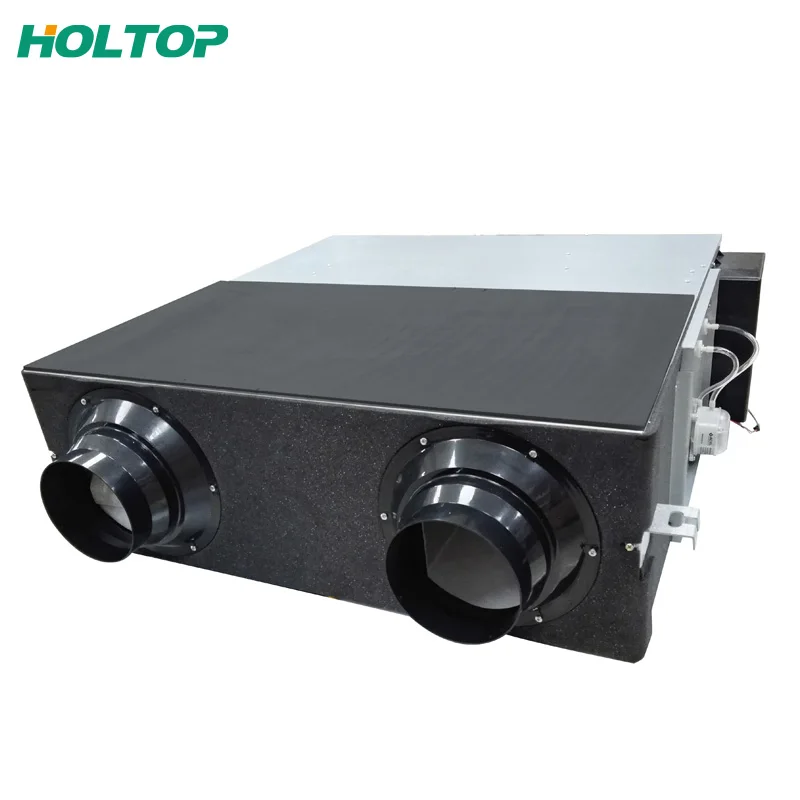

XHBQ D3.5DMTH Eco design home HEPA filter air supply mechanical ventilation system
- Category: >>>
- Supplier: Beijing Holtop Air Conditioning Co. Ltd.
Share on (60817017968):
Product Overview
Description
Holtop Eco design home HEPA filter air supply mechanical hrv ventilation system
Product Description
Energy recovery ventilators are central ventilation systems provide fresh air, remove indoor stale air and balance the humidity within a building. Besides, they can use the heat which recovered from the stale air to increase the incoming clean air to a comfortable temperature. These all help to create a clean and comfortable environment that enhances the well-being of building users.
Eco-Smart Energy Recovery Ventilator
Modern buildings are being built tightly to improve energy efficiency. Eco-smart ERV is ideal
ventilation solution for energy efficient buildings to reduce ecological footprint and improve human
health. The energy can be saved by using DC motors and improving energy efficiency with smart
control system, to achieve eco friendly climatic experience
Features
- Energy saving BLDC motor, 10 speeds control
- High efficiency enthalpy heat recovery, more comfortable indoor climate
- G3+F9 filter, efficiency over 96% to filter the particulate from 2.5µm to 10µm
- Intelligent control system, optional CO2 and humidity control function, external control and BMS control available
- Double filter alarm, timer alarm or different pressure gauge alarm available
- Auto bypass, intelligent controlled by outdoor temperature
Energy efficiency class of A according to regulation EU.No.1254/2014.
High Efficiency Heat Exchanger
High efficiency enthalpy heat recovery, more comfortable indoor climate.

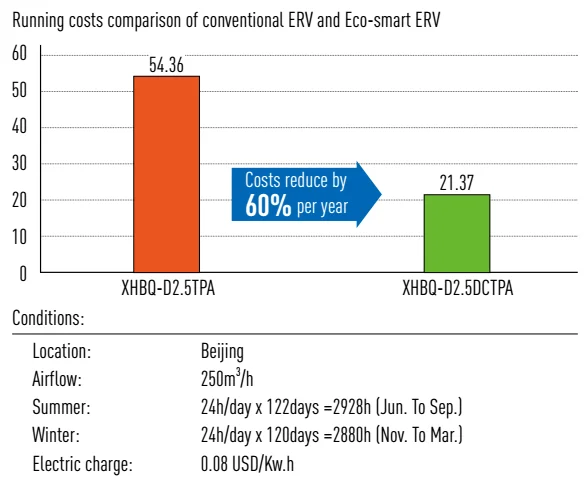

Full series Eco Smart energy recovery ventilator are built in higher efficiency brushless DC motors, power consumption is reduced by up to 70%, resulting in significant energy saving. VSD control which is suitable for most of the projects air volume and ESP requirement.
Intelligent Controller
| Functions of intelligent controller - Airflow rate switch (10 speeds) - Temperature display - Automatic bypass - Weekly timer - Data memory/power to restart - Automatic defrosting - Electric heater defrosting (optional) - Comfortable heating (optional) - External ON/OFF - CO2 concentration control - BMS integration - Working condition monitor - Humidity control (optional) - Free night cooling |  |

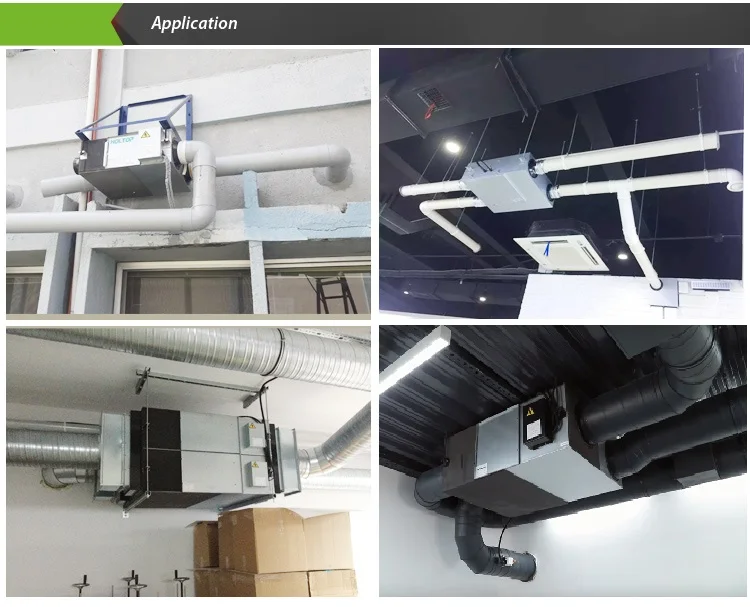

Application Places

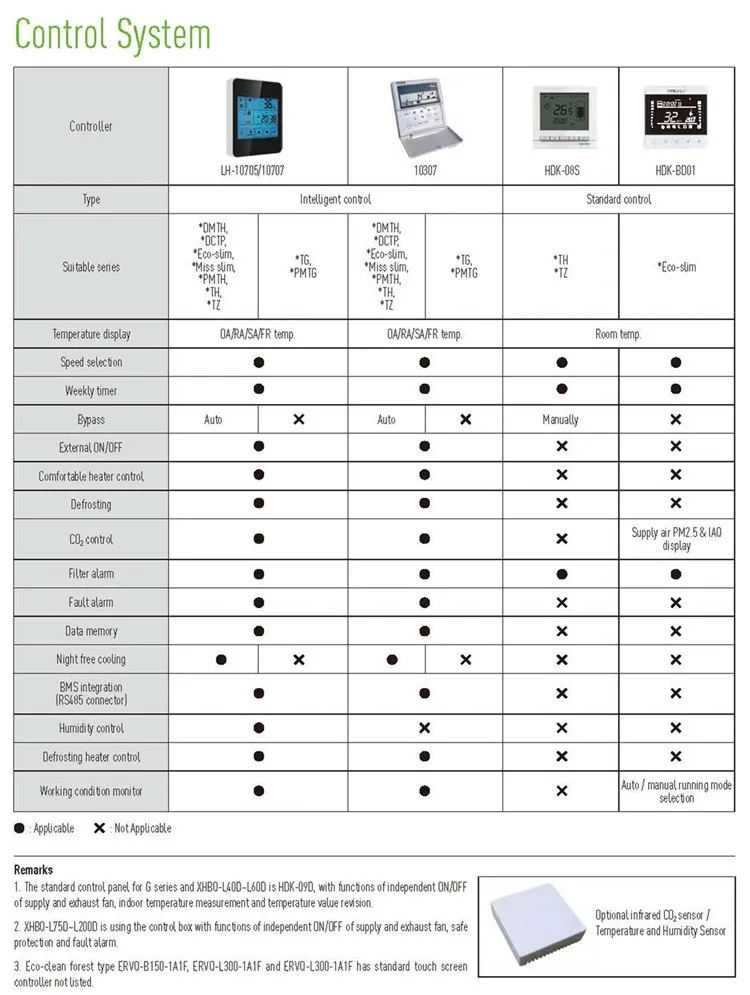

Controllers
Different controller models for different ERV series. Please confirm the latest suitable models with Holtop sales team.
| Intelligent controller Function | ||||||
| 1) Individual supply and exhaust fan speeds and ESP control (AC 3 speeds DC 10 speeds) | ||||||
| 2) outdoor temperature, indoor temperature, supply air temperature and exhaust air temperature display | ||||||
| 3) weekly timmer function | ||||||
| 4) Auto bypass and auto defrost funciton | ||||||
| 5) Intergated RS485 connector for BMS control(on PCB) | ||||||
| 6) External on/off control and fire alarm control, inter lock function (on PCB) | ||||||
| 7) Faulty signal output for monitoring function (on PCB) | ||||||
| 8) Night free cooling function (on PCB) | ||||||
| 9) Optional CO2 sensor and humidity sensor to control CO2 concentration and indoor humidity | ||||||
| 10)Optional electical heater for supply air or outdoor air (alternative for comfort ventialtion or extremly winter low temperture defrost) | ||||||
| 11)Optional central control by one multi controller (up to 16pcs ERV controlled by one controller) | ||||||
App is available to IOS and Android phones with the following functions: | ||||||
| 1. Monitoring indoor air quality | ||||||
| Monitor local weather, temperature, humidity, CO2 concentration, VOC at your hand for healthy living. | ||||||
| 2.Variable setting | ||||||
| Timely switch, speed settings, bypass/timer/filter alarm/temperature setting. | ||||||
| 3.Optional language | ||||||
| Different language English/French/Italian/Spanish and so on to meet your requirement. | ||||||
| 4.Group control | ||||||
One APP can control multiple units. |
Company Information
Holtop Factory
Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments. It is dedicated to the research and technology development in the field of heat recovery ventilation and energy saving air handling equipments since 2002. The main products includes energy recovery ventilator ERV/HRV, air heat exchanger, air handling unit AHU, air purification system. Besides, Holtop professional project solution team can also offer customized hvac solutions for different industry.
Holtop headquarters is located at the foot of Beijing Baiwangshan Mountain, covering area of 30,000 square meters. The manufacturing base is in Beijing's Badaling Economic Development Zone, covering an area of 60 acres, with an annual production capacity of 200,000 units of air heat recovery equipments.
Holtop builds a sound certificate system of ISO9001, ISO14001 and OHSAS18001 as well as product certification systems. Moreover, it has a laboratory certified by national authority. As a well-known manufacturer in the field of heat recovery, Holtop has a strong R&D team and possesses dozens of national invention patents, and participated in the compilation work of several national standards, Holtop was also elected as Zhongguancun High-Tech Enterprise.
Holtop partner
Holtop cooperate with world famous brand or offer OEM service.
Holtop products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, CB, RCM, RoHs, FCC, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. etc.
