Excellent sliding and wear behaviour, especially in case of rotating and oscillating movement, good shock absorption, very high load capacity, no water absorption

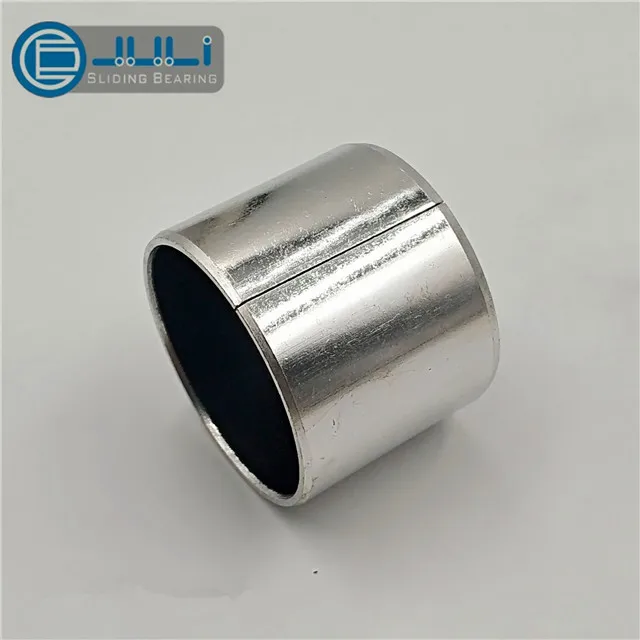

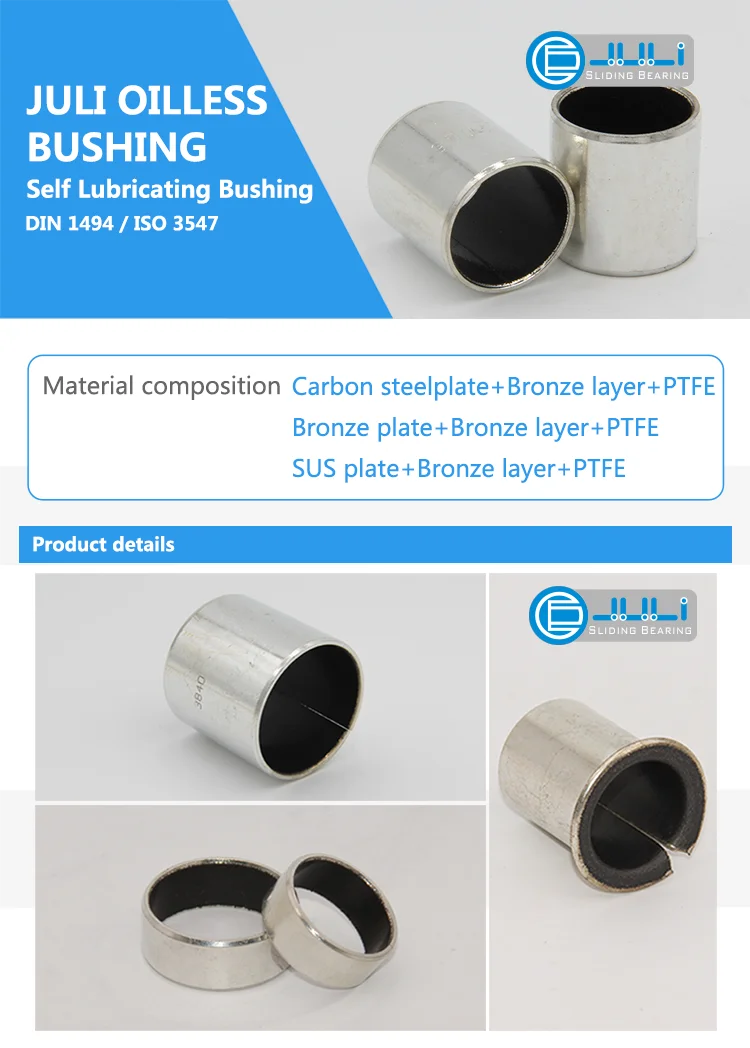

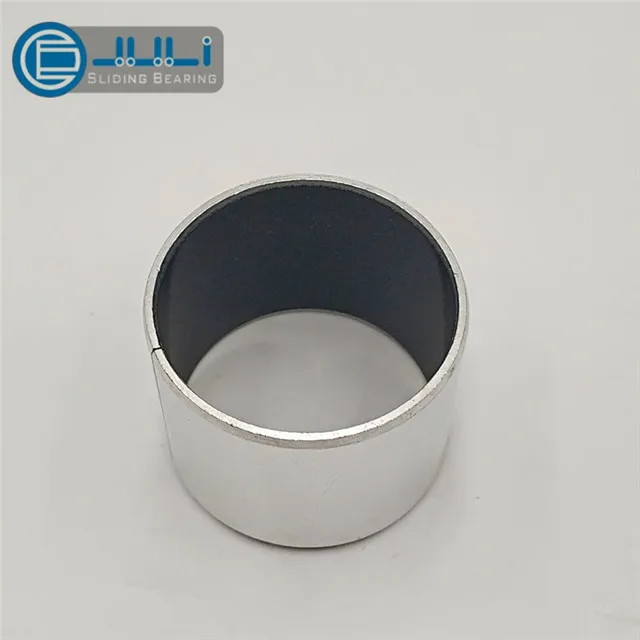

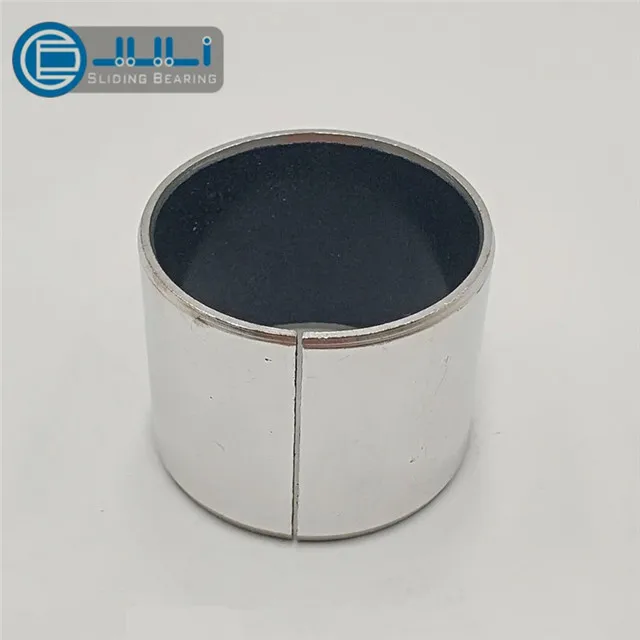

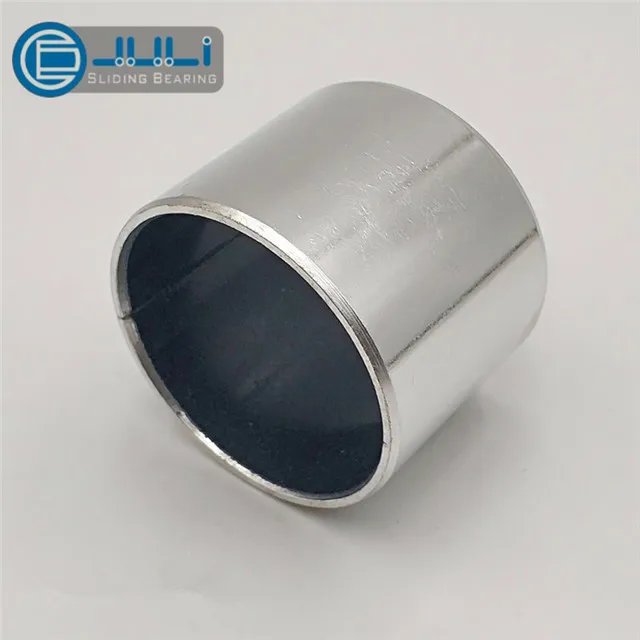

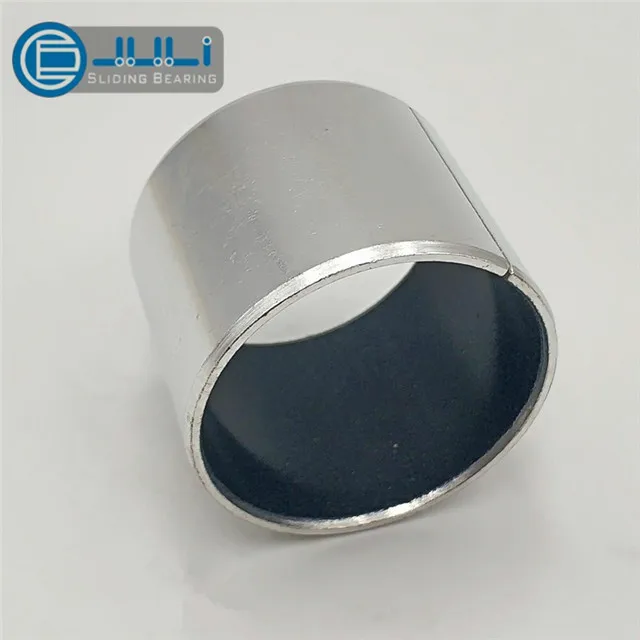

***Wrapped composite sliding bearing ***Carbon-steel / PTFE fibres fabric ***DIN 1494 / ISO 3547 ***Maintentance-free ***Available on request
Technical Data
Max Move Load Capacity 100 N/mm2
Max Sliding Speed dry 0.3 m/s / oil 1 m/s
Max PV Value Limit 3.25 N/mm ·m/s
Density 8 g/cm3
Tensile Strength >750 N/mm2
Elongation >12 %
Hardness 210 HB
Working Temperature - 40 ~ +200 ℃
