- Area of application: For restricted space in transverse direction
- High torque capacity
- The same high load ratings in all four main directions of loading
- Long-term lubrication is possible over several years
- Limitless interchangeability as all Ball Rail Systems can be combined at will with all Ball Runner Block versions within each accuracy class.
| |||
| Description | |||

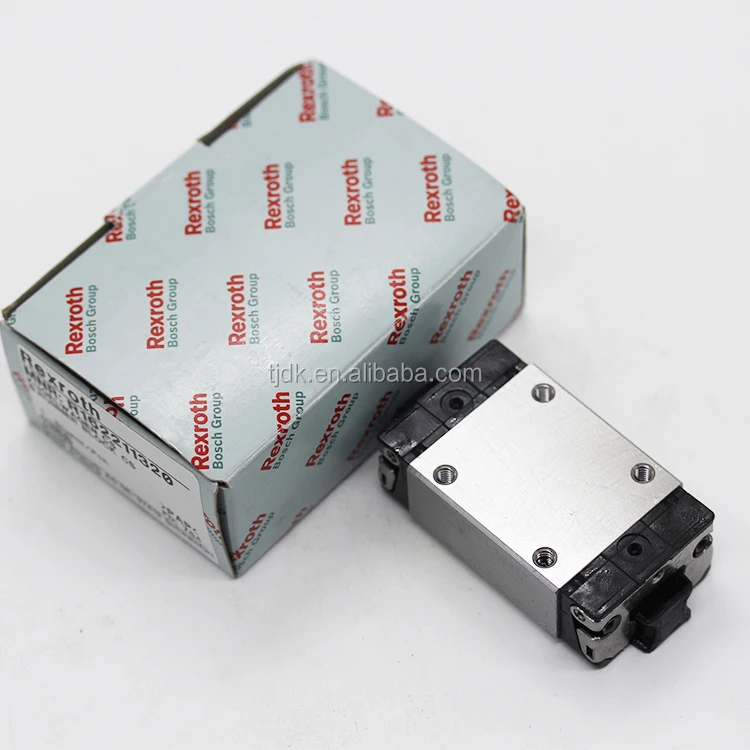

| Type of construction | FW | runner block | |
| Mechanical format | KWD | Ball runner block | |
| Size | 30 | Size 30 | |
| Design | SNS | Slimline, normal, standard height | |
| Format | CS | Carbon steel | |
| Preload class | C1 | low preload | |
| Accuracy class | H | High | |
| Seal | SS | Standard seal | |
| Ball retainer | 0 | Without ball retainer | |
| Lubrication | 1 | Prelubricated, preserved | |
| Bearing grease | S1 | Dynalub 510 | |
| Lube port CAD options | RS | Right end face | |
| lube connection (not mounted) | SL | straight lube nipple | |

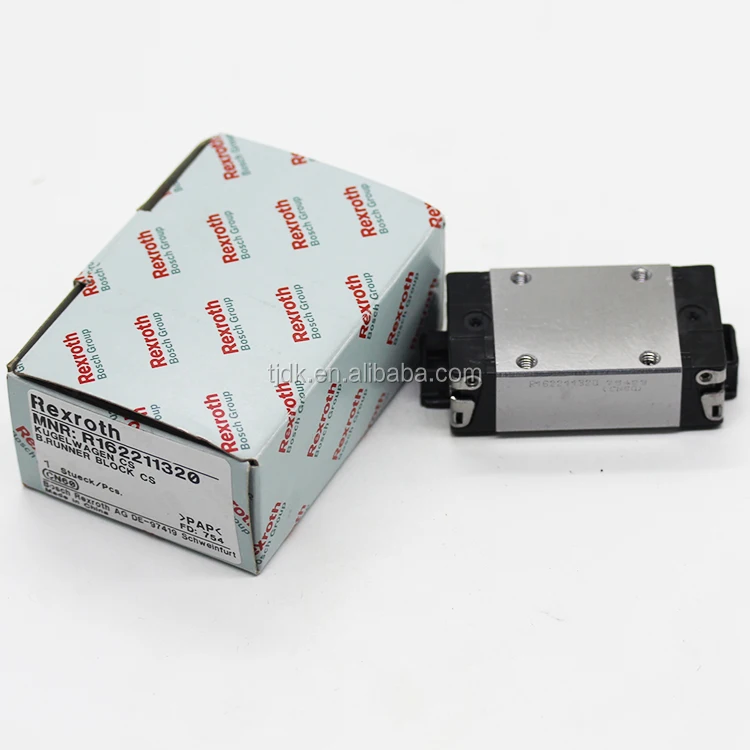

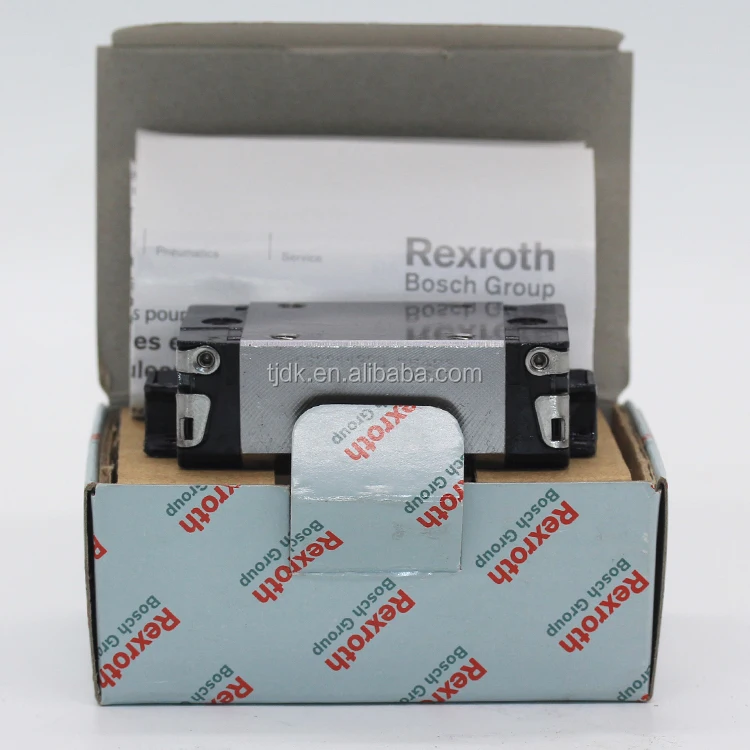

| package | BX | folded box | |
| left side | LS | ||
| Front unit left (reference edge in front) | 0 | without front unit | |
| right side | RS | ||
| Front unit right (reference edge in front) | 0 | without front unit | |
| inscription | 1 | Rexroth |
- Different preload classes
- Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection
- Attachments on the Ball Runner Block can be mounted from above
- Integrated all-around sealing
- Minimum quantity lubrication system with integrated reservoir for oil lubrication
- End-face fastening thread for all attachments
- Can be used on all SNS/SNO Ball Guide Rails
- Excellent dynamic characteristics
- Ball Runner Block pre-lubricated at the factory.
Warehouse Warehouse
Q: Are you trading company or manufacturer ?
A: Manufacture
Q: How long is your delivery time?
A: 2 days
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
