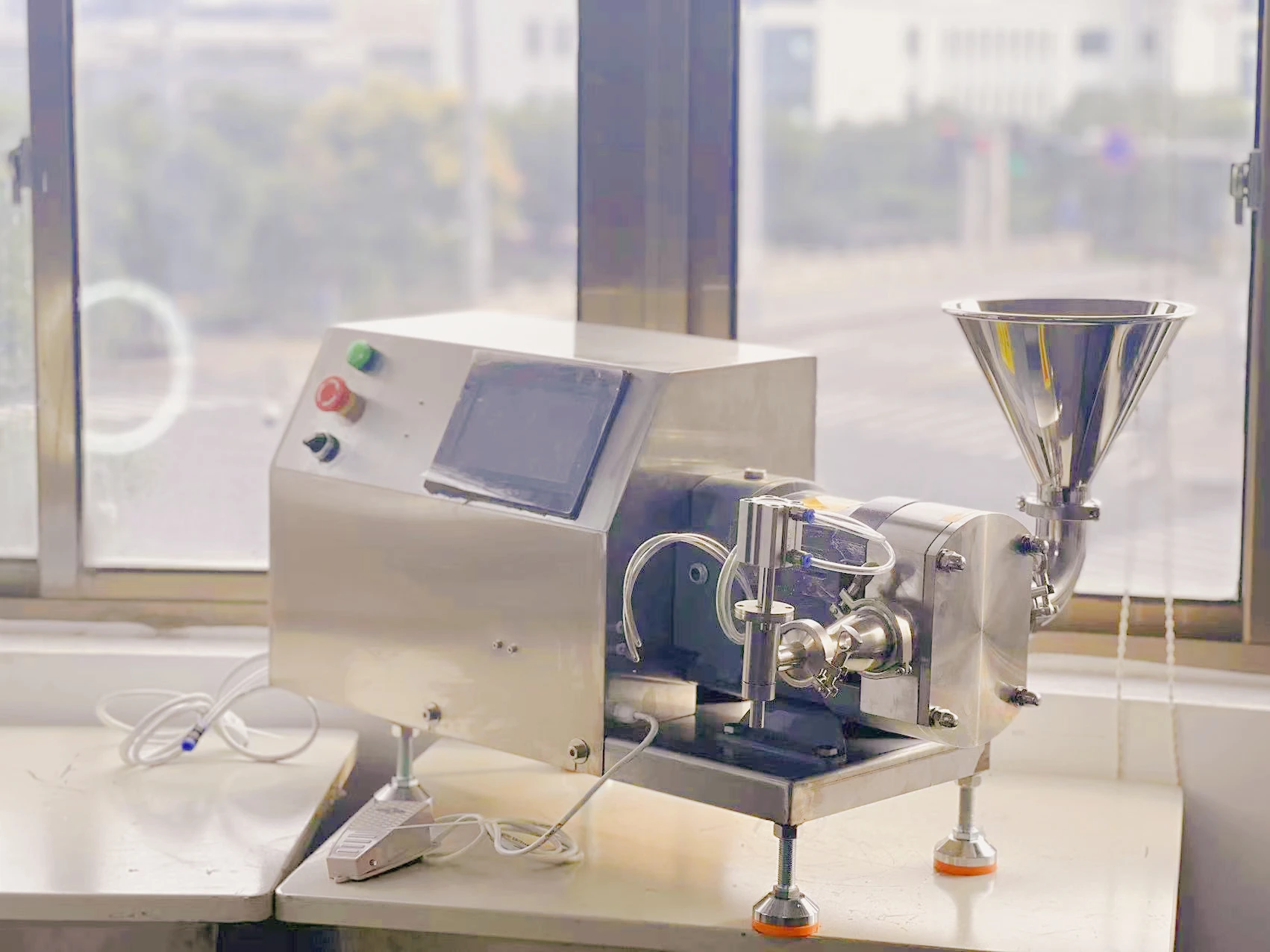

high Viscosity Chocolate/Honey/Glucose rotor pump filling machine sanitary Rotary Lobe Pump
- Category: >>>
- Supplier: Wenzhou Sangtian Fluid Automatic Control Equipment Co. Ltd.
Share on (60817093485):
Product Overview
Description
Product Description
The ST pump is a positive displacement rotary lobe pump with sanitary design suitable for use in the dairy, food-processing, beverage, cosmetics and fine chemicals industries.
This sanitary lobe pump is perfect for managing all kinds of fluid, of either low or high viscosity, as well as for filtering and bottling applications. Products containing fragile solids such as curd can be pumped without damage thanks to the specially designed lobes.
This sanitary lobe pump is perfect for managing all kinds of fluid, of either low or high viscosity, as well as for filtering and bottling applications. Products containing fragile solids such as curd can be pumped without damage thanks to the specially designed lobes.
There are 2 lobes within the pump casing that rotate in opposite directions without touching each other. The lobes will rotate passed the suction port of the pump casing, when this happens, the volume between the lobes increases, creating a vacuum which draws liquid into the pump casing. As the lobes rotate towards the discharge port, pressure builds up due to the volume between the lobes decreasing. This causes the liquid within the pump casing to flow out of the discharge port, as shown in the image.
Benefits of Using a Lobe Pump
1.The Lobe Pumps that ST Group supply are fully EHEDG compliant and are manufactured from Stainless Steel to ensure the pumps are hygienic.
2.Can be ATEX rated for pumps being used within potentially explosive environments.
1.The Lobe Pumps that ST Group supply are fully EHEDG compliant and are manufactured from Stainless Steel to ensure the pumps are hygienic.
2.Can be ATEX rated for pumps being used within potentially explosive environments.
3.Lobe Pumps can be fitted into pipework horizontally or vertically, highlighting their versatility. If the pump is fitted within the pipework vertically, the pump can self-drain, which is particularly helpful alongside the SIP & CIP feature of a Lobe Pump.
4. The mechanical seal and lobes of the pump can be completely pulled out from the front of the pump casing which aids in maintenance of a Lobe Pump.
5.Lobe Pumps have accurate flow control ranging, can be fitted with a variety of connection types, heating or cooling jackets, air or spring loaded integral safety valves, as well as the option of Bi-Wing Lobe Design or Quattro Lobe Design. These variations can all be fitted based on the application you wish to use a Lobe Pump for, let us know what you need, and we’ll spec the pump up for you.
4. The mechanical seal and lobes of the pump can be completely pulled out from the front of the pump casing which aids in maintenance of a Lobe Pump.
5.Lobe Pumps have accurate flow control ranging, can be fitted with a variety of connection types, heating or cooling jackets, air or spring loaded integral safety valves, as well as the option of Bi-Wing Lobe Design or Quattro Lobe Design. These variations can all be fitted based on the application you wish to use a Lobe Pump for, let us know what you need, and we’ll spec the pump up for you.
How to maintain a Lobe Pump
Regularly checking your Lobe Pump will avoid unnecessary downtime and reduce breakdown costs.
What to check
Is the pump producing excessive noise? This may indicate lobes dragging against the pump casing, as well as wear problems to the pump bearings or gears.
The gearbox oil level, if the oil level has decreased, check over your pump for oil leaks.
The suction and discharge pressure of the pump, ensure that they are at the standard system levels.
If your Lobe Pump is fitted with a Heating or Cooling Jacket, check the temperature is correct.
The pressure and flow of the flushing system, if featured on your pump.
When to change the oil in your Lobe Pump
After 300 hours of operating since the initial commissioning of the pump, the oil should be changed
After the initial oil change, one should be carried out on your pump every 3000 operating hours or every 3 months, whichever comes first.
If your Lobe Pump isn’t used regularly, the oil should be changed every 2000 hours of operating or at least every 3 months.
Is the pump producing excessive noise? This may indicate lobes dragging against the pump casing, as well as wear problems to the pump bearings or gears.
The gearbox oil level, if the oil level has decreased, check over your pump for oil leaks.
The suction and discharge pressure of the pump, ensure that they are at the standard system levels.
If your Lobe Pump is fitted with a Heating or Cooling Jacket, check the temperature is correct.
The pressure and flow of the flushing system, if featured on your pump.
When to change the oil in your Lobe Pump
After 300 hours of operating since the initial commissioning of the pump, the oil should be changed
After the initial oil change, one should be carried out on your pump every 3000 operating hours or every 3 months, whichever comes first.
If your Lobe Pump isn’t used regularly, the oil should be changed every 2000 hours of operating or at least every 3 months.
Options
Mechanical seals: SiC/SiC or TuC/SiC.
Apart from the single mechanical seal, other sealing types are available:
flushed mechanical seal (quench), double mechanical seal, lip seal (FPM or PTFE), gland packing, O-ring.
Gaskets: FPM or PTFE.
Relief valve on the front cover or external by-pass.
Bi-wing lobes.
Heating chamber.
Isolation can.
Vertical support.
Rectangular nozzle.
Various kinds of drives and protections (gearbox drive with optional frequency converter, pulley/mechanical drive speed selector).
Trolley and/or control panel.
Connections: Clamp, SMS, RJT, etc.
Mechanical seals: SiC/SiC or TuC/SiC.
Apart from the single mechanical seal, other sealing types are available:
flushed mechanical seal (quench), double mechanical seal, lip seal (FPM or PTFE), gland packing, O-ring.
Gaskets: FPM or PTFE.
Relief valve on the front cover or external by-pass.
Bi-wing lobes.
Heating chamber.
Isolation can.
Vertical support.
Rectangular nozzle.
Various kinds of drives and protections (gearbox drive with optional frequency converter, pulley/mechanical drive speed selector).

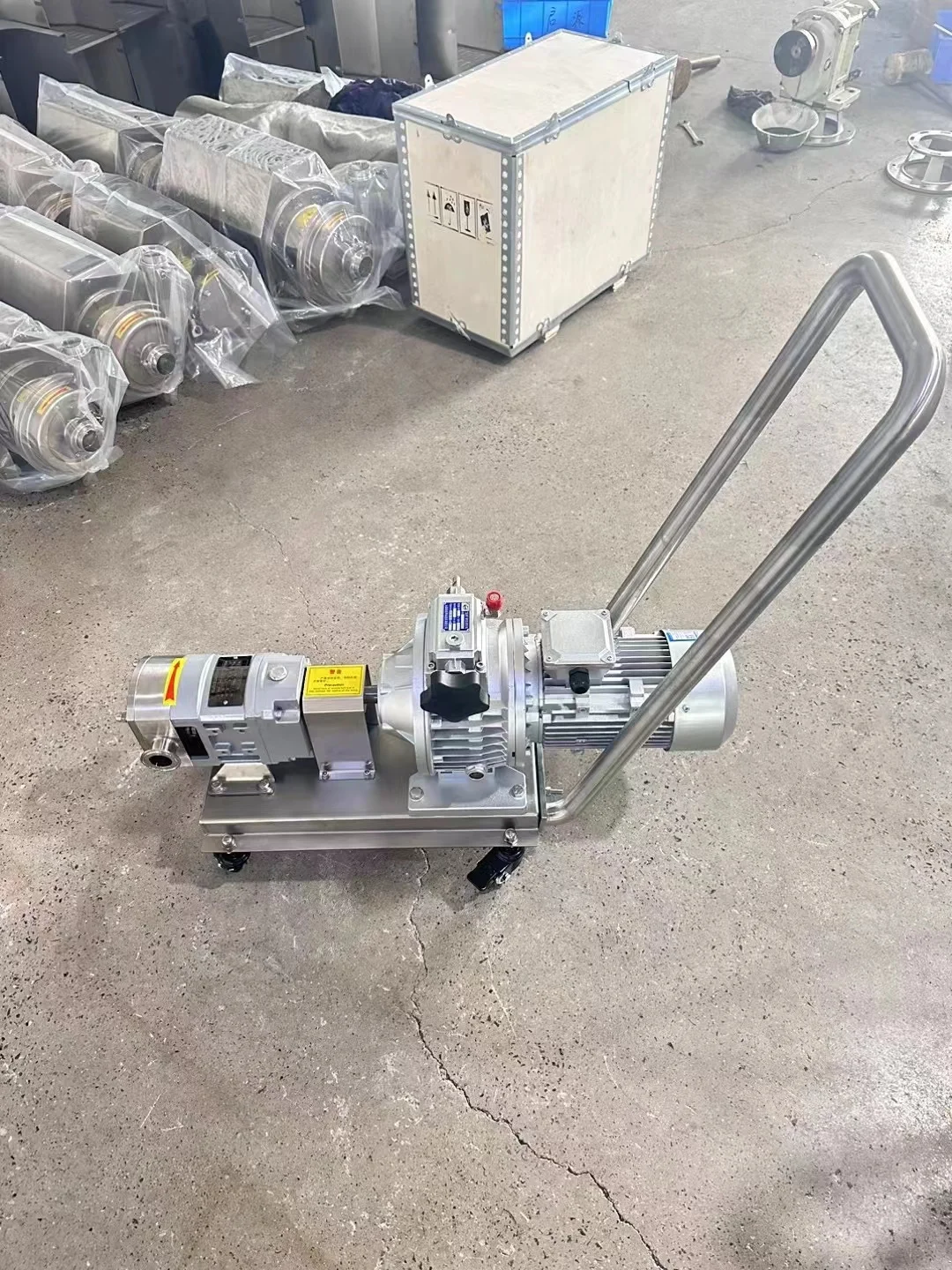

Trolley and/or control panel.
Connections: Clamp, SMS, RJT, etc.
PLEASE CONSULT US DIRECTLY IF YOU HAVE SPECIAL REQUIREMENTS!!!
