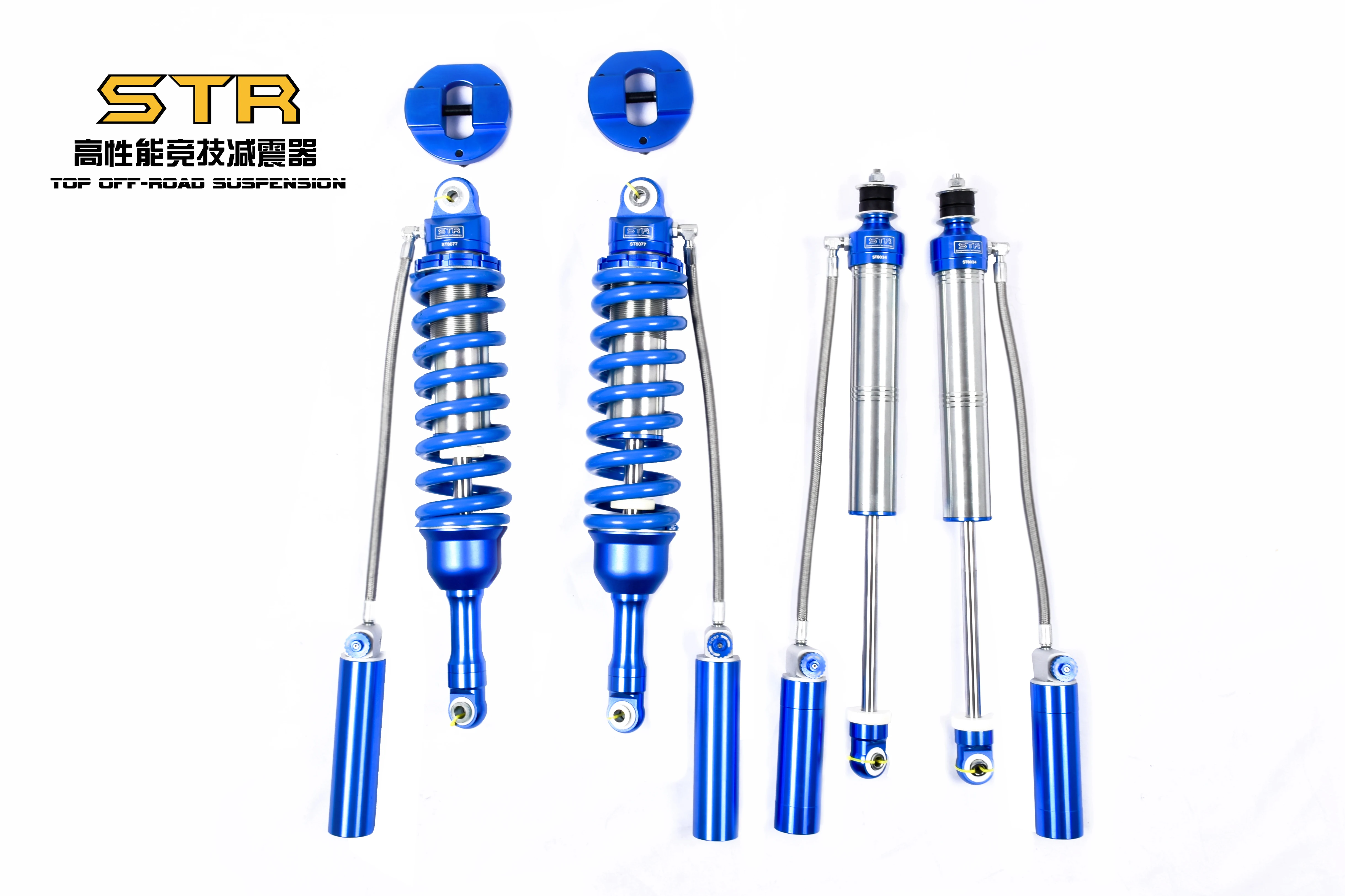

4x4 lift kits Racing suspension full OE coil over shock with 8 step adjustment

Product Overview

Description

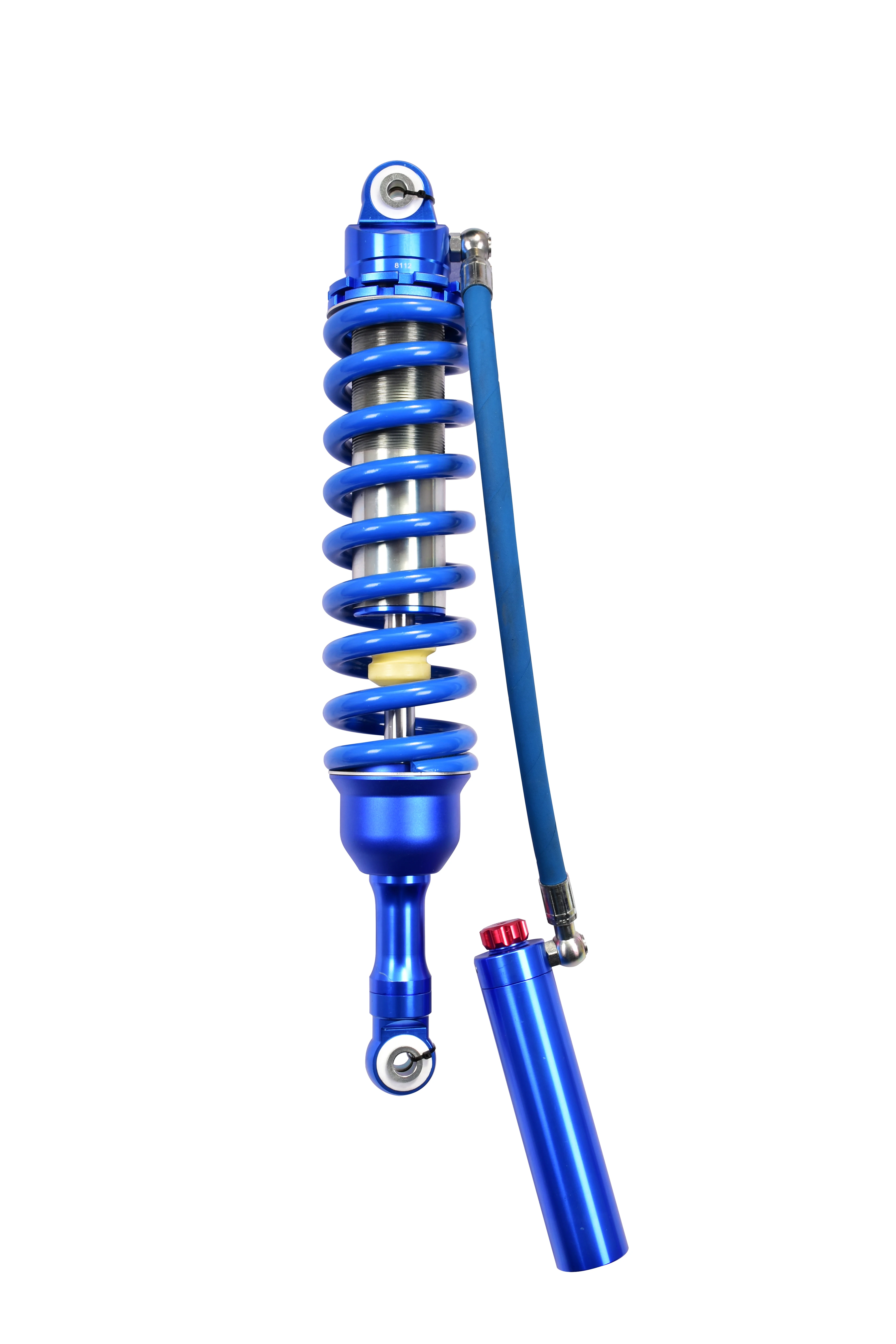

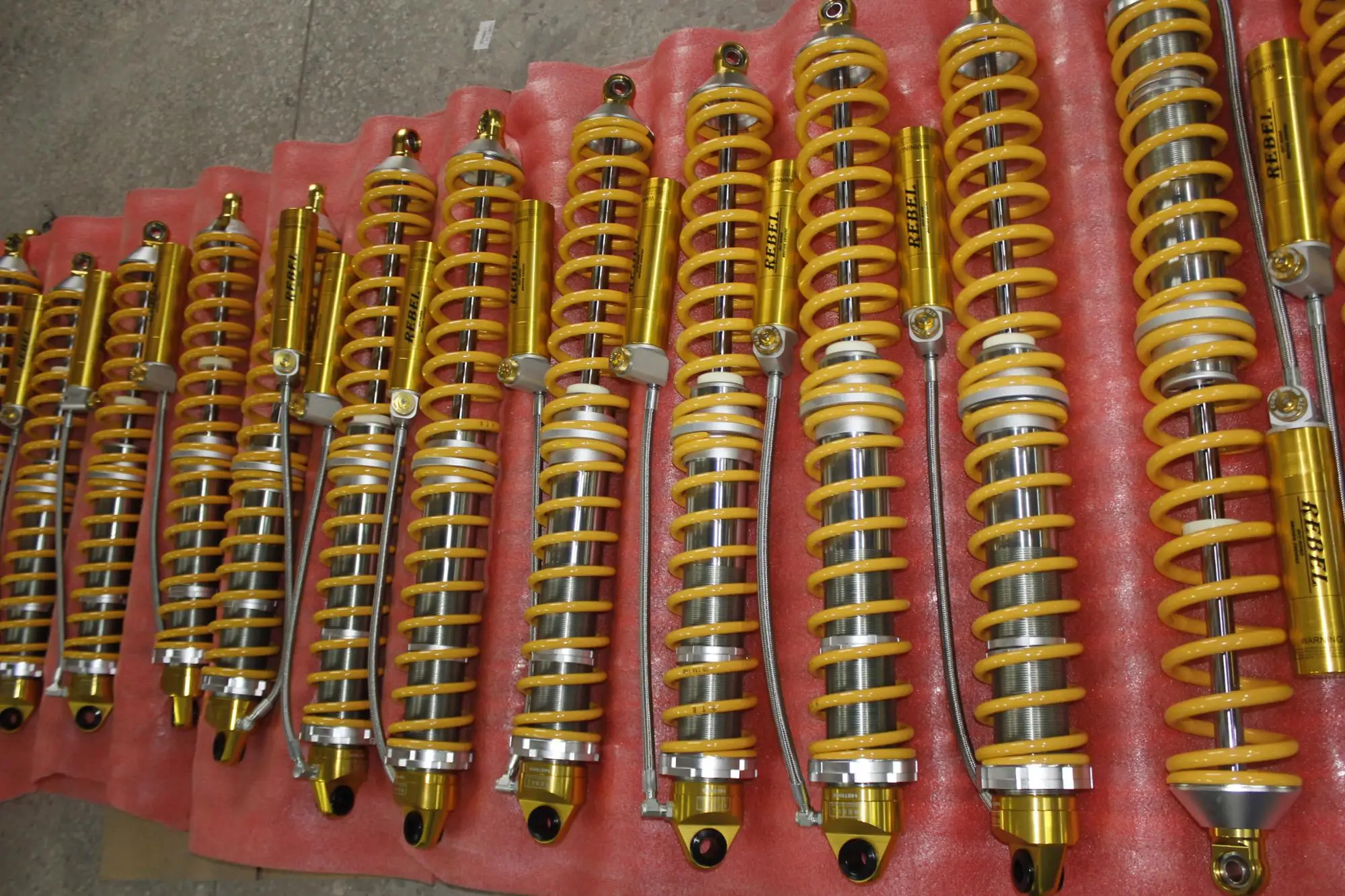

2.5 mono shock rear suspension full OE kits coil over shock with 8 step adjustment



Before any of our shocks reach production, they’ve had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. We push the boundaries to give you that same precise control and race-proven performance you can feel. Our complete line of bolt-on, Factory

Series coil-over shocks provide improved damping in any terrain.

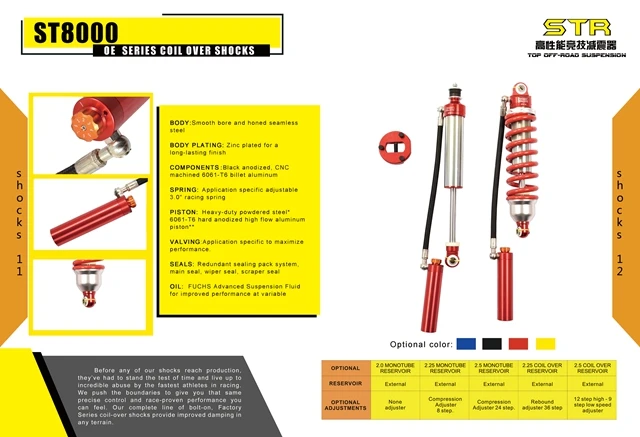

FAMILY FEATURES

BODY Smooth bore and honed seamless steel

BODY PLATING Zinc plated for a long-lasting finish

COMPONENTS Black anodized, CNC machined 6061-T6 billet aluminum

SPRING Application specific adjustable 3.0" racing spring

PISTON Heavy-duty powdered steel*

6061-T6 hard anodized high flow aluminum piston**

VALVING Application specific to maximize performance

SEALS Redundant sealing pack system, main seal, wiper seal, scraper seal

OIL JM92 Advanced Suspension Fluid for improved performance at variable temperatures

SHAFT 7/8" hard chrome plated, heat-treated steel*

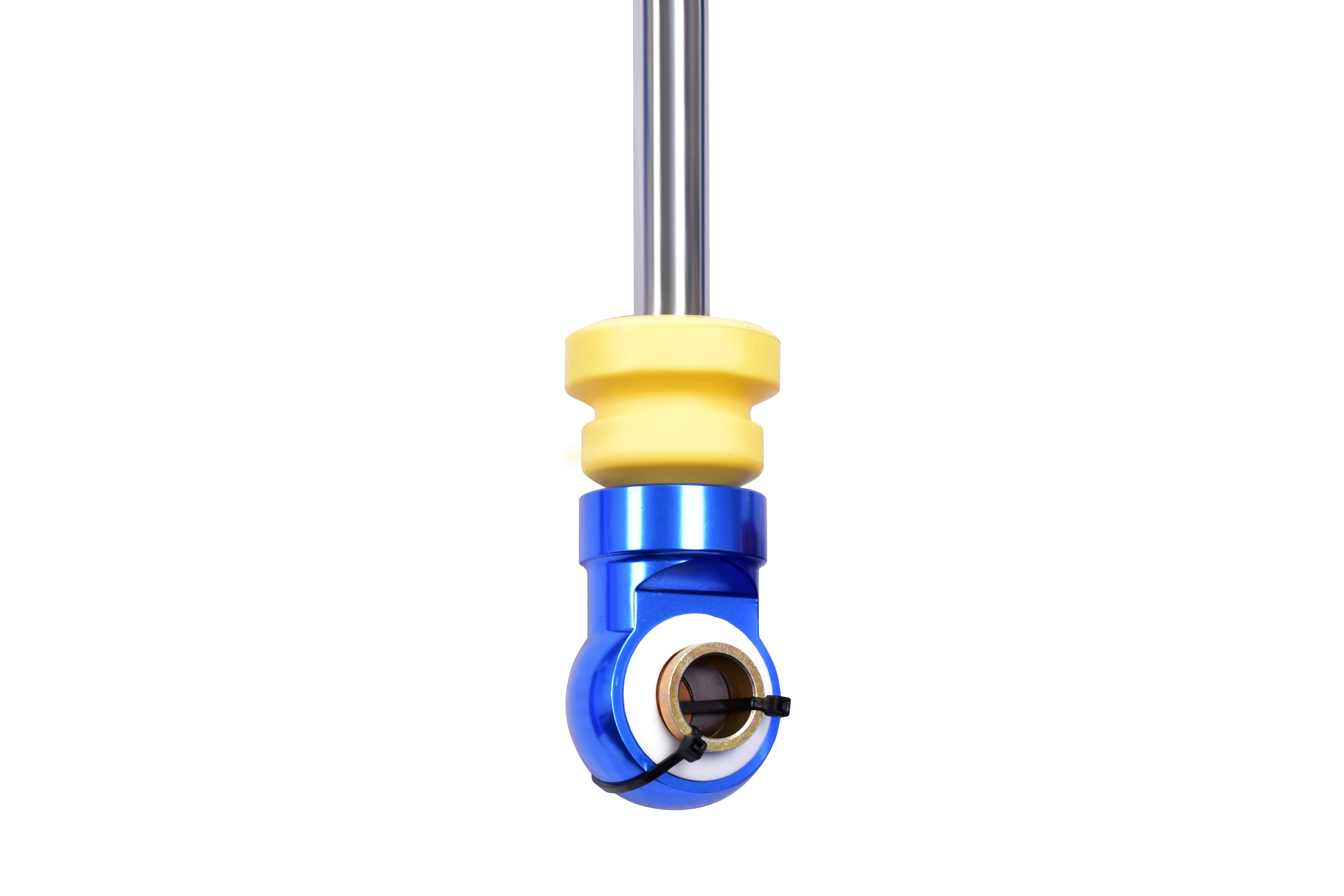

7/8" 17-4 H900 hard chrome plated stainless steel** BEARING Spherical, PFTE-lined, heat-treated steel MOUNTING Direct replacement for stock and aftermarket lift kits

MODEL FEATURES

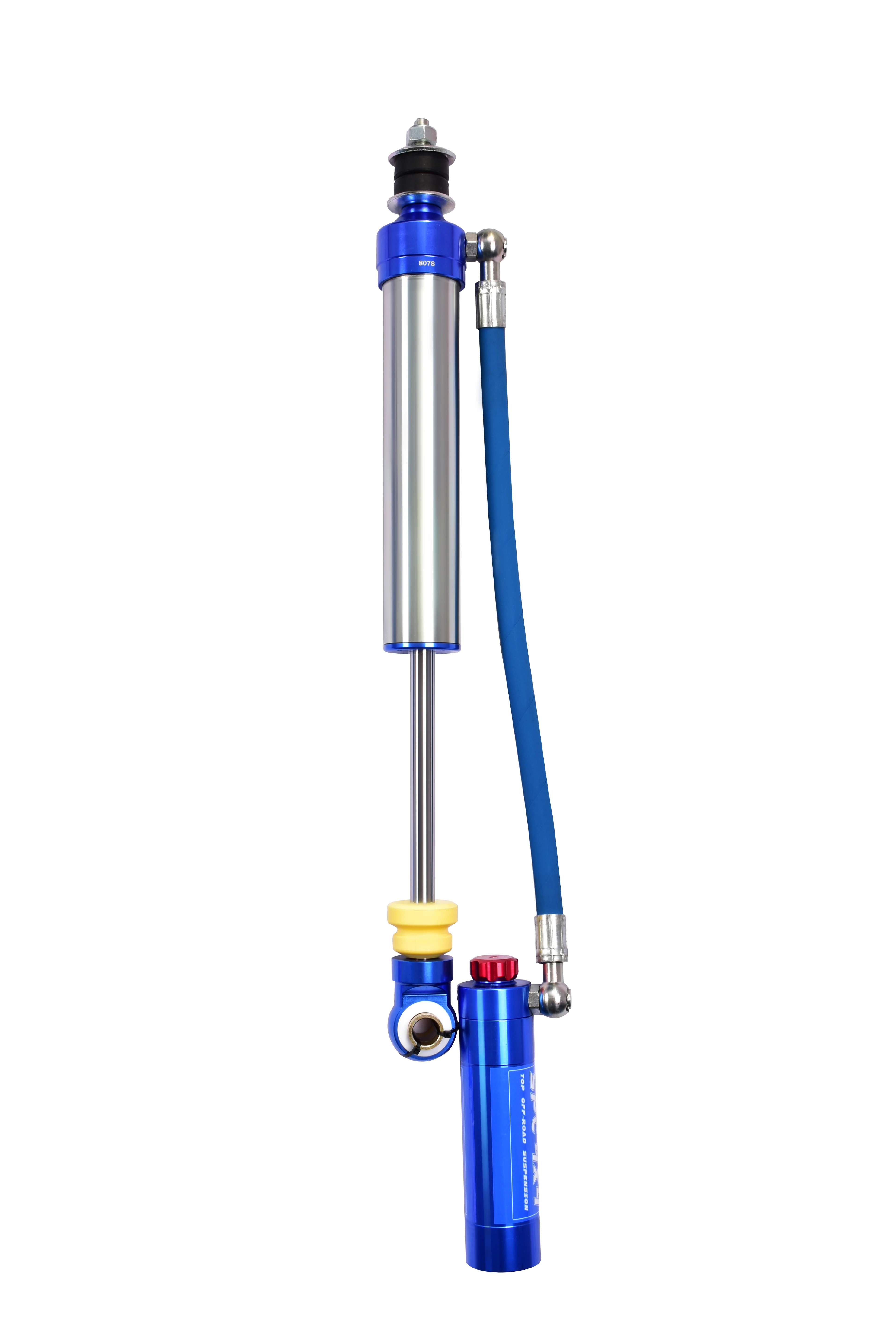

MODEL	2.5 COIL-OVER IFP	2.5 COIL-OVER RESERVOIR
RESERVOIR	Internal	External

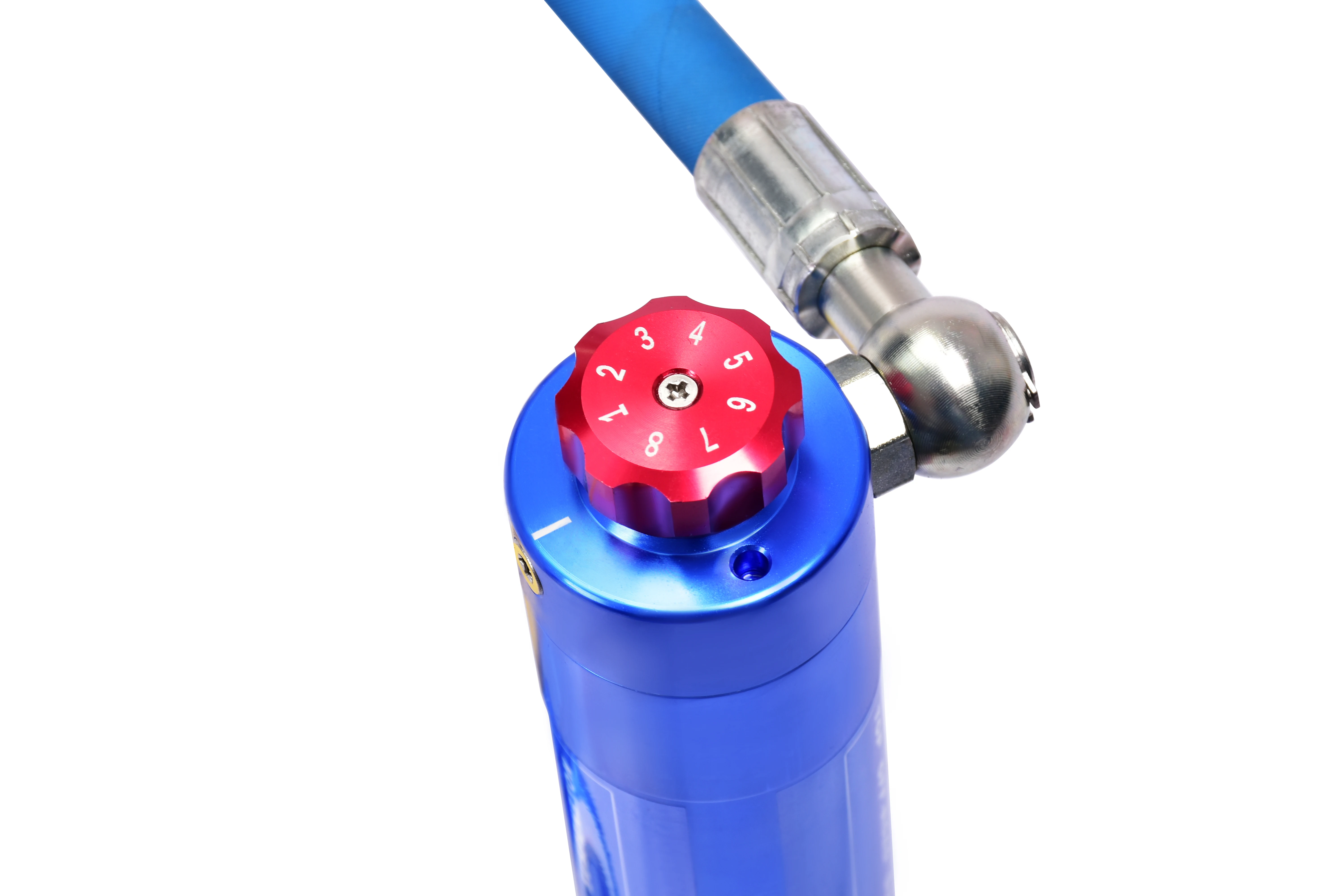

OPTIONS		DSC adjuster
ADJUSTMENTS	Ride height preload ring	» Optional DSC adjuster » Ride height preload ring
