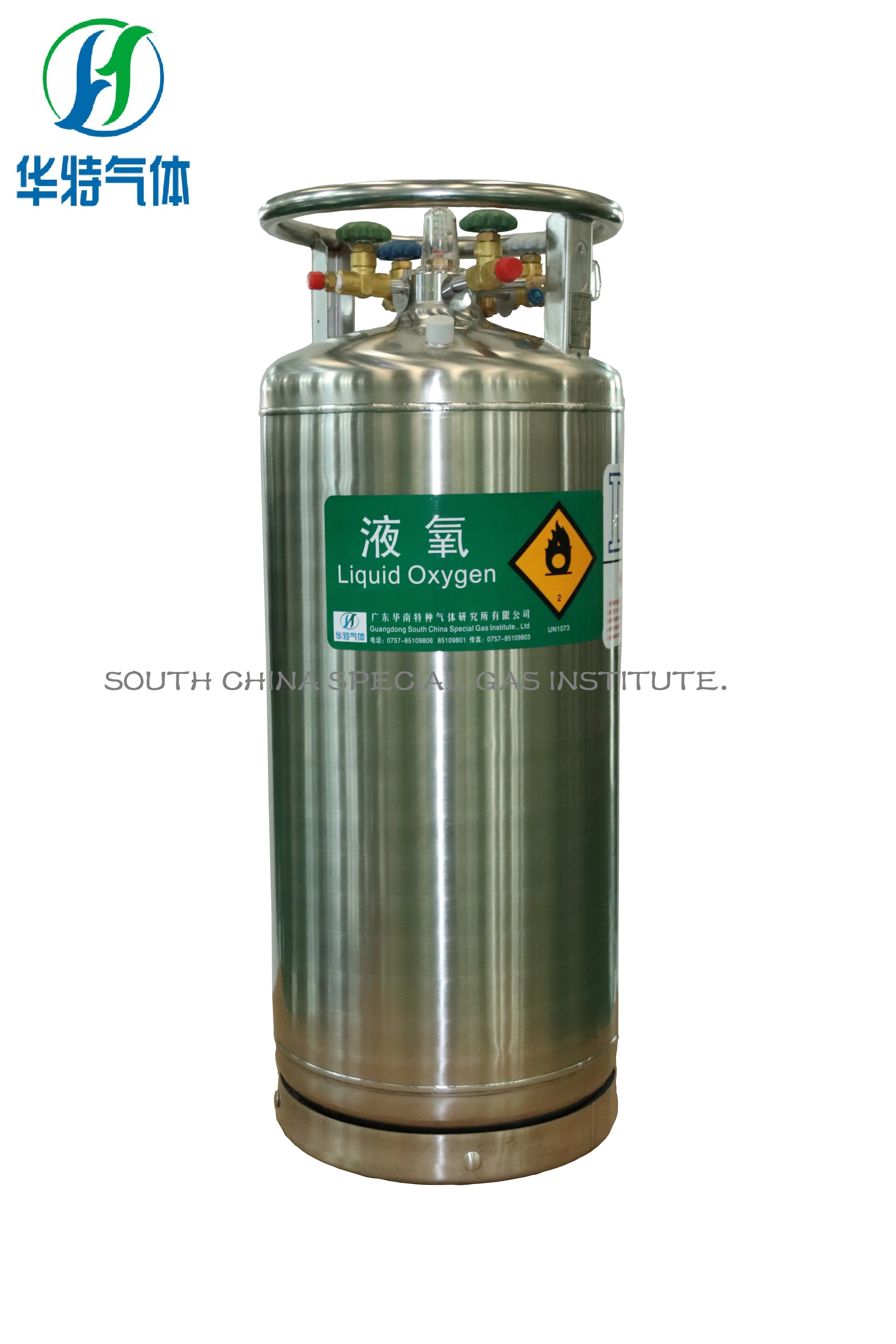

100L Industrial Gas Cryogenic Oxygen Cylinder Tank
- Category: >>>
- Supplier: South China Special Gas Institute Co. Ltd.
Share on (60817149934):
Product Overview
Description
Product Description

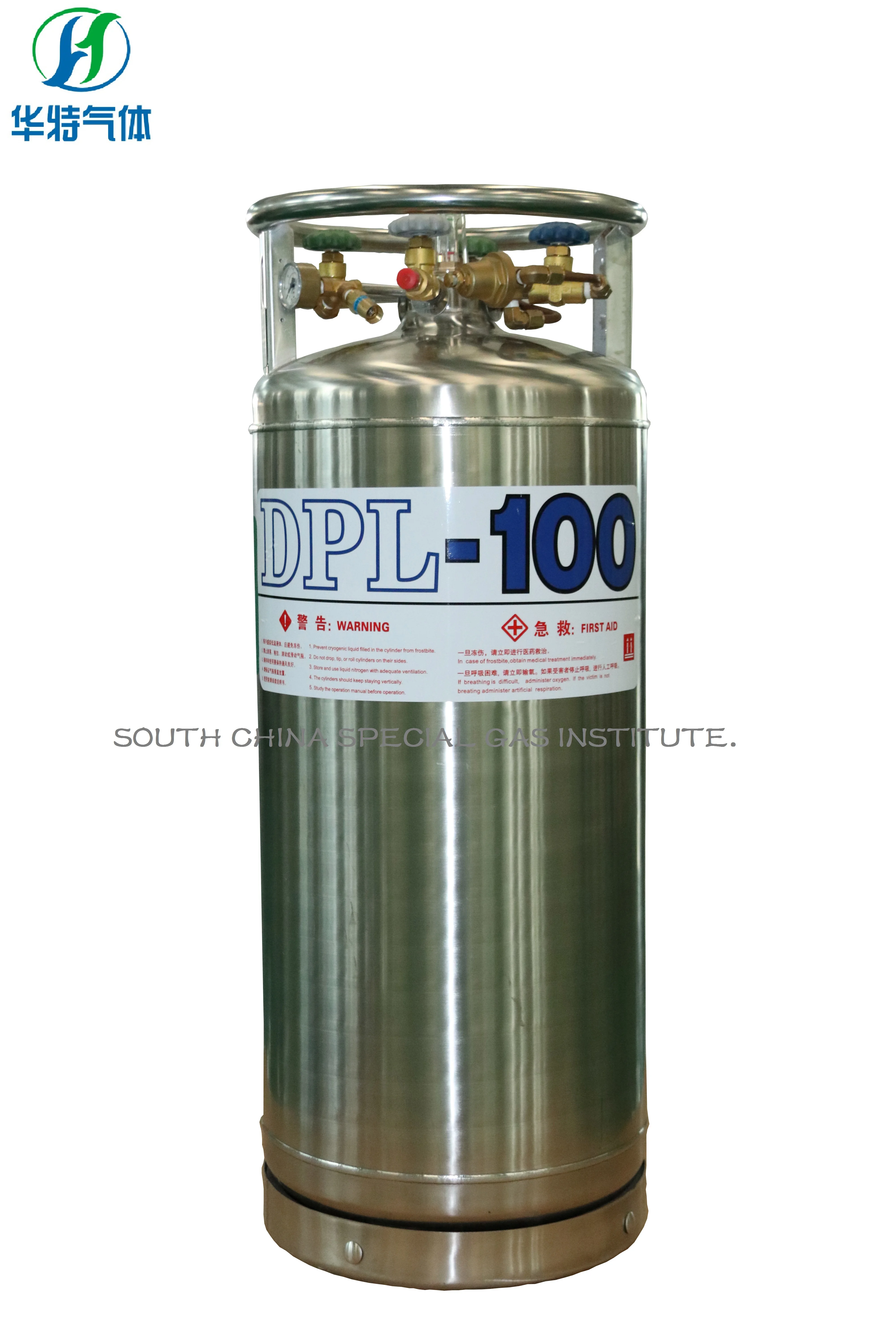

The DPL series containers are vacuum insulated, Stainless steel containers designed to store
And transport cryogenic liquid oxygen, nitrogen or argon. Containers may be used for over the road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications.
As rugged, long holding time, self-contained gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h, with a delivery pressure of approximately 100psig (6.9bar/690Kpa)
Product Specification | |||||||||||||||
Product Model | DPL-100 | DPL-175 | DPL-195 | DPL-210 | DPL-410 | DPL-450 | |||||||||
Diameter*Height(mm) | 454*1247 | 508*1500 | 508*1620 | 508*1707 | 750*850*1770 | 750*850*1900 | |||||||||
Working Pressure(MPa) | 1.33 | 1.4 2.01 2.88 | 1.4 2.01 2.88 | 1.4 2.01 2.88 | 1.4 3.17 | 1.4 3.17 | |||||||||
Pressure Relief Valve(MPa) | 1.59 | 1.59 2.41 3.45 | 1.59 2.41 3.45 | 1.59 2.41 3.45 | 1.59 3.45 | 1.59 3.45 | |||||||||
Inner Container Bursting Disc(MPa) | 2.60 | 2.60 3.62 5.17 | 2.60 3.62 5.17 | 2.60 3.62 5.17 | 2.60 5.70 | 2.60 5.7 | |||||||||
Maximum Liquid Capacity(L) | 100 | 175 | 195 | 210 | 410 | 450 | |||||||||
Usable Liquid Capacity(L) | 95 | 166 | 185 | 197 | 389 | 427 | |||||||||
Normal Evaporation Rate ((LN2)) | ≤2.1% | ≤2.1% | ≤2.1% | ≤2.1% | ≤1.8% | ≤1.8% | |||||||||
Tare Weight(Kg) | 70 | 110 | 117 | 123 | 282 | 289 | |||||||||
The Filling Quality | Oxygen(kg) | 100 | 172 | 191 | 205 | 443 | 487 | ||||||||
Nitrogen(Kg) | 73 | 121 | 135 | 145 | 315 | 346 | |||||||||
Argon(Kg) | 127 | 208 | 233 | 250 | 548 | 602 | |||||||||
Natural Gas (Kg) | ---- | 70.1 | 76 | 86.3 | 161 | 176 | |||||||||
CO2(Kg) High Pressure only | ---- | 138 | 154 | 164 | 325 | 357 | |||||||||
N2O(Kg) High Pressure only | ---- | 191 | 213 | 227 | 448 | 492 | |||||||||
Main Features
* Mainly used in storage and transportation of liquid oxygen, liquid nitrogen, liquid argon, and liquefied natural gas
* Adopted high multi-layer insulation method to ensure the low evaporation rate.
* Inner vaporizer provides a 9.2Nm3/h stable continuous gas.
* Solar installation use in the priority of gas-pressure and gas space.

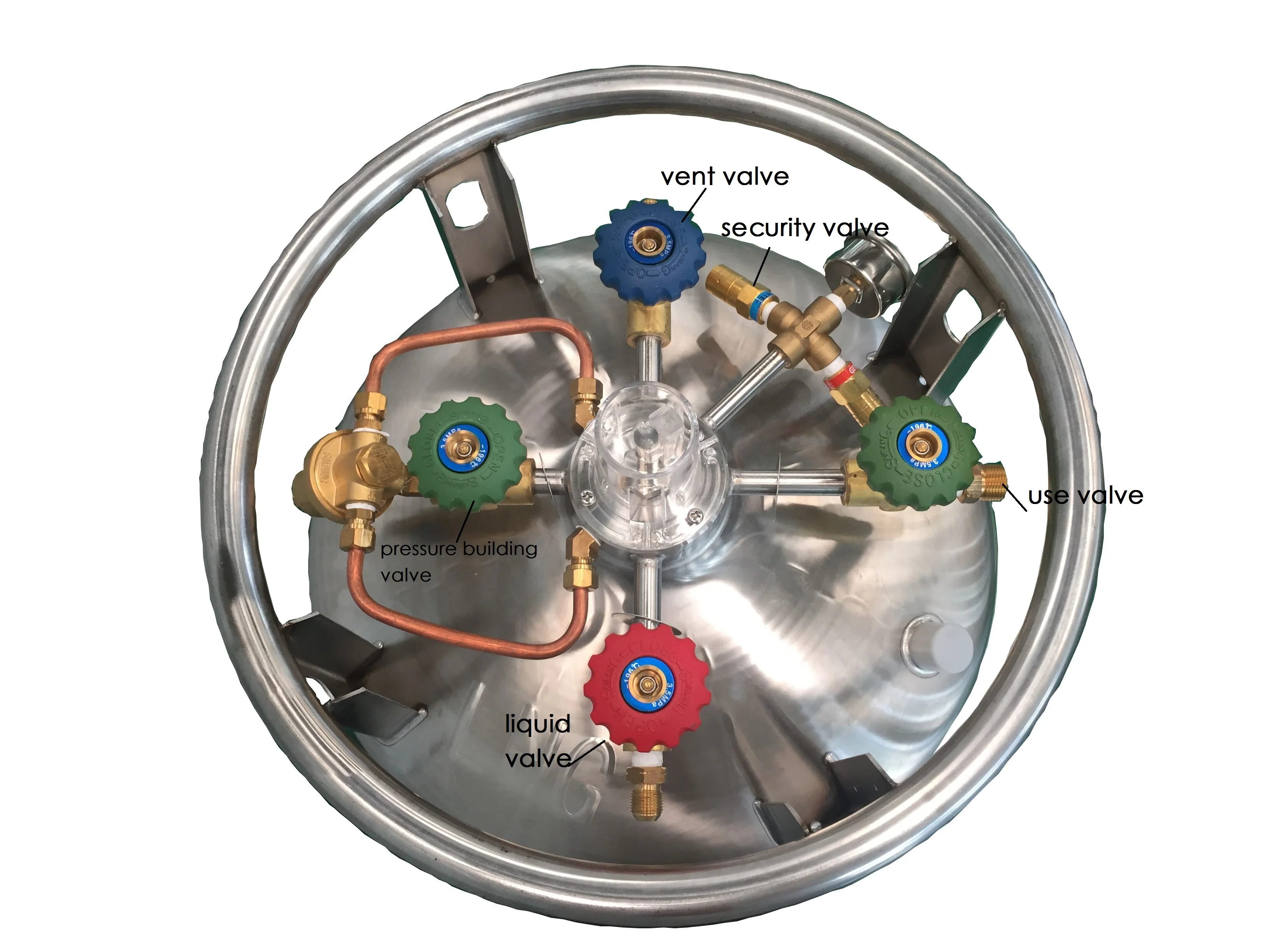

* Adopt the international CGA standard tie-in and all the valves installed imported from USA(Rego)
* Unique design of damping ring meets the needs of frequent transportation.
* Suitable for electronics, research, chemical industry, welding, and LNG supply industries.
Detailed Images
Main Features
Name: Handling wheel & outer upper cover
Feature: the handling wheel is welded firmly and smoothly
the head cover is torispherical head,made by cold stamping, No splicing, the whole cover real thickness NOT less than 2.15mm and under refined polsh processing.
Machine Parts
Name: Interlayer Thermal Insulstion.
Feature: There is thermal barrier of high technology in the interlayer, it includes efficient thermal barrier, vacuum and vacuum support system, which are useful for working life. Thermal barrier of high technology can stop the heat from entering the inner container by the way of thermal radiation and thermal conduction, vacuum can stop the heat from entering the inner container by the way of thermal convection.
Main Features
Name: Heavy Duty Rack With wheel
Feature: Any Sudden drop, tip-over will bring abuse or dents to cylinder,which would affect the insulation system, while Carbon Steel or 304SS Rack with Wheel will make great convenience for users to transport or move the cylinder protect the cylinder from sudden damage.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine,
* Engineers available to service machinery overseas.
Packing & Delivery
