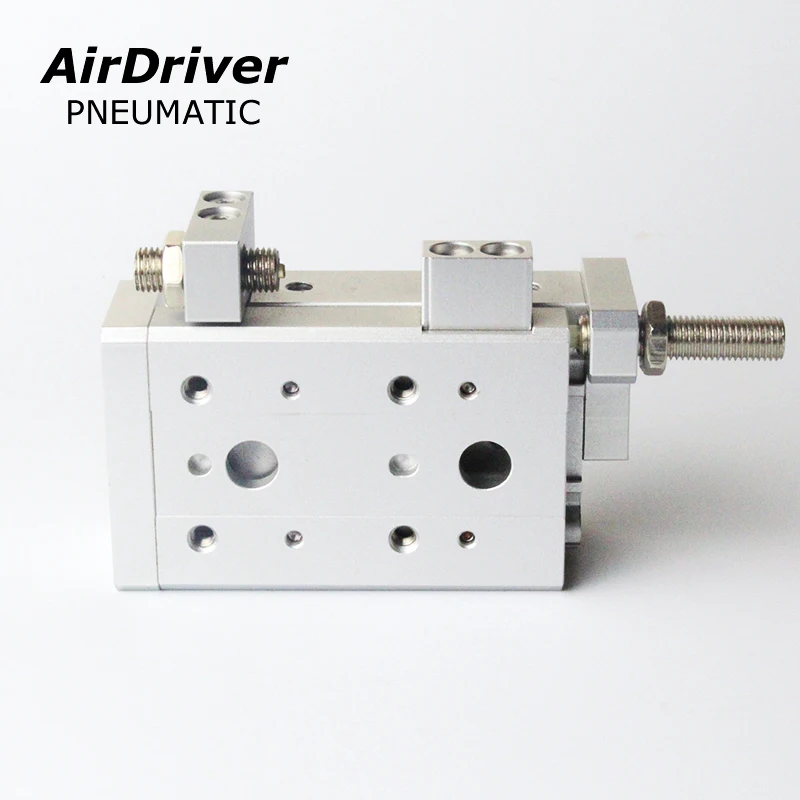

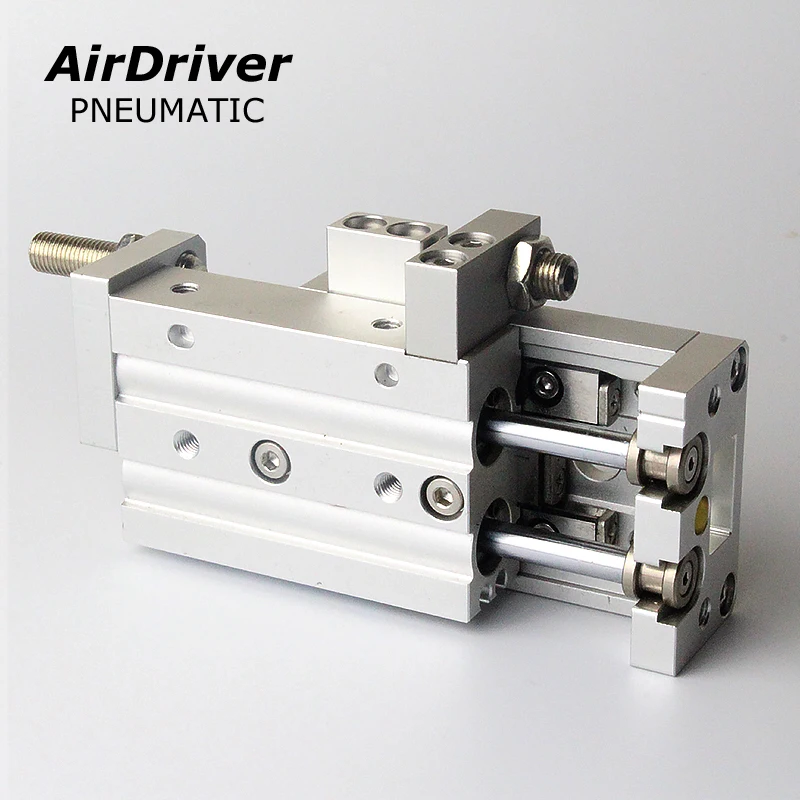

MXS Series Pneumatic air cylinder ,SMC standard Air slide table
- Category: >>>
- Supplier: Yueqing Hengxin Pneumatic Co. Ltd.
Share on (60817157067):
Product Overview
Description

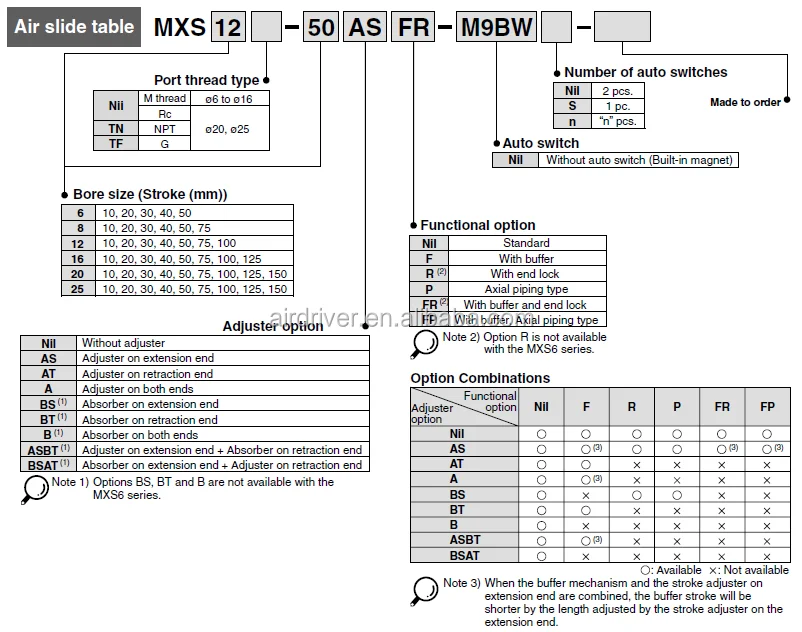

MXS Series Pneumatic air cylinder ,Air slide table
Bore size (mm) | 6 | 8 | 12 | 16 | 20 | 25 |
Piping port size | M3 x 0.5 | M5 x 0.8 | Rc 1/8, NPT 1/8, G 1/8 | |||
Fluid | Air | |||||
Action | Double acting | |||||
Operating pressure | 0.15 to 0.7 MPa | |||||
Proof pressure | 1.05 MPa | |||||
Ambient and fluid temperature | -10 to 60°C | |||||
Piston speed | 50 to 500 mm/s | |||||
Cushion | Rubber bumper (Standard, With stroke adjuster) Shock absorber (Optional) | |||||
|
| |||||
Lubrication | Non-lube | |||||
Auto switch (Optional) | Reed auto switch (2-wire, 3-wire) Solid state auto switch (2-wire, 3-wire) 2-color indication solid state auto switch (2-wire, 3-wire) | |||||
|
| |||||
|
| |||||
Stroke length tolerance | +1~0 mm | |||||
Product Description
Packaging & Shipping
Packing: Standard export cartons,and OEM packing is accpeted.
Shipment: Sample order ship in 3days by express.regular order ship in 7-15days by normal air/ocean from NINGBO or SHANGHAI port.
Payment: T/T, Western Union, 30% deposit and 70% balance before shipping
Our Services
Why choose us:
1:Various style for completely series pneumatic products for you to choose
2: High quality with competitive price,100% tested before shipment
3: Sample order & small quantity order is accepted
4: Large stock & fast shipment
5: Factory location near by shipment port,convenient transportation and low cost
