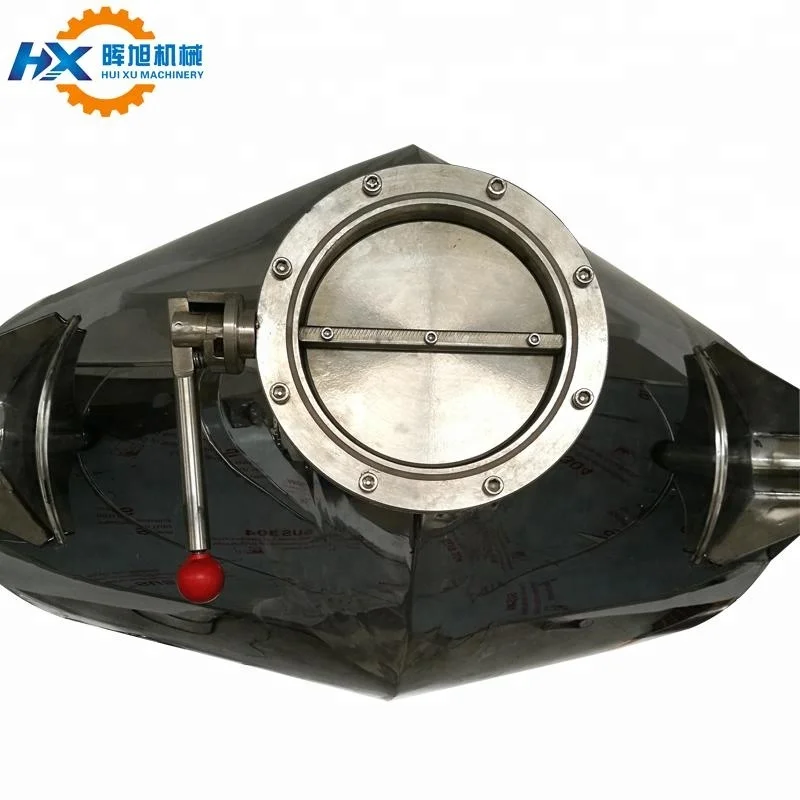

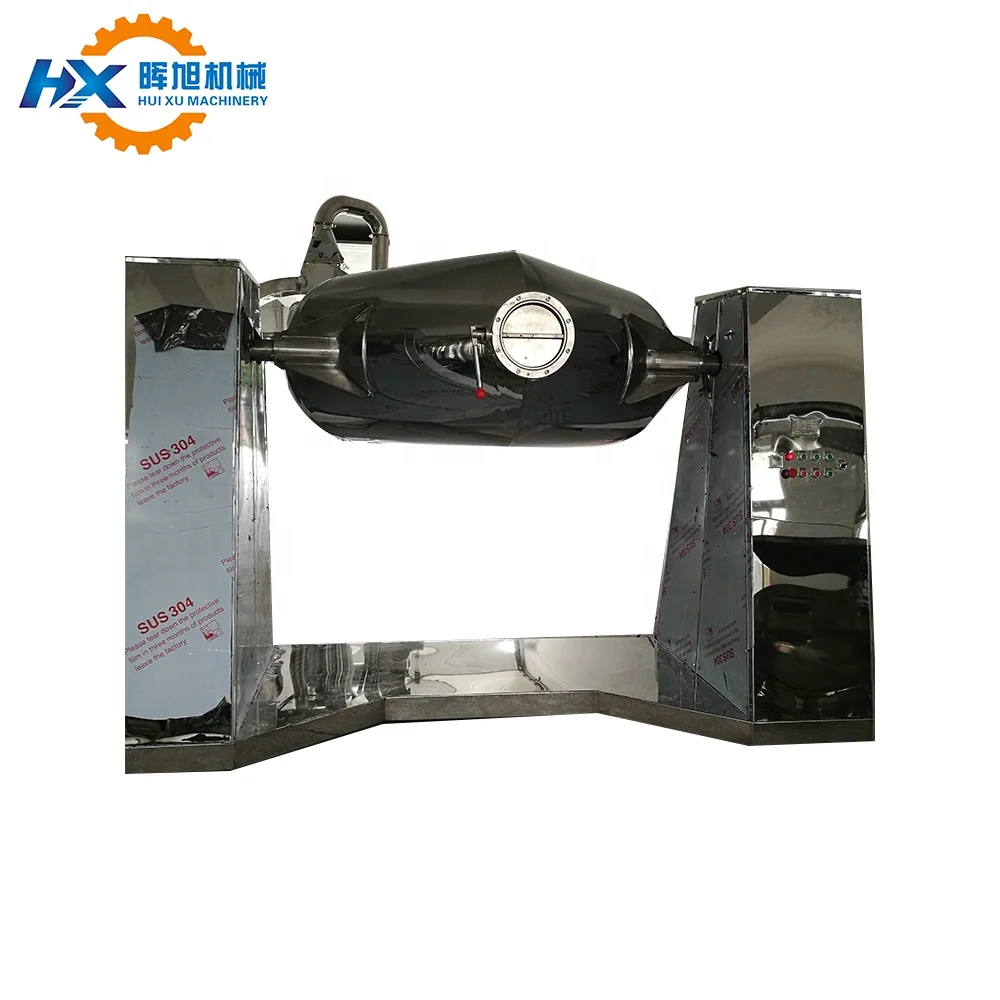

Industrial Powder Mixer V/mixer Powder V Machine/chemical Mixing Equipment

Product Overview

Description

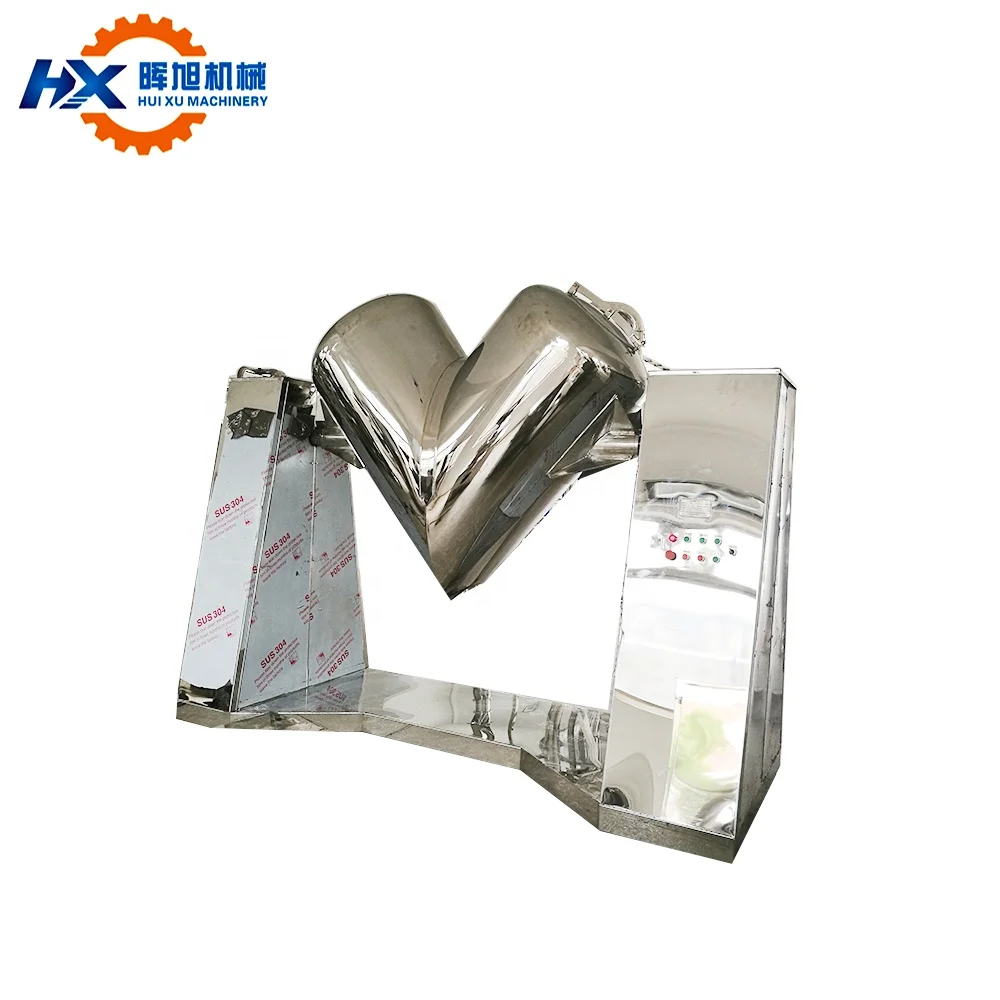

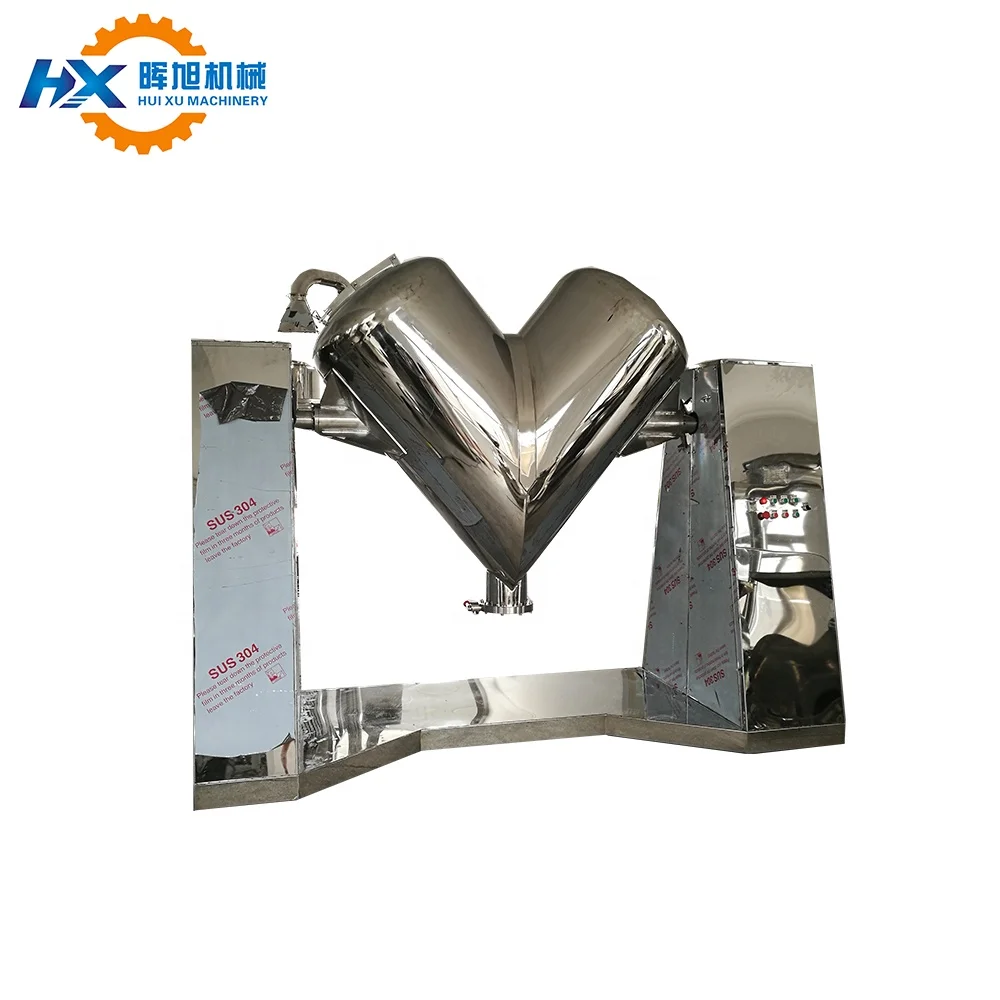

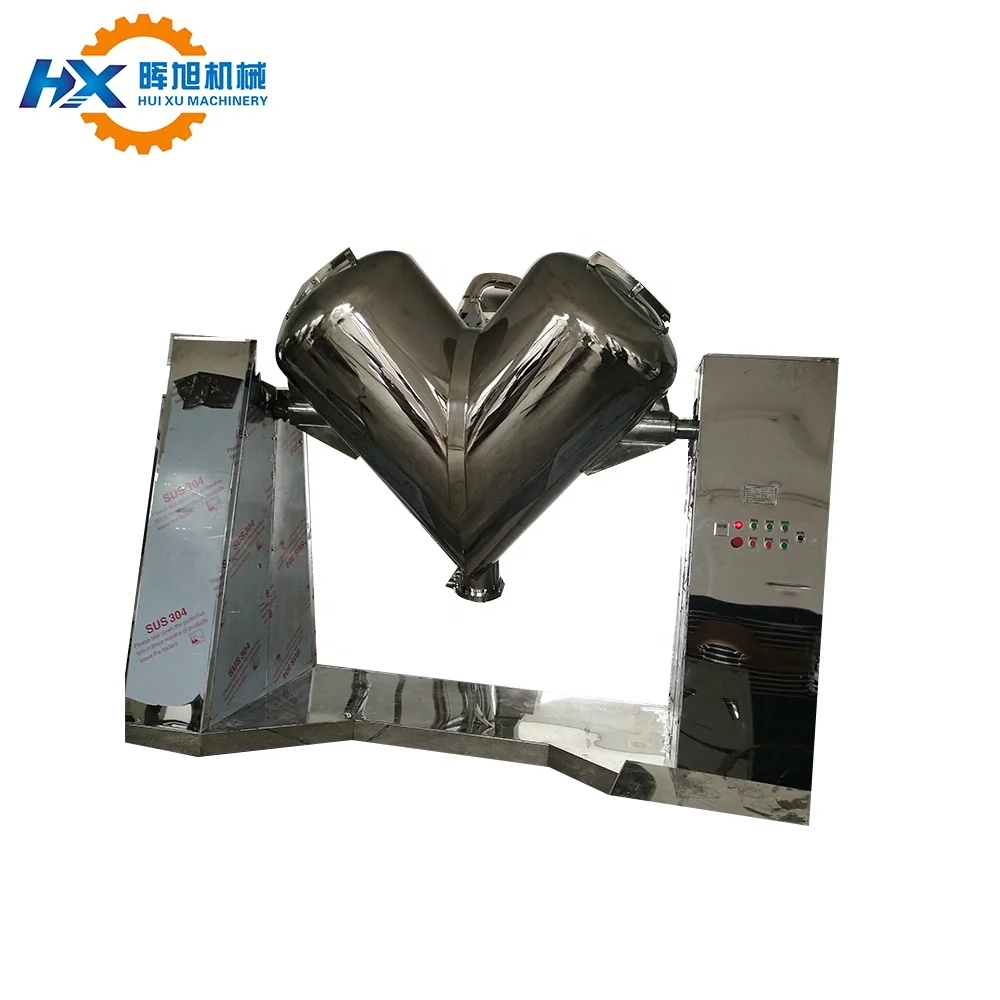

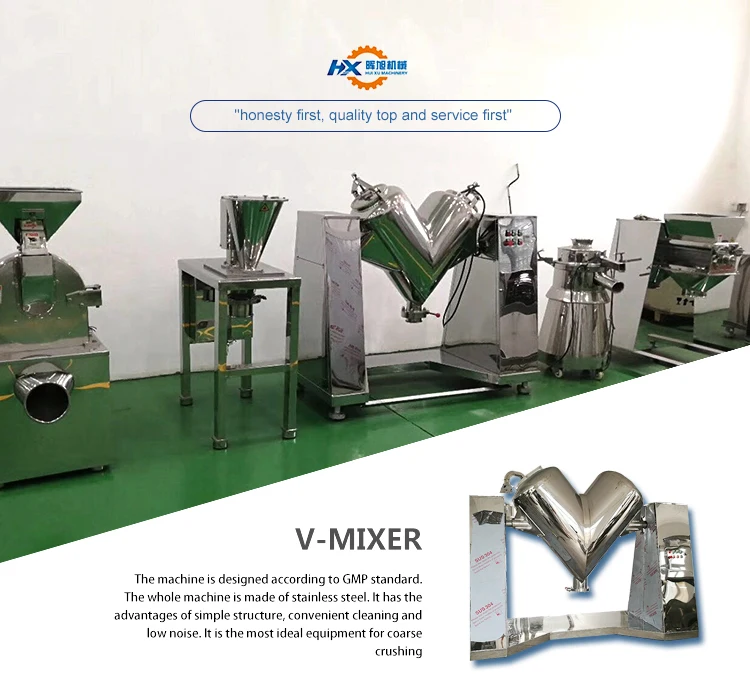

Industrial Powder Mixer V/mixer Powder V Machine/chemical Mixing Equipment



Standard Models of HX-V series dry powder mixing machine:

Product Name	V type dry powder mixing machine for pharmacy, food and chemical factory
Model	HX-180	HX-300	HX-500	HX-1000	Hx-1500	HX-2000	HX-2500	HX-3000	HX-4000
Full volume(m³)	0.18	0.3	0.5	1	1.5	2	2.5	3	4
Production capacity(kg/batch)	40	60	100	200	300	400	500	600	800
Mixing time(min)	4--8	6--10	6--10	6--10	6--10	6--10	6--10	6--10	6--10
	12	12	12	12	12	12	12	7.8	7.8
Power(kw)	1.1	1.1	2.2	4	4	7.5	7.5	7.5	11
Overall size of main	1780	1880	2500	3050	3343	3820	3990	4690	4950
Frame(L*W*H)(mm)	680*1700	680*1700	1350*2450	1650*2700	1650*2980	1900*3480	1900*3540	2200*4000	2200*4230
Gross rotation height(mm)	1870	1870	2450	2940	2940	3670	3800	4000	4290
Weight(kg)	290	400	550	850	1020	2040	2200	2500	2800

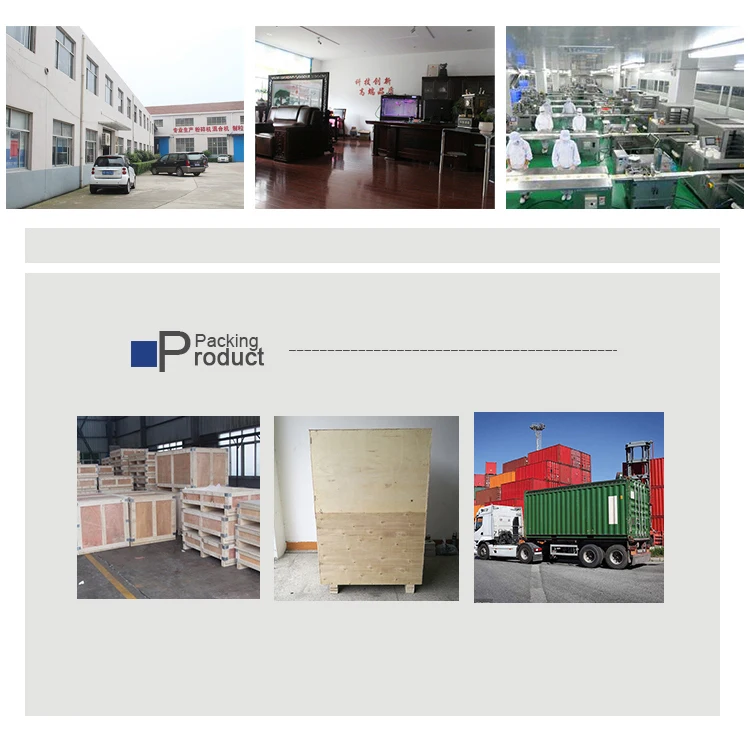

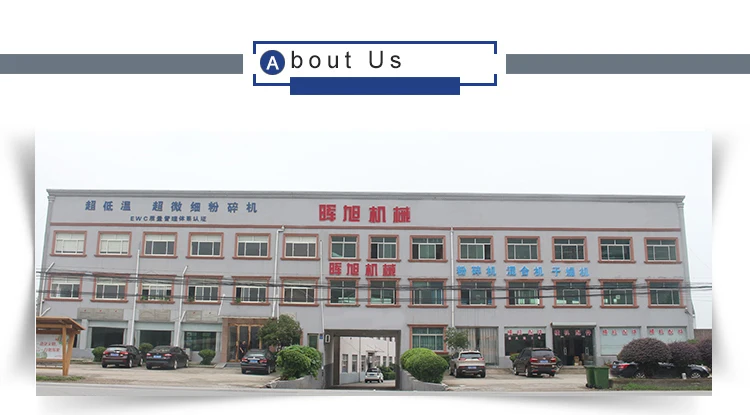

Jiangyin Huixu Powder Machinery Manufa cturing Co.,Ltd

Located in the Zhutang Town of Jiangyin city,Jiangsu province.The company has a professional technical team and strong technical force.Our company's productions mainly include six major categories sush as pulverizer ,mixer,dryer,sifter,granulator and so on.Productions are widely used in food, medicine, chemical industry. Our company always take the "quality first" as the purpose.

Warmly welcome foreign friends to our company for visiting and guidance.



FAQ:

 A. Technical service

1, We calculate the capacity and recommend the best models.

2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.

3, We supply the spare parts and technical support in & after the warranty time.

4, We supply the training course to your workers at our factory if you need.



B. After-sales service

1, Technical support for your installation, operation and maintenance.

2, One year’s warranty, and you can pay for extended warranty.

3, Spare parts and technical support at most economic prices after the warranty.
