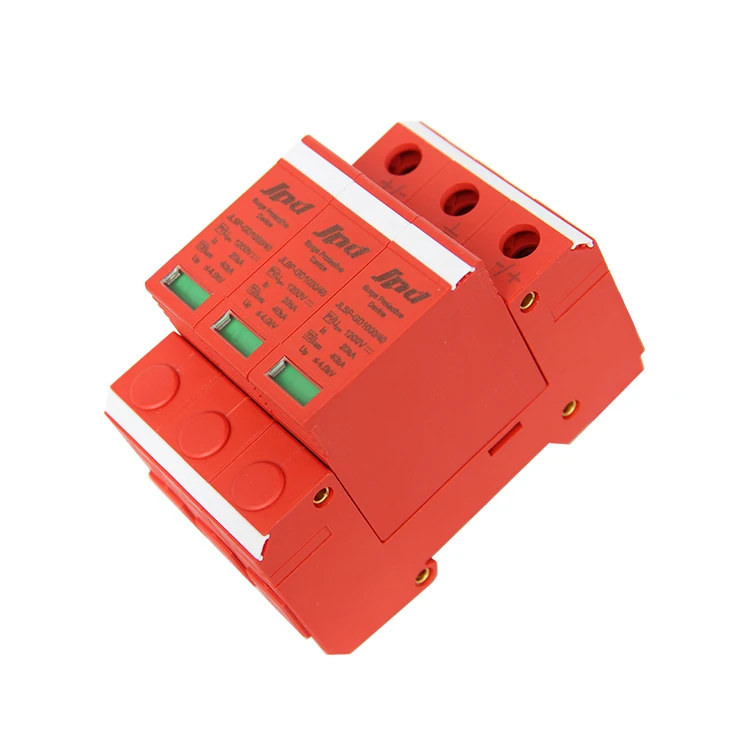

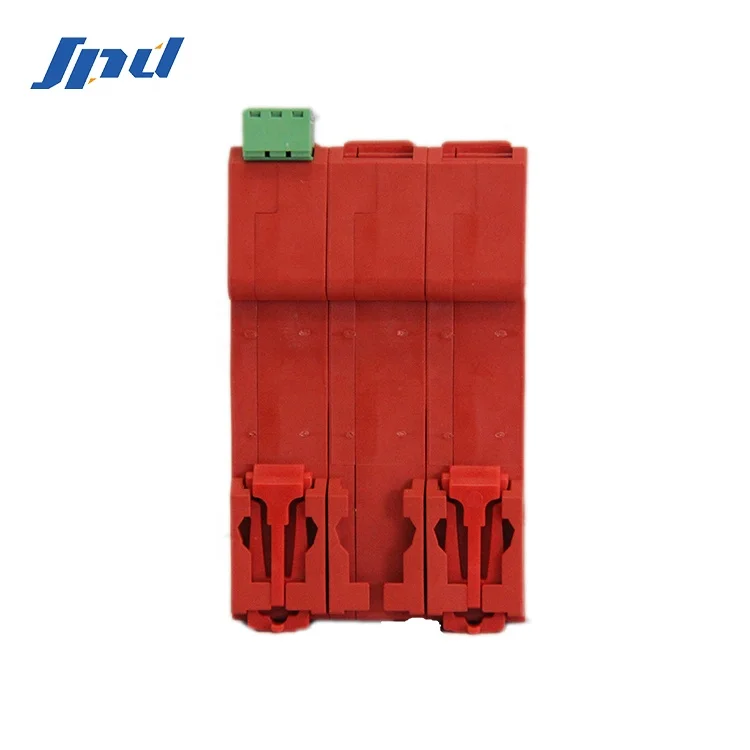

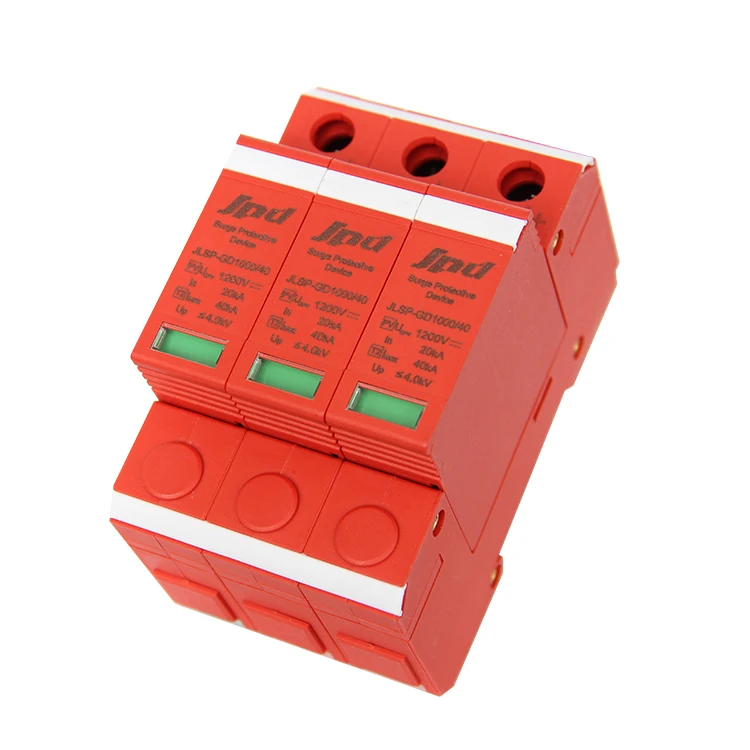

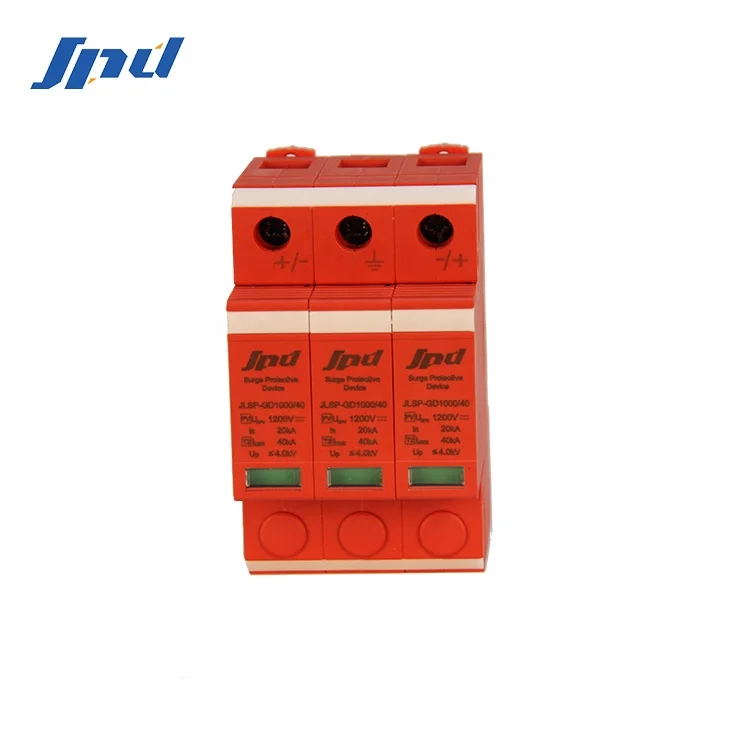

JINLI Solar SPD 1000V DC surge protective device dc surge protection

Model

JLSP-GD1000/40

JLSP-GD1500/40

IEC Classification

Class Ⅱ

Class Ⅱ

DC Network U_N(50/60Hz)(V)

1000V DC, 1100V DC

1500V DC

Max.continuous operating voltage Uc(V)

1200V DC

1800V DC

Nominal discharge current In(kA)

20kA

20kA

Max. Discharge current(8/20us) Imax(kA)

40kA

40kA

Voltage Protection level Up(kV)

≤4.0kV

≤5.7kV

Max. backup fuse(A)

100A DC(gG)

100A DC(gG)

Response time t_A

≤25ns

≤25ns

Capacity of withstand short circuit

1000A

1000A

Operating temperature

-40℃~+85℃

-40℃~+85℃

Relative humidity

≤95%(25℃)

≤95%(25℃)

Max.cross-sectional area of  wire

25mm² multi-strand cord

25mm² multi-strand cord

Dimensions (1P)

(W×L×H)(mm)

18×90×62

18×90×62

Mounting

DIN Rail 35mm

DIN Rail 35mm

Protection rating

IP 20

IP 20

Housing material

PBT

PBT

Flame retardant rating

V-0

V-0

Capacity of remote signaling contact

250VAC/0.5A   30VDC/3A

250VAC/0.5A   30VDC/3A

Max.cross-sectional area of wire for remote signaling contact

1.5mm²

multi-strand cord / single cord

1.5mm²

multi-strand cord / single cord

Status indicator

Normal:green / malfunction:red

Normal:green / malfunction:red

Standards compliance

EN50539-11,IEC61643-31,GB/T 18802.31

EN50539-11,IEC61643-31,GB/T 18802.31
