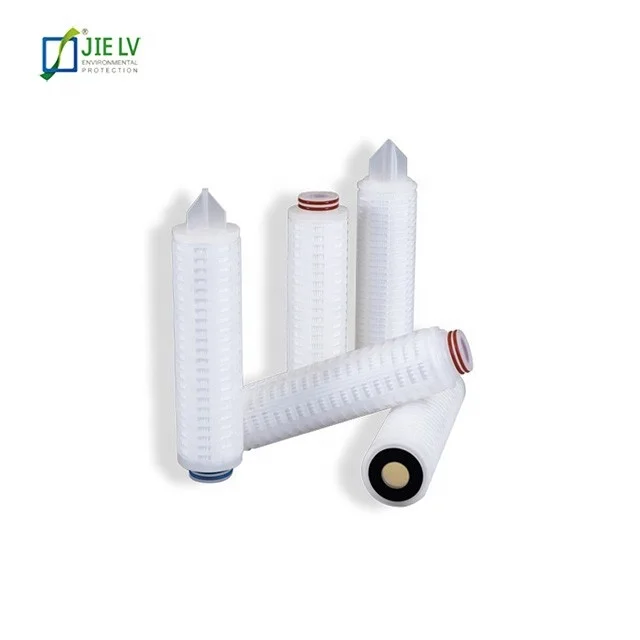

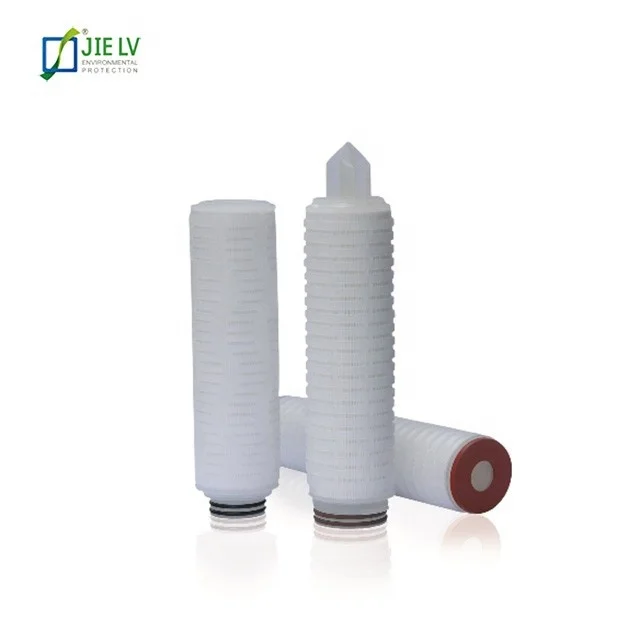

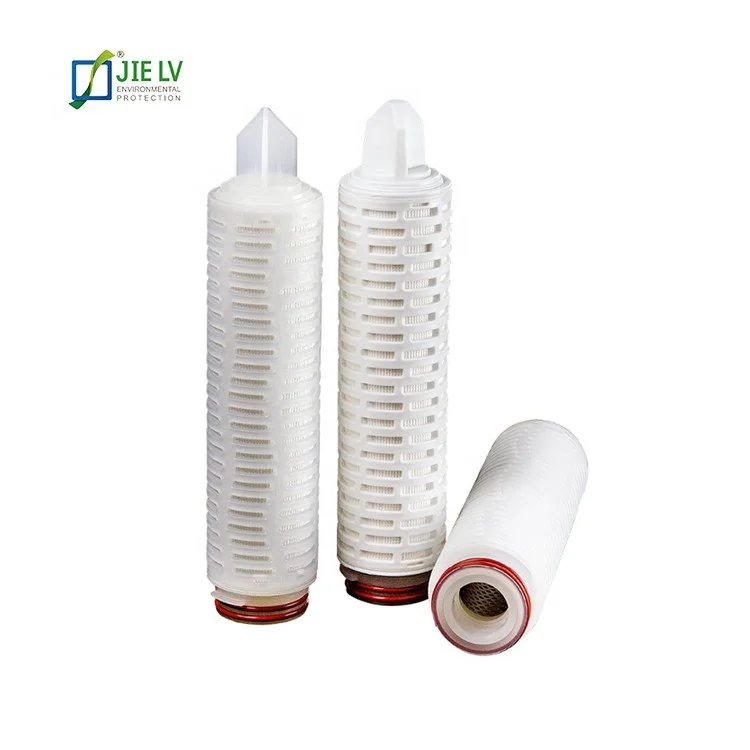

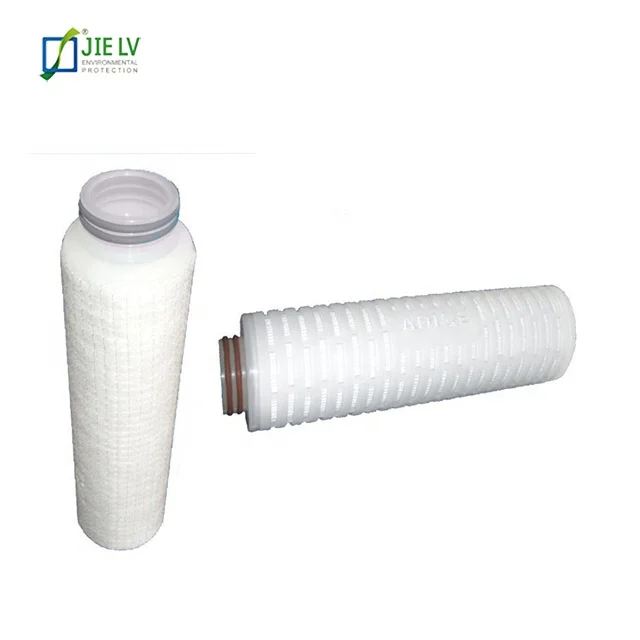

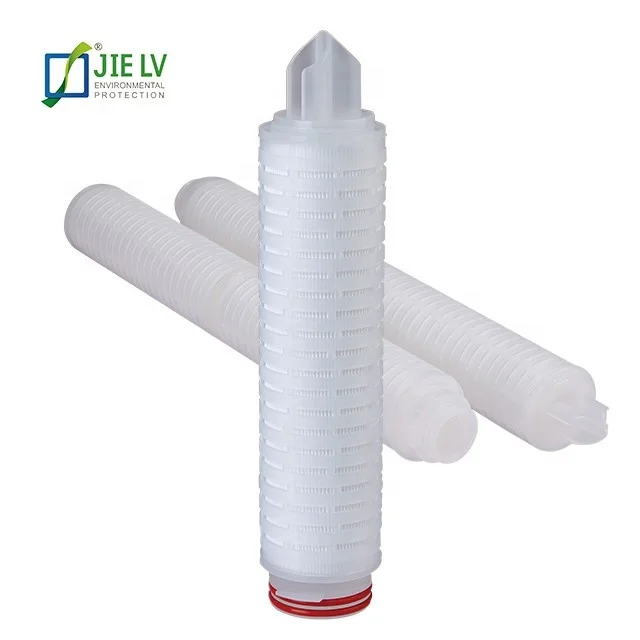

10 20 30 40 inch 0.01 micron PTFE pleated membrane filter cartridge for water treatment
- Category: >>>
- Supplier: Guangzhou Jielv Environment Technology Co. Ltd.
Share on (60817209285):
Product Overview
Description
Product Description
Main Parameters of PTFE pleated cartridge filter:
Product name | PTFE pleated filter cartridge | ||||
Material | PTFE | ||||
End cap | 222 | 226 | Flat | ||
Size | 9.75'', 10'', 20'', 30'', 40'' | ||||
Diameter | OD:63mm | ID:30mm | |||
Rated | 0.1, 0.22, 0.45, 1μm | ||||
Operating temperature | Up to 60℃ | ||||
Filter membrane | PTFE membrane | ||||
Diversion layer | pp non-woven | ||||
External support cage | pp material | ||||
Internal support | pp material | ||||
OD | 60-69mm | ||||
ID | 28-30mm | ||||
length | 9.75-40" | ||||
Seal ring | Silicone,EPDM ,Nitrile ,Viton, E-FKM | ||||
Precision(μm) | 0.10, 0.22, 0.45, 1µm | ||||
PH value | 1~14 | ||||
Normal working temperature | ≤55℃ | ||||
Max. working temperature | 80℃, pressure differential ≤0.10Mpa | ||||
Max. differential pressure | 25℃,forward direction 0.42Mpa,reverse direction 0.21MPa | ||||
Features and Benefits:
1. Excellent performance of high temperature-resistance,repeat steam ability in situation;
2. Low pressure drop,high flow rate,long service life;
3. Hydrophobic membrane with high flow;
4. Non fiber-releasing;
5. 100% integrity tested.
6. FDA compliance material
Applications of PTFE pleated cartridge filter:
1. Fementation tank
2. Vent filter of hold tank
3. Electronic industry
4. Semiconductor:ultra pure gas filtration
5. Chemical industry
More information of PEFT pleated cartridge filter:
Port of shipment of PEFT pleated cartridge filter : Guangzhou
The payment of PEFT pleated cartridge filter : We prefer T/T and L/C
The sample of PEFT pleated cartridge filter : We can provide the sample of fish tank filter for free, but customer have to pay for the freight.
We provide the high quality PEFT pleated cartridge filter at the competitive price. The PEFT pleated cartridge filter could be customized made.
For more information about PEFT pleated cartridge filter, please contact us.
Any questions of fish tank filter and the liquid housing, pls kindly let us know anytime!
Production Process
Packing & Delivery
About Jielvfilter
Guangzhou Jielv Environmental Protection Co., Ltd. is famous for high-tech filtration, separation and purification, committed to provide the highest quality filtration products to meet worldwide customers various needs with excellent service.
Main Products
We have been meeting global demand with our high quality products & best possible technical support to our End-user, OEM/ODM customers. Our main business covers from liquid filtration filters: PP Melt Blown Filter Cartridges, String Wound Filter Cartridges, Membrane Pleated Cartridges, Activated Carbon Filters, Filter Bags and Filter Housing etc.; and dust filtration air filter bags: PP, Polyester, Polyester Antistatic, Polyester Waterproof & Oil Repellent Antistatic, PPS, Aromatic Polyamideimide(P84), Acrylic, Nomex, Glass Fiber, FMS, PTFE needle felt air filter bags etc., which have been widely applied into fields of Process, Pharmaceutic, Desalination, Food & Beverage, Pool & Spa, Cement Plant, Coal Fired Boiler, Iron Works, Metallurgic Plant Gas and Liquid Filtration Industrial etc....
Main Market
On the basis of the powerful technical force, standard testing equipment, strict quality-controlled systems and the excellent after-sales services, we are striving for the more new and suitable products for the customers and the market. We won the trust and good remarks of a numbers of customers because of the high quality and reasonable price. We sale 40% filters in China mainland and export 60%, oversea main market are Southeast Asia, the Middle East, Africa, Europe and the USA etc..
Headquarter office in Guangzhou, China. JIELV Filter welcome your contacts.
Main Products
We have been meeting global demand with our high quality products & best possible technical support to our End-user, OEM/ODM customers. Our main business covers from liquid filtration filters: PP Melt Blown Filter Cartridges, String Wound Filter Cartridges, Membrane Pleated Cartridges, Activated Carbon Filters, Filter Bags and Filter Housing etc.; and dust filtration air filter bags: PP, Polyester, Polyester Antistatic, Polyester Waterproof & Oil Repellent Antistatic, PPS, Aromatic Polyamideimide(P84), Acrylic, Nomex, Glass Fiber, FMS, PTFE needle felt air filter bags etc., which have been widely applied into fields of Process, Pharmaceutic, Desalination, Food & Beverage, Pool & Spa, Cement Plant, Coal Fired Boiler, Iron Works, Metallurgic Plant Gas and Liquid Filtration Industrial etc....
Main Market
On the basis of the powerful technical force, standard testing equipment, strict quality-controlled systems and the excellent after-sales services, we are striving for the more new and suitable products for the customers and the market. We won the trust and good remarks of a numbers of customers because of the high quality and reasonable price. We sale 40% filters in China mainland and export 60%, oversea main market are Southeast Asia, the Middle East, Africa, Europe and the USA etc..
Headquarter office in Guangzhou, China. JIELV Filter welcome your contacts.
Office
Team
Meeting room
Warehouse
Our Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
