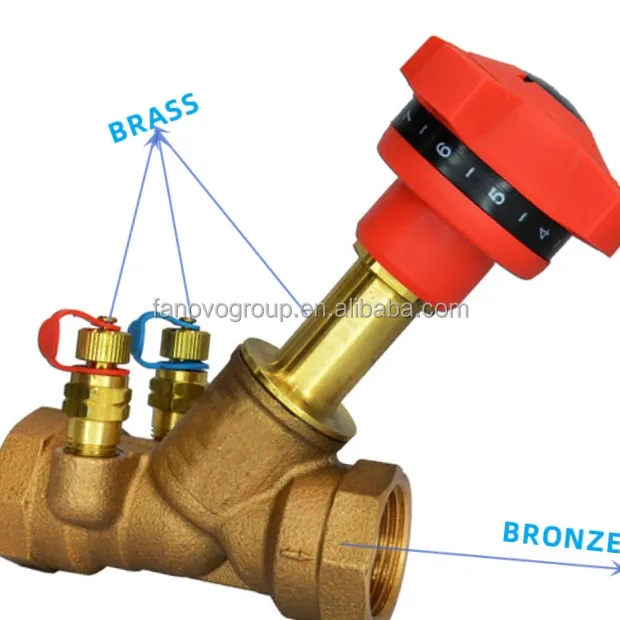

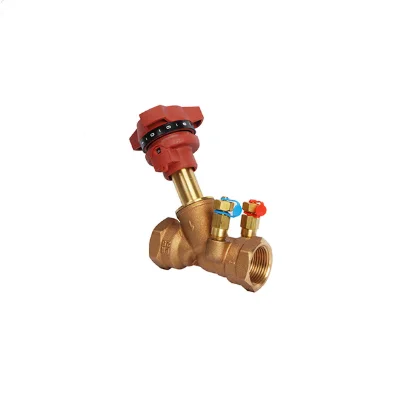

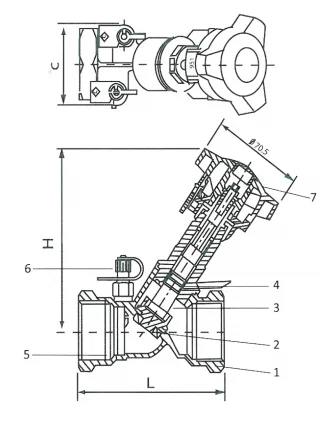

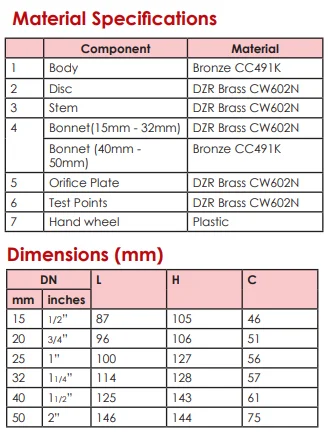

3/4 Inch Bronze Fixed Orifice PN25 Double Regulating Valve FODRV valve

Pressure Rating: PN25
Working Medium: Water, Oil, Steam
Handwheel operated
Numerical Indicator with memory stop
feature
Inside screw non-rising hand wheel, Y pattern, Fixed Orifice
Characterized regulating disc
Integral DZR Brass orifice plate
Supplied with 2 test points
Available with NPT Threads, subject to minimum quantities
Hydrostatic Test Pressure
Shell - 37.5 bar
Seat - 27.5 bar

Fanovo imported Spectrometer machines for metal test, keep materials of each order meet Customers' need. The metal includes stainless steel 304, 316L, lead free NSF brass, CW 617, Monel 400, etc.

 All incoming material before production will be tested by material analysis machine

Material test report will be shipped with each order, Fanovo guarantees the materials qualified for customers.

Spectrometer Machine for Material Test

Incoming Quality Control

Fanovo will do 100% inspection for incoming material, brass bar, stainless steel, steel etc.

Lean Manufacturing

IPQC department will inspect the process of Turning&milling, Fanovo do production accord to DWG.

Imported CNC

5-axis machining involves using a CNC to move a part along five different axes simultaneously

Automatic Assembly for valves

5S management assembly Line

Fanovo are carrying out Total Quality Management and obtained  ISO 9001 for management  The quality responsibility is divided into quality divisions ( SQC, IQC, IPQC, FQC, OQC). Fanovo promises Just-in-time delivery and fine manufacturing for our customers. Meanwhile Fanovo has the certification of NSF/ANSI 61, UPC/ CE for main products including brass valves, fittings, couplings, etc.

Fanovo's delivery packing by sea is in Carton Box and pallet. Ensure your shipment arrives safely and on time by packing your goods well. It's one of the most important things Fanovo can do to reduce the risk of delays and damage during transit.

Inner Box :White Box or Color Box

Carton Box: Corrugated Box With Item Label

Pallet Packing:  By Sea/ By Air

Sea shipping

Fanovo recommend to ship by sea if quantity is big that saves much freight for customers.

DHL/ UPS/ FEDEX/TNT/ Special Air Delivery

Good for sample delivery and small volume

Q: Are you trading company or manufacturer ?

A: We are a manufacturer with our own trading company in Shanghai.

Q: How long is your delivery time?

A: Generally it is 2-10 days if the goods are in stock. or it is 20-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Q: Can you customize products for your customers?

A: Yes, Customized service is one of our core business, we have no small MOQ request.

Q:Will you do 100% inspection before Shipment?

A: Our QC will do 100% inspection and we will take the 100% claims if defective.
