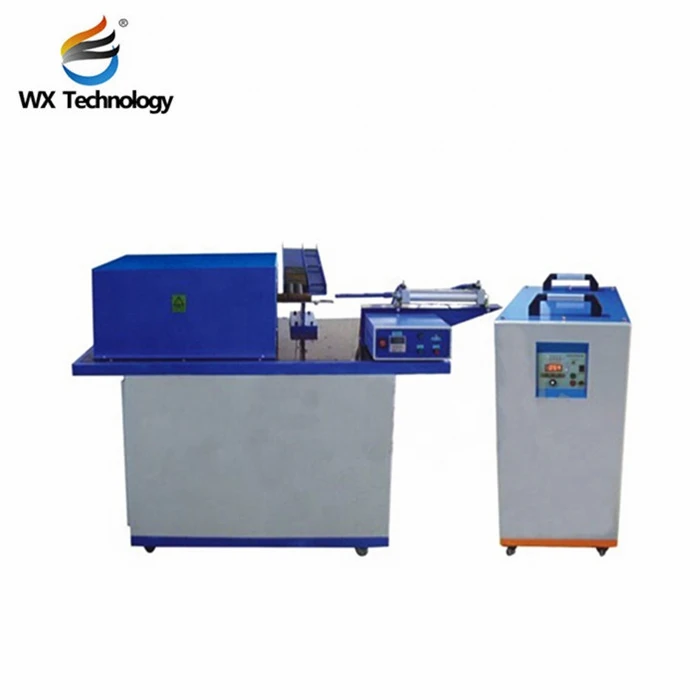

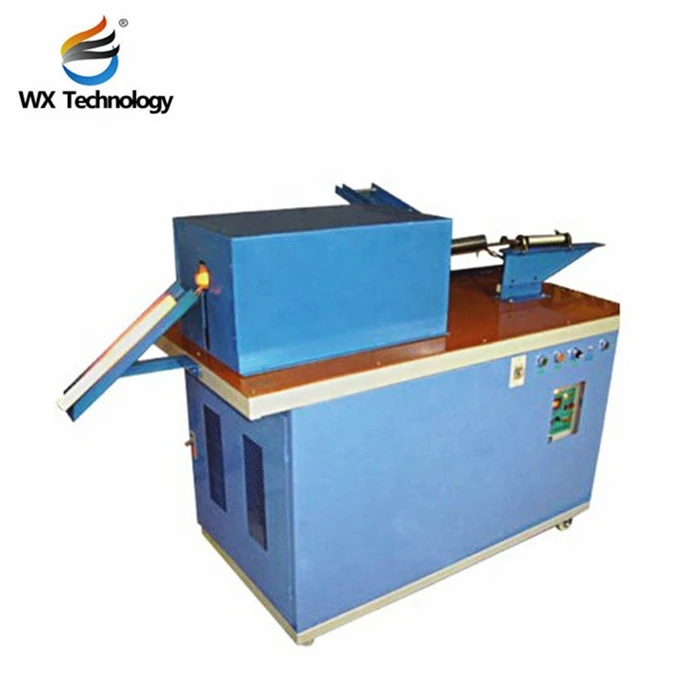

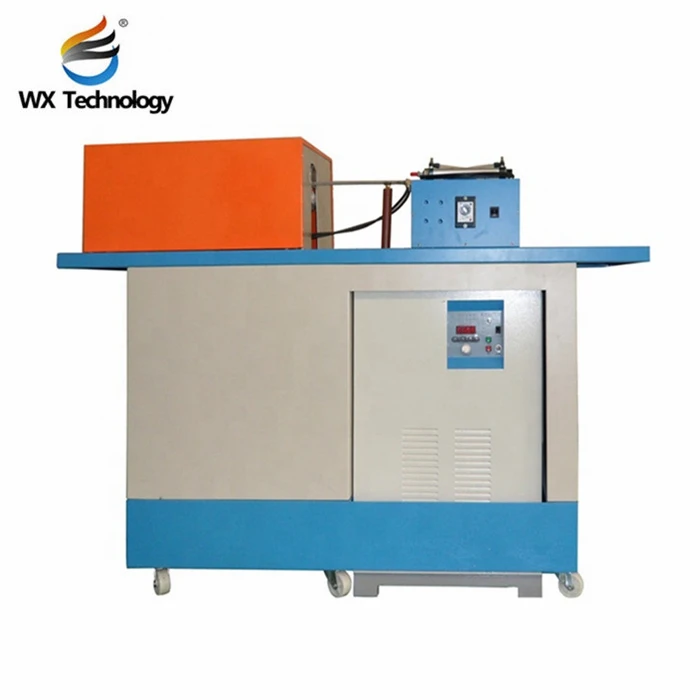

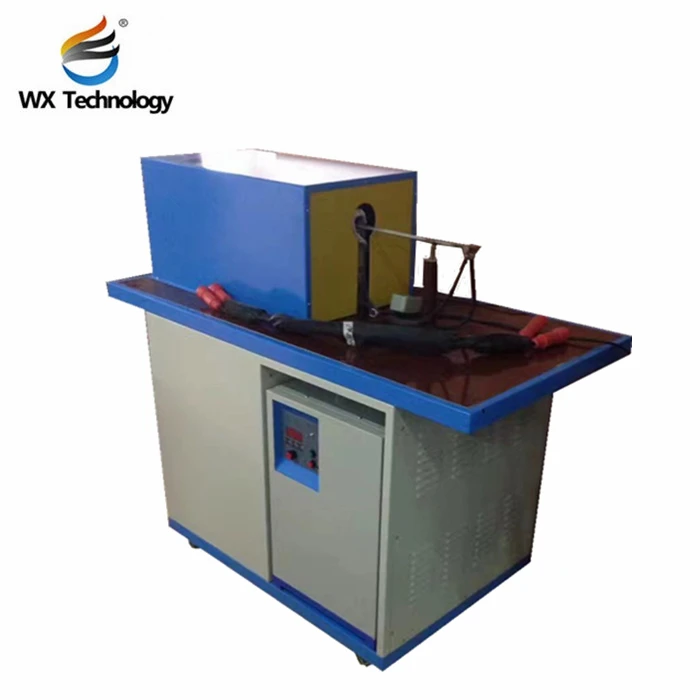

160kw Medium Frequency Metal Forging Induction Heating Machine
- Category: >>>
- Supplier: Guangzhou Wangxin Mechanical & Electrical Equipment Co. Ltd.
Share on (60817301204):
Product Overview
Description
160kw Medium Frequency Metal Forging Induction Heating Machine
Heating Principle
How exactly does induction heating work? It helps to have a basic understanding of the principles of electricity. When an alternating electrical current is applied to the primary of a transformer, an alternating magnetic field is created. According to Faraday's Law, if the secondary of the transformer is located within the magnetic field, an electric current will be induced.
In a basic induction heating setup shown in, a solid state RF power supply sends an AC current through an inductor (often a copper coil),and the part to be heated (the workpiece) is placed inside the inductor. The inductor serves as the transformer primary and the part to be heated becomes a short circuit secondary. When a metal part is placed within the inductor and enters the magnetic field, circulating eddy currents are induced within the part.
Product Description
Technical Parameters

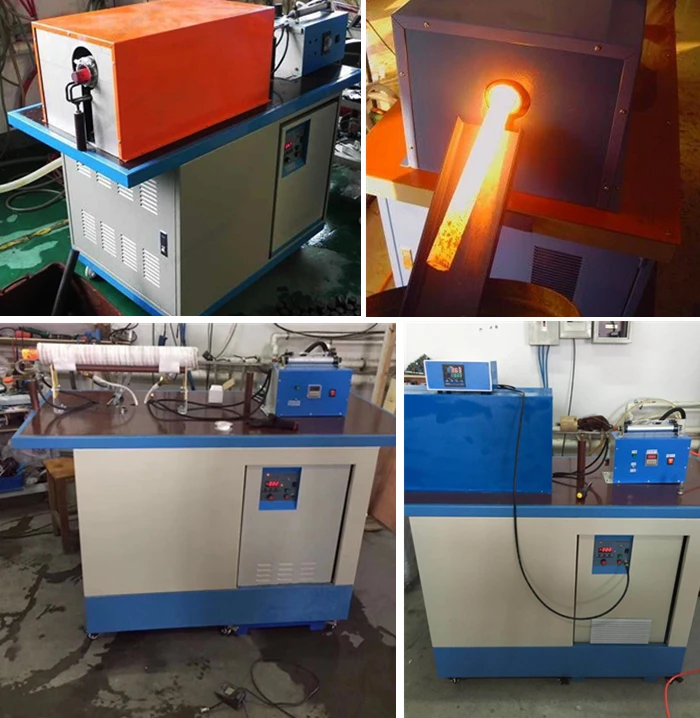

Machine Photos
Heating Ability of Different Model
Models | Max. Input Power | Heating Ability of Normal Material | ||
Steel /S.S to 1100 degree | Copper/ brass to 700 degree | Aluminum to 500 degree | ||
WXM-35 forging furnace | 35KW | 1.25 KG/min | 1.75 KG/min | 1.46 KG/min |
WXM-45 forging furnace | 45KW | 1.67 KG/min | 2.33 KG/min | 1.87 KG/min |
WXM-70 forging furnace | 70KW | 2.5 KG/min | 3.5 KG/min | 2.92 KG/min |
WXM-90 forging furnace | 90KW | 3.33 KG/min | 4.67 KG/min | 3.75 KG/min |
WXM-110 forging furnace | 110KW | 4.17 KG/min | 5.83 KG/min | 4.58 KG/min |
WXM-160 forging furnace | 160KW | 5.83 KG/min | ------- | 6.67 KG/min |
Applications

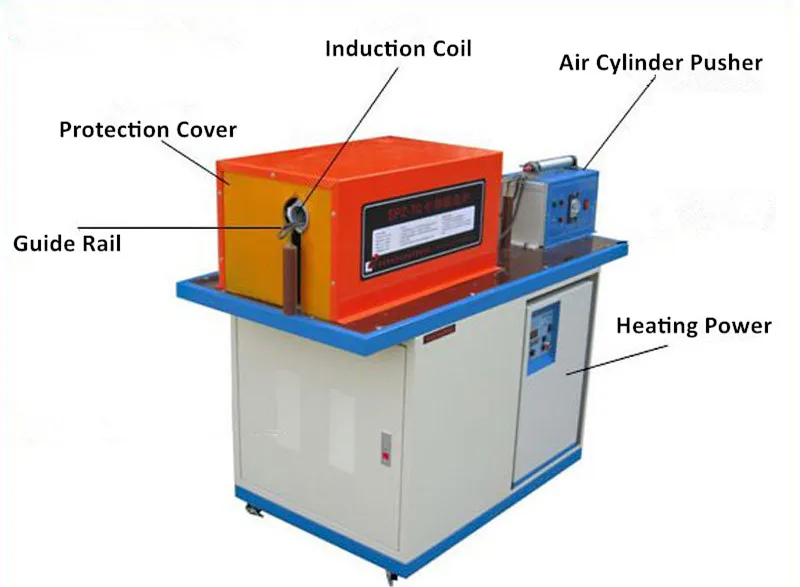

Main Parts
Process Flow
