Product Overview

Description

hand feeding automatic bottle out pet mini machinery for bottle plastic packaging equipment in plastic blowing machines

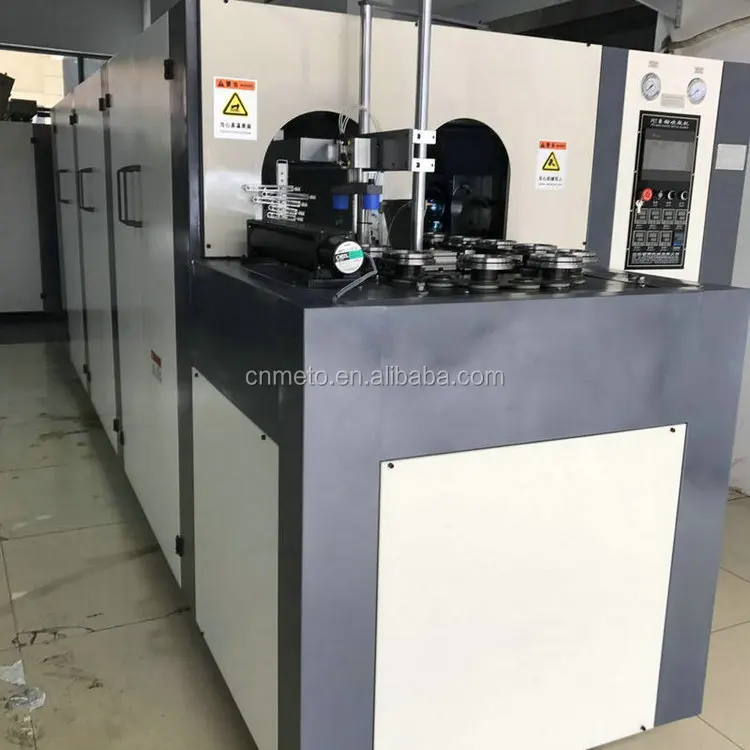

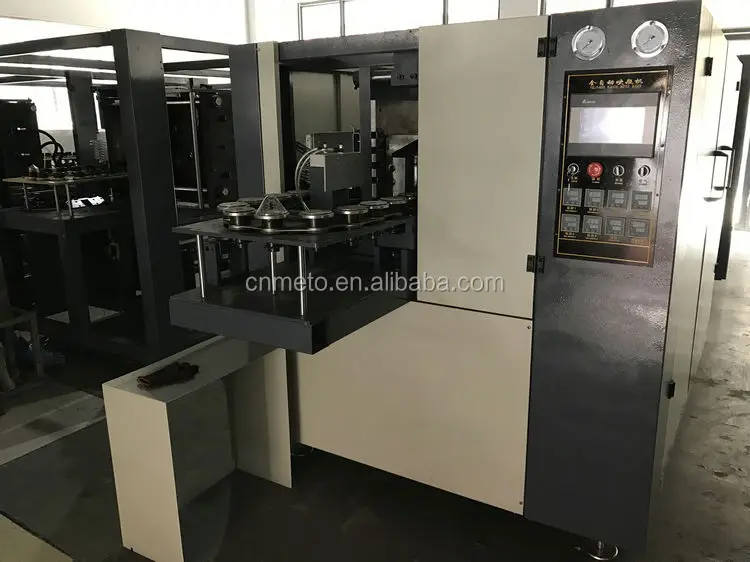

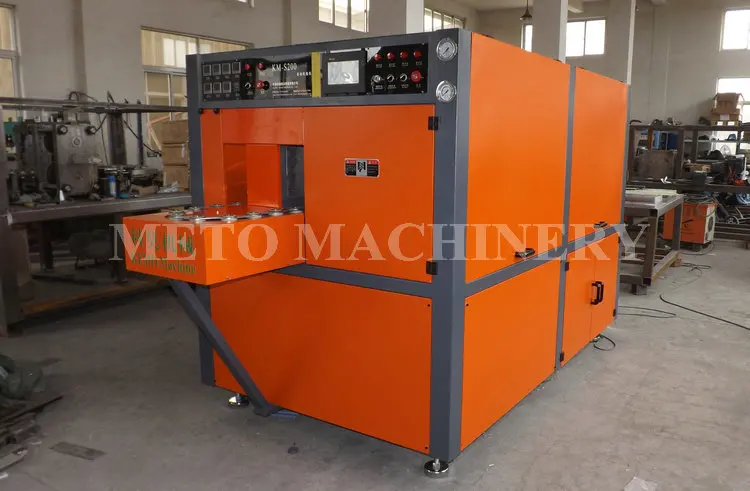

Product Name: PET Jar Automatic bottle blowing / blow moulding / molding machine

Model No. : MT-S200-2-CAVITY

 Place of Origin: Taizhou, China

 Trademark:  KEMO

 Delivery Date:  20days

 Productivity: 30 Sets/Month

 Packing: Wooden Case or film

 Function: For Producing Pet Bottles

 Payment Type: T/T or L/C

 Certificates: SGS, CE, ISO9001

 Export Markets: All of the World

 KM Machinery, the Professional blow moulding machine supplier in China.



Summary

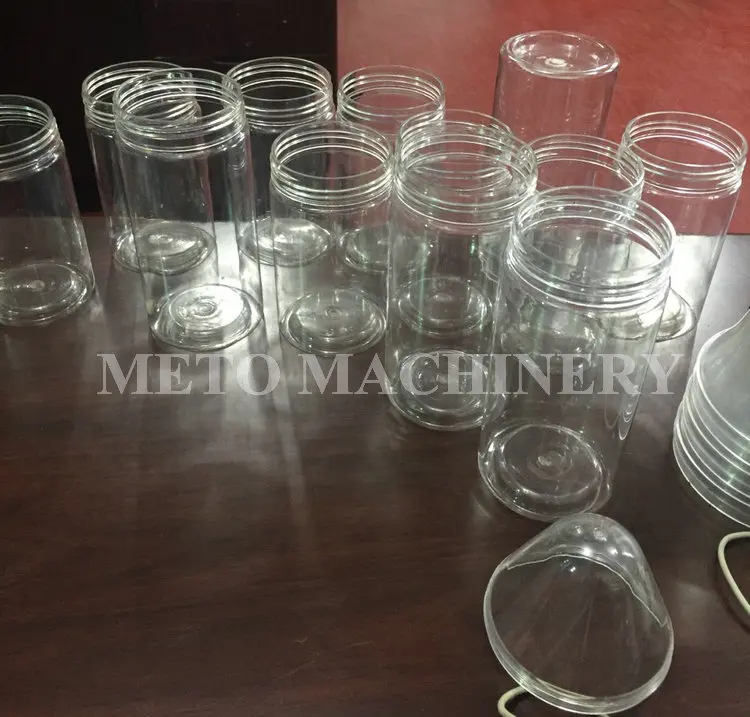

METO Jar Blow Molding Machine, max can blowing the bottle to 3L,

the capacity can up to 1000 Bottles per hour.



Feature

1. High safety factor:  avoid the danger of semi machine to take the bottle by hand, improved the production efficiency.

2. Saving work: many single operation or sevral machine work at the same time, saving labor for 2 to 3 times than the semi machine.

3. Stable performance: Adopt the imported touch-screen computer interface, precise, fast and strong stability. Simple structure, oven adopt the chute type integration, easy maintenance.

4. The detecting element use the Japanese Omron electronics, high voltage control choose the imported famous quality products, with reliable performance and accurate response.

5. Adopt the infrared lamp heating, strong penetrating power and uniform heating, the width and the height of the baffle-board can be adjusted, to fit the bottle preform heating of different structure.

6. With the function of  automatic alarm, and self-check of the fault detection and judgment..

7. Imported from Germany, Japan, Taiwan, pneumatic components, to ensure high speed run zero failure rate.

8. The gas circuit design and the blow is divided into two parts, in order to satisfy the demands of bottle blowing and action of different pressure, to achieve the high pressure blowing products. Also if choose and buy high pressure bottle blowing exhaust gas recycling system, can save 10-15% of the air.

9. Adopt hyperbolic cubits, with strong clamping force of the main link hinge, have C-mold pressurization function when blowing bottle in high pressure, stable and reliable.

10. Moving parts adopt high speed linear guide, with advantage of high wear resistance, opening and closing mould high speed running fast without trembling, etc.









  Technical Parameter :

ITEM	MT-S200
Theoretical output	1800
Max.container volume	3L
Max.neck diameter	100MM
Max.container diameter	110MM
Max.container height	350MM
Number of cavity	2
Number of lamp	28
Max.heating power	20KW
Installation power	40KW
Operatating low pressure	0.7-1.0Mpa
Blowing pressure	1.5-2.5Mpa
Operating pressure	0.3-0.5Mpa
Machine dimension	2.9×1.6×1.7
Machine weight	2800Kg

    (Note: for reference only, it is based on the actual work.)

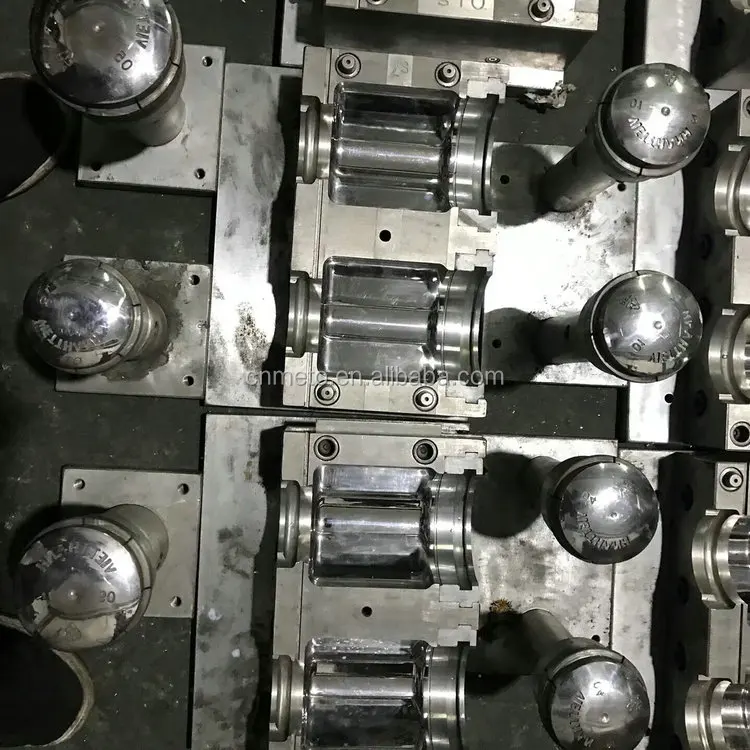

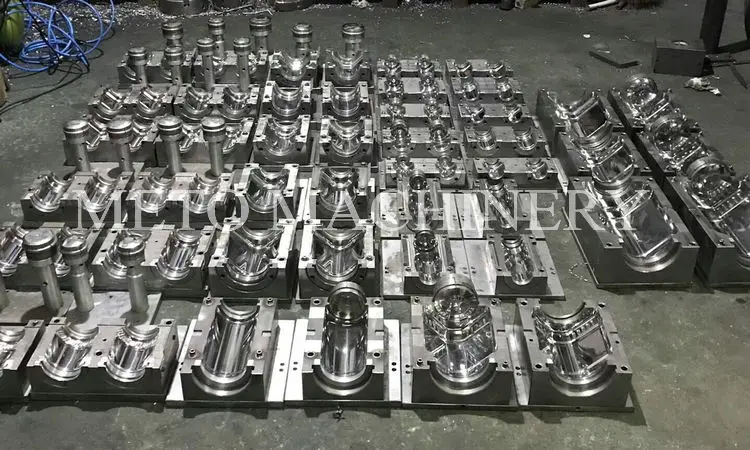

Mould

KEMO Use CAD-CAM design mould, completely anticorrosive processing, process by high precision CNC machine, to achieve accurate, smooth lines capacity, the size and the design is the same as original. We also provide the free design of the mould drawing.
