Лазерная гравировка машина DIY ЧПУ 3060 Металл 5-осевой фрезерный станок с ЧПУ гравировальный сверлильный и фрезерный станок с цифровым управлением
- Category: >>>
- Supplier: Shenzhen,Liyang,Welding,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

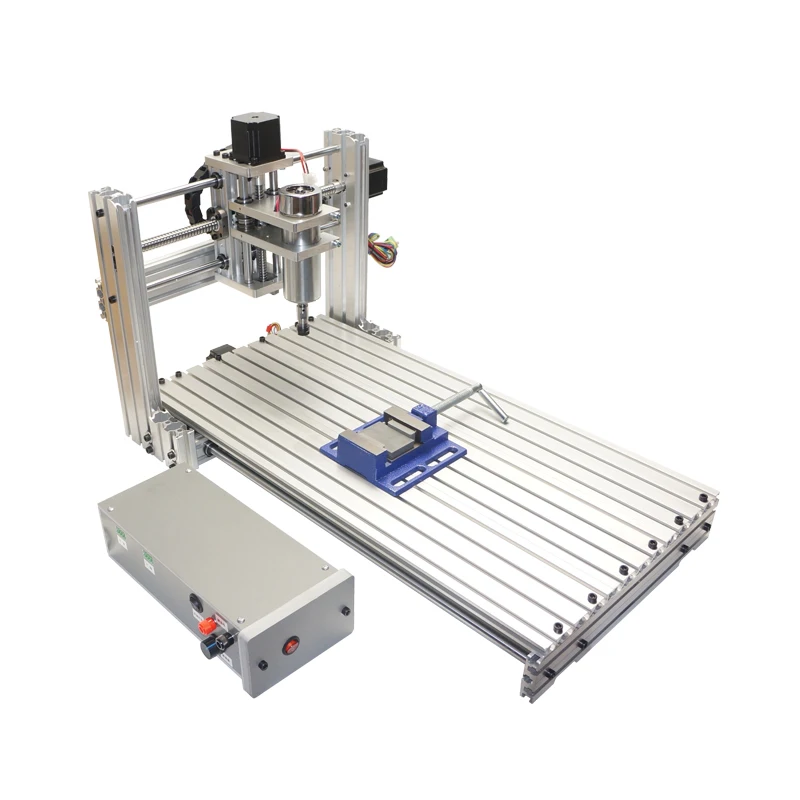

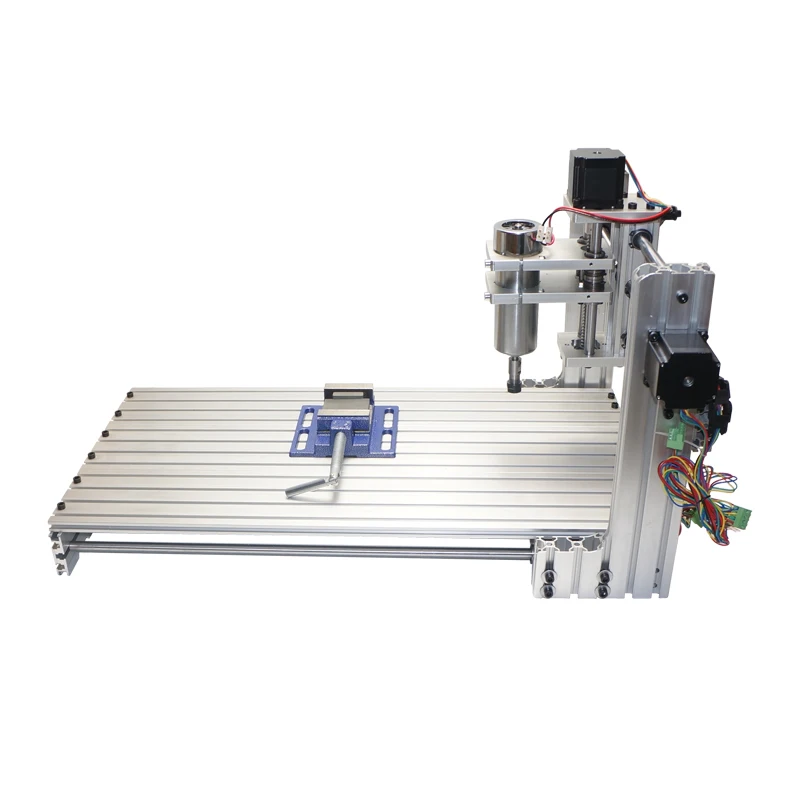

Engraving machine DIYCNC 3060 metal 5axis CNC Router Engraving Drilling and Milling Machine
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty
Model and Technical Parameters
MODEL | 3060 metal | |||
Attribute | 3axis | 4axis | 5axis | Only frame |
Axis | 3axis | 4axis | 5axis | 3axis |
Interface | USB Port | USB Port | USB Port | No |
Spindle Motor: | 400W | 400W | 400W | No |
Weigh | 27 | 31 | 33 | 22 |
Max. working stroke | XYZ=180*570*95mm | |||
Acceptable material thickness | ≤120mm | |||

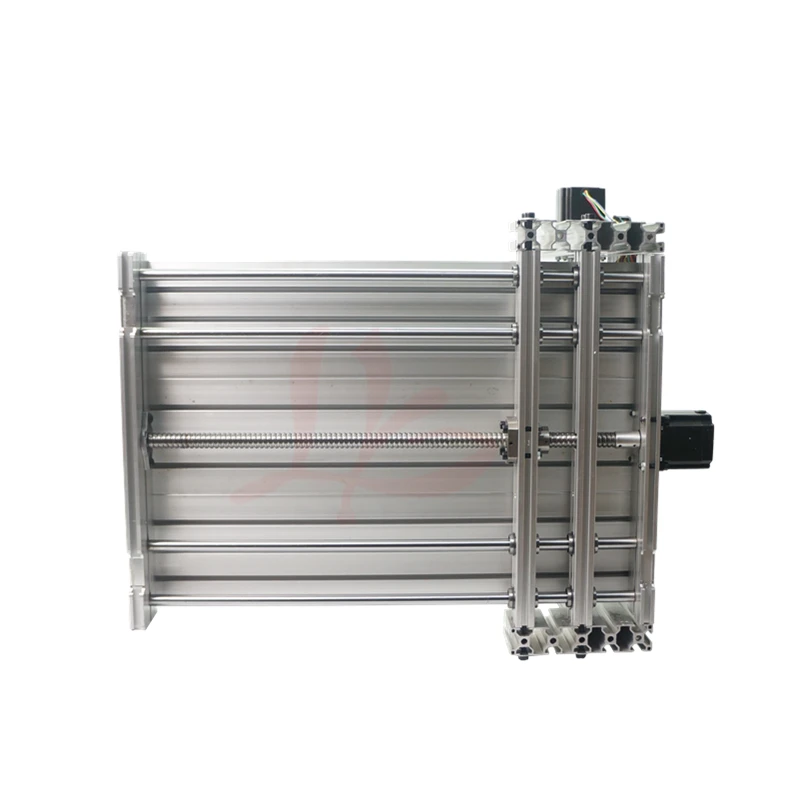

Rail type | X Y 1605 ball screw, Z 1204 ball screw, 12 mm optical axis | |||
Spindle motor | 400W DC spindle ,0-9000r/min | |||
Collet type | ER11,1/8"(3.175mm) Collet | |||
Stepper motor and drive | ||||
Repeat positioning Accuracy | 0.02mm | |||
Communication interface | USB Port | |||
System requirements | Win-XP / Win 7 Win 8 Win10 | |||
Software Co patability | Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) | |||
Command code | G code/.nc/.ncc/.tab/.txt | |||
4th Axis Description: | Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 | |||
5th Axis Description: | The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm | |||
Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Our Services
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Company Information
LyBGA factory is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer.
We has 10 years experiences in manufacturing and exporting BGA rework stations.
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stations like 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
