Small three in one factory sale glass bottle carbonated water bottling plant
- Category: >>>
- Supplier: Zhangjiagang Twelve Wei Machinery Co. Ltd.
Share on (60817428520):
Product Overview
Description

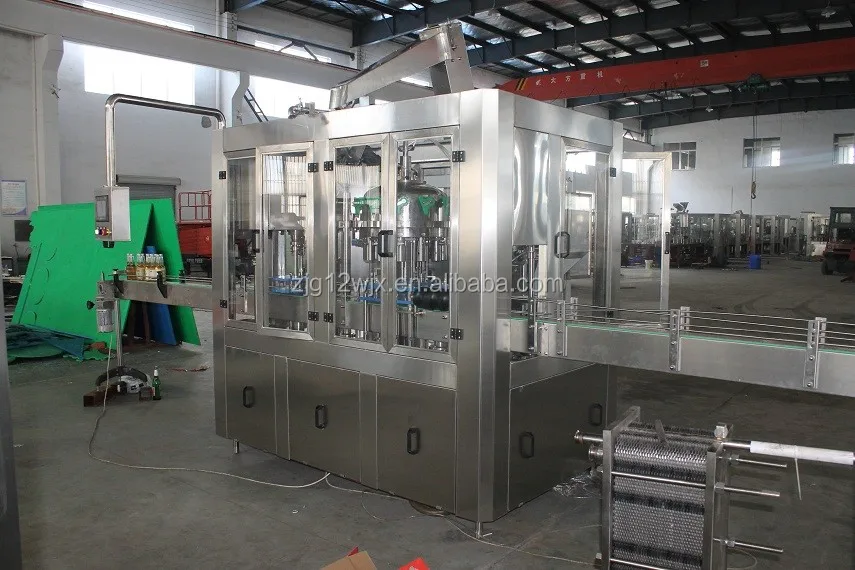

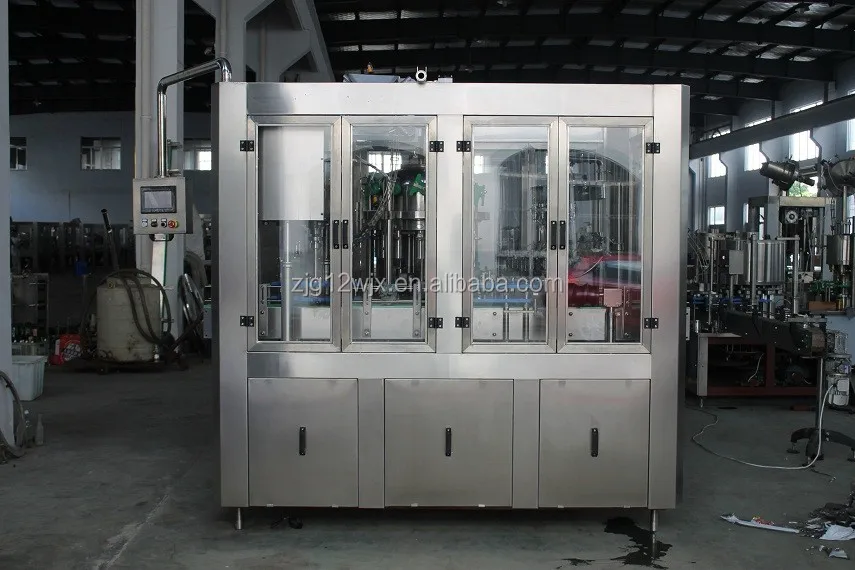

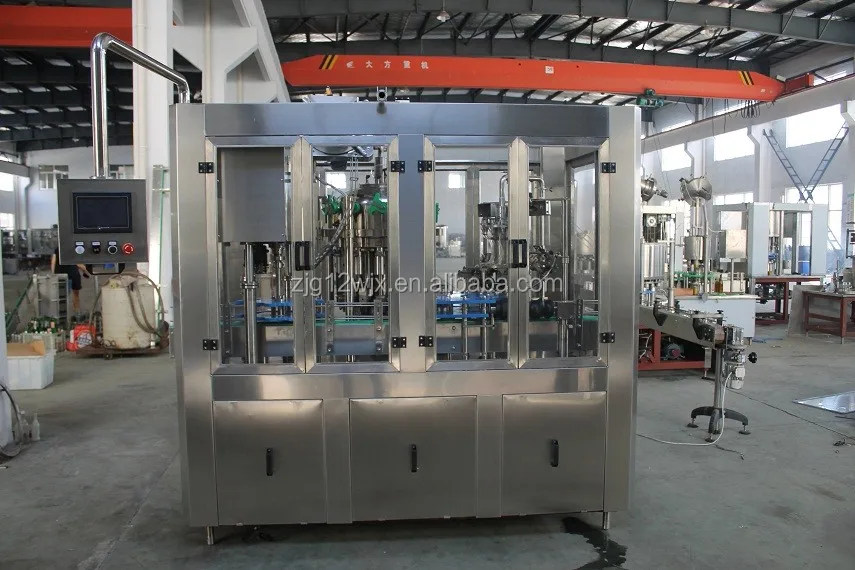

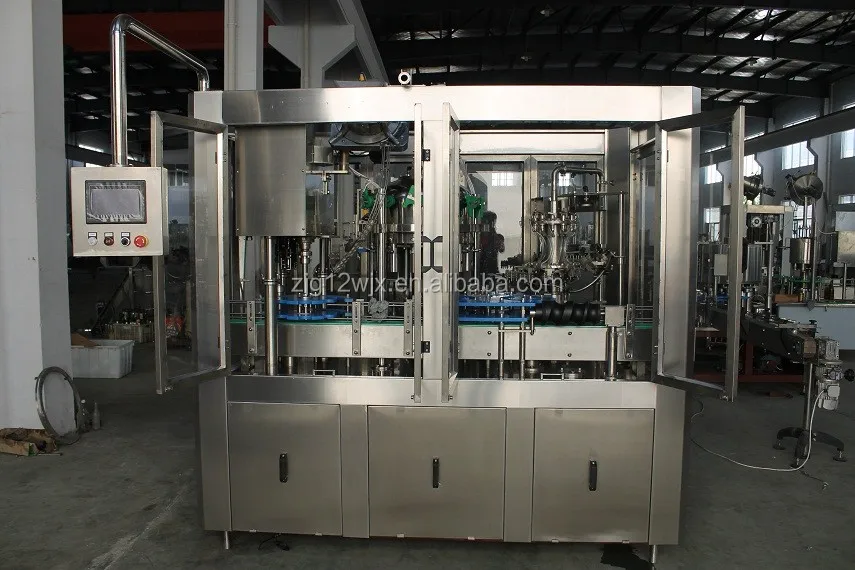

Small three in one factory sale glass bottle carbonated water bottling plant
You can check machine'video from link: https://www.youtube.com/watch?v=eKfCKlvyDmA
Or you can click the followed picture:
If you want to know more videos of machine, you can check my Youtube: https://www.youtube.com/channel/UC0xTIHs82mYUAvwJ5LVKtzQ
We are manufacturer for glass bottle filling capping machine and can filling seaming machine, steady machine which can reach Germany standard, hope you can come to see us.
If you want to know other type machine, please click the name:
Model No. | XGF12-8-1 | XGF12-12-1 | XGF18-18-1 | XGF18-18-6 |
Rinsing heads | 12 | 12 | 18 | 18 |
Filling heads | 8 | 12 | 18 | 18 |
Capping heads | 1 | 1 | 1 | 6 |
Filling speed | 300-500BPH | 800-1500BPH | 1000-2500BPH | 3000-4000BPH |
Model No. | XGF24-24-6 | XGF32-24-6 | XGF32-32-8 | XGF72-72-8 |
Rinsing heads | 24 | 32 | 32 | 72 |
Filling heads | 24 | 24 | 32 | 72 |
Capping heads | 6 | 6 | 8 | 8 |
Filling speed | 3000-5000BPH | 6000-8000BPH | 8000-10000BPH | 10000-25000BPH |
Main Features

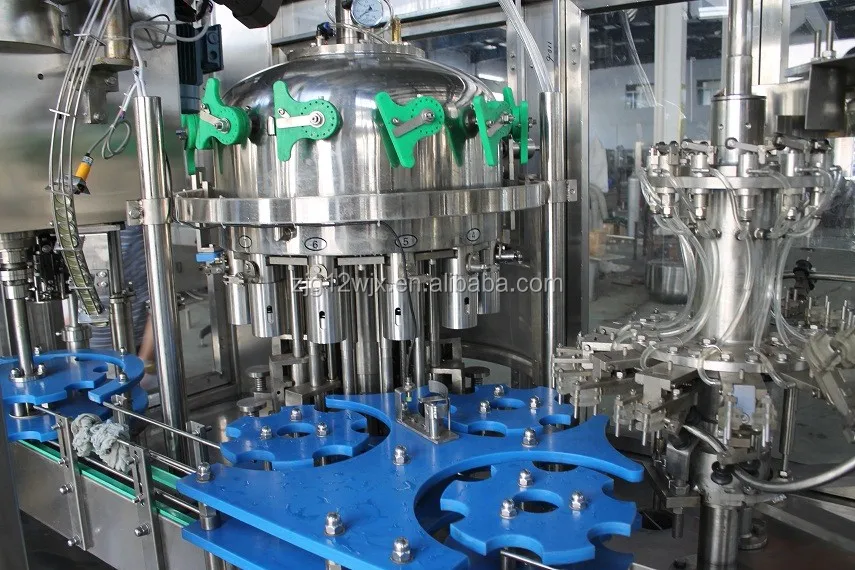

This Beer Filling Machine is my company's introduction of German technology, combined with the characteristics of beer production industry, designed to develop small-scale beer filling equipment. This Beer Filling Machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.

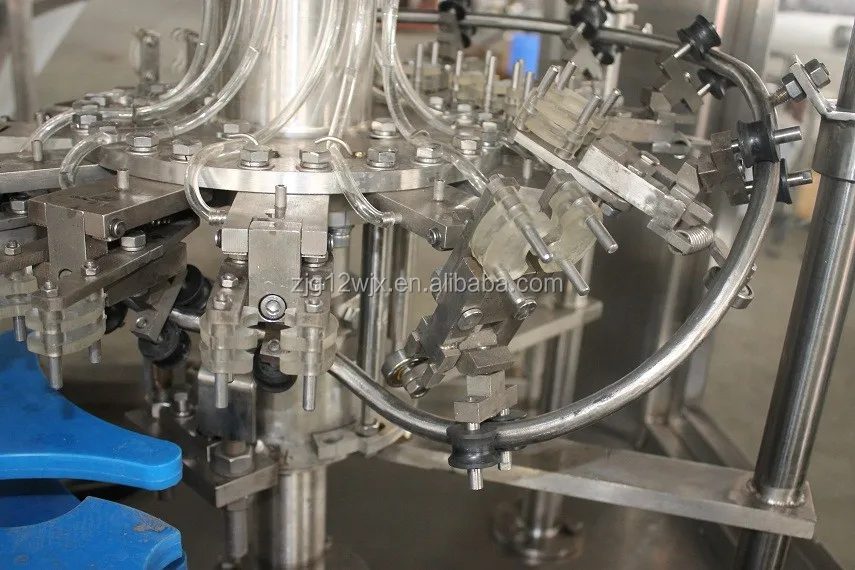

1, The rinsing machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.

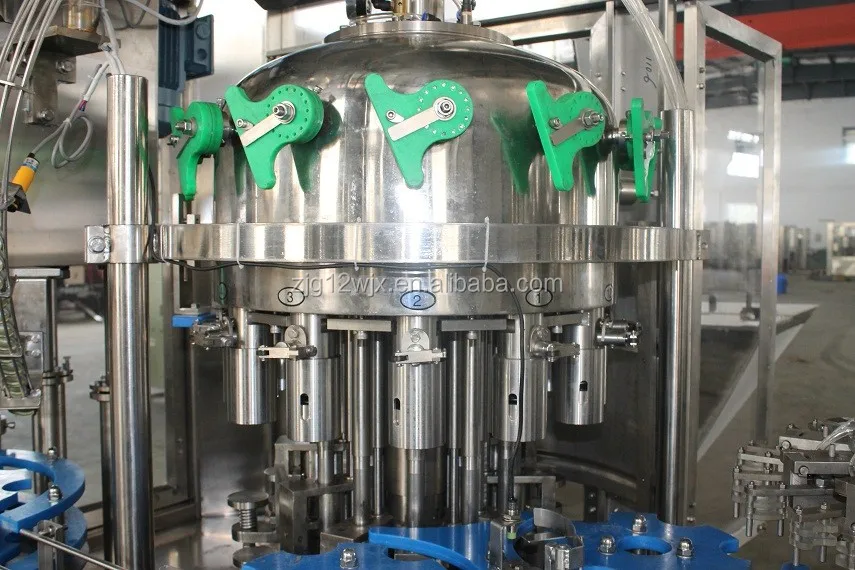

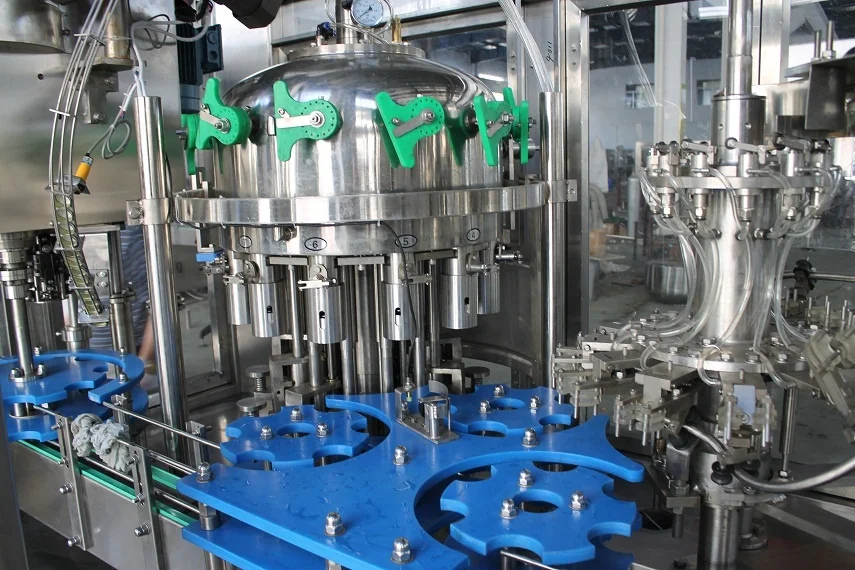

2, Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.

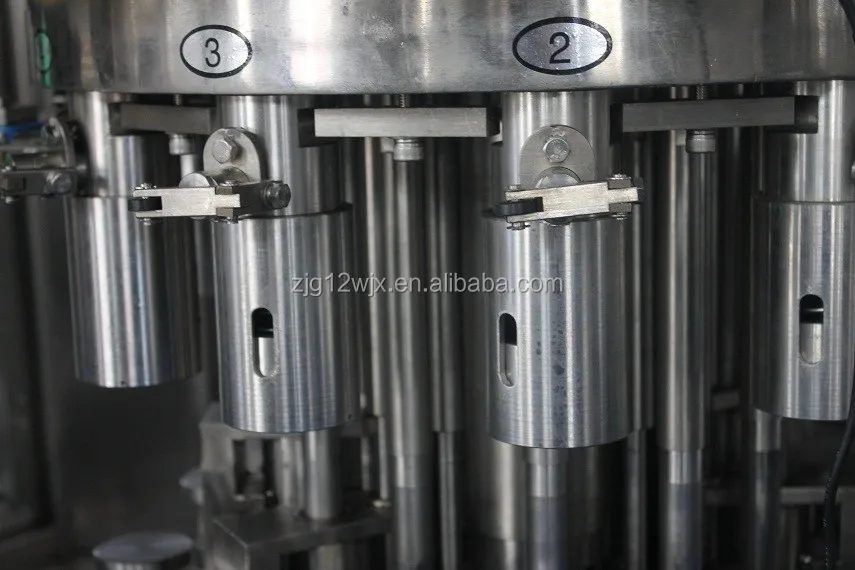

3, Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.

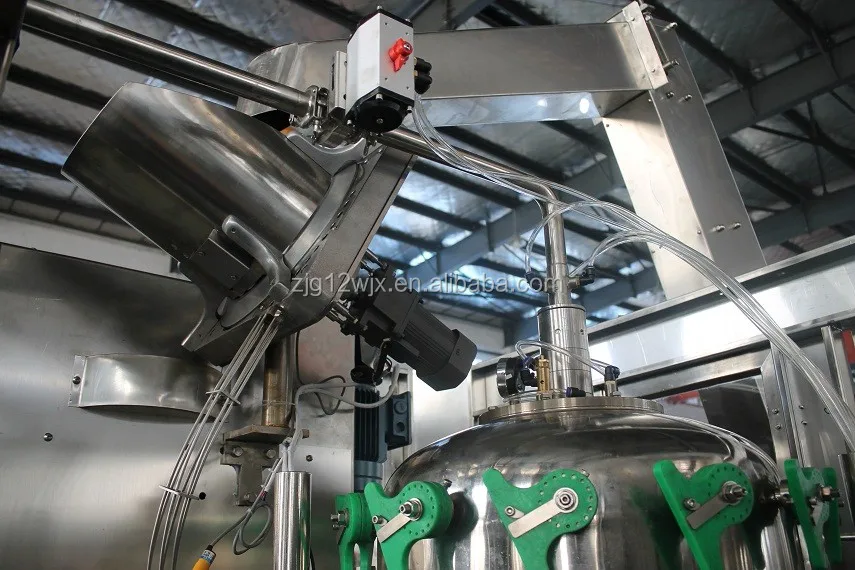

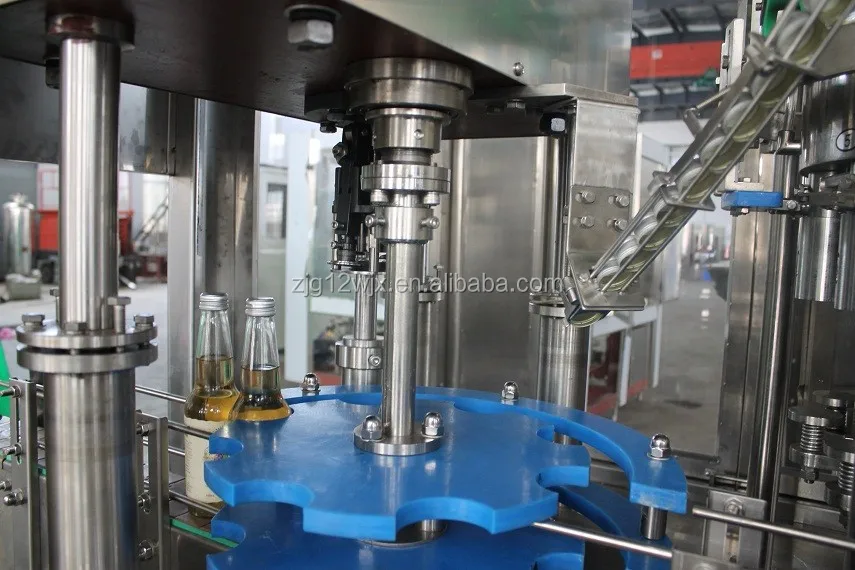

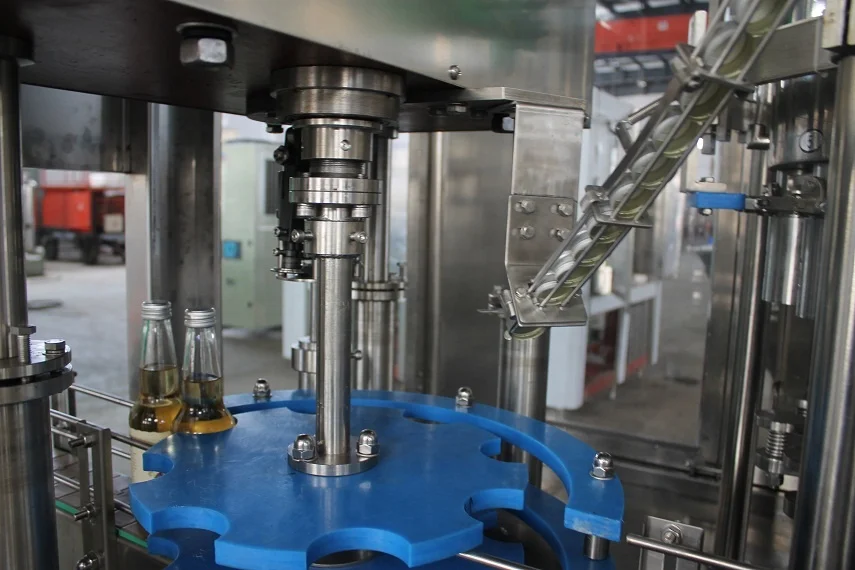

4, Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles.
5, Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L.
6, Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.
7, with perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water.
8, All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside the wall of mirror-polished, ensuring it is healthy.
9, Manually dry oil lubrication system to make sure equipment maintenance is more convenient.
10, The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; No cap no operation, and other security protection.
Machine Parts
Name: Gas valve
Brand: MIC
Original: China

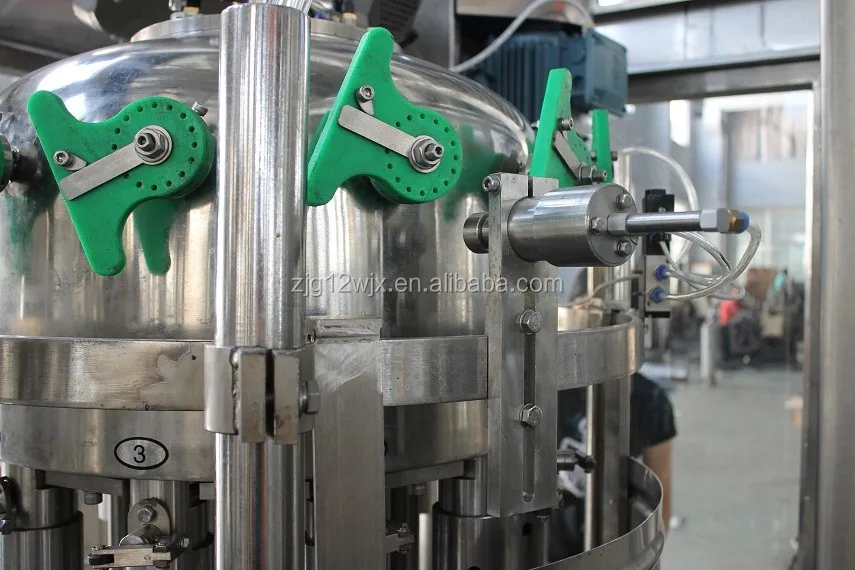

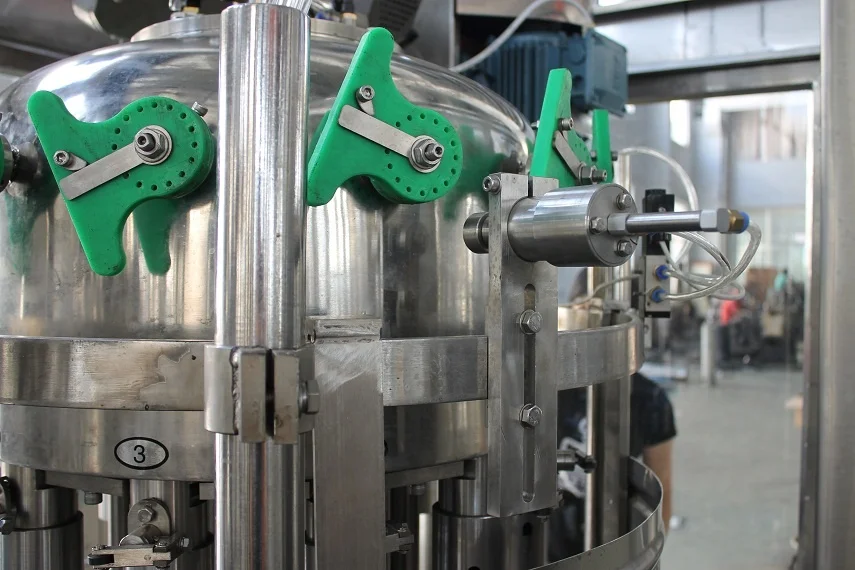

It is for gas open and closed valve. It has a plastic shell, which is a ceramic structure inside. To prevent the liquid corrosion, anti dust, to prevent leakage.
Main Features
Machine Parts
Name: Screw bolt
Brand: MIC
Original: China

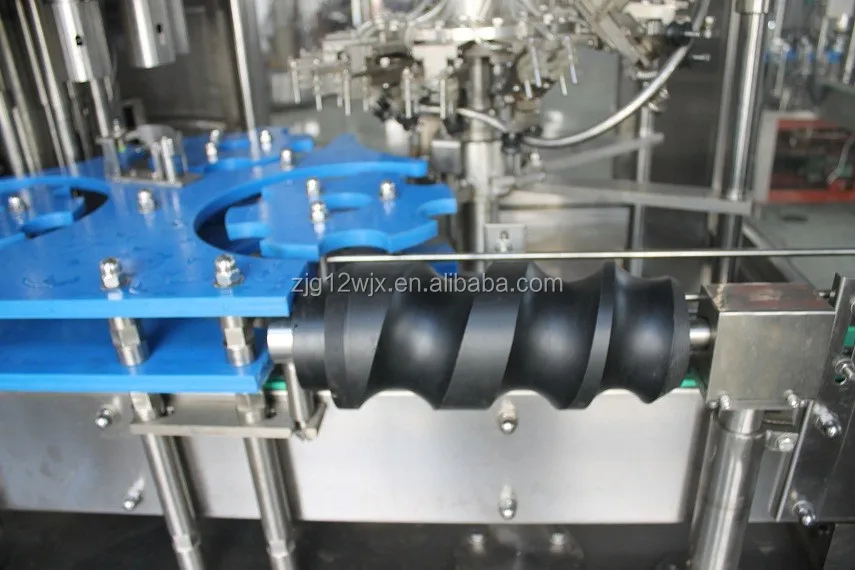

This is glass bottle feeding screw bolt. It will split glass bottle one by one, it will stop the stuck problems. But when customers want to fill different size of bottle, customers need to change this part.
Main Features
Air compressor
https://www.youtube.com/watch?v=VmsVWtXp-yo
CO2 mixing machine
https://www.youtube.com/watch?v=3GwW8EFOfdE
Beer pasteurizer
https://www.youtube.com/watch?v=t8coxrHbcR4
This machine need air compressor, 0.8 m3/min 10Kg is enough

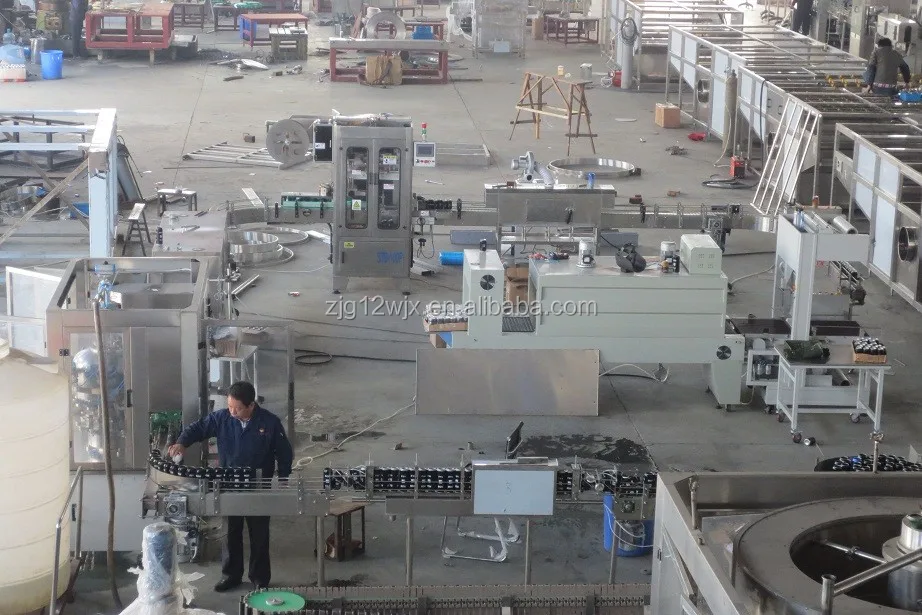

This machine can be connected with:
- Water treatment system
- Glass bottle depalletizer
- Glass bottle washer, filler-seamer monoblock
- Glass bottle cooling tunnel
- Glass bottle blow dryer
- Liquid level inspector
- Glass bottle labeling machine
- Glass bottle code printer
- Glass bottle packaging system (shrink-wrapper or carton packaging machine)
- Palletizing system
1. Each water filling machine element the contacts with the liquid is made of high quality Stainless steel 304, if need, SUS 316 is also available.
2. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.
3. Most elements of the electrical system use famous international brand, such as Mitsubishi, Omron brand.
4. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The quality of the equipment reaches the international advanced level.
5. Advanced technologies, human-machine interface touch screen and PLC program control are adopted in this machine.
6. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
7. Easy to operate, save the cost of workers.
