Wireless concentrator and other equipment for water meter

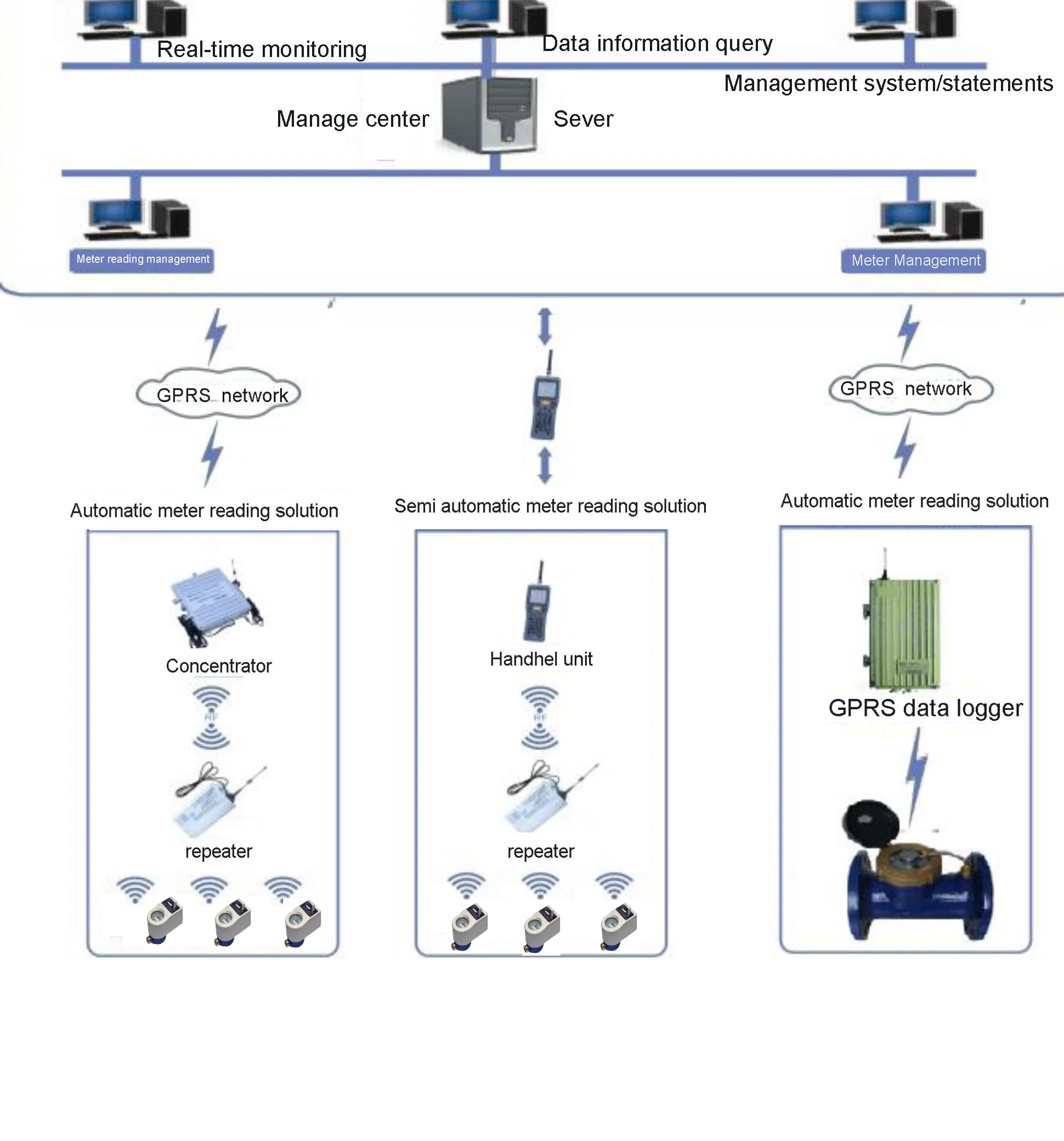

Wireless remote communication function

The terminal embedded GPRS/CDMA wireless data communication module, which uses GPRS/CDMA wireless data service to read the terminal data. GPR / CDMA wireless data communication follows the relevant standards of international, national and wireless communication products network detection organizations. Drawing on the advantages of similar product design ideas in foreign countries, the company has integrated the past years of research and development experience of collecting terminal products, with high reliability, large capacity, low delay, good openness, high reliability, large capacity, low delay, and good openness. The GPRS/CDMA wireless data communication of the terminal is by means of TCP/IP or SMS, when using TCP/ IP mode communication terminal can be configured to TCP mode or UDP mode.

Main Tech. Parameters

1). Shape dimension:

290mm×180mm×95mm

2). Electrical parameters:

Normal working voltage	AC220V ±10%
Static power consumption	≤3W
Dynamic power consumption	≤30W

3). Load capacity:

MBUS Port

4 downlink ports, each port can be connected to ≤ 128 meters, @each meter 1.5mA

Max. load capacity per M-bus: ≤250mA @28V

RS485 Port

3 downlink ports, each port can be connected to ≤64 meters

Note:When the downlink is connected to the collector, connected meter ≤1500sets

4). Climatic conditions:

Normal working temp.	-25℃~55℃
Working temp. limit	-40℃~70℃
Storage & transport temp.	-40℃~75℃
Storage & working humidity	≤95%

5). Technical parameter:

Panel Display	160*160 lattice monochrome LCD, diode backlight
Fingerboard	6 buttons: up, down, left, right, cancel, confirm
Data Transmission	Standard GPRS data transmission mode; Micro-power wireless communication module; Infrared communication mode; Ethernet interface can be configured according to needs;
Local transport interface	1 way USB maintenance Serial Port, 3 way RS485/(4way MBUS), 1 way USB, 1 way Modulated infrared
Remote upgrade	Not supported for the time being
Storage capacity	FLASH capacity: 128MB SDRAM capacity: 64m

6). Wireless module technical parameters:

Frequency range	420-450MHz
Sensitivity	-110dBm
Max. transmit power	100mW
Reliable communication distance	Open area communication distance 1 KL.
Emission current	≤95mA (transmitting power100mW)
Receive current	≤15mA
Preset frequency	Default: 426.5MHz, 8 bands available: 426.5MHz, 428.5MHz, 429.7MHz, 432.4MHz, 434.5MHz, 435.7MHz, 440.1MHz, 441.1MHz
Modulate	GFSK, 18K frequency offset
Antenna impedance	50Ω
