DPP-250DI Best price mini tablet alu injection blister packing machine
———Descriptions———
This machine can continually and automatically complete the packing proceedings, is blister cap
form-taking, medicine-feeding, heat sealing, printing lot no, and cutting into format. It has advantage as compact structure, full function, gear wheel working, and accurate synchronization, stable cooperation, easy to replace the mould, low cost and needn’t to equip
Auxiliary unit. Turn on power and connect it with cooling water, you can produce in a large scale.The machine is widely used in the vocation of medicine, foodstuff, electron, hardware for AL/PVC blister packing of various nubby objects, such as capsule, tablet, pill and electronic part.

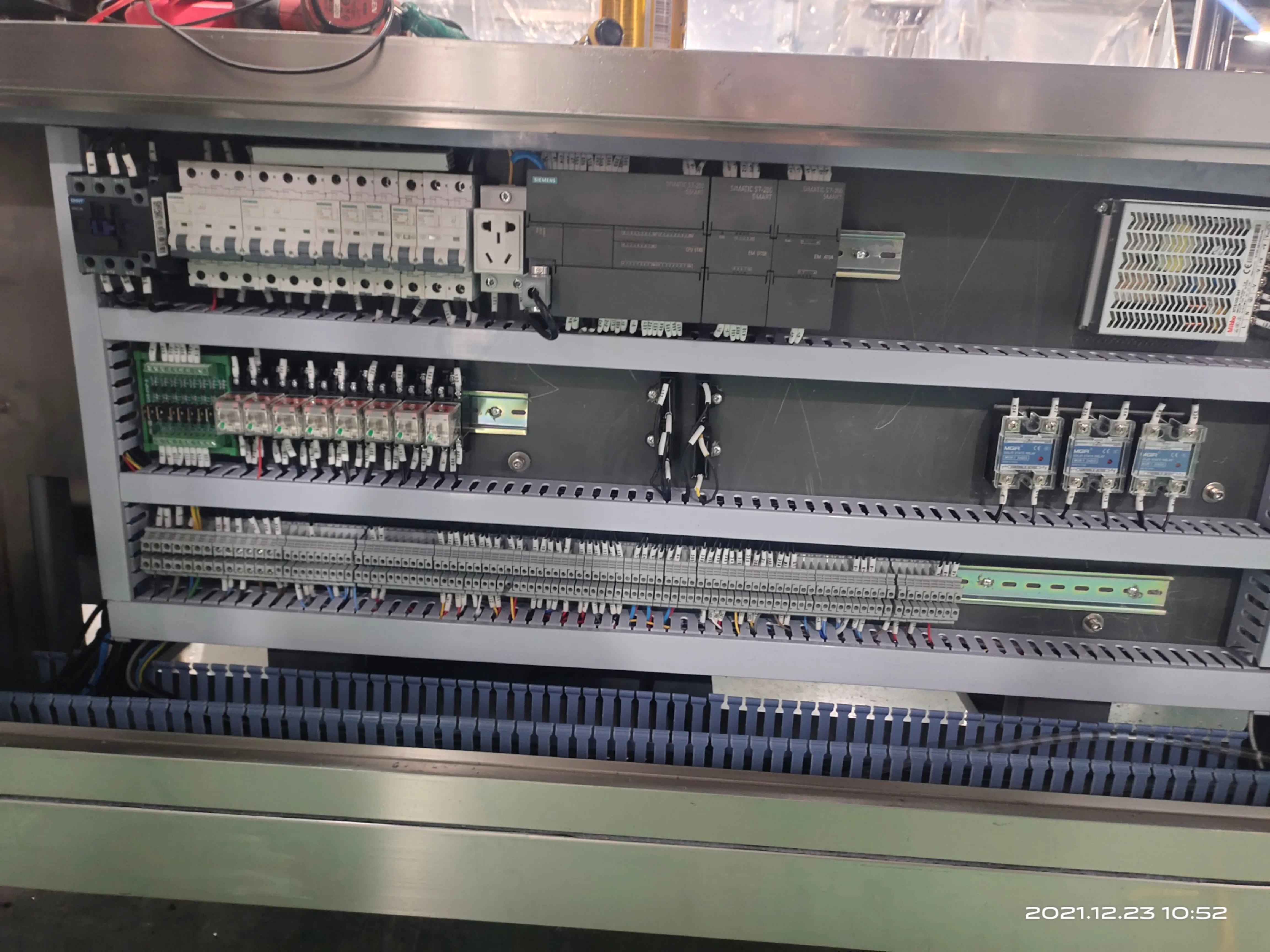

This machine adopts micro-computer PLC, frequency converter, touch panel operation, high automation.
———Technical Parameters———
Item/model | DPP-250DI |
Maximum Capacity | AL-PVC blister, 230000 blister/hour ; |
Punching frequency | AL-PVC blister, 6-50 times/min; |
Maximum forming area and depth | AL-PVC blister, 240 x 150 x 26 mm ; |
Adjustable scope of travel | 40 - 160 mm Can be customized according to customers’ request |
Standard plate | 80 x 57 mm Can be customized according to customers’ request |
Packing material | AL : 250 x 0.1 - 0.15 mm PVC: 250 x 0.15 - 0.5 mm PTP aluminum foil: 250 x 0.02 – 0.035 mm Dialysis paper: 250 x 50 – 100 g |
Power | 6.2 KW |
Power supply | AC, 380V/50 HZ, 3 phase or customization |
Air compressor | ≥0.3 M3/min ( provide for oneself) |
Mould cooling | Tap water or circulating water |
Air pressure | 0.4 – 0.6 MPa |
Overall size | 3000(L) x 730(W) x 1600(H) mm |
Weight | 1200 kg |

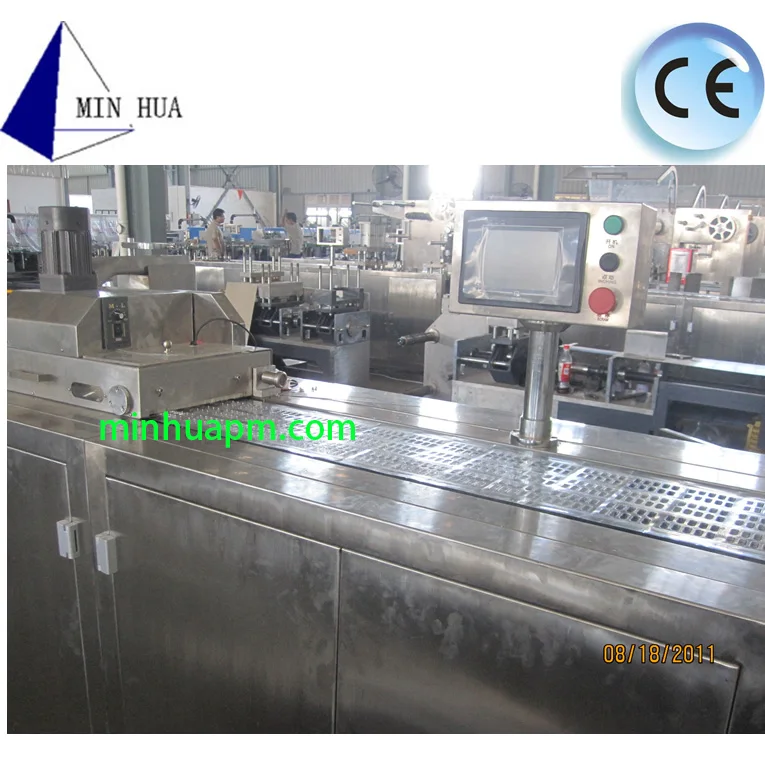

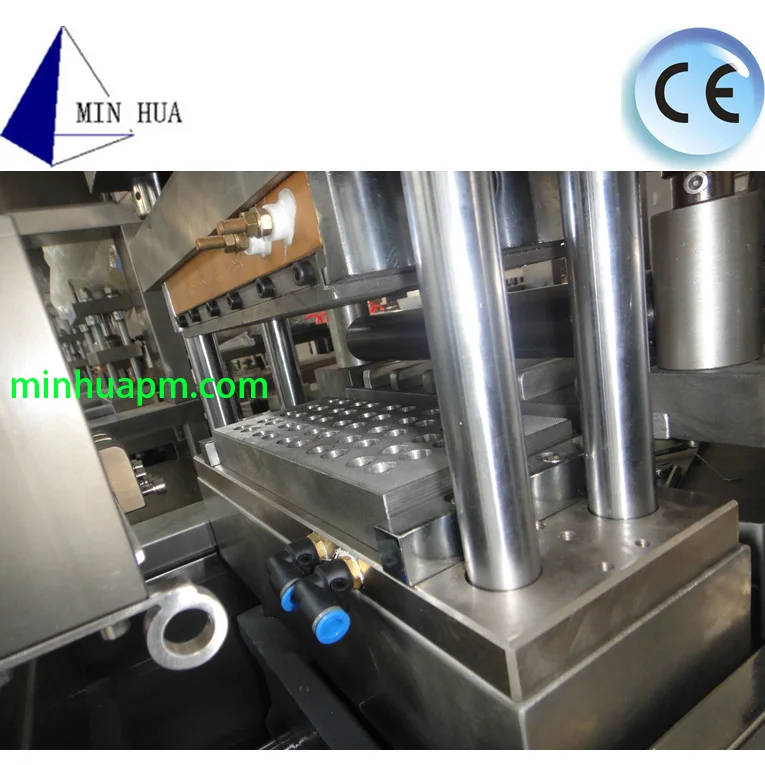

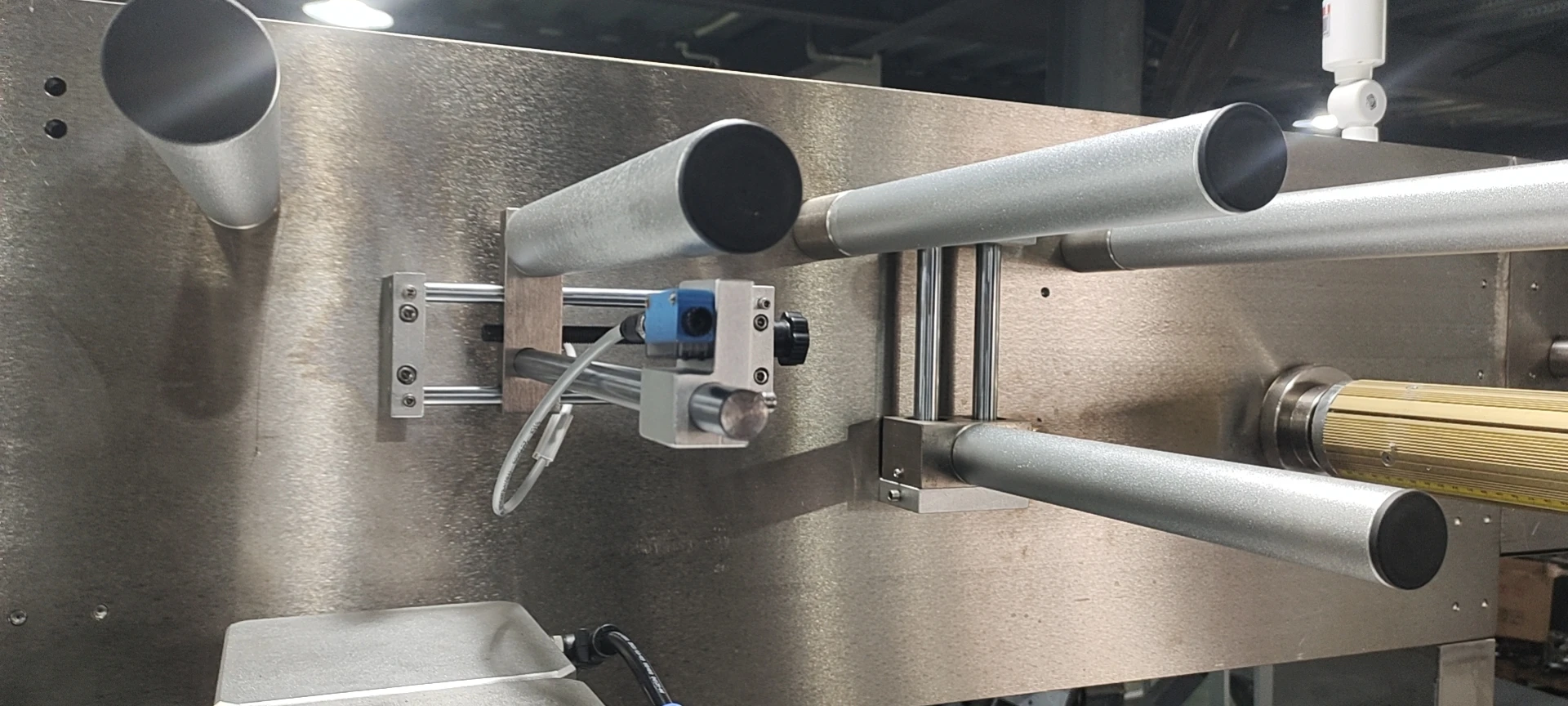

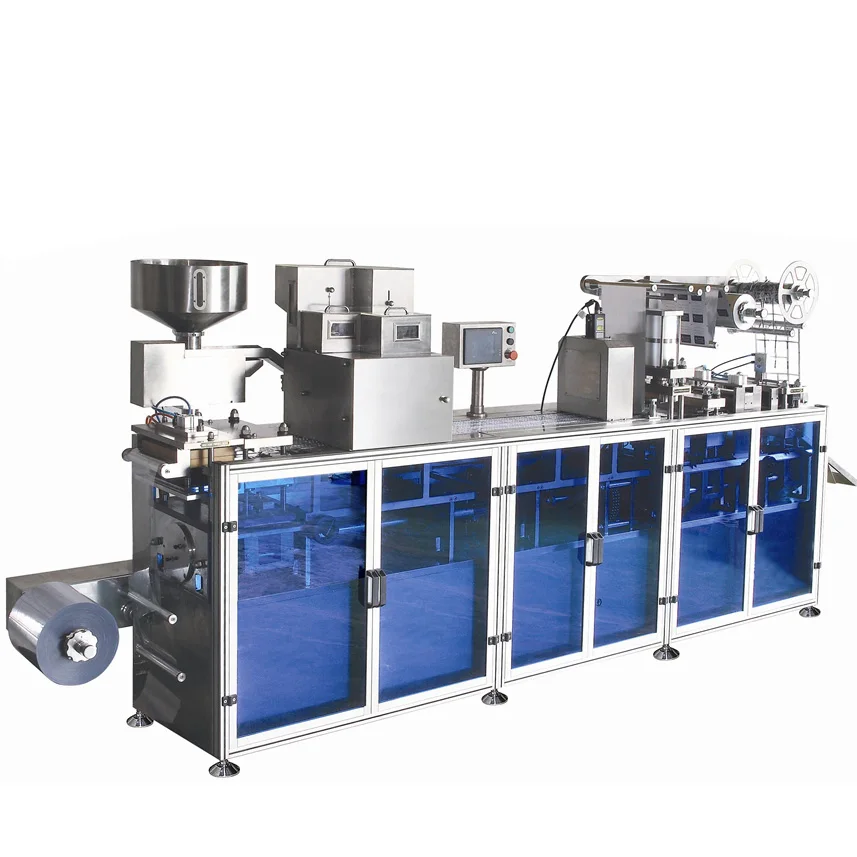

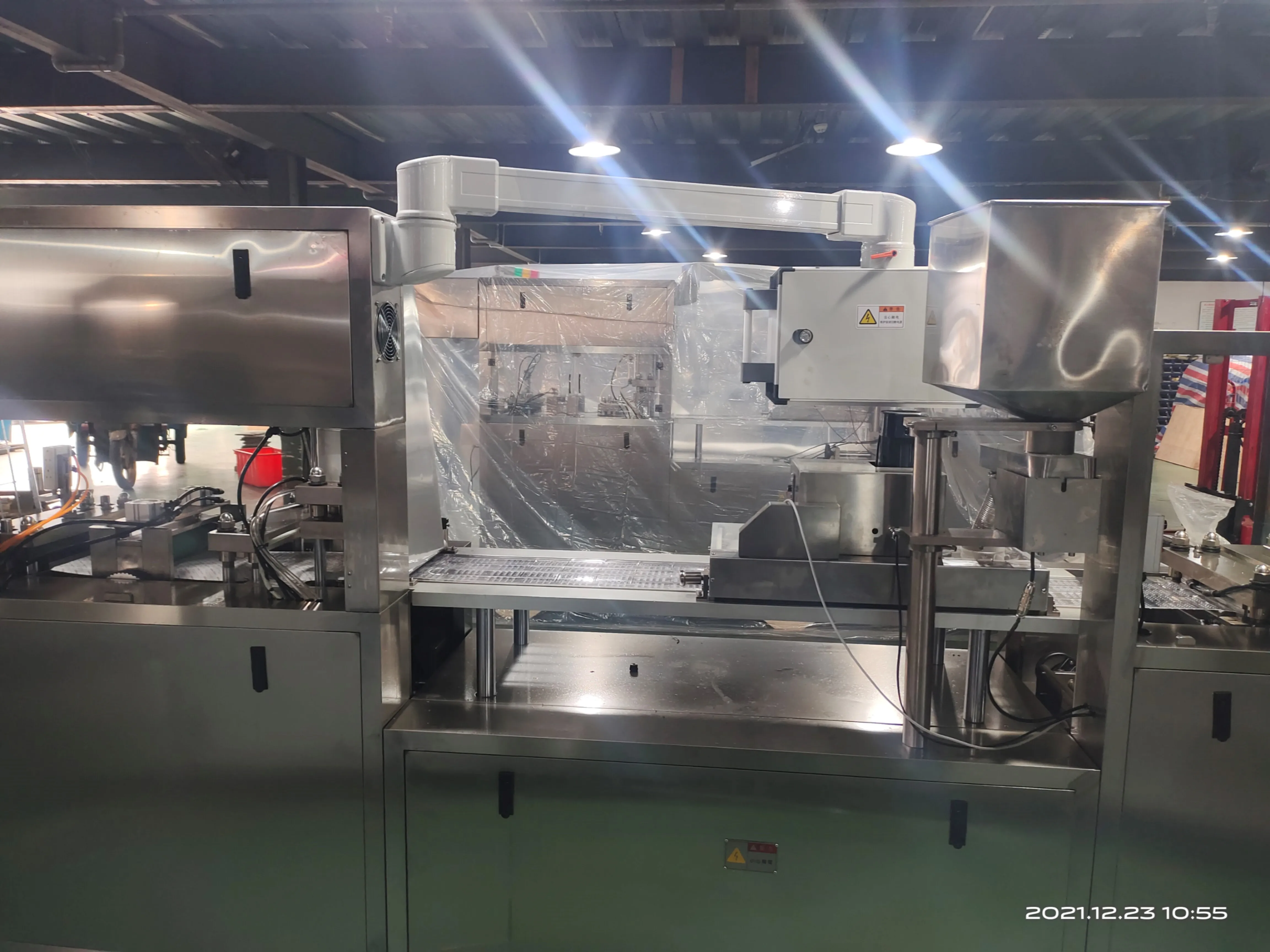

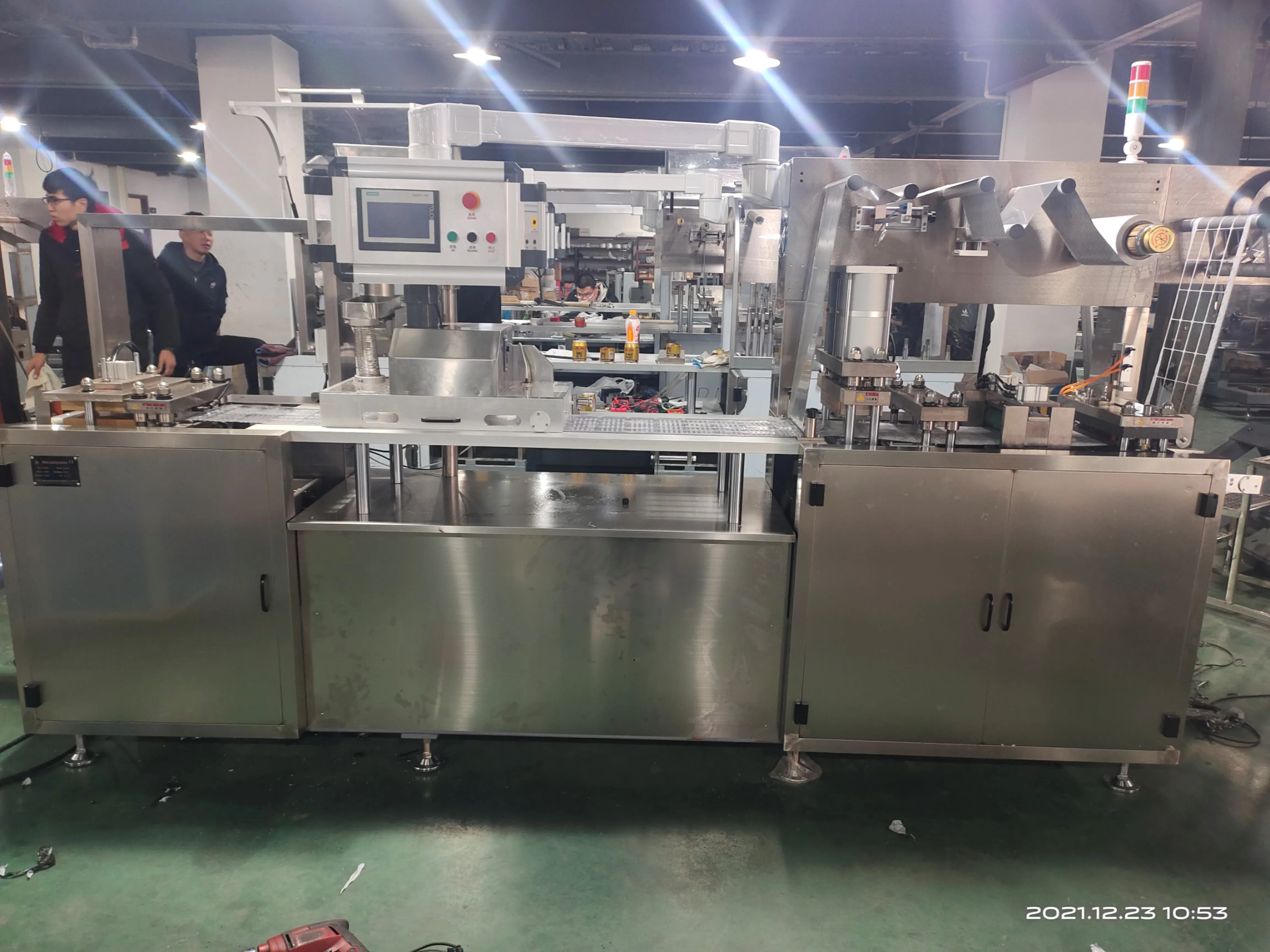

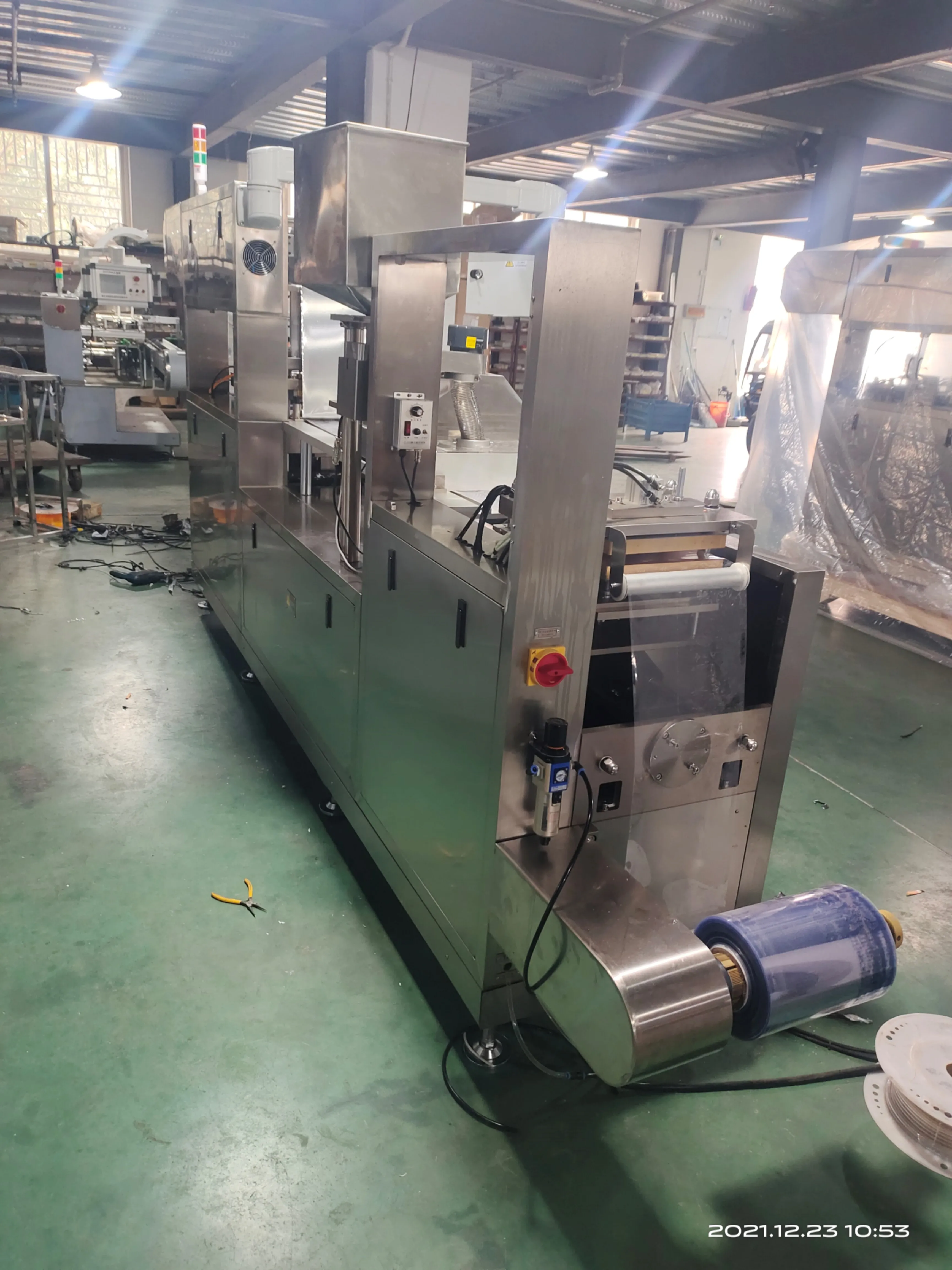

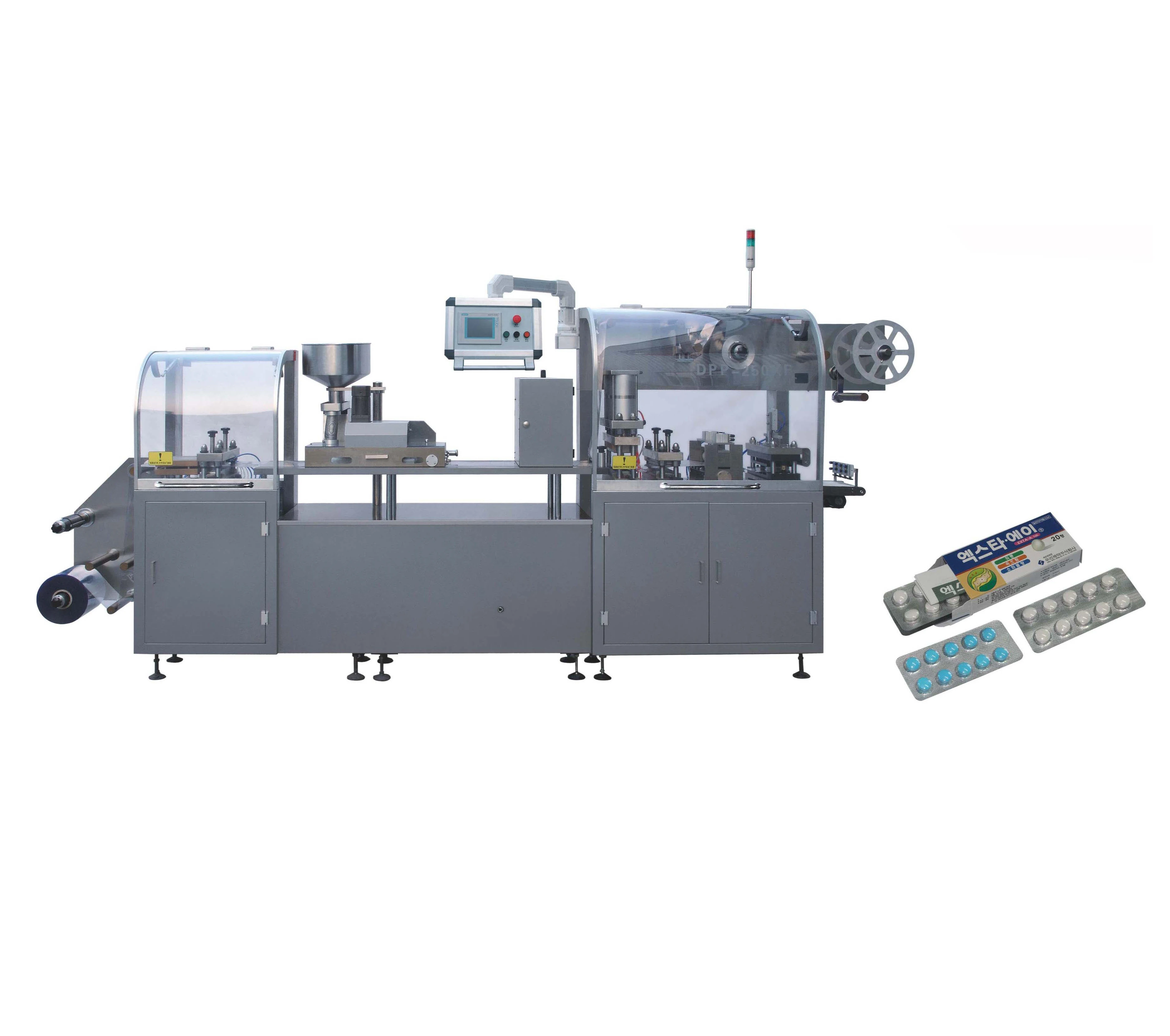

———Product image———
Features
——Features——
Feature 1 | Blister forming, heat-sealing, lot number printing, avulsion line impressing and cutting etc all adopt gear mandrel orientation, each can move freely in the mandrel when rotating the hand wheel, and the machine equipped with a staff gauge and tightening nuts for calibration and orientation. |
Feature 2 | Forming mould, heat-sealing mould and pressing mould adopt bolt orientating, with features of accurate orientation, easy to change moulds and material saving. |
Feature 3 | All the movement of heating, forming, upper and lower net veins pressing, air cylinder pressing, feeding, lot number printing and cutting can be done very simple, automatically and accurately. |
Feature 4 | Main transmission part adopts parallel axis and bevel wheel speed reducer, with stable running, low noise and long service life. |
Feature 5 | The forming of hard Aluminum of other factories adopts the concave-convex coordination to lock the mold and it will leave behind a scoop channel on the plate. The travel range must be prolonged above 2mm, so that the scoop channel will be cut as scrap. It is calculated the scrap sum up to several hundred thousand Yuan annually. The forming of hard Aluminum with our equipment adopts the imported & special rubber lock mold. The surface of the molding is smooth. Each cutting will save above 2mm the material (approximately 2.5%). Because the price of cold forming aluminum is expensive, Massive materials will be saved annually by using our machine. Thus the economic efficiency is remarkable. |
Feature 6 | Detachable design makes the machine easy to be carried and installed according to user’s requirement. |
