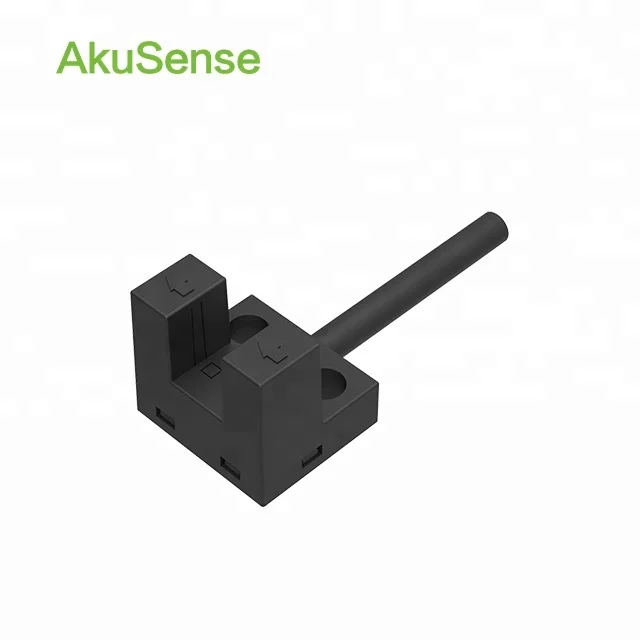

SL 205NA W Micro L Shape IP50 Micro Slot Infrared LED Slotted Optical Sensor Distance Motion Photoelectric Optical Sensor
- Category: >>>
- Supplier: Shenzhen Akusense Technology Co. Ltd.
Share on (60817483115):
Product Overview
Description
Product Description
Slot type photoelectric sensor
♦ Available in wiring and connect styles,12 style such as F/T/R/L/K.T for option
♦ NO/NC output (eay connection)
♦ Depth of slot 8.5mm (prevents detected object from hitting the bottom of the slot in a maximum level)
♦ NO/NC output (eay connection)
♦ Depth of slot 8.5mm (prevents detected object from hitting the bottom of the slot in a maximum level)
Specification
No.Model | SL-205NA-W |

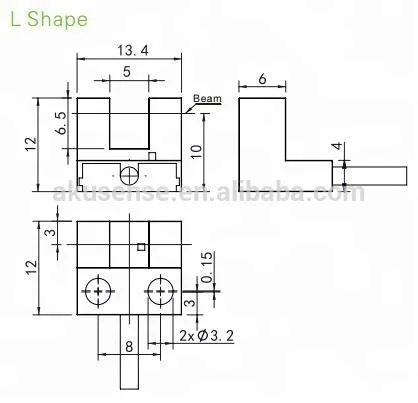

Appearance | L shape |
Sensing distance | 5mm (Slot width) |
Standard detection objects | Opaque (Size:>2.0*2.0mm) |
Repeat accuracy | <0.03mm |

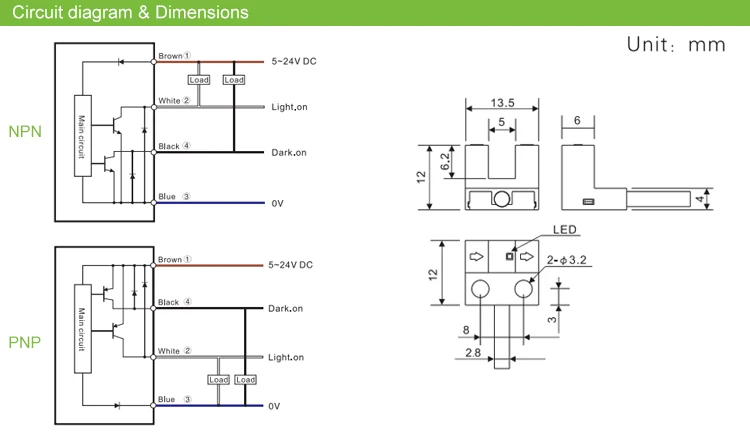

Output type | NPN open-collector |
Switch type | Selectable L.on, D.on |
Indicator | Light off when objects are detected; light on when no ojects are detected |
Response frequency | 3KHz |
Light source | Infrared LED (940nm) |
Operating voltage | 5~24V DC |
Voltage drop | <1V(Load current 50mA) |
No-load supply current | ≤16mA |
Protective circuit | Surge protection , Reverse polarity protection |
Ambient illuminance | |
Ambient temperature | Operating temp:-25℃~+55℃, storage temp: -30℃~+80℃ no freezing |
Ambient humidity | Working Humidity: 5%~85% storage humidity: 5%~95%, no coagulating |
Withstand voltage | AC, 1000V for 1 minute, |
between all power connection terminals and housing | |
Anti-vibration | 10~55Hz, Amplitude1.5mm, |
x, y, z three directions 2 hours each | |
Insulation resistance | 20MΩ or more between all power connection terminals and housing |
(based on DC250V) | |
Protection class | IP50 |
Material | PC |
Connection | 2M 4core cable |
