best selling 1.6 mm Medical Endoscope Module 400*400 OV6946 micro endoscope camera module
- Category: >>>
- Supplier: Dongguan Tolos Wire & Cable Co. Ltd.
Share on (60817489782):
Product Overview
Description
Product Description
Opical Spec:
| Cmos size: | 2P 1/18" |
| Pixel size: | 1.75*1.75 |
| Fno: | 5.0 |
| Diagonal fov: | 120 degree |
| TV-distortion: | <6% |
| Relative illuminance: | 60% |
| Chief ray angle: | <25 degree |
| Max image circle: | 1.0 mm |
| Depth of filed: | 5-50 mm |

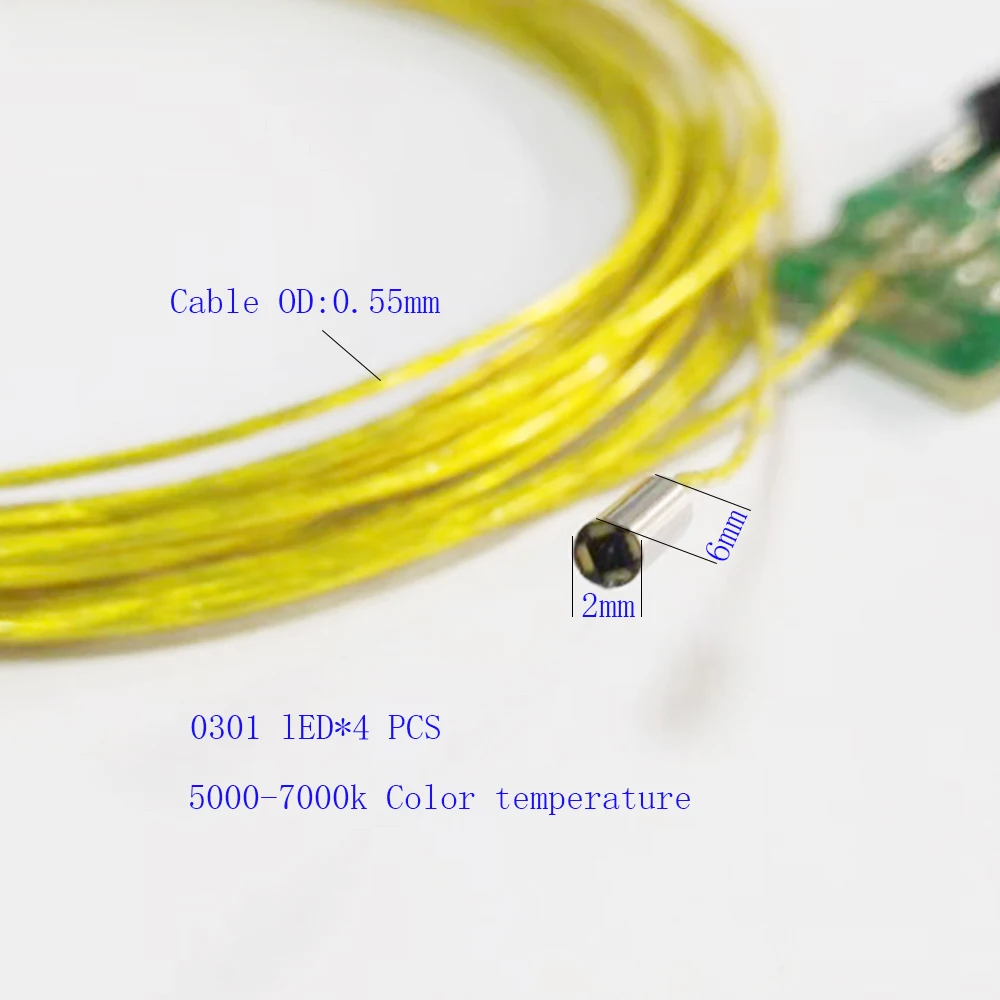

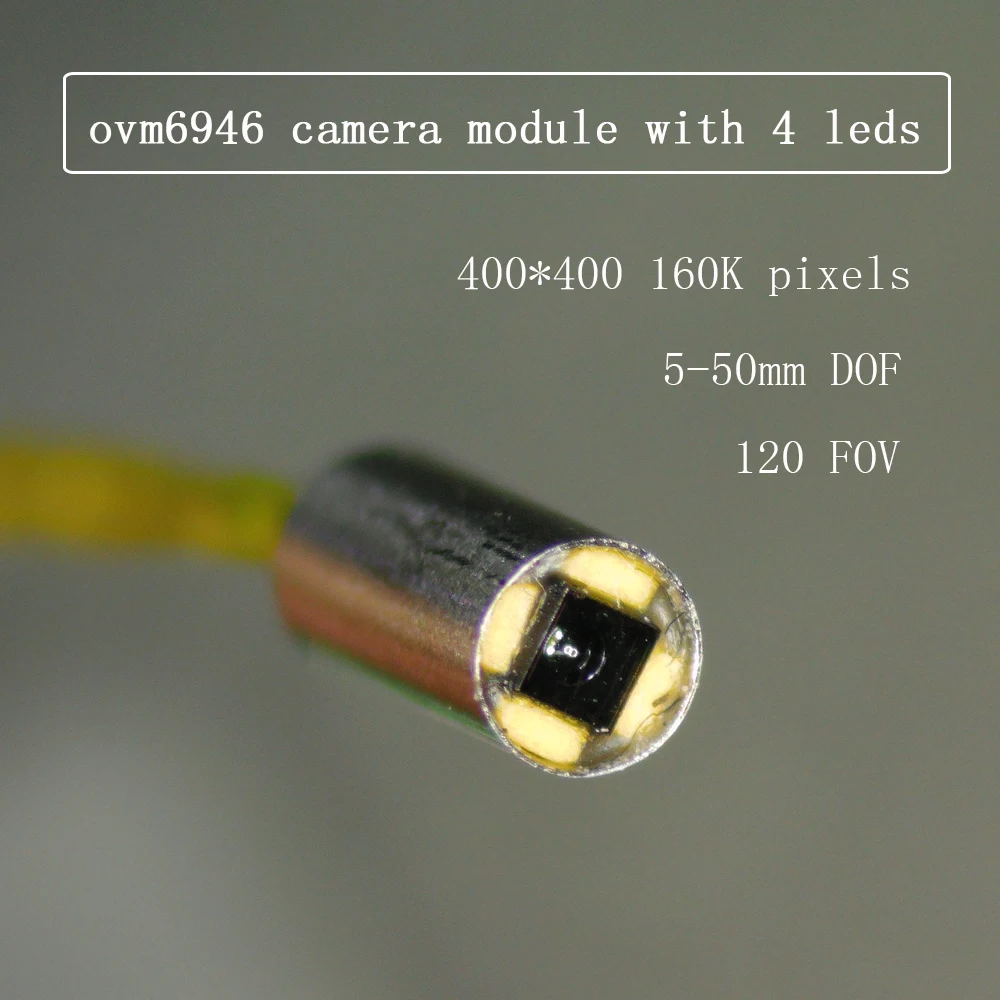

| Led Qty: | 0201*4 pcs |
Ele Spec:
| Sensor: | 1/18 400x400 |
| Max frame rate: | VGA 30 fps |
| Interface: | USB 2.0 |
| USB output resolution: | MJPG 400X400 |
| White balance: | Auto mode |
| Operation temp: | -10 --+50 degree |
| Steel tube temp: | </= 41 degree |
| Min diameter: | 1.05*1.05 mm |
| Max length: | 8M |

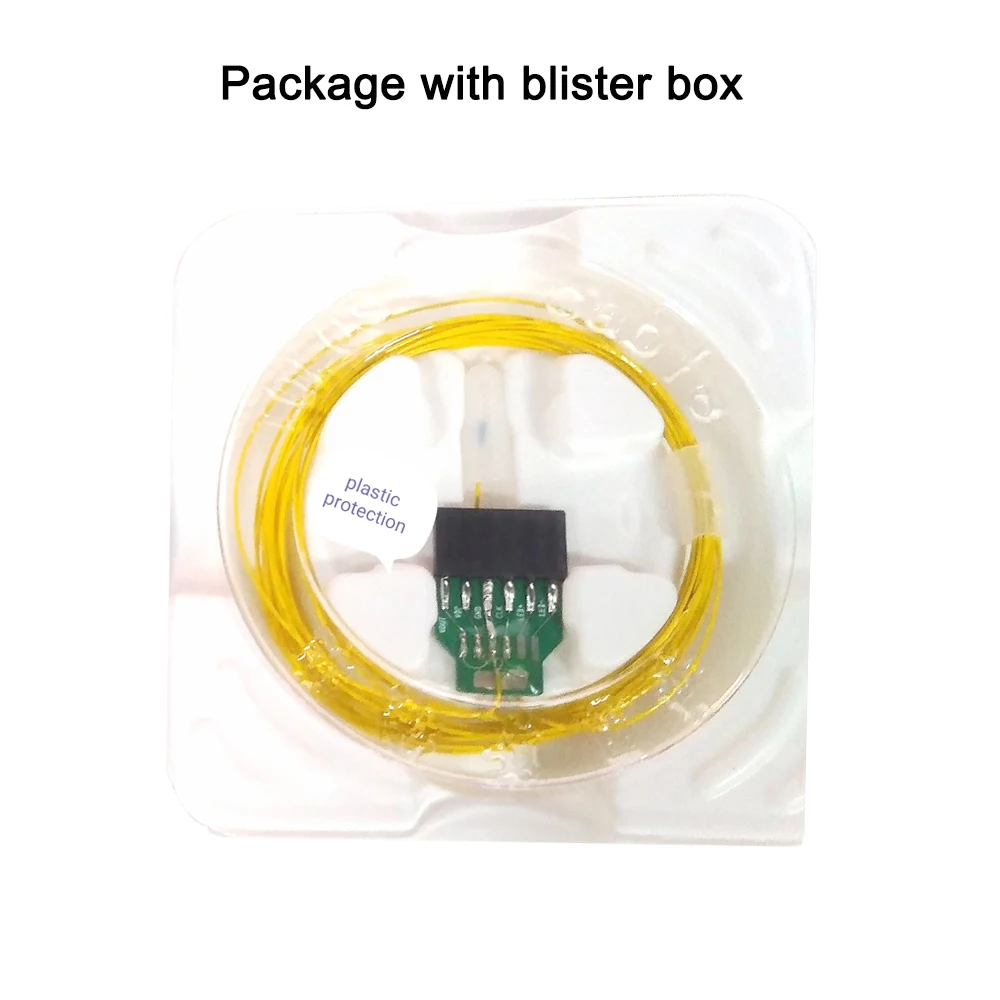

Packaging & Shipping
Company Information
Our Services
The workshop
>>Advanced laser peeling and welding equipments ,automatic production line
Certifications
We have passed ISO13485 quality management system .
At the same time , the products are approved by bio-compatibility test .
FAQ
