1250a flexible laminated copper busbar for electrical connection
- Category: >>>
- Supplier: Wuxi Aston Electric Co. Ltd.
Share on (60817515799):
Product Overview
Description
Product Description

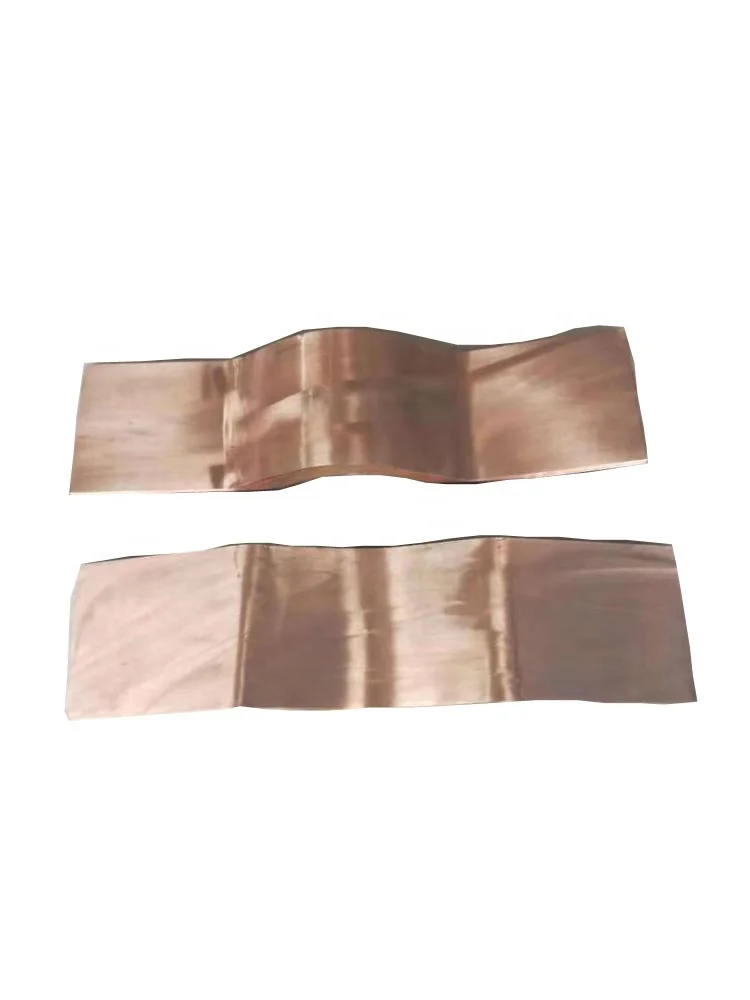

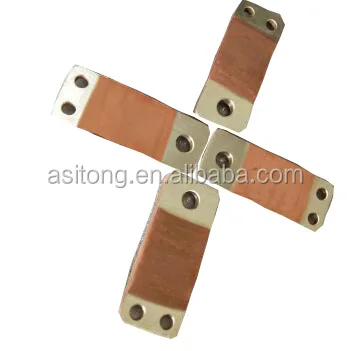

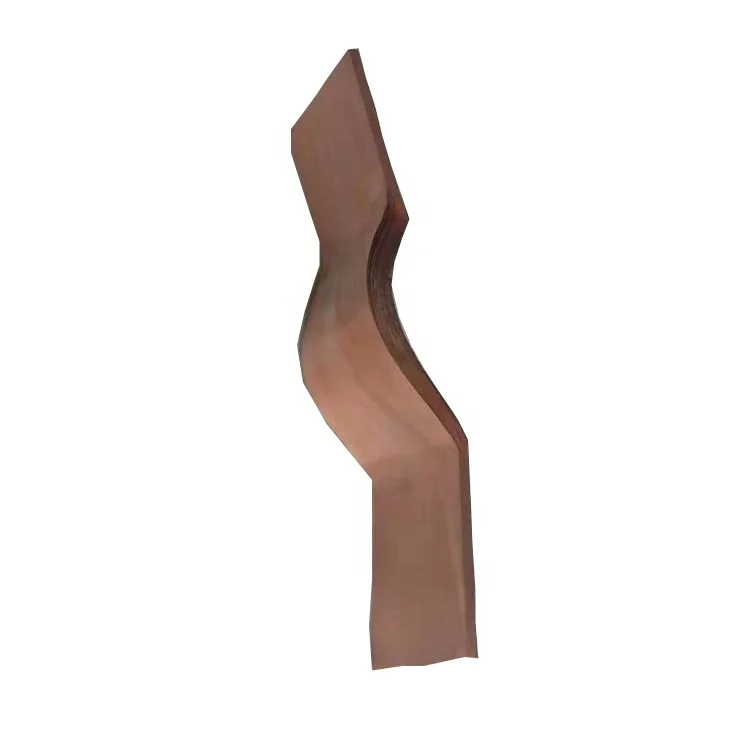

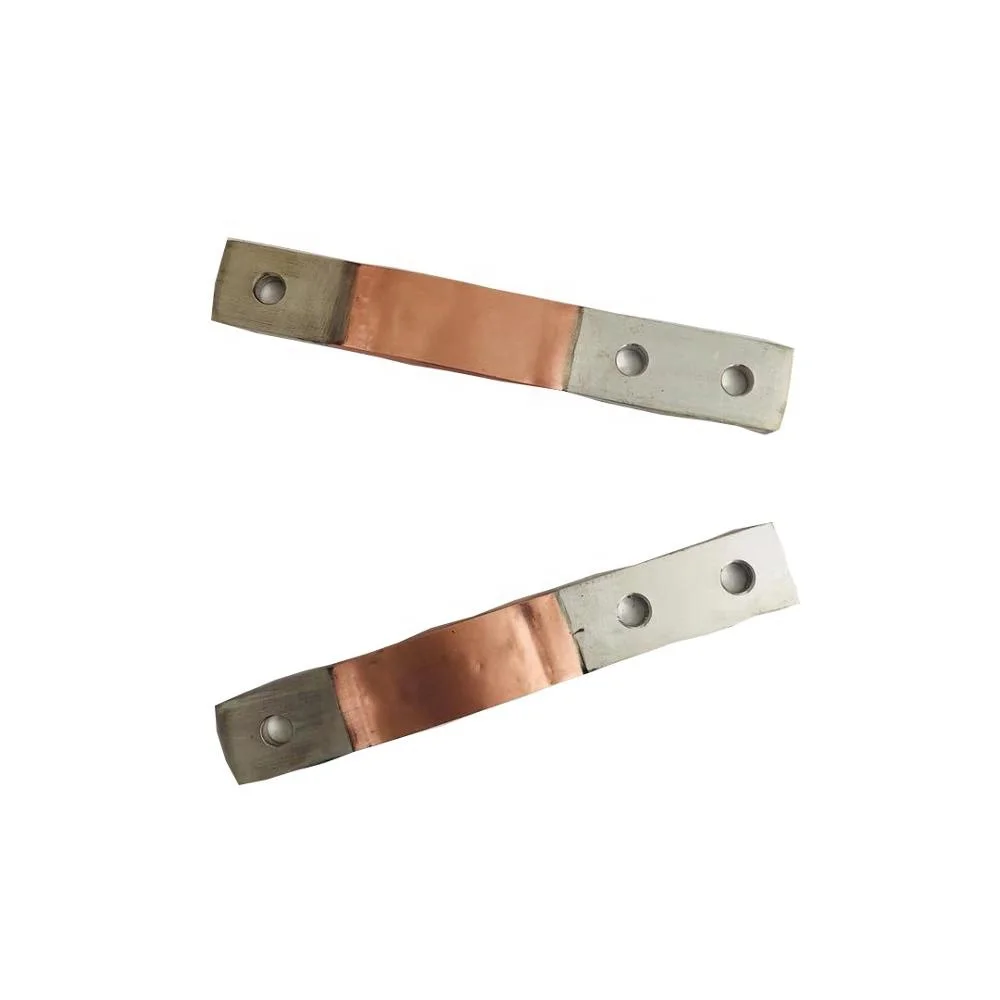

Copper foil laminated shunt
On your request, the contact area of the laminated copper foil connectors or the whole connectors can be plated with tin, nickle or silver.The flexible copper foil laminated connectors with plating have better resistance to oxidation and corrosion.
1. Material: C1100 copper foil
2. Single foil thickness: 0.05mm, 0.10mm, 0.20mm, ...
3. Cross section: 50-4000 SQMM
4. Purpose: flexible electrical or conductive connection
5. RoHS compliant
6. Customization available for special dimension, shapes and structure.
2. Single foil thickness: 0.05mm, 0.10mm, 0.20mm, ...
3. Cross section: 50-4000 SQMM
4. Purpose: flexible electrical or conductive connection
5. RoHS compliant
6. Customization available for special dimension, shapes and structure.
Technical parameters
See the table below.
The width, length and drilling holes not included in the table below can be processed according to user requirements.
The allowable current carrying capacity is a reference value. This value is related to the installation and use conditions of the soft connector.
Scheme(II)
Technical parameter table of pressure welding / brazing
ED copper | Section mm2
| A mm | B mm | S mm | L mm | H mm | Holes Diameter mm | End drilling | Current capacity A |
PWR 200/180/40 | 200 | 50 | 40 | 5 | 180 | 40 | 13 | W1 | 600 |
PWR 200/230/40 | 200 | 50 | 40 | 5 | 230 | 40 | 13 | W1 | 800 |
PWR 320/230/40 | 320 | 50 | 40 | 8 | 230 | 43 | 13 | W1 | 800 |
PWR 400/230/40 | 400 | 50 | 40 | 10 | 230 | 45 | 13 | W1 | 900 |
PWR 250/250/50 | 250 | 60 | 50 | 5 | 250 | 45 | 13 | W1 | 700 |
PWR 400/250/50 | 400 | 60 | 50 | 8 | 250 | 48 | 13 | W1 | 950 |
PWR 500/250/50 | 500 | 60 | 50 | 10 | 250 | 50 | 13 | W1 | 1100 |
PWR 480/300/60 | 480 | 90 | 60 | 8 | 300 | 70 | 13 | W2 | 1100 |
PWR 600/300/60 | 600 | 90 | 60 | 10 | 300 | 70 | 13 | W2 | 1200 |
PWR 640/300/80 | 640 | 90 | 60 | 8 | 300 | 70 | 13 | W4 | 1350 |
PWR 800/350/100 | 800 | 90 | 60 | 10 | 300 | 70 | 13 | W4 | 1500 |
PWR 960/300/80 | 960 | 90 | 60 | 12 | 300 | 70 | 13 | W4 | 1700 |
PWR 800/350/50 | 800 | 110 | 100 | 8 | 300 | 80 | 13 | W5 | 1550 |
PWR 1000/350/100 | 1000 | 110 | 100 | 10 | 350 | 80 | 13 | W5 | 1800 |
PWR 1200/350/100 | 1200 | 110 | 100 | 12 | 350 | 80 | 13 | W5 | 1900 |
PWR 1200/400/120 | 1200 | 130 | 120 | 10 | 400 | 80 | 13 | W6 | 2000 |
PWR 1440/400/120 | 1440 | 130 | 120 | 12 | 400 | 80 | 13 | W6 | 2200 |
PWR 1500/450/150 | 1500 | 160 | 150 | 10 | 450 | 80 | 18 | W6 | 2300 |
PWR 1600/450/160 | 1600 | 170 | 160 | 10 | 450 | 80 | 18 | W6 | 2500 |
