UK10 32A Terminal Block

Share on (60817534871):


Price:

Quantity:


Product Overview

Description



Product Description

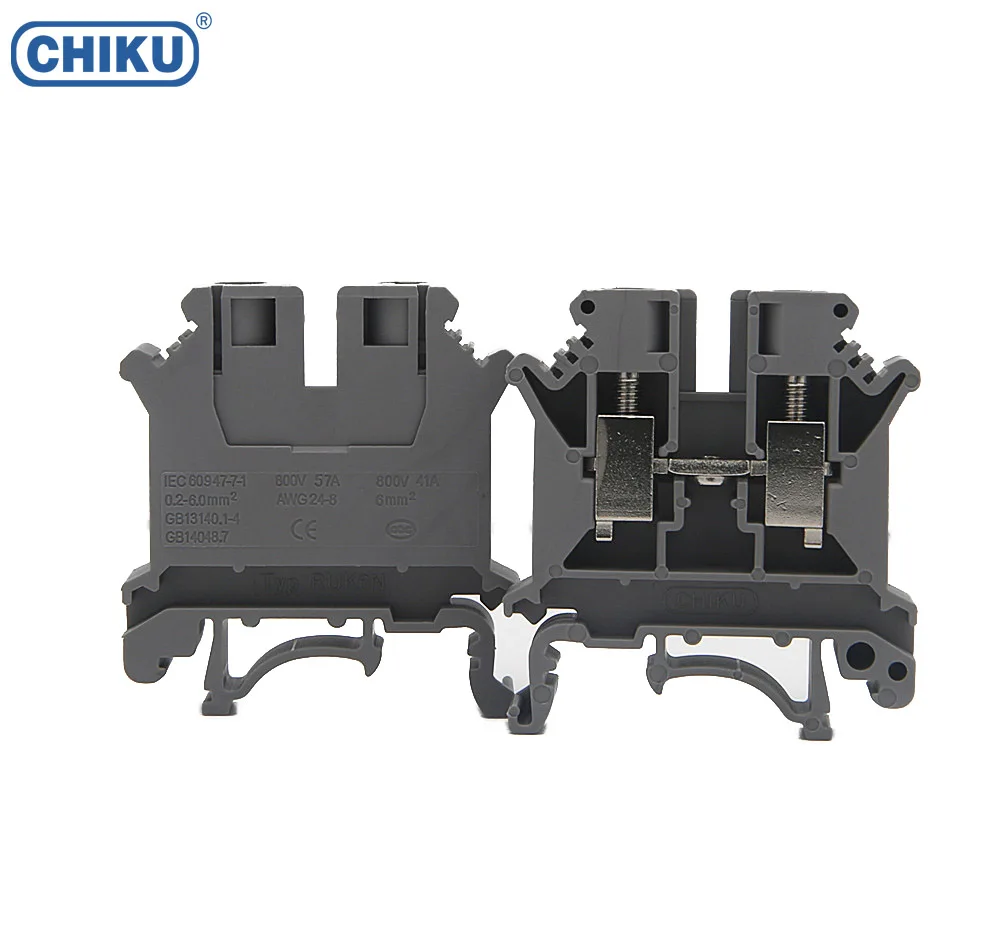

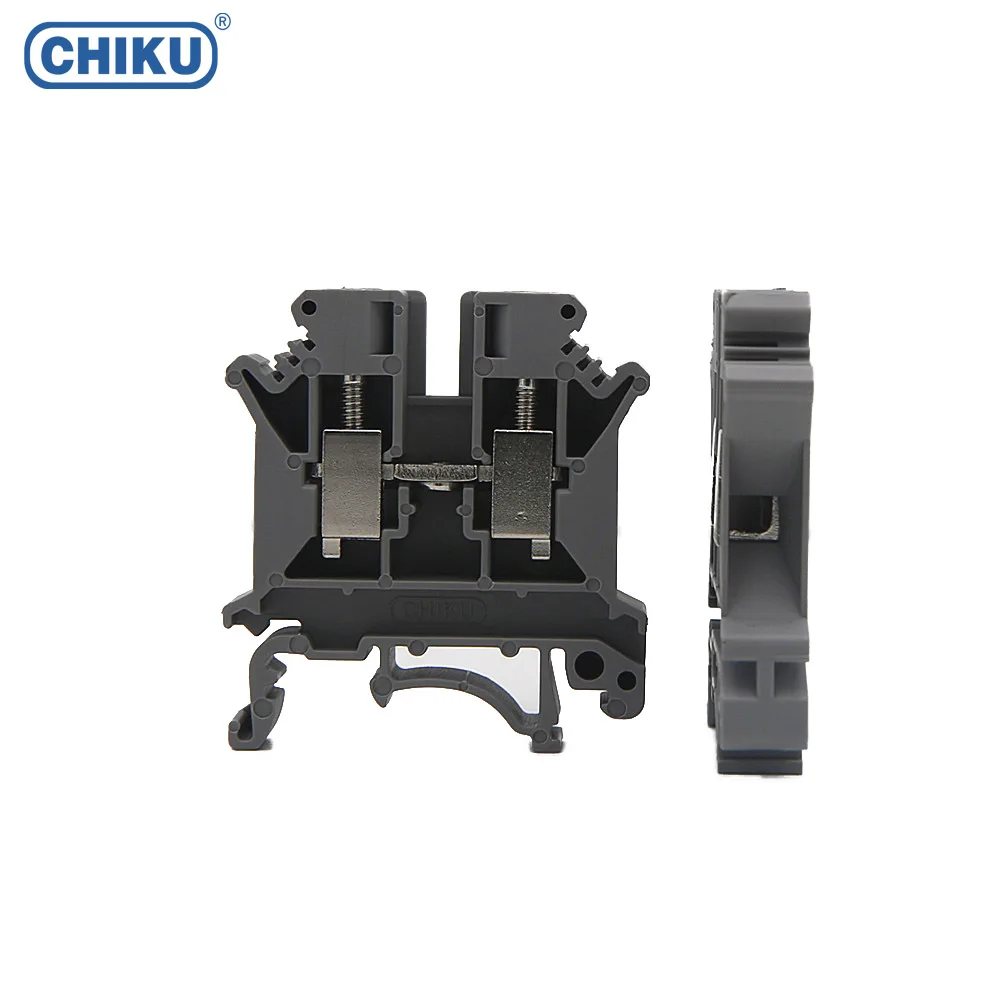

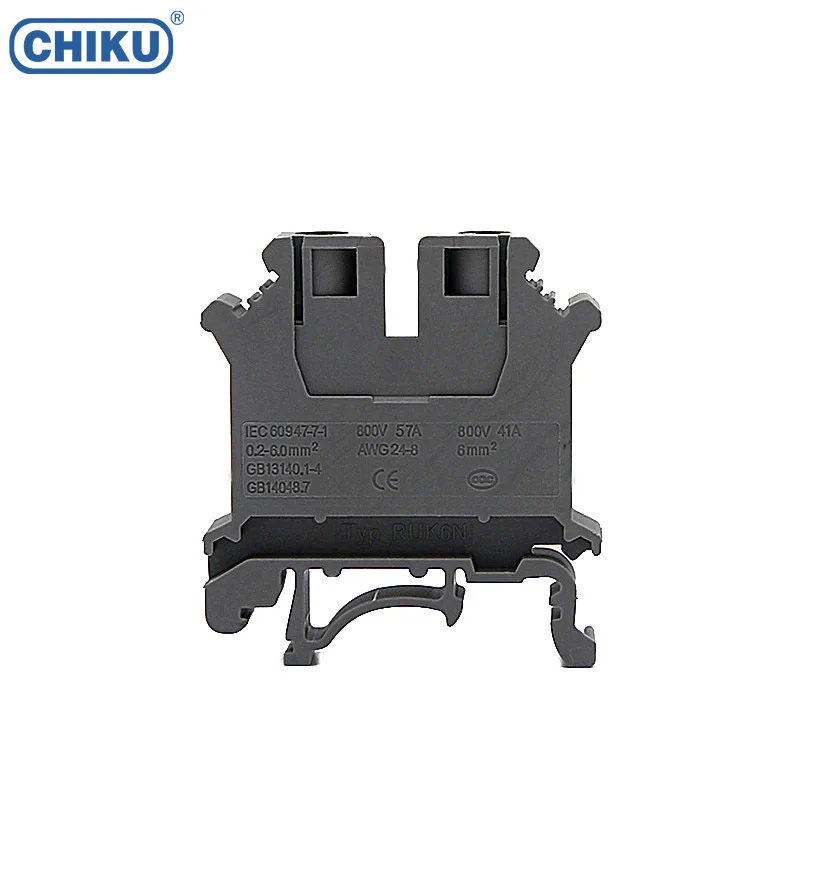

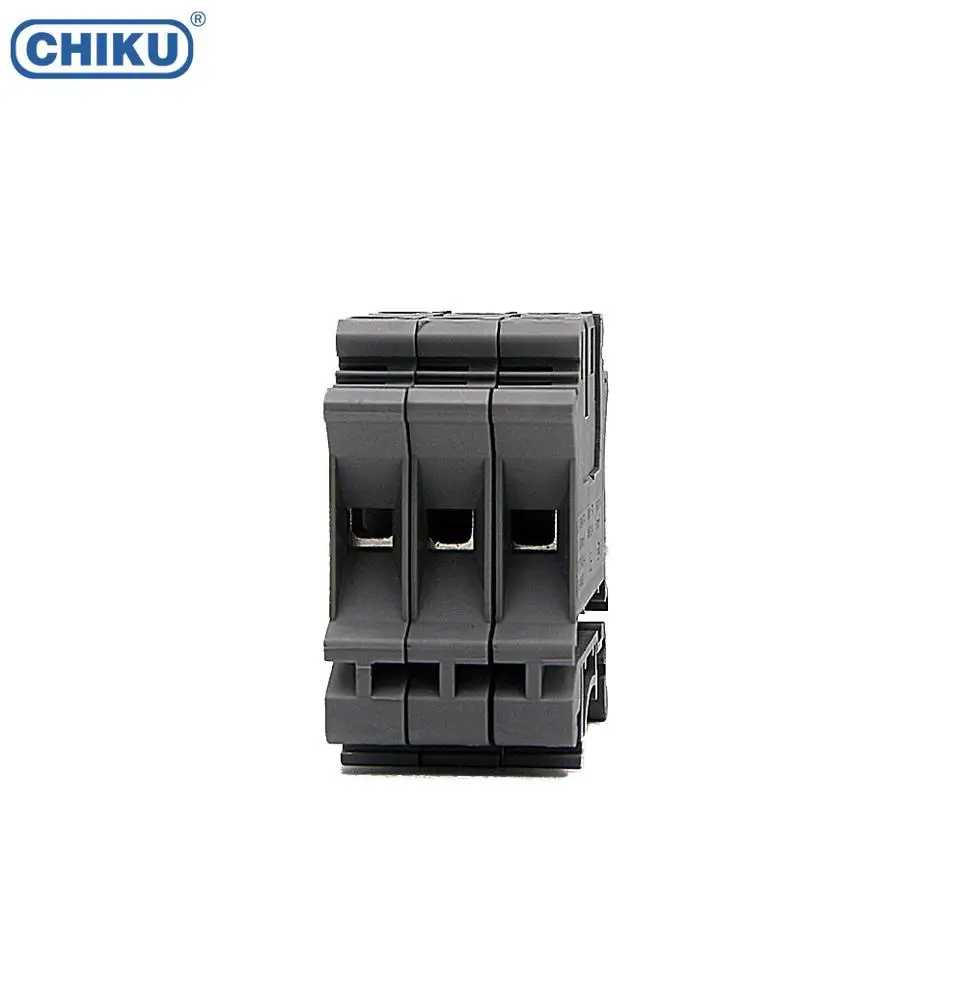

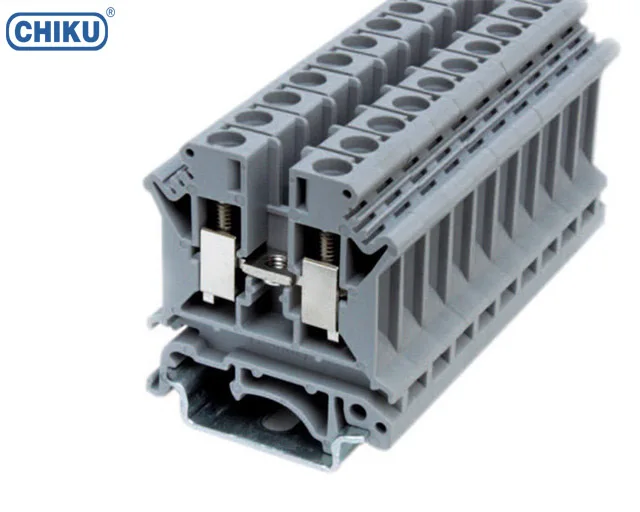

 Screw type Terminal Block RUK 6N







RUK 6N
General






























































Number of levels



1



Number of connections



2



Nominal cross section



10mm²



Color



Gray, red, blue, yellow



Insulating material



PA



Flammability rating according to UL 94



V0



Rated surge voltage



8Kv



Degree of pollution



3



Connection in acc. with standard



GB30847/IEC 60947-7-1



Rated operational current



57A



Rated operational voltage



800V



Rated current max.



57A



Rated voltage max.



800V



Temperature index



130RTI/120TI




Dimensions


































Thickness



8.2mm



Width



42.5mm



Plate thickness



1.8mm



Height  U7.5



47mm



Height  U10



49.5mm



Height  U15



54.5mm



Height  G



52mm





packing info.JPG








Company Information































FAQ





Q1.What Certificates Have You Got?
A1:Our company is verified by ISO9001,ISO14001,OHSAS 18001  & products approved by CE,UL, ROSH, CQC,EX etc,


 and company have got more than 20 Patents.

Q2. What is your terms of payment?
A: T/T 30% as deposit, 70% before delivery or L/C

Q3. What is your terms of delivery?
A: EXW, FOB,,CFR CIF,FCA,CPT,CIP

Q4. How about your delivery time?
A: Generally, it will take 3 to 7 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we could produce by your samples or technical drawings. We are power in R&D.

Q6. What is your sample policy?
A: We could supply the samples if we have ready parts in stock, but the customers need to pay the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.


Please feel free to contact us
