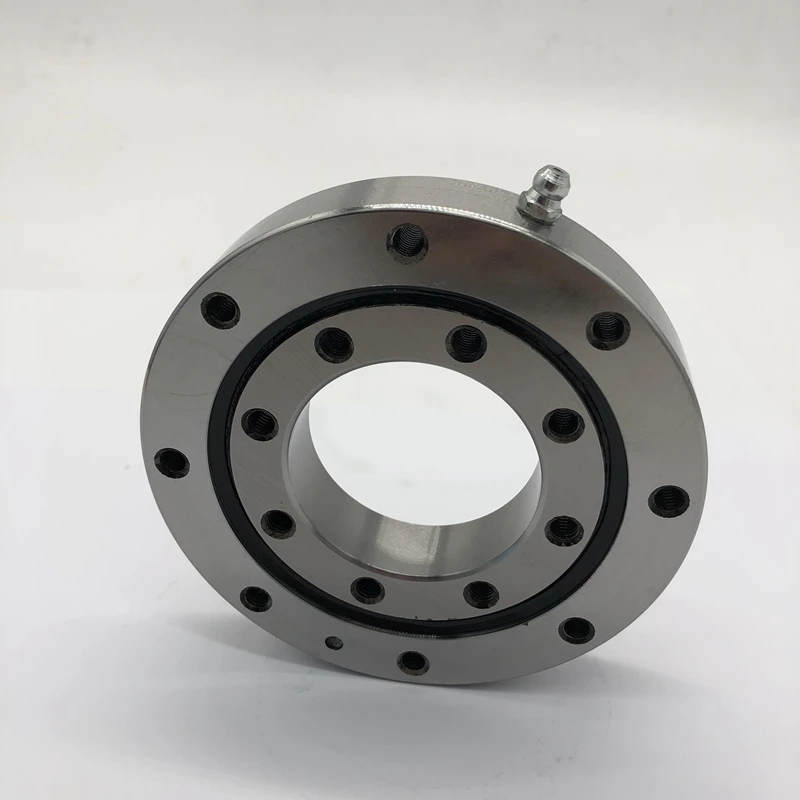

Kaydon MT Series Slewing Ring Bearings MTO 050T with No Gear
- Category: Angular Contact Ball Bearings >>>
- Supplier: Jinan Focus Bearing Co. Ltd.
Share on (60817568395):
Product Overview
Description

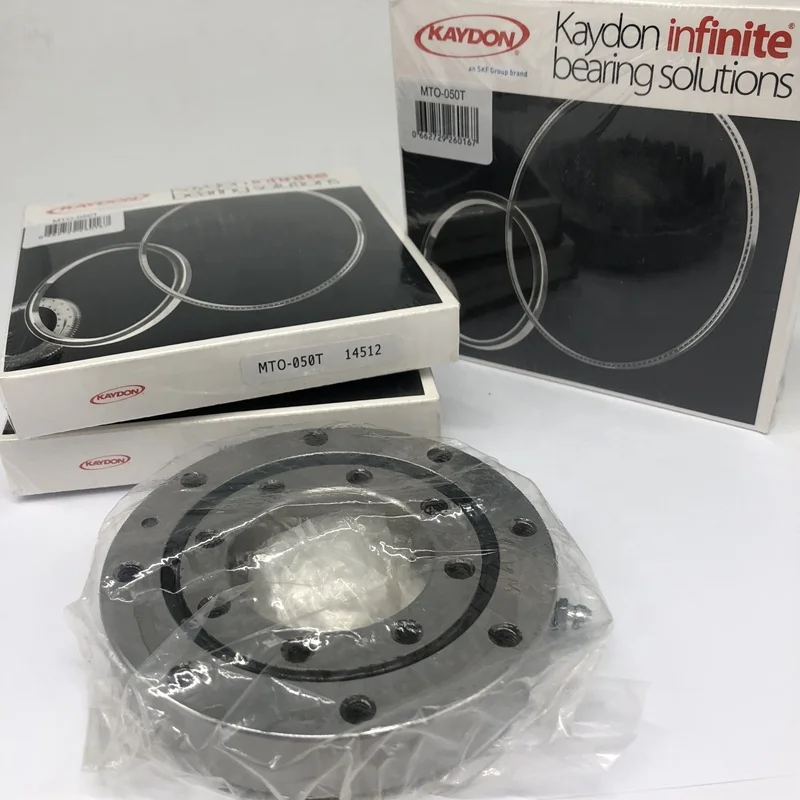

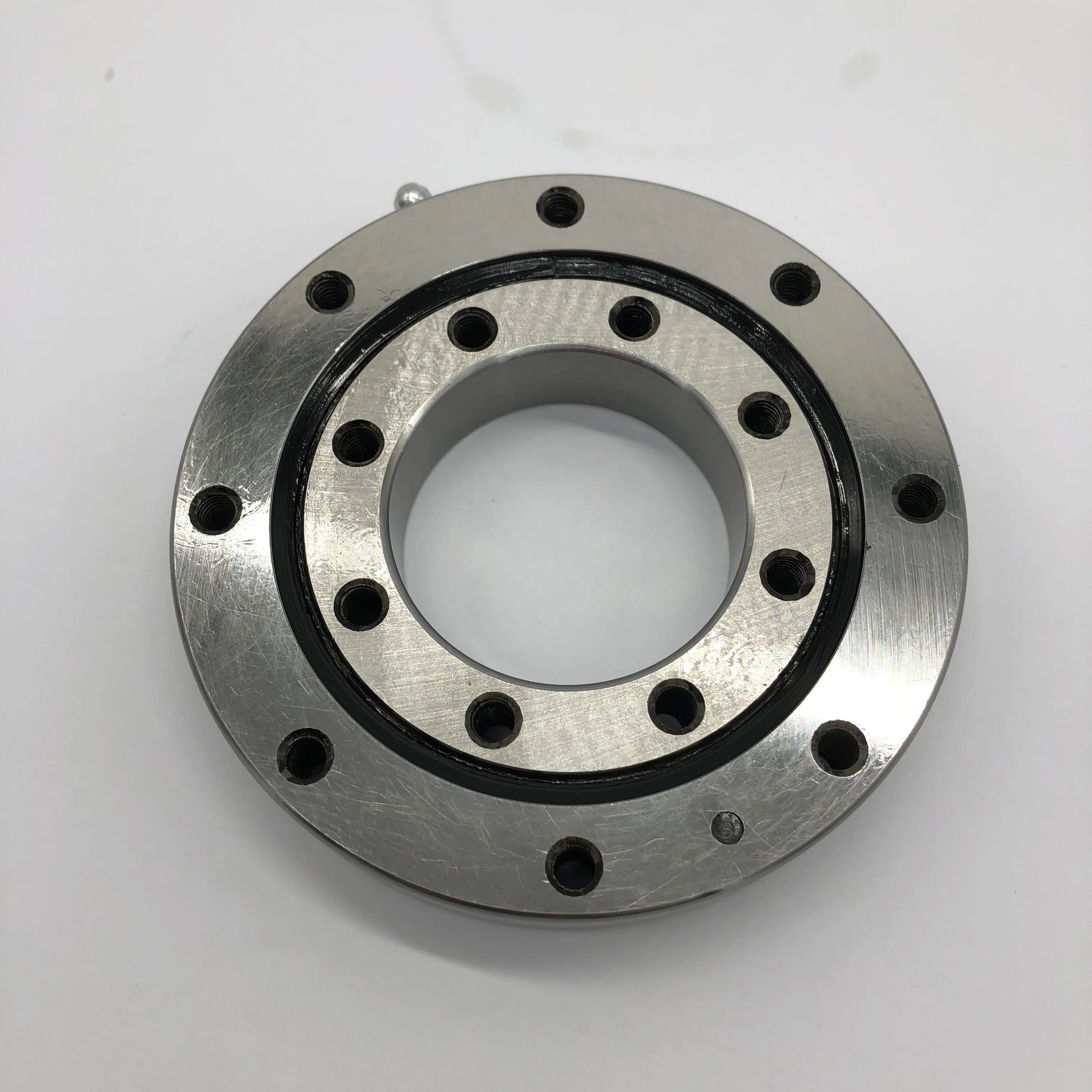

Kaydon MT Series Slewing Ring Bearings MTO-050T with No Gear
Product Description
Kaydon MT Series Slewing Ring Bearings
MT Series slewing ring bearings have a rectangular cross-section and range in size from 4 – 47 inches OD (100 – 1200 mm). They provide optimal economy and capacity for a given envelope dimension.
| Applications | MT Series bearings have been used successfully in a wide range of applications from light to heavy duty |
| The smaller sizes are well suited for |
|
| Larger sizes are well suited for |
|
Kaydon MT Series Slewing Ring Bearings Stock List:

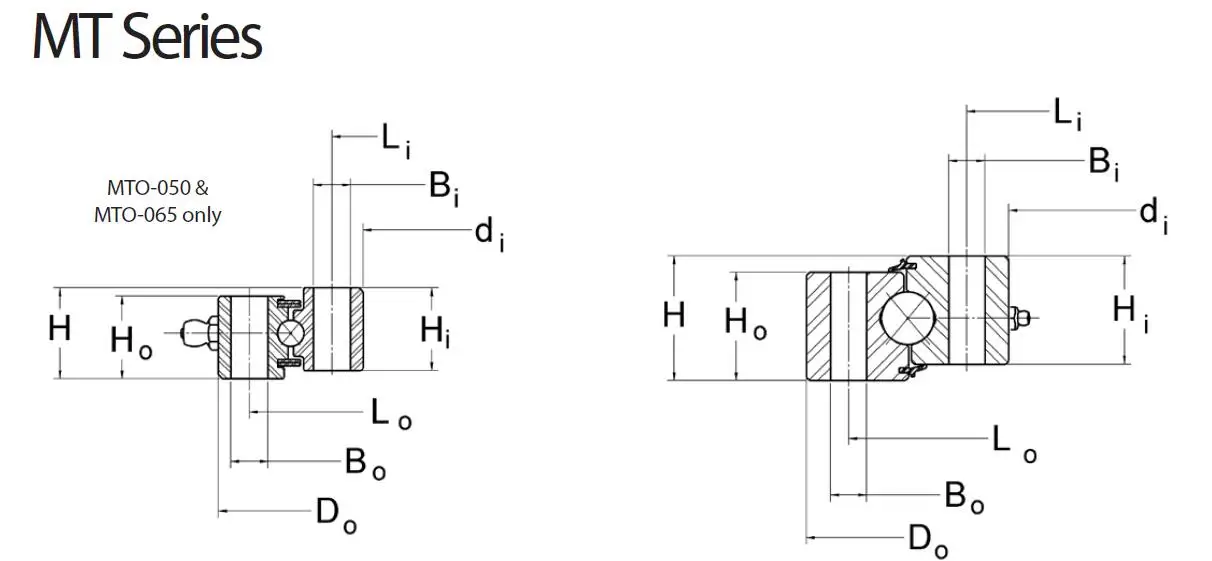

| Part Number | Do (in) | di (in) | H (in) | Hi / Ho (in) | Approx. Weight (lbs) | Outer Ring Lo (in) | Outer Ring # of Holes | Bo (in) | Inner Ring Li (in) | Inner Ring # of Holes | Bi (in) | Moment Rating(ft-lbs) |
| MTO-050 | 4.331 | 1.968 | 0.787 | 0.728 | 2 | 3.818 | 8 | 0.26 | 2.48 | 8 | 0.26 | 675 |
| MTO-050T | 4.331 | 1.968 | 0.787 | 0.728 | 2 | 3.818 | 8 | M6 | 2.48 | 8 | M6 | 675 |
| MTO-065 | 5.315 | 2.559 | 0.866 | 0.787 | 4 | 4.724 | 8 | 0.354 | 3.149 | 8 | 0.354 | 1075 |
| MTO-065T | 5.315 | 2.559 | 0.866 | 0.787 | 4 | 4.724 | 8 | M8 | 3.149 | 8 | M8 | 1075 |
| MTO-122 | 8.898 | 4.803 | 1.339 | 1.142 | 13 | 8.189 | 12 | 0.354 | 5.512 | 12 | 0.354 | 5020 |
| MTO-122T | 8.898 | 4.803 | 1.339 | 1.142 | 13 | 8.189 | 12 | M8 | 5.512 | 12 | M8 | 5020 |
| MTO-143 | 9.803 | 5.63 | 1.339 | 1.142 | 15 | 8.937 | 12 | 0.433 | 6.496 | 12 | 0.433 | 8950 |
| MTO-143T | 9.803 | 5.63 | 1.339 | 1.142 | 15 | 8.937 | 12 | M10 | 6.496 | 12 | M10 | 8950 |
| MTO-145 | 11.811 | 5.709 | 1.968 | 1.732 | 37 | 10.63 | 16 | 0.562 | 6.89 | 16 | 0.562 | 26000 |
For more codes,please contact us directly
Products Image

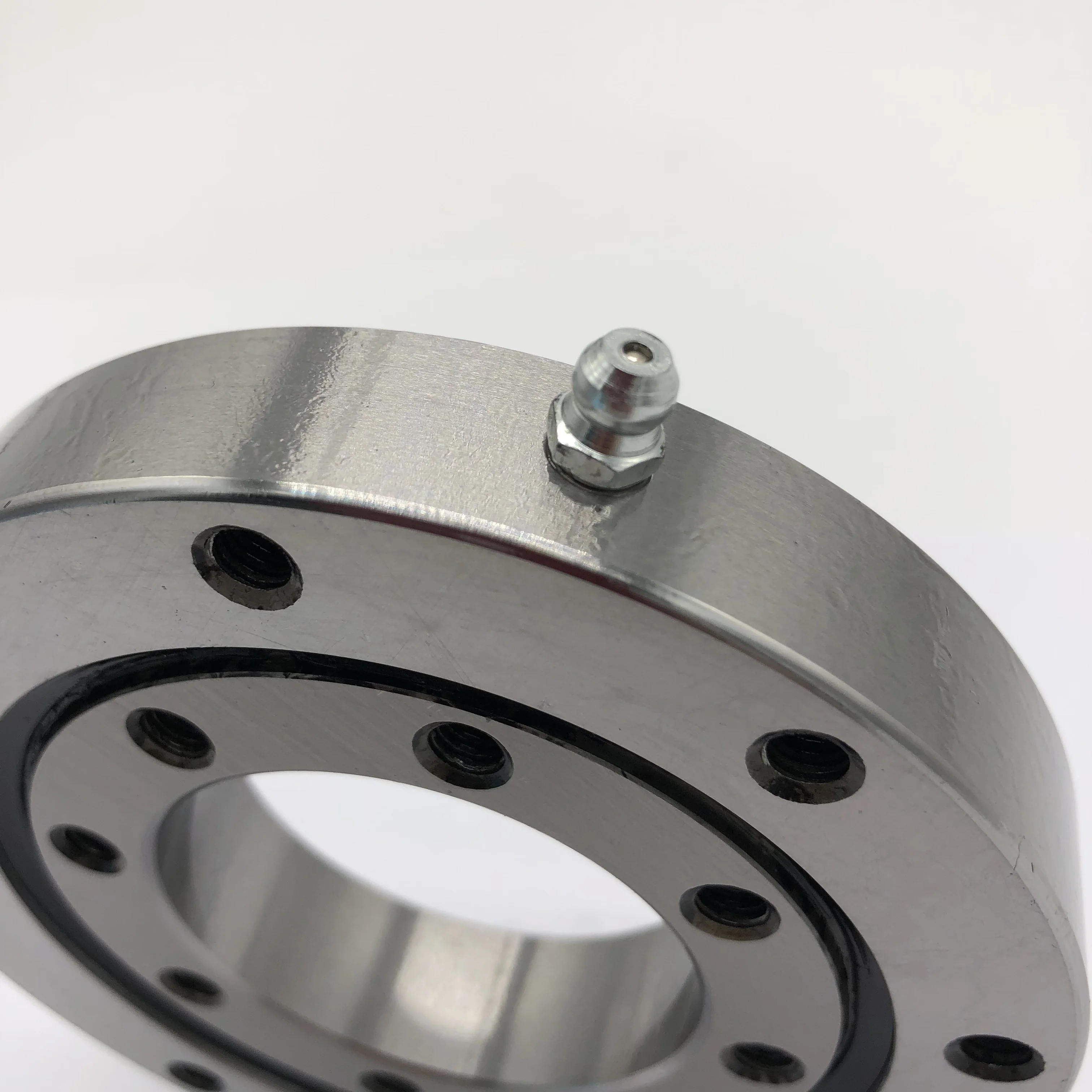

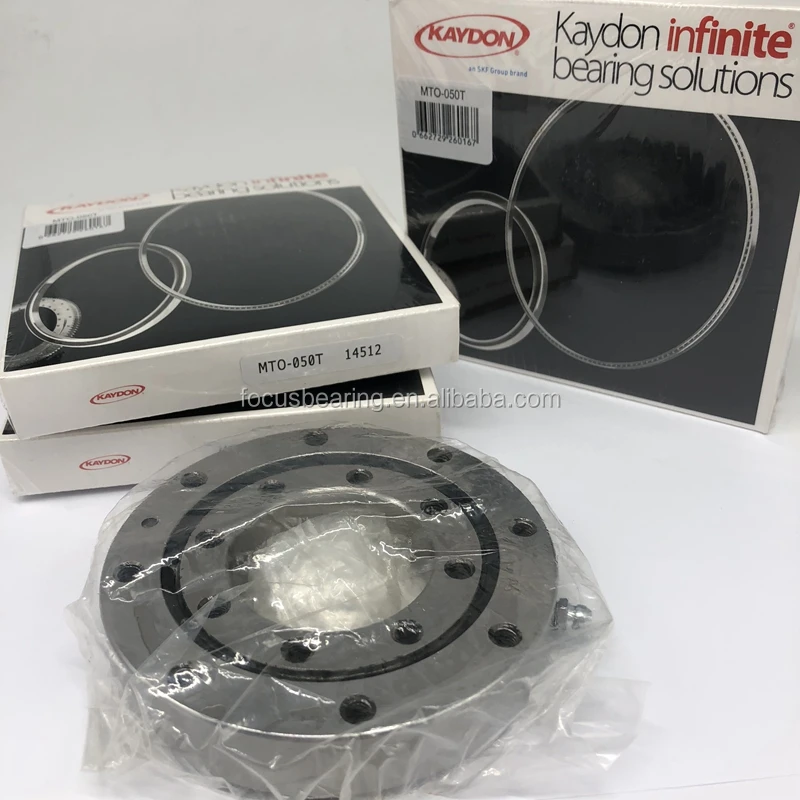

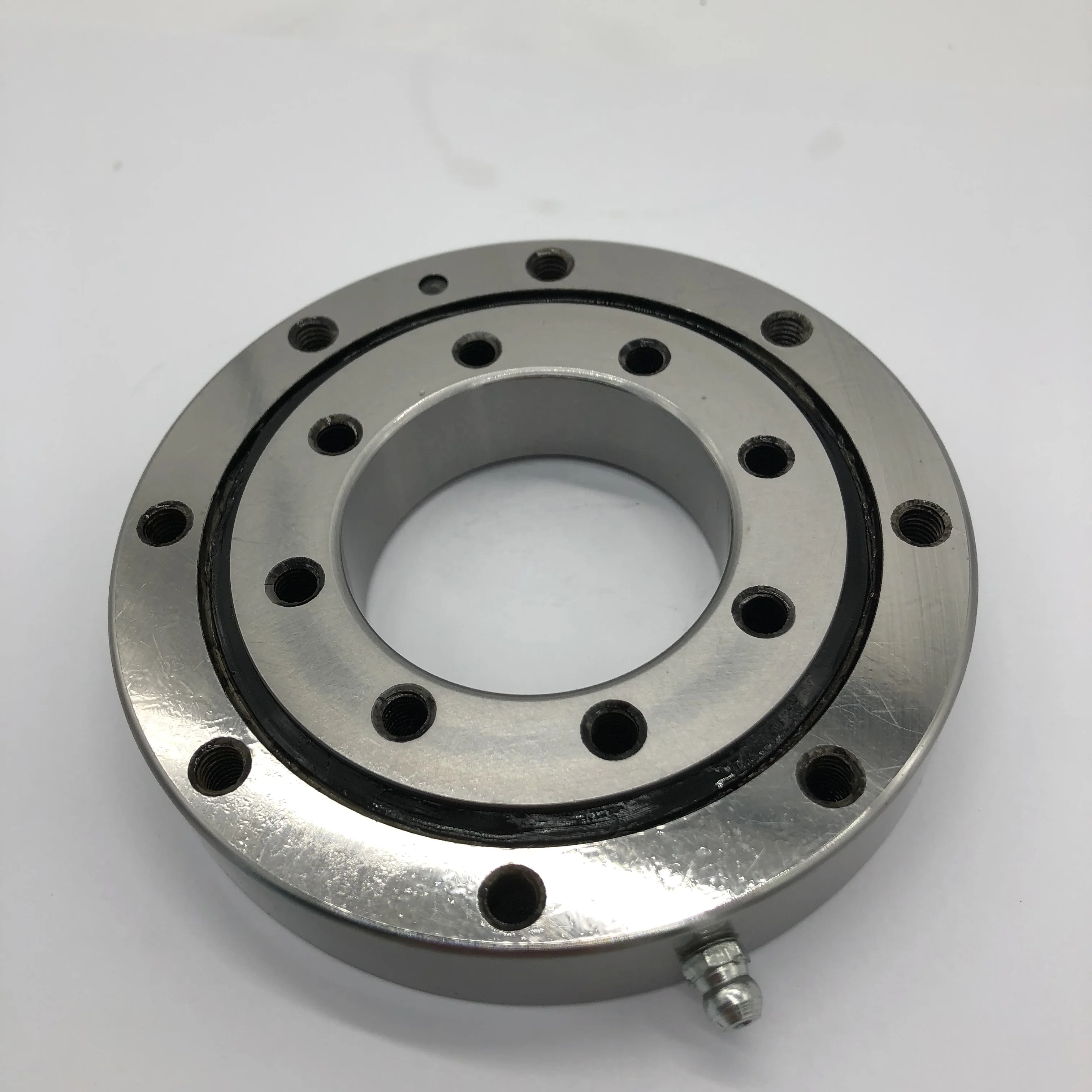

- High Quality Kaydon MT Series Slewing Ring Bearings
- Best Price Best Quality Kaydon MT Series Slewing Ring Bearings

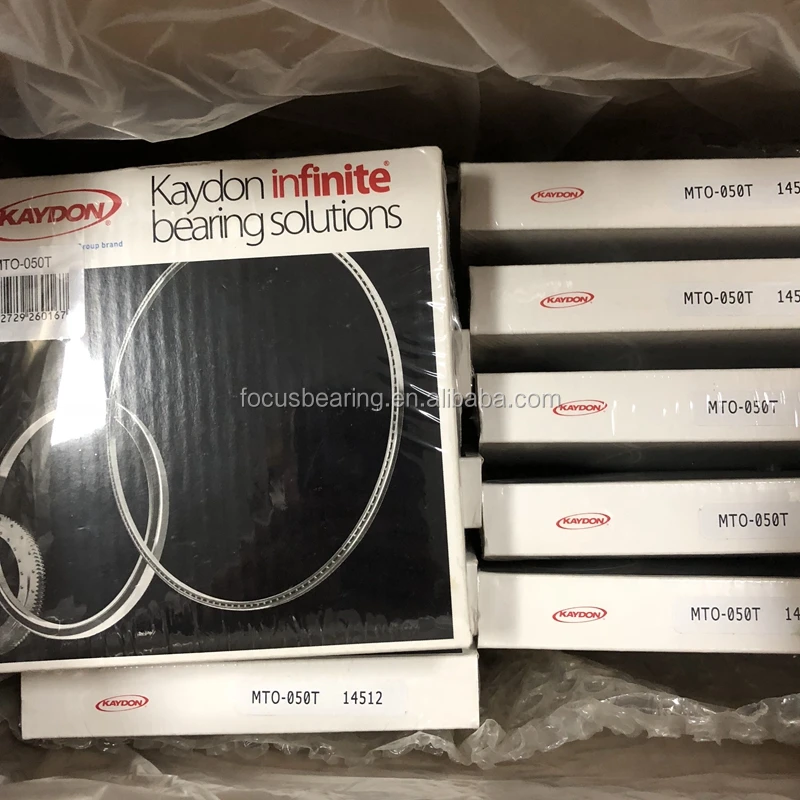

- Rich Stock Kaydon MT Series Slewing Ring Bearings
- More Detail

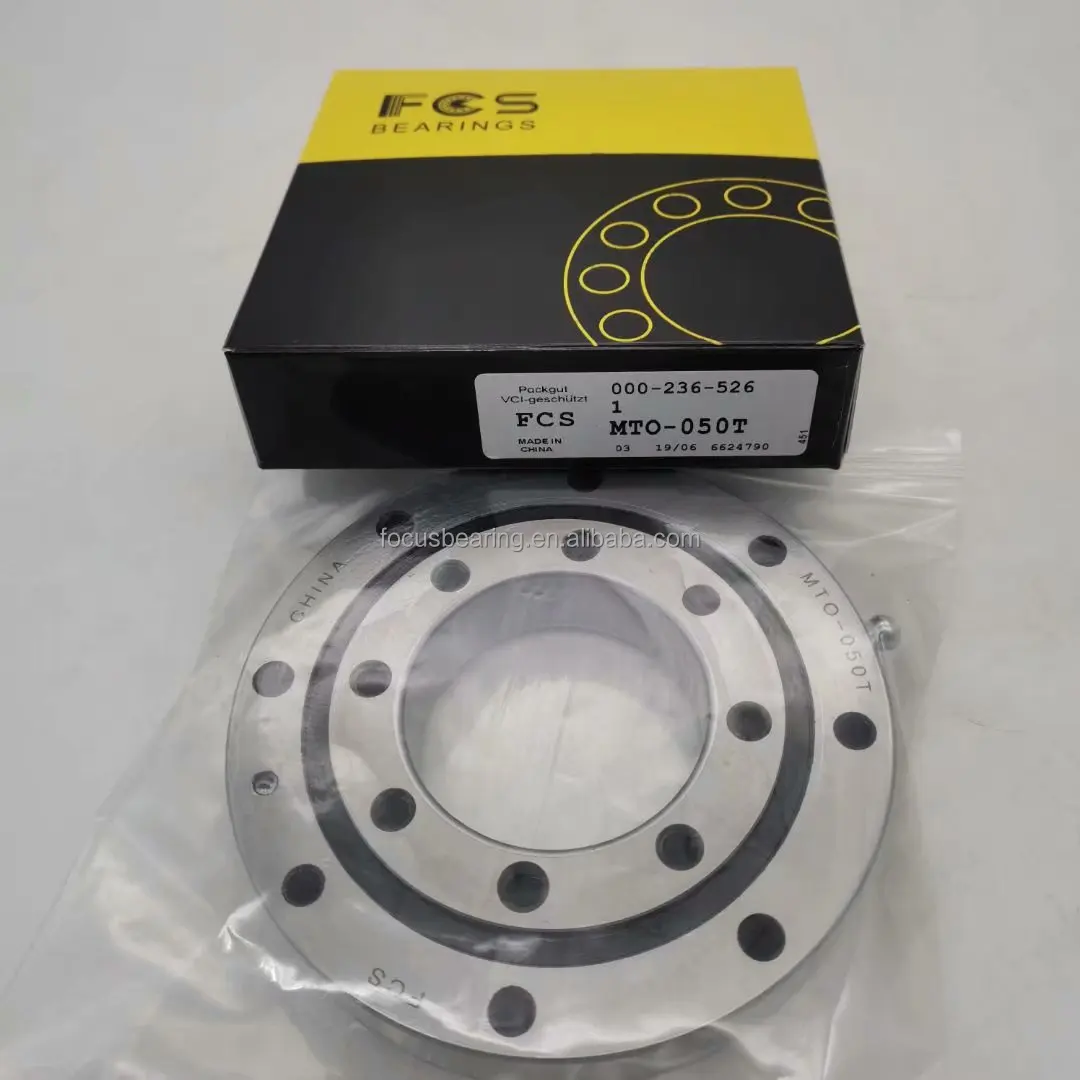

- FCS MT Series Slewing Ring Bearings

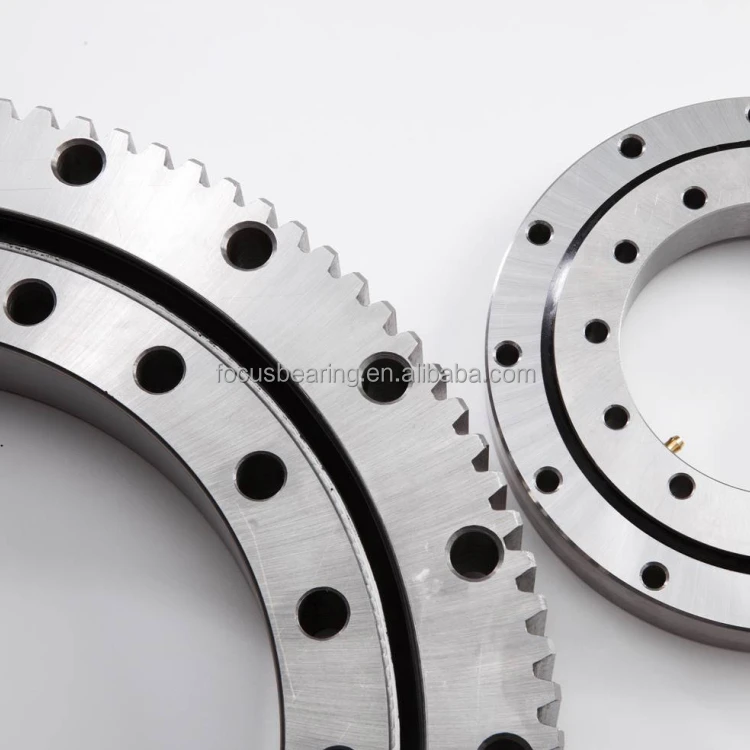

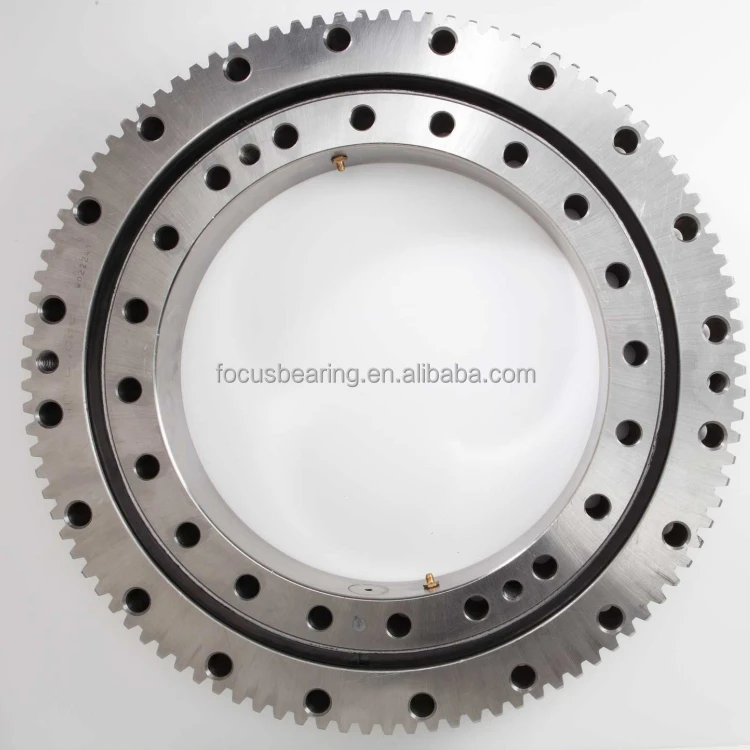

- Kaydon Bearings
- Hot Product
