Nrf24l01 2.4g Wireless Transceiver Nrf24l01p 2.4ghz Rf Module
Product Description

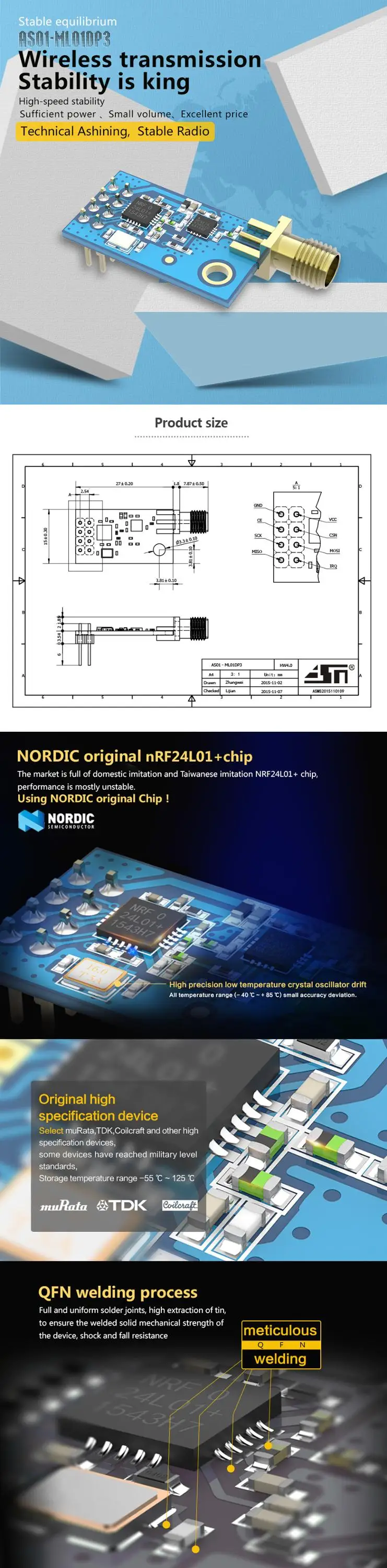

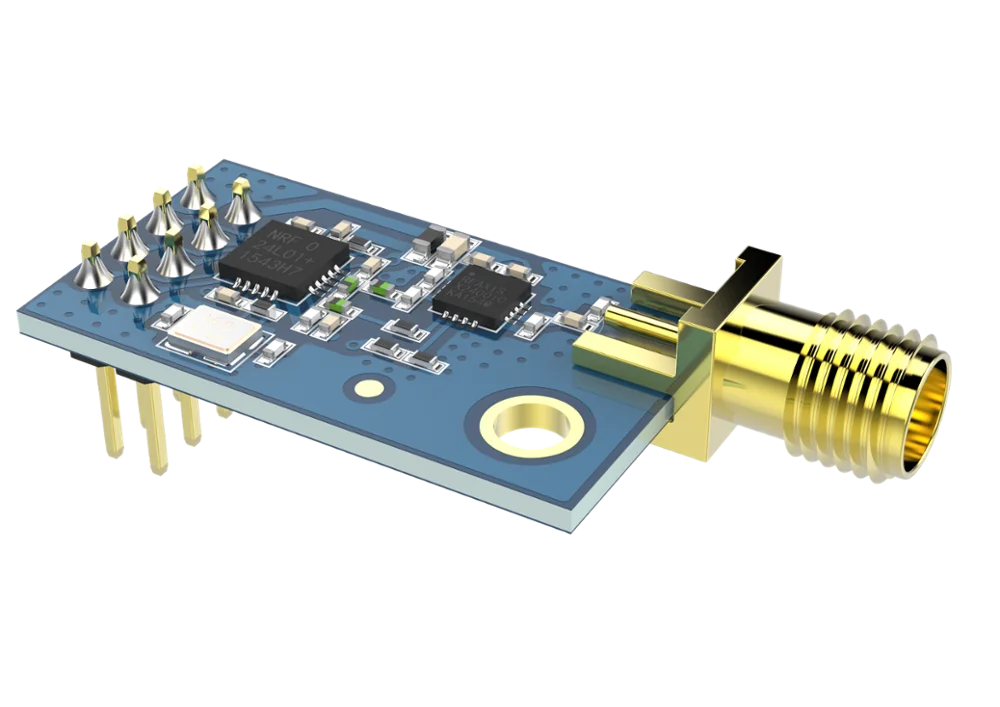

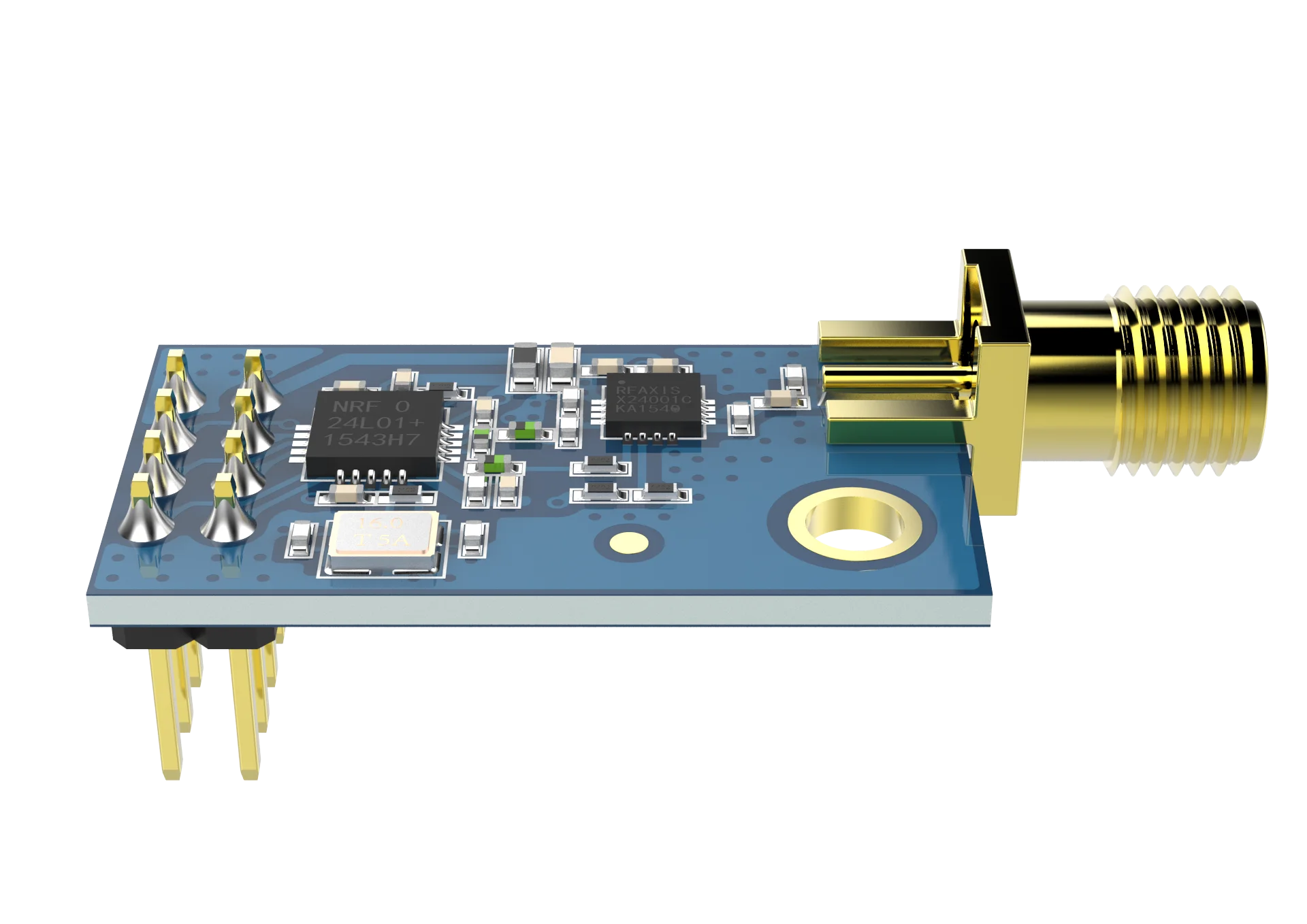

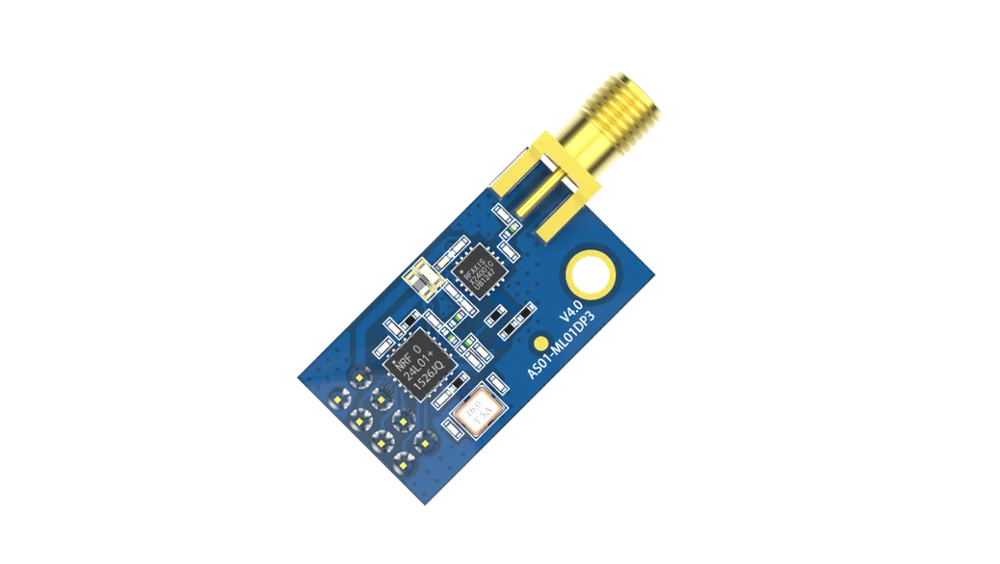

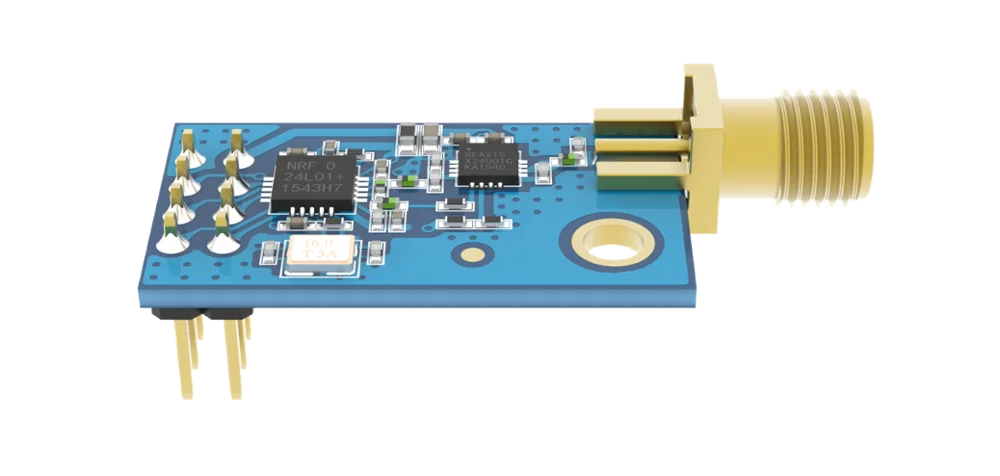

[ Model ]: AS01-ML01DP3
[ Interface ]: SPI(plug-in)
[ Power ]: 20dBm
[ Distance ]: 1500m
[ Antenna type ]:SMA-K
[ Frequency ]: 2.4GHz(2400MHz-2525MHz)
AS01-ML01DP3 is a 100mW industrial-grade wireless transceiver and cost-effective data transmission module with high speed (maximum airspeed is up to 2Mbps) and high stability, working in 2.4GHz frequency.
ELECTRICAL PARAMETER
| Parameter Name | Description
| Min Value | Typical Value | Max Value | Unit |
Voltage | Supply voltage |
| 1.8 |
| 3.6 | VDC |
Communication level | The communication level is generally smaller than the supply voltage, and VCC in 0.7*VCC refers to the supply voltage. | 0.3*VCC |
| 0.7*VCC | V | |
Current | Transmitting current |
|
| 124.3 |
| mA |
Receiving current | CE=1 |
| 26.5 |
| mA | |
Turn off current | nRF24L01P set as power-down mode, CE is low level. |
| 0.9 |
| uA | |
RF Parameters | Operating frequency | Adjustable, 1MHz stepping | 2.4 |
| 2.525 | GHz |
Transmitting power | 4 chip powers are available, Max 20dBm, about 100mW |
| 20 |
| dBm | |
Receiving sensitivity | -104dBm@250kbps, receive sensitivity is detailed in the chip manual |
| -104 |
| dBm | |
Airspeed | 3 air speeds are available(250Kbps,1Mbps,2Mbps) | 250K | 250K | 2M | bps | |
Operation Environment | Operating temperature | Industrial grade | -40 |
| +85 | ℃ |
Operating humidity | Relative humidity, no condensation | 10% |
| 90% |
| |
Storage temperature |
| -40 |
| +125 | ℃ |
