Product Overview
Description
INTEL sixth generation of core high-performance industrial control computer IPC MEC-5071 ipc,Industrial computer/H2>
INTEL fourth generation of high performance, fan free industrial control computer MEC-5071:

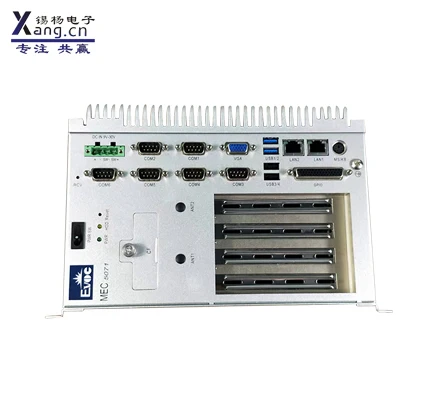

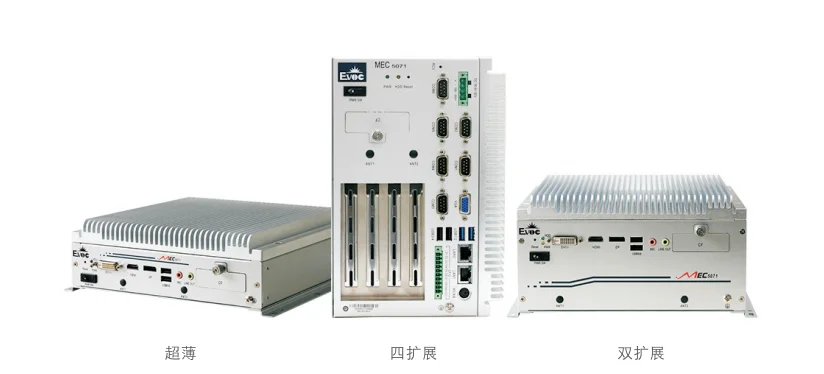

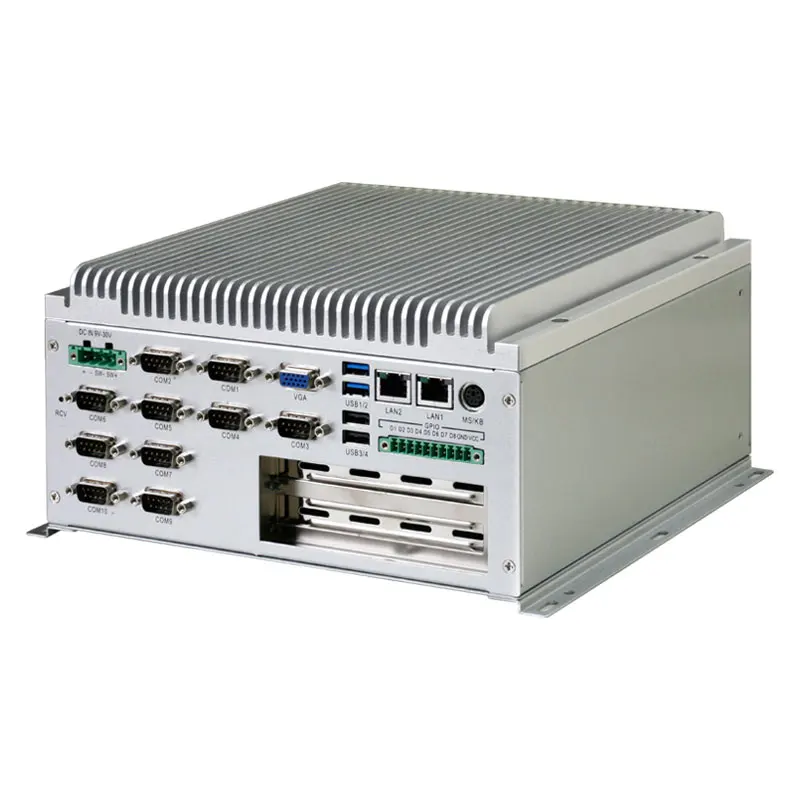

MEC-5071 is an upgraded product of MEC-5007 and 5003B. It is a fan-free, low-power and high-performance embedded industrial computer. The product form includes ultra-thin, double expansion groove and multi-expansion groove series products. The shell is formed by aluminum alloy casting with compact size, compact structure, strong, fan-free design, and the shell is used for heat dissipation. It has excellent sealing, dust-proof, heat dissipation and vibration resistance. It can satisfy the use of harsh environment such as pollution, dust and electromagnetic interference.
Intel QM87 chipset is used to support Core I7-4712HQ, I5-4410E, I3-4110E, Celeron < Processor 2000E series processors. Supports two DDR3-SODIMMs, maximum support 16GB memory; supports USB 3.0 interface, two MiniPCI-E expansion slots to achieve 3G and WiFi applications; supports hard disk RAID 0/1 configuration, system support DC9-30V direct power supply, and also achieves AC220V input through power adapter.
A) ultra thin, multi expansion, multi form fan free machine.
B) high configuration, high reliability, flexible configuration module, quick type selection.
C) wide temperature solid state capacitance design, rich communication interface, and national 3C authentication.
D) independent micro control system, a super wide application market.
Product characteristics:
High configuration, high reliability, flexible configuration module, fast selection of wide temperature and solid state capacitor design, abundant communication interface, independent micro-control system certified by National 3C certification, ultra-wide application market
Product Specifications:
| System | Processor | QM87:Intel®Core™ I7-4712HQ, I5-4410E, I3-4110E, Celeron™ 2000E processor |
| Chipset | Mobile Intel® QM87 Express chipset | |
| Memory | Standard configuration: 1 x 2GB DDR3 SO-DIMM memory, supporting up to two SO-SIMM slots and 16GB memory capacity | |
| Display | VGA | 1 x VGA(maximum resolution:1920 x 1200) |
| DVI | 1 x DVI-D (maximum resolution 1920 X 1200) | |
| HDMI | 1 x HDMI (maximum resolution: 3840 X 2160) | |
| Display | 1 x Display Port (maximum resolution 2560 X 1600) | |
| LVDS | Built-in LVDS port | |
| I/O Interface | LAN | 2 x 10/100/1000Mbps RJ45 LAN port; LAN1 supports Wake-On-LAN |
| COM Port | 6~10 x COM port (COM1~COM6 are RS-232/422/485 optional) | |
| USB | 6 x USB2.0 port (2 x USB ports on the front panel; 2 x USB3.0 port) | |
| PS/2 | 1 x KB/MS | |
| GPIO | 1x 8-channel digital I/O port (terminal connector)/1 x 32-channel digital I/O port(optional) | |
| LPT | 1 x LPT port (optional ) | |
| Audio | 1 group of AUDIO ports, supporting Line-in, Line -out | |
| Storage | HDD | Standard configuration: 2 x 2.5-inch HDD bay, supporting up to two 2.5-inch HDD bay |
| CF | 1 x CF card slot (front panel) | |
| Serial ATA | 1 x M-SATA interface | |
| Expansion Bus | 2 x MiniPCIE expansion slot (one of them is only SATA+USB), 1 x SIM card slot | |
| 2 x PCI or 1 x PCI, 1 x PCI-E expansion slot 4 x PCI or 2 x PCI, 2 x PCI-E expansion slot 4 x PCI(EPI) expansion slot | ||
| Operating Temperature | -20℃~60℃; (wide-temperature CF card/SSD) -5℃~50℃ (monitoring-level HDD) 5%~ 90% 40℃ (non-condensing) | |
| Storage Temperature | -40℃~70℃; 5%~90% 40℃ (non-condensing) | |
| Power Supply | Supports 9~30V DC wide voltage input, or by 90W AC external adapter | |
| Operation System | WIN7/WIN8/ WINCE/WIN7E/LINUX(2.6 kernel)/Vxworks | |
| Dimensions(W x H x D) | Ultra-slim: 238.3mm × 74.2mm × 233mm Dual-expansion: 238.3mm × 120.88mm × 233mm Quad-expansion: 238.3mm × 161.66mm × 233mm | |
Ordering information:
| Part Number | Model Number | Description |
0010-078521 | MEC-5071-01 | Low power fanless embedded PC with QM87 chipset/I5-4410E 2.9G/2G memory/6 x COM port (RS232/485/422 optional)/1 x PS/2 port/1 x VGA/1 x DVI/1 x HDMI/1 x DisplayPort/2 x LAN port/1 group of Audio ports/6 x USB (2 x USB3.0)/8-channel GPIO/monitoring-level 500G HDD/supports M-SATA/supports 1 x CF card/supports MiniPCI-E/SIM card/DC12V~24V input/60W adapter |
0010-087191 | MEC-5071-H81-01/ | Low-power fanless embedded PC with H81 chipset/I5-4570TE 2.7G/2G memory/6 x COM port(COM1~COM6,RS232/485/422 optional)/1 x PS/2 port/1 x VGA/1 x DVI/1 x HDMI/2 x Lan port/1 group of Audio ports/6 x USB(2 x USB3.0)/1 x 32-channel GPIO/monitering 500G HDD/Support M-SATA/CF card storage/supports MiniPCI-E/SIM card/DC12V~24V input/90W Power supply |
0010-078531 | MEC-5071-02 | Low power fanless embedded PC with QM87 chipset/I3-4110E 2.6G/2G memory/2 x COM port (RS232/485/422 optional)/1 x PS/2 port/1 x VGA/2 x LAN port/1 group of Audio ports/6 x USB (2 x USB3.0)/monitoring-level 500G HDD/supports M-SATA/supports 1 x CF card/supports MiniPCI-E/SIM card/DC12V~24V input/60W adapter |
0010-078541 | MEC-5071-2P-01 | Low power fanless embedded PC with QM87 chipset/ I5-4410E 2.9G/2G memory/10 x COM port (COM1~COM6, RS232/485/422 optional)/1 x PS/2 port/1 x VGA/1 x DVI/1 x HDMI/1 x DisplayPort/2 x LAN port/1 group of Audio ports/6 x USB (2 x USB3.0)/8-channel GPIO/monitoring-level 500G HDD/supports M-SATA/supports 1 x CF card/supports MiniPCI-E/SIM card/DC12V~24V input/90W adapter/2 x PCI expansion slot |
0010-085251 | MEC-5071-H81-2P-01 | Low-power fanless embedded PC with H81 chipset/G3320TE 2.3G/2G memory/10 x COM port(COM1~COM6,RS232/485/422 optional)/1 x PS/2 port/1 x VGA/1 x DVI /1 x Display Port/2 x LAN Port/1 group of Audio ports/6 x USB(2 x USB3.0)/1 x LPT/monitoring-level 500G HDD/Supports M-SATA/CF card storage/supports MiniPCI-E/SIM card/DC12V~24V input/90W Power supply/2 x PCI Expansion slot |
0010-078551 | MEC-5071-2P-02 | Low power fanless embedded PC with QM87 chipset/ I3-4110E 2.6G/2G memory/10 x COM port (COM1~COM6,RS232/485/422 optional)/1 x PS/2 port /1 x VGA/1 x DVI/1 x HDMI/1 x DisplayPort/2 x LAN port/1 group of Audio ports/6 x USB(2 x USB3.0)/1 x LPT/ monitoring-level 500G HDD/supports M-SATA/supports 1 x CF card/supports MiniPCI-E/SIM card/DC12V~24V input/90W adapter/2 x PCI expansion slot |
0010-085241 | MEC-5071-H81-2P-02 | Low-power fanless embedded PC with H81 chipset/I3-4330TE 2.4G/4G memory/10 x COM port(COM1~COM6,RS232/485/422 optional)/1 x PS/2 port/1 x VGA/1 x DVI /1 x HDMI/2 x LAN Port/1 group of Audio ports/6 x USB(2 x USB3.0)/1 x LPT/SSD 128G/Supports M-SATA/CF card storage/supports MiniPCI-E/SIM card/DC12V~24V input/90W Power supply/2 x PCI Expansion slot |
0010-086611 | MEC-5071-H81-2P-04/ | Low-power fanless embedded PC with H81 chipset/I3-4330TE 2.4G/4G memory/10 x COM port(COM1~COM6,RS232/485/422 optional)/1 x PS/2 port/1 x VGA/1 x DVI /1 x HDMI/2 x LAN Port/1 group of Audio ports/6 x USB(2 x USB3.0)/1 x 32-channel GPIO/monitering 500G HDD/Support M-SATA/CF card storage/supports MiniPCI-E/SIM card/DC12V~24V input/90W Power supply/2 x PCI Expansion slot |
0010-078561 | MEC-5071-4P-01 | Low power fanless embedded PC with QM87 chipset/I5-4410E 2.9G/2G memory/6 x COM port (RS232/485/422 optional)/1 x PS/2 port/1 x VGA/2 x LAN port/1 group of Audio ports/4 x USB(2 x USB3.0)/ 8-channel GPIO/ monitoring-level 500G HDD/supports M-SATA/supports 1 x CF card/supports MiniPCI-E/SIM card/DC12V~24V input/90W adapter/4 x PCI expansion slot |
0010-087201 | MEC-5071-H81-4P-01 | Low-power fanless embedded PC with H81 chipset/I5-4570TE 2.7G/2G memory/6 x COM port(COM1~COM6,RS232/485/422 optional)/1 x PS/2 port/1 x VGA /2 x LAN Port/1 group of Audio ports/4 x USB(2 x USB3.0)/1 x 32-channel GPIO/monitering 500G HDD/Support M-SATA/CF card storage/supports MiniPCI-E/SIM card/DC12V~24V input/90W Power supply/4 x PCI Expansion slot |
0010-078571 | MEC-5071-4P-02 | Low power fanless embedded PC with QM87 chipset/I7-4712HQ 2.3G/2G memory/6 x COM port (RS232/485/422 optional)/1 x PS/2 port/1 x VGA/2 x LAN port/1 group of Audio ports/4 x USB(2 x USB3.0)/ 8-channel GPIO/ monitoring-level 500G HDD/supports M-SATA/supports 1 x CF card/ supports MiniPCI-E/SIM card/DC12V~24V input/90W adapter/4 x EPI expansion slot |
0010-086381 | MEC-5071-H81-2P-03 | Low-power fanless embedded PC with H81 chipset/I5-4570TE 2.7G/2G memory/10 x COM port(COM1~COM6,RS232/485/422 optional)/1 x PS/2 port/1 x VGA/1 x DVI/1 x HDMI/2 x Lan port/1 group of Audio ports /6 x USB(2 x USB3.0)/ 8-channel GPIO / monitoring-level 500G HDD /support M-SATA/support 1 x CF card slot/support MiniPCI-E/SIM card slot/DC12V~24V input/90W adapter/2 x PCI slots |
