HTRC HT206 AC/DC DUO RC Toy Lipo Battery Balance Charger 400W 40A Dual Port LCD Touch Screen for Lilon/LiPo/LiFe/LiHV Battery

RC Chargers You Need/Large-scale Factory/Negotiable Good Quotation

Receive bargaining!!

Leave a message and you'll get a discount!!!

What are you waiting for?

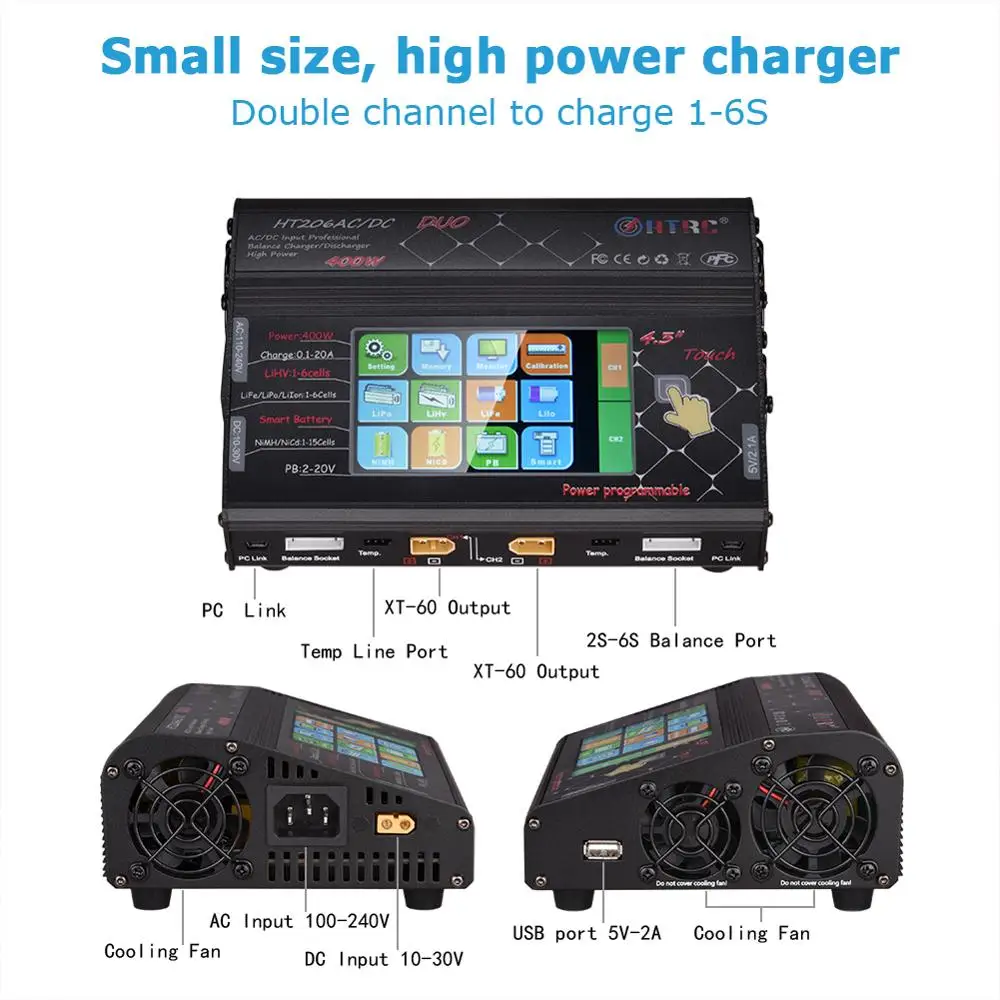

HTRC HT206 DUO is a twin-channel charger with two independent output which can charge two different kinds of batteries simultaneously.

• Two Independent Output Which can Charge Two Different kinds of Batteries Simultaneously. Each Output Port Circut Power can Reach 200W, High Power Circuit,High Charging Efficiency.

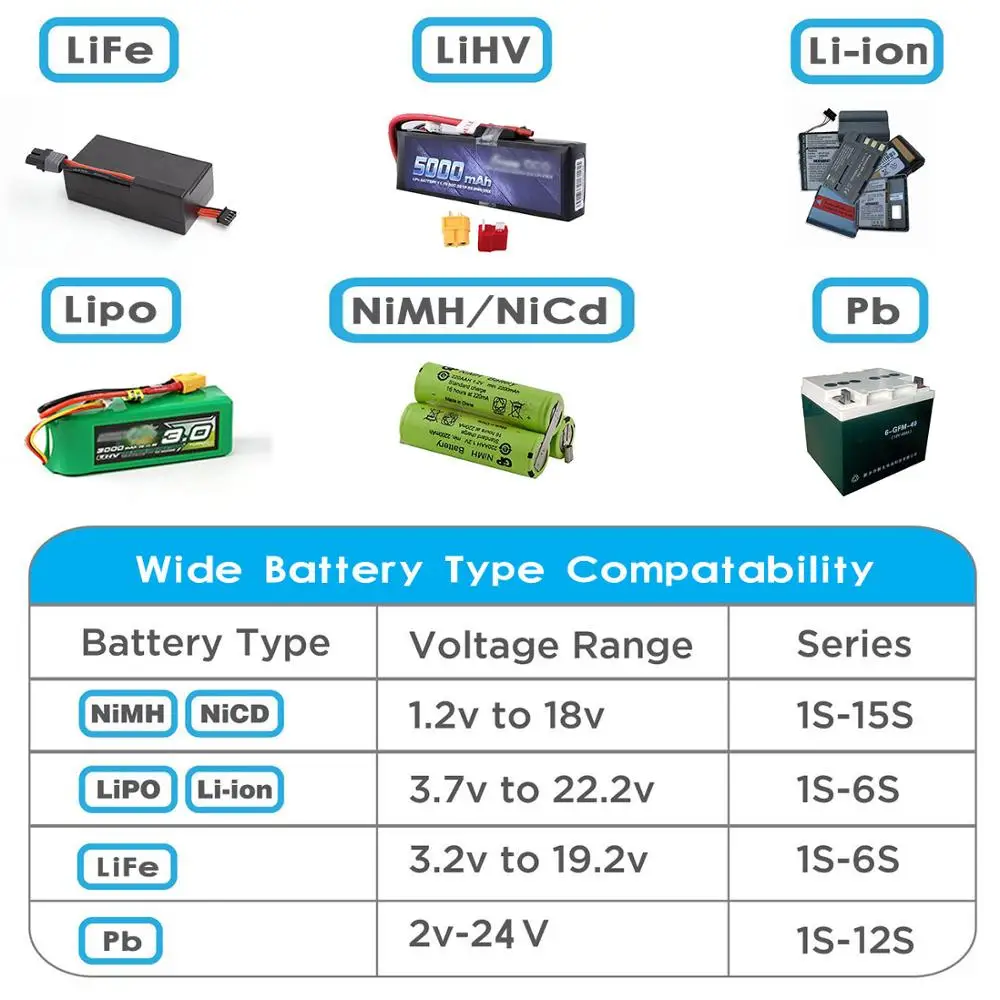

• Practical for variety of batteries.1-6s Lilon/LiPo/LiFe/LiHV,1-15cell Nicd/NiMh, 2-20V PB battery. Smart Battery I,II,III.


• Multi-function: Balance Charge, Discharge,Terminal Voltage Control,Lithium Battery Capacity & Voltage Checking, Battery Internal Resistance Checking, Individual Cell Voltage Calibration,Data Storage and Loading,Charging Status Graphic Photo Display, Digital DC Power Supply 5-27V ,0.1-20A, USB DC Output 5V 2.1A,


• Users Could Set The Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit Which Makes the Charger Safe to Use.

Features:

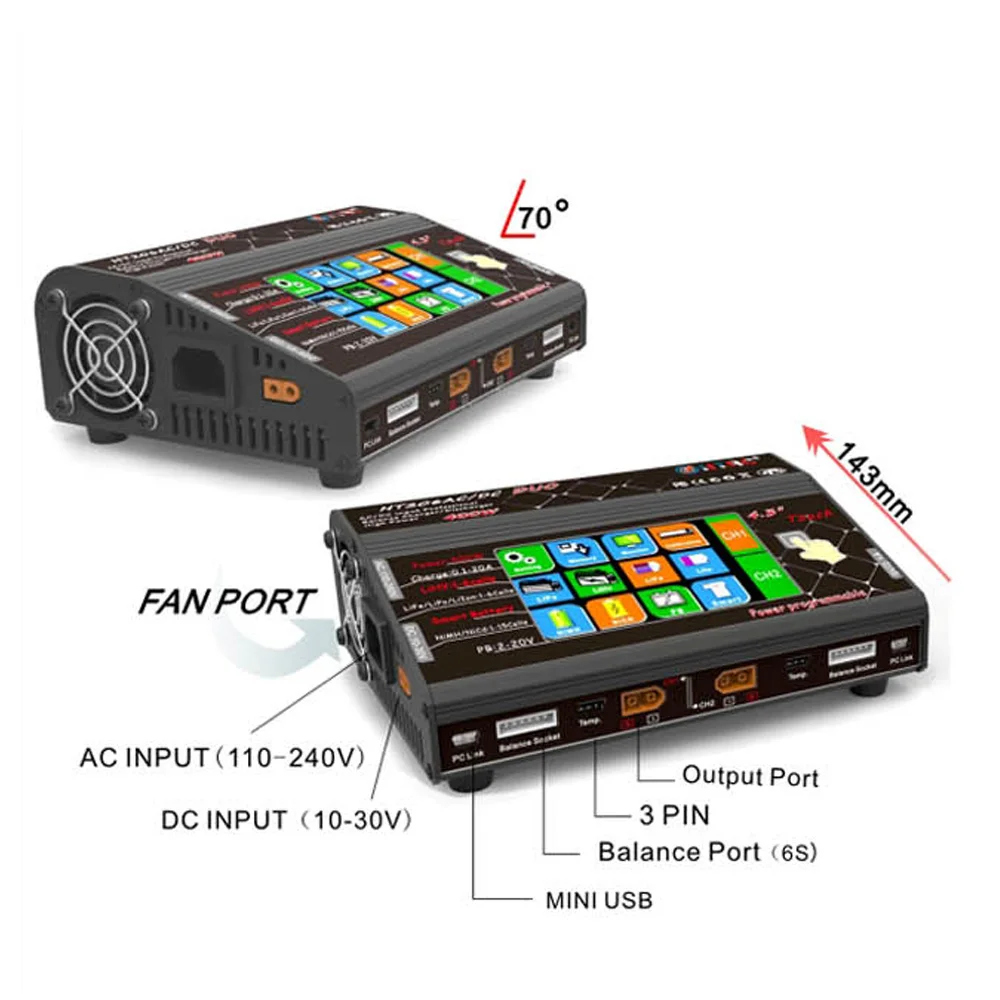

-AC/DC Dual Input.

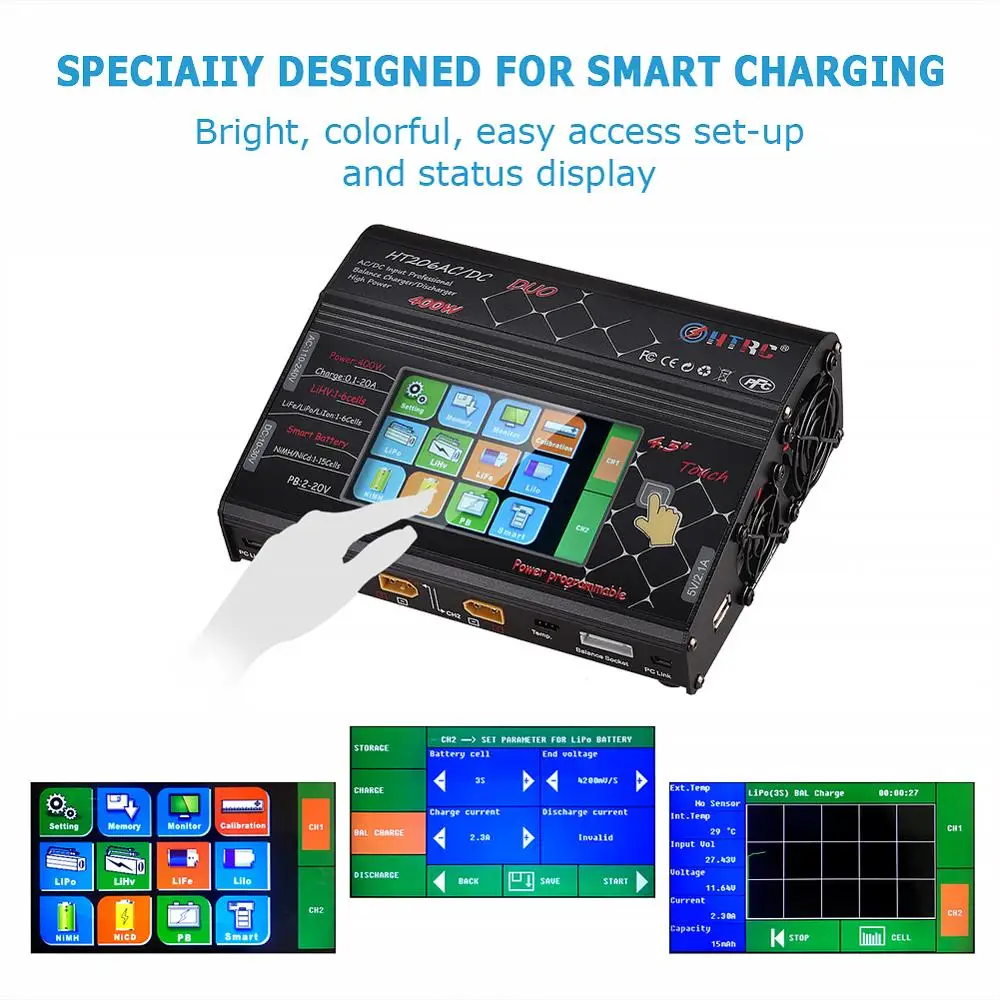

-4.3" Color LCD touch screen display for easy operation and convenient to use.

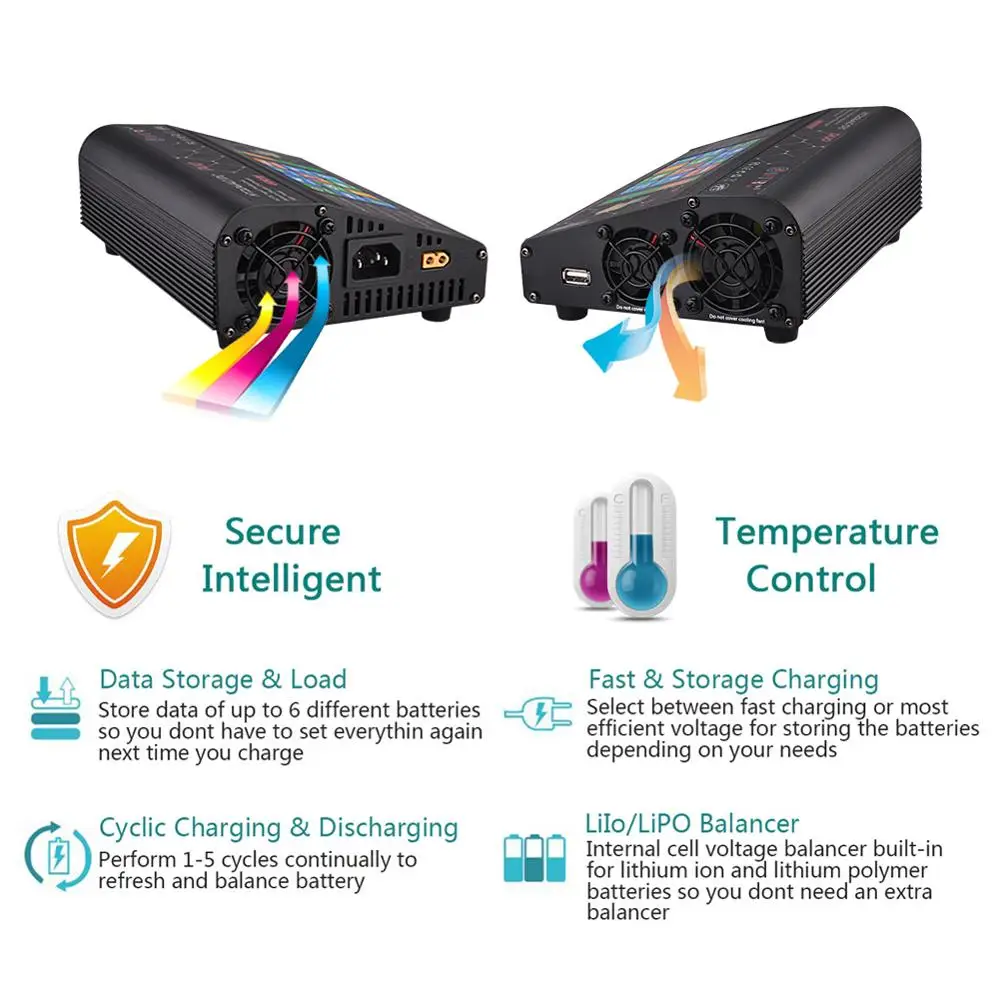

-Full Aluminium beautiful Appearance Design, Built in cool fan, Good Cooling System.
-With rubber pads, prevent sliding and the air can circulate.
-Two independent Port which can charge two different kinds of batteries simultaneously.
each port max charging power up to 200W, max charging current up to 20A.
-Automatic identification of Li-Po batteries cells.
-Support LIHV High Power Battery and Smart Battery.
-Battery management check battery capacity, voltage and balancer.
-Memory function  save up to 8 operation data.
-5V 2.1A USB DC power supply output.
-Built-in PFC can improve the energy consumption from mainpower grid evidently,
-Soft switching is also introduced can reduce radiation interference
-Support Firmware update.


Specifications:

Input Voltage:AC100-240V/DC10-30V
Charger Circuit Power:200W*2
Discharger Circuit:25W*2
Charger current range:0.1-20A*2
Discharge Current Range: 0.1-5A*2
Digital DC power:5-27V ,0.1-20A
Lilon/LiPo/LiFe/LiHV:1-6cell*2
Nicd/NiMh:1-15cell*2
Current Drian for Balancing Port:500mA/cell
PB: 2-20V*2
Smart battery: I/II/III*2
Charger plug: EU, US, UK, AU plug optional

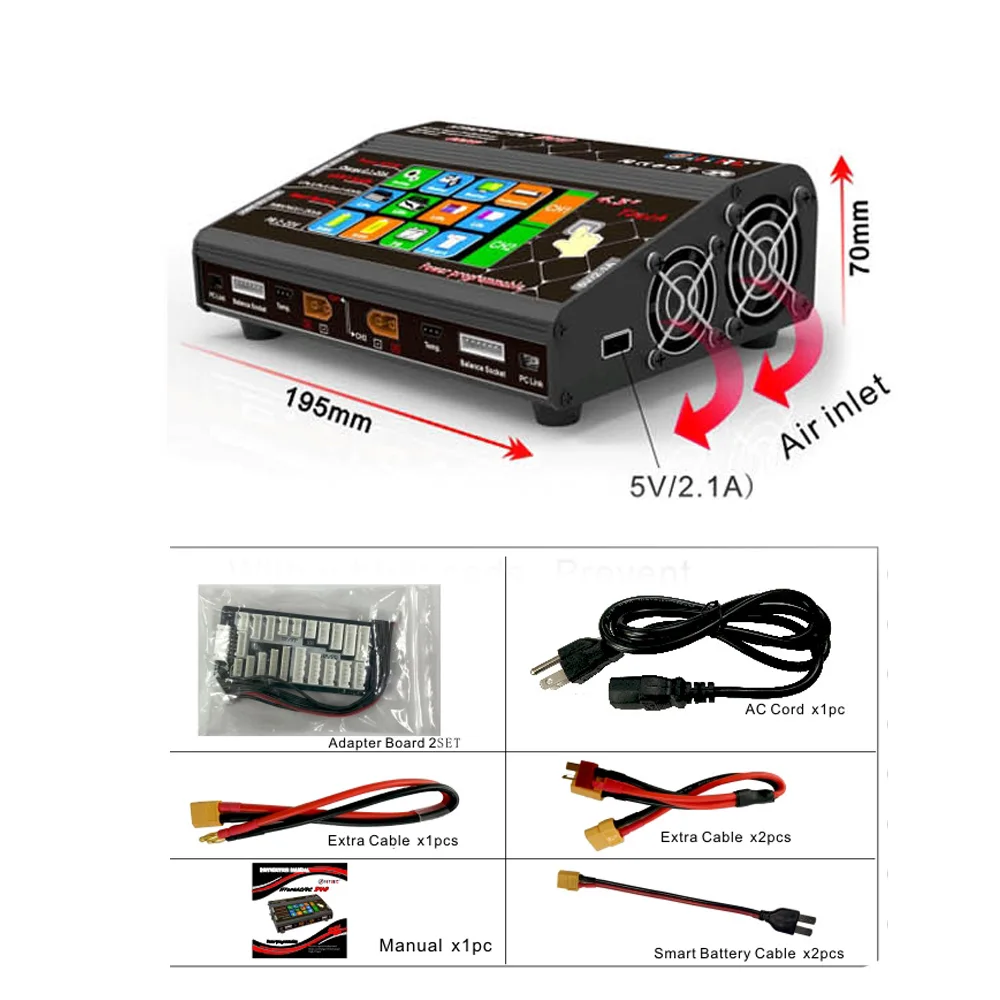

Demension:L19.5*W14.3*H7cm
Net Weight:1.072Kg

Setting: General settings such as Buzzer volume, Low input voltage, balance speed, Max charging power.    Besides,user can set some cut off value according to your requirments for each channel, makeing sure a safety charging .
Memory: save up to 8 operation data.
Monitor: checking battey capacity ,voltage, Internal Resistance, balancer.
Calibration: calibrate battery cell voltage.
Working interface:The working interface shows all setting data of charging. And the charge current and voltage will be displayed by graphic photo.
Different battery has different model:
In Lipo/Lilo/LiFe/LiHv charging interface , there are 4 model : storage, charge, bal-charge, discharge.
In NiMH/NiCd charging interface, there are 3 model: Cycle charge discharge
In PB charging interface , there are 3 model : trickle charger discharge.
In smart battery charging interface, there are 4 model: Smart battery I, II, III , and digital power.
Digital DC power supply voltage range : 5-27V, current range,0.1-20A.

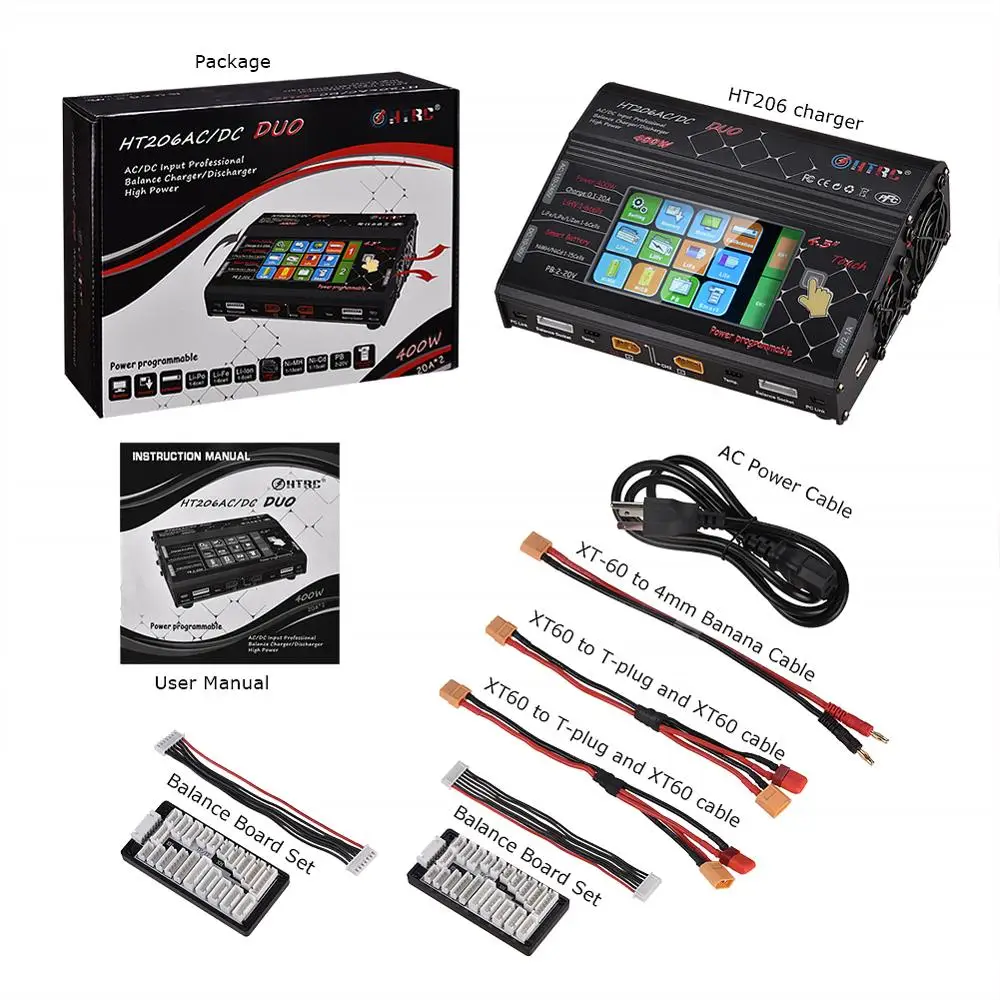

Package list:

1 x HT206 AC/DC Duo Device
1 x AC Cord (US EU UK AU Optinal)
1 x DC Cord
2 x Charging Cable
2 x Smart Battery Cable
2 x Charing Board
1 x User's Manual

Tips:Please leave a message which standard you want!

Warranty:

>12 months Manufacturer limited warranty for defective items (excluding misused after receipt ).

Accessory 3-month warranty.

>For repair items please return it within the warranty period. Buyer pay shipping fee and return shipping fee.
