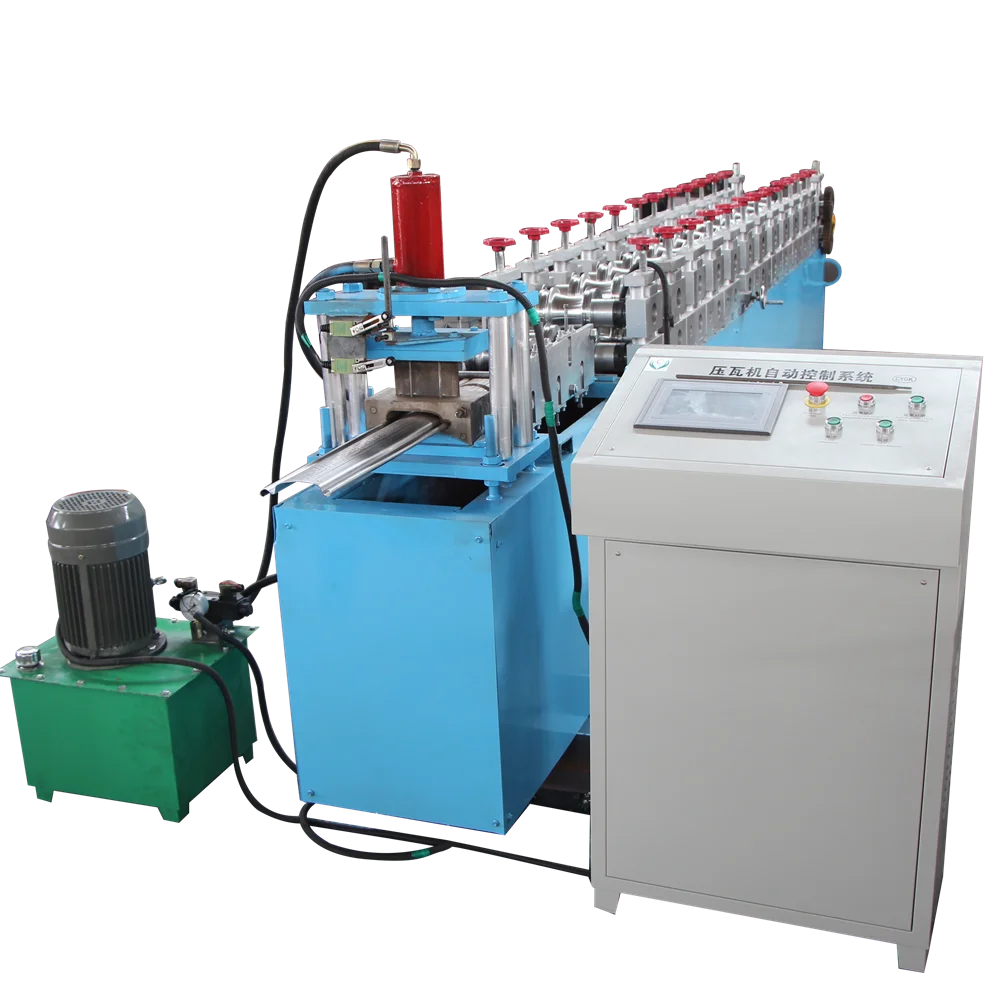

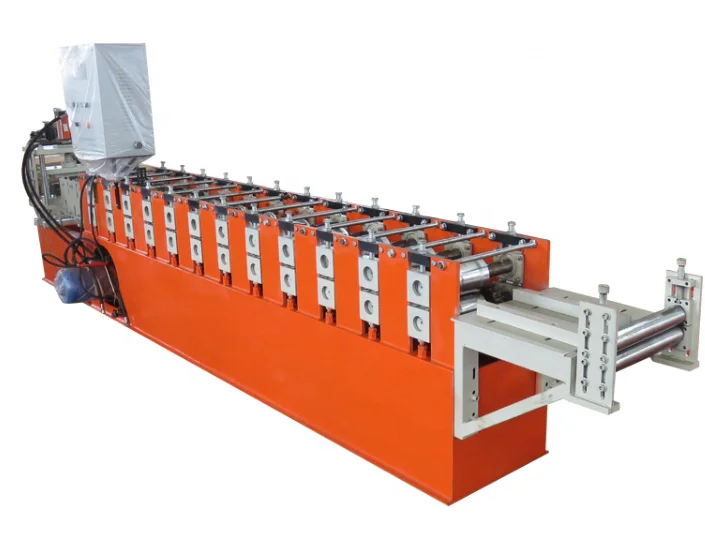

High Quality Garage Roller Shutter Door Making Machine
High Quality Garage Roller Shutter Door Making Machine
High Quality Garage Roller Shutter Door Making Machine
High Quality Garage Roller Shutter Door Making Machine
High Quality Garage Roller Shutter Door Making Machine
High Quality Garage Roller Shutter Door Making Machine
High Quality Garage Roller Shutter Door Making Machine

High Quality Garage Roller Shutter Door Making Machine

Share on (60817685704):


Price:

Quantity:


Product Overview

Description


Product Description
\t
technical parameter of steel door making machines steel profile roller shutter door gate frame forming machine
\t
Coil material
\t
type
\t
color steel plate, galvanized board, aluminum plate
\t
width
\t
according to customer requirements and profile drawing
\t
thickness
\t
0.4-0.6mm
\t
Forming device
\t
shaft material
\t
45#steel-high quality steel, diameter 70 mm
\t
roller material
\t
45# steel with chrome coating
\t
roller station
\t
11-16(depends on final design)
\t
Main frame
\t
300/350 H steel
\t
chain transport
\t
1 inch
\t
board thickness
\t
16mm
\t
weight
\t
around 2.5T(depends on final design)
\t
dimension
\t
6500mm*800mm*1200mm(depends on final design)
\t
Control system
\t
PLC control system(brand as requirement)
\t
Total power
\t
4.0+4.0kw (depends on final design)
\t
Voltage
\t
380V,50HZ,3 phascs or as your need
\t
Productivity
\t
10-15m/min(depends on final design)
Detailed Images

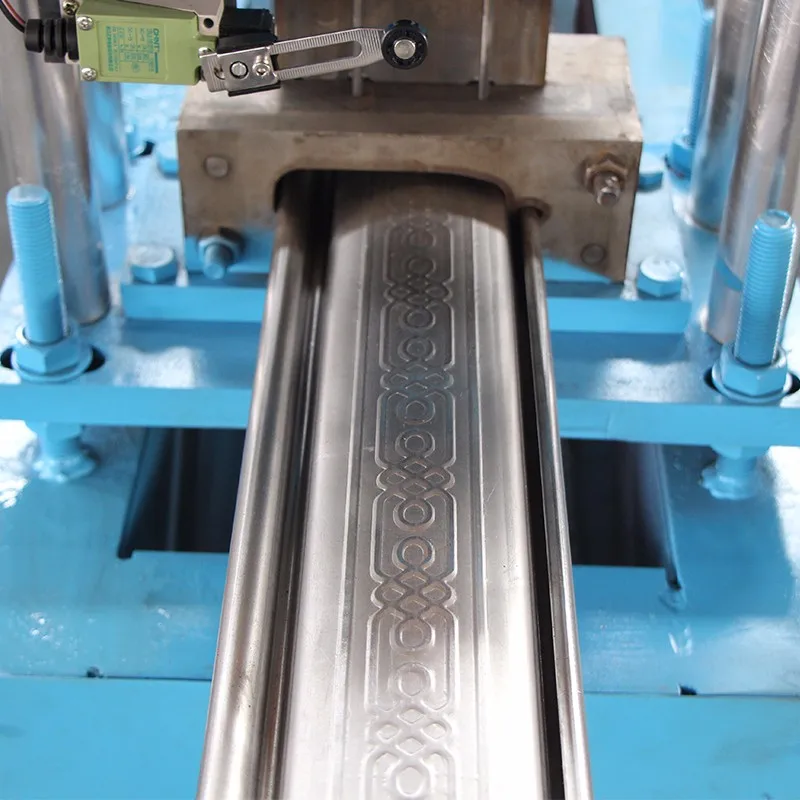

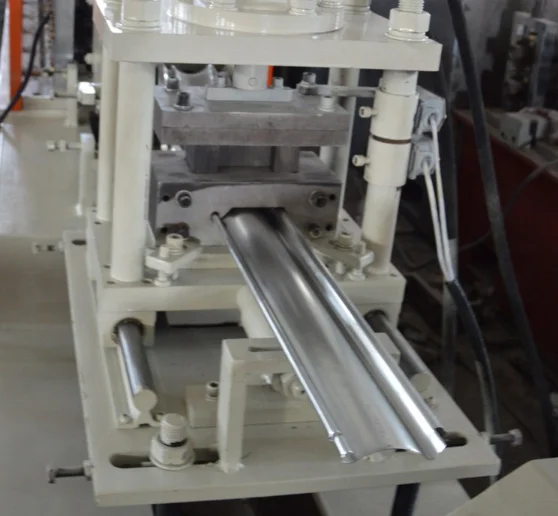

Cutting Device


1. Cutting press is 20 tons

2. Blade and mold material:GCR12steel with quenched treated 60-62℃

It can decide cut panel dimension according to the hydraulic drive and PLC computer control system


Hydraulic Station


1. Power: 4kw (depends on final design)
2. Hydraulic oil: 46# hydraulic oil
3. Working pressure: 12-16Mpa adjustable
4. Solenoid valve: 1groups
5. Color: as customer's request

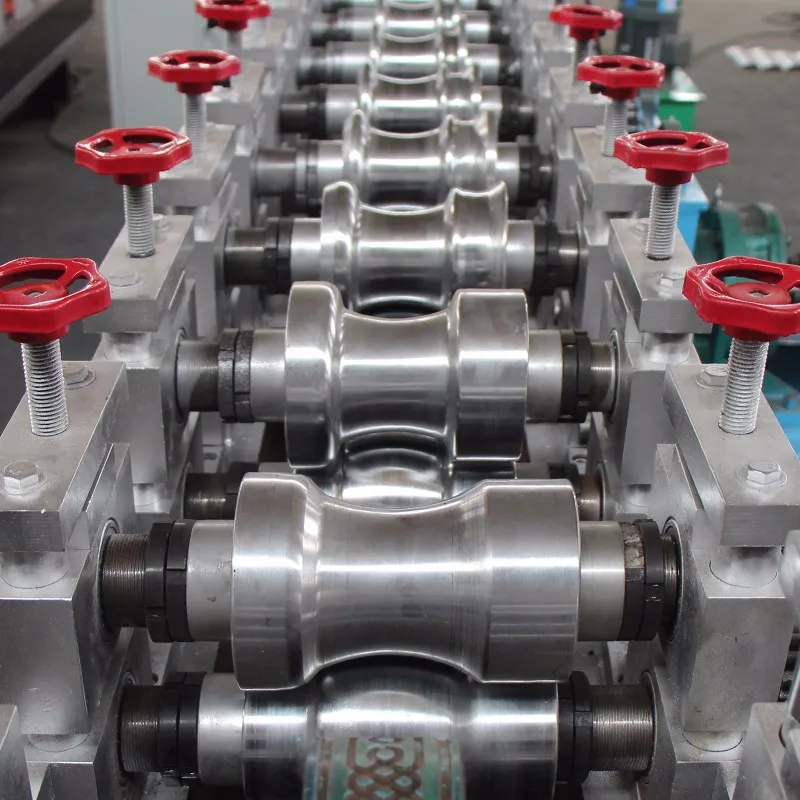

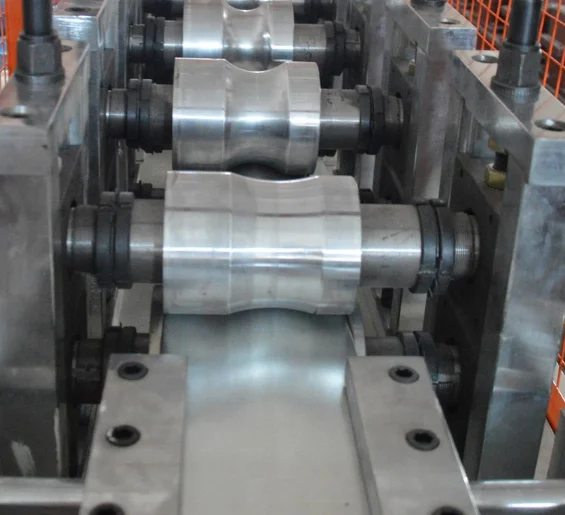

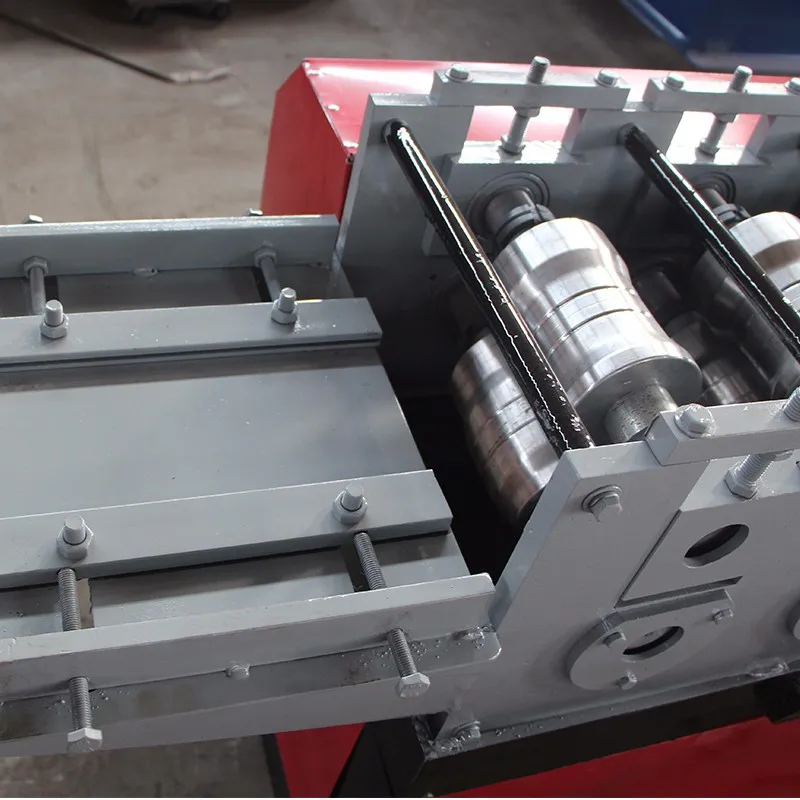

Roller System

1. Material: high grade NO.45 forged steel.
2. Roller station: 11-16(depends on final design)
3. Thickness of feeding material:0.3-0.8mm



Automatic Control System

1. Screen: touch screen or text screen
2. Automatic length measurement
3. Automatic quantity measurement
4. Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved.
5. Length inaccuracy can be amended easily.

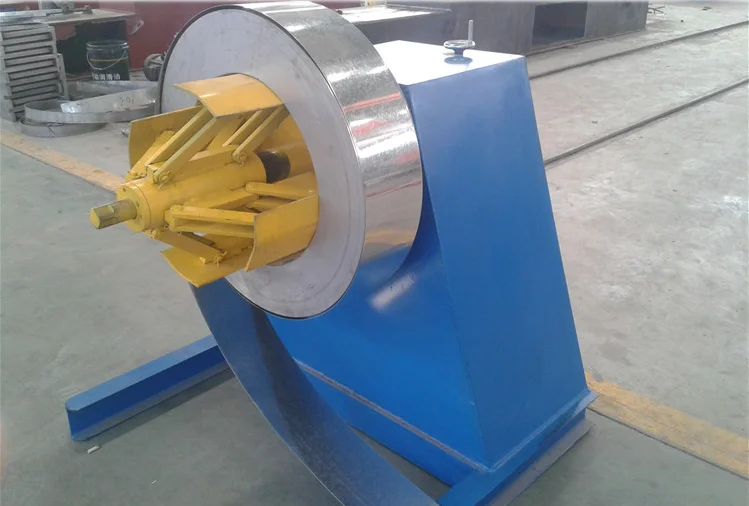

Manual decoiler
1 Inner diameter: 500-508mm
2 Steel coil width: 1300mm
3 Maximal out diameter: 1250mm
4 Coil placement in the coil holder: hydraulic hoist
5 Working speed: 0-15m/min adjustable

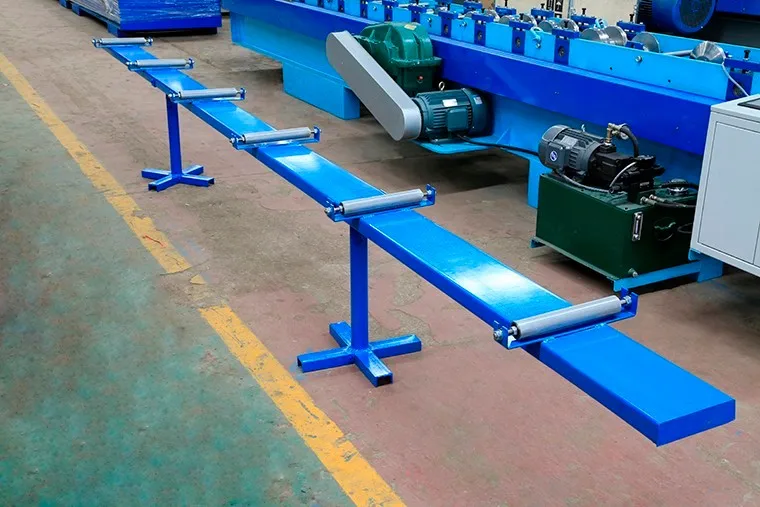

Receiving Table

It is used for transmitting and collecting the finished products

Our Service
Pre-sales Service

* Inquiry and consulting support.

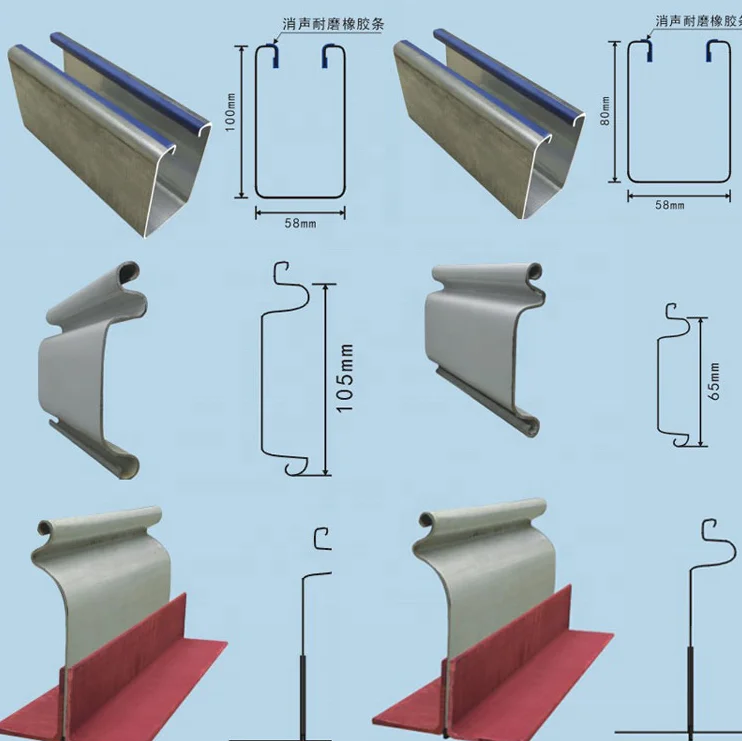

* Help clients design profile or optimize base on our engineer suggestion

* View our Factory.

After-sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packing&Delivery
\t
Packing:
1. one 40ft container for loading one set machine with manual uncoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All components fixed by steel wire with container.
Or as clients' request
Delivery Time:
Within 25 days after receipt of buyer's deposit
Our Company

a. Two decades professional cold steel forming equipments manufacturer

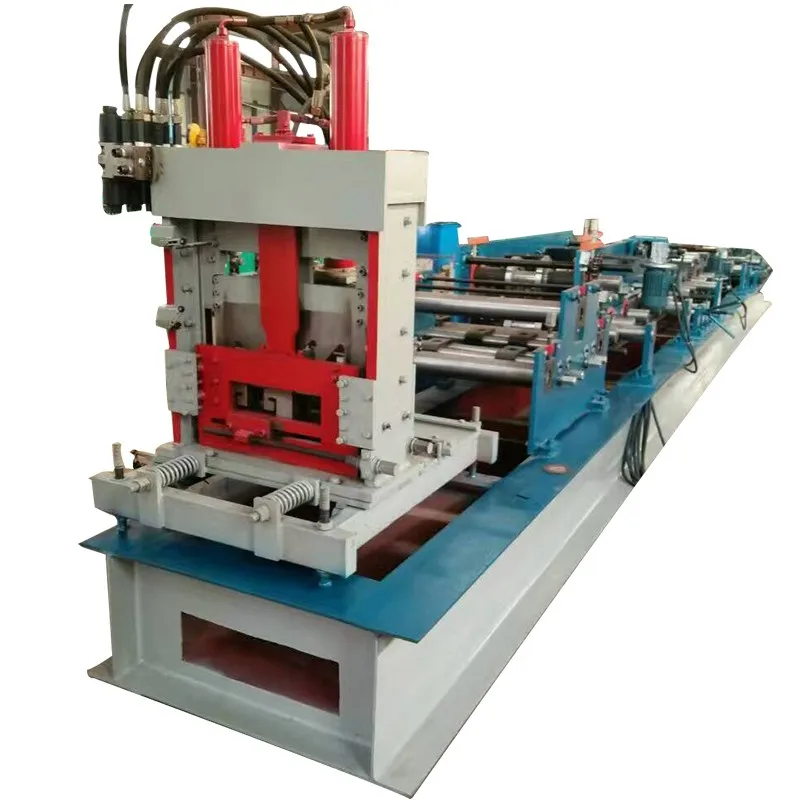

Main products: glazed tile roll forming machine, ridge cap roll forming machine, corrugated roll forming machine, most popular color steel roll forming machine, double deck color steel roll forming machine, keel roll forming machine, C/Z purlin forming machine, Austalia style roller shutter door forming machine and etc.

b. National GB/T, CE and ISO9001:2008 Standard

c. Business relationship with customers from more than 30 countries and areas

Customer Visit
FAQ

steel door making machines steel profile roller shutter door gate frame forming machine


Q: Does one machine can only produce one style panel profile?
A: Not exactly. For wider and double layer making machine. It can produce more than 6 kinds of panels.

Q: Do you sell only machines of fixed specification?
A: No, most of our machines are built according to customers' specifications, using top brand components.

Q: What size of decoiler can you supply us with?
A: From 5-ton decoiler to a 25-ton motorized hydraulic decoiler

Q: How to visit your company?
A: a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

Q: What can you do if the machine broke down?
A: Our machine's warranty period is 12months. If the broken parts can't be repaired, we can send the new parts to replace the broken parts for free, but you need to pay the express cost yourself. if after warranty period, we can solve the problems through negotiation, and we will supply the technical support for the whole life of the equipment.

Related Products

Galvanized Color Steel C Z Purlin Roll Forming Machine

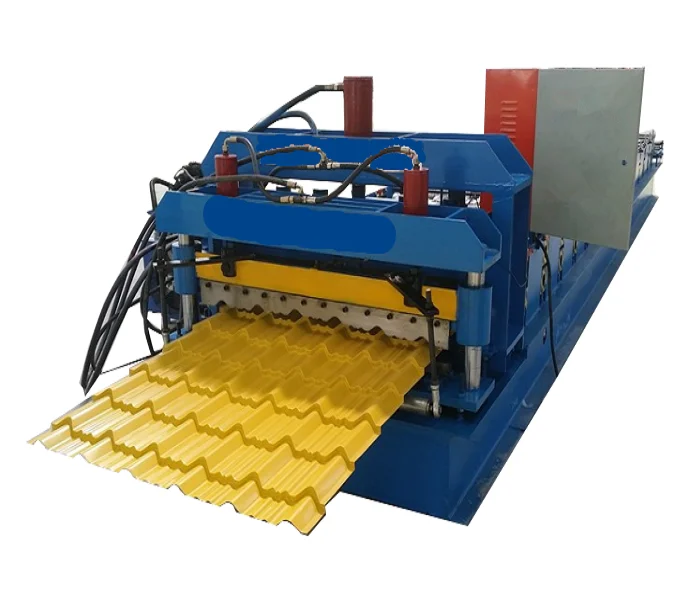

Color Steel Glazed Tile Cold Roll Forming Machine
