ZB-715LS Vibration Friction Welding Machine for Car Intake Manifold Assembly Line
$50,000.00-200,000.00

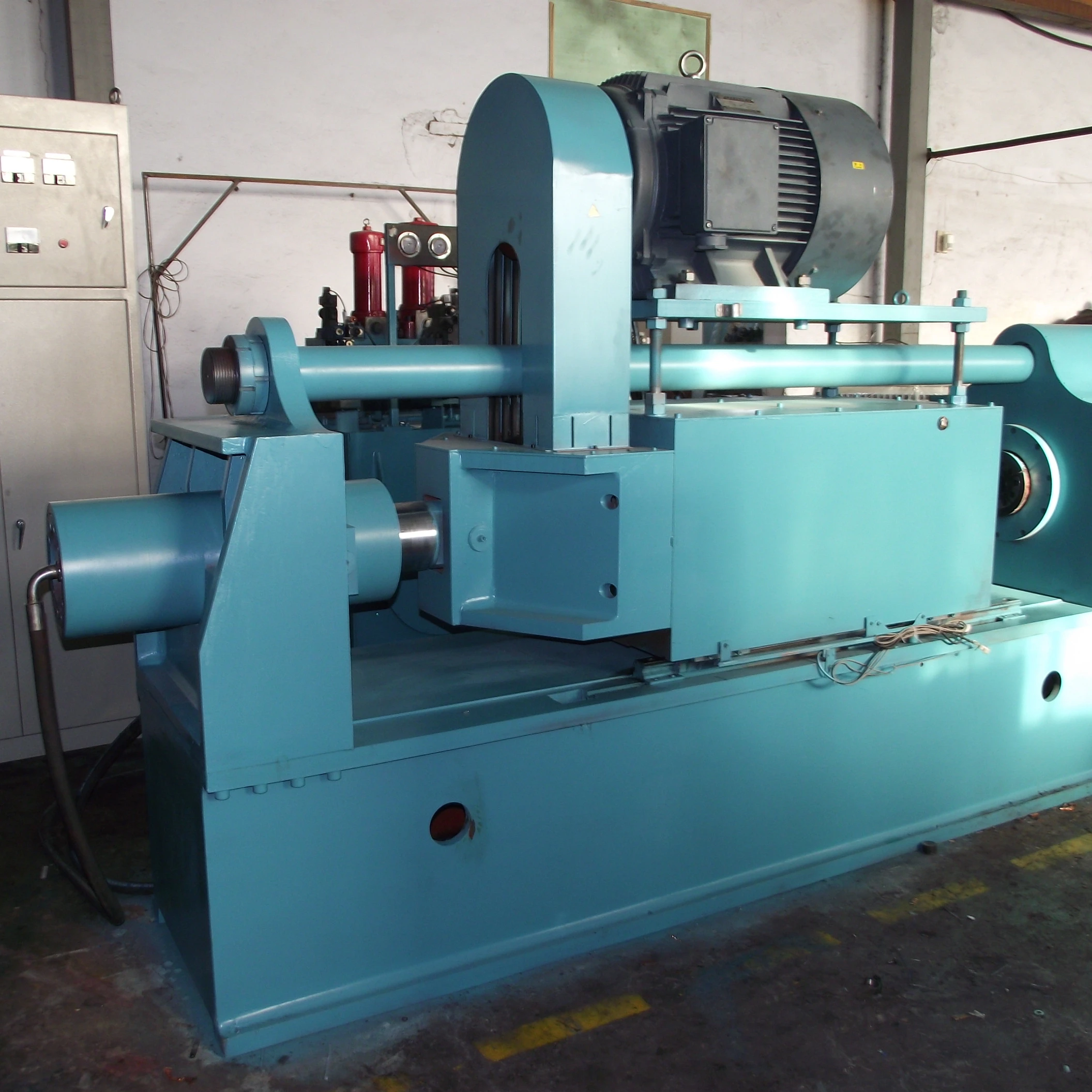

Rotary Friction Welding Machine
- Category: >>>
- Supplier: Dalian Bluestar Trading Co. Ltd.
Share on (60817708126):
Product Overview
Description

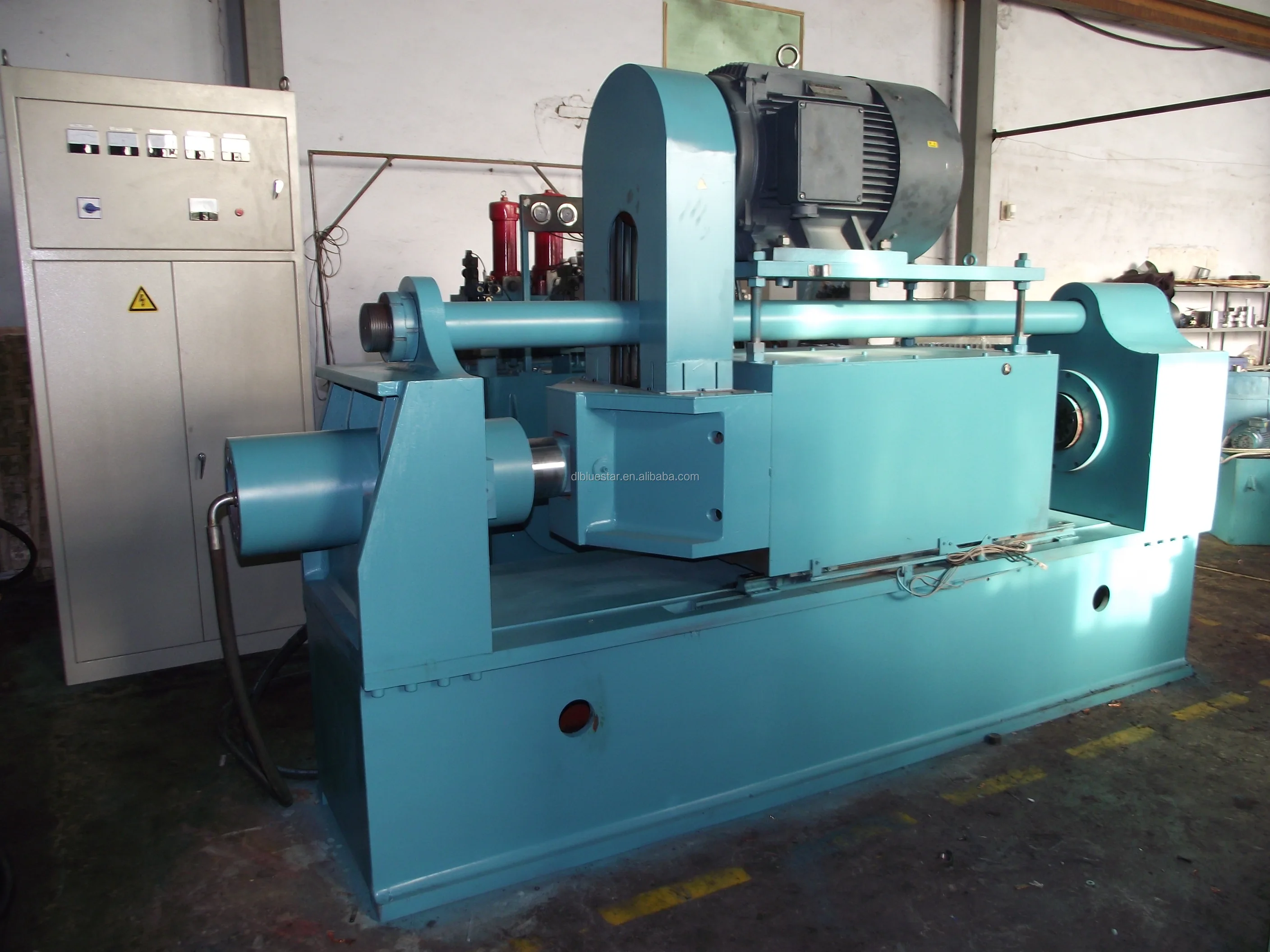

Friction welding machine
Product Description
Friction welding machine
Rotary friction welding is a solid-state process in which one part is rotated at high speed and is pressed against another part that is held stationary. The resulting friction heats the parts, causing them to forge together.
FEATURES
- This versatile and compact friction welding machine for truck rollers was developed from experience in piston rods.Ideal design offers high thrust force from a compact size
- PC quality assurance system (condition control visibility and waveform display function) for quality control.Easy operation and a high level of repeatability produce products with high stability.
- Good product griping area for productivityCan be used in conjunction with commercially available loader equipment.Improves productivity.
PARAMETERS
| Model | Max.upset force(KN) | Max.welding area(mm²) | Welding dia. | Speed(rpm) |
| DBS-2 | 20 | 20-140 | 5-13 | 5000 |
| DBS-5 | 50 | 50-260 | 8-18 | 3000 |
| DBS-12 | 120 | 150-700 | 14-30 | 1500 |
| DBS-20 | 200 | 150-1020 | 14-36 | 1500 |
| DBS-30 | 300 | 314-1600 | 20-45 | 1200 |
| DBS-40 | 400 | 500-2400 | 25-55 | 1100 |
| DBS-63 | 630 | 960-3400 | 35-64 | 1000 |
| DBS-80 | 800 | 1300-5000 | 40-75 | 950 |
| DBS-100 | 1000 | 1600-6000 | 45-86 | 890 |
| DBS-125 | 1250 | 2000-7800 | 50-100 | 600 |
| DBS-160 | 1600 | 4300-8792 | 89-160 | 580 |
| DBS-200 | 2000 | 5100-12500 | 102-189 | 500 |
| DBS-250 | 2500 | 3850-15500 | 70-140 | 500 |
| DBS-320 | 3200 | 6400-20000 | 90-160 | 380 |
| DBS-400 | 4000 | 8000-25000 | 100-180 | 350 |
| DBS-500 | 5000 | 8000-31400 | 100-200 | 320 |
| DBS-700 | 7000 | 8000-44000 | 100-240 | 320 |
Our Services
WHY CHOOSE BLUESTAR BRAND MACHINE TOOLS:
1) High quality with competitive price
2) More than 10 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS’ ONLINE SERVICE FOR PROBLEM SHOOTING (SKYPE,Trademanager)
6) 12 months quality warranty
