LG 200HA Pro plasma cutter
- Category: >>>
- Supplier: Chengdu Huayuan Electric Equipment Co. Ltd.
Share on (60817738382):
Product Overview
Description
Product Description

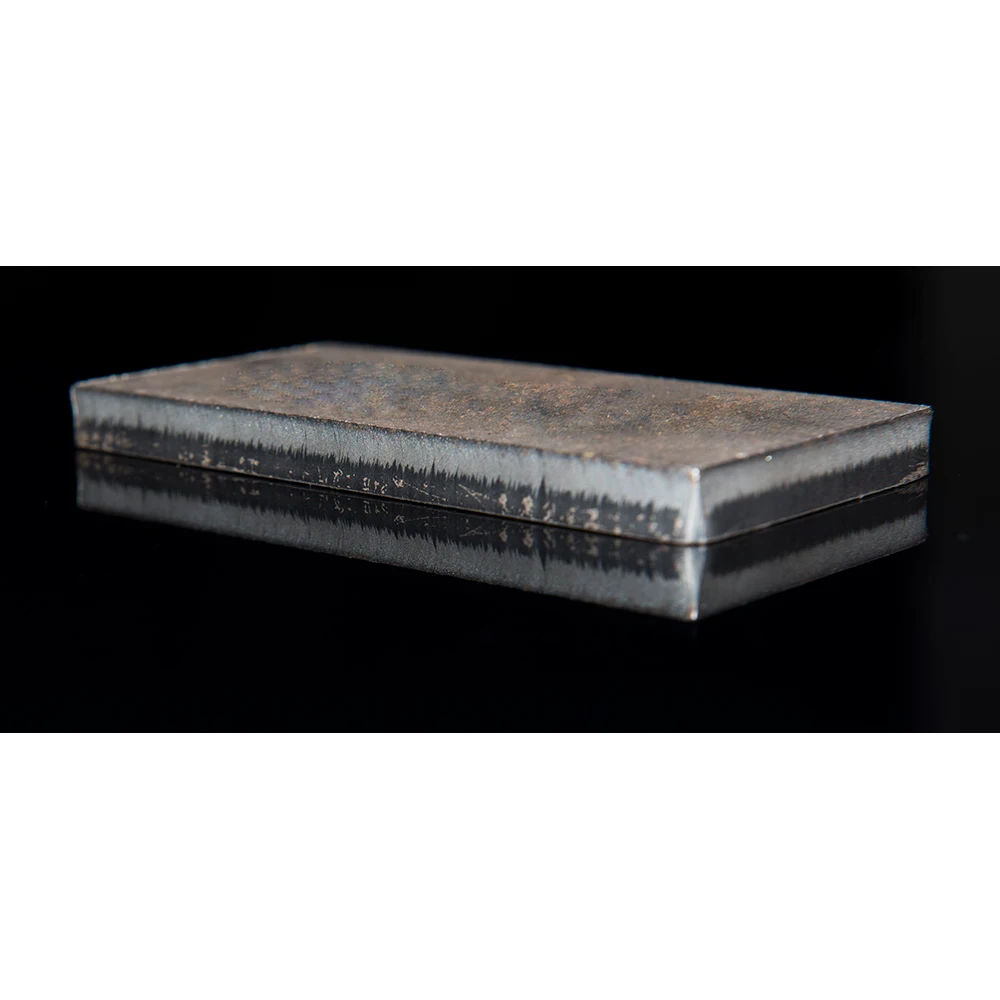

Cutting Sample
Specification
Item | Unit | Model | ||
LG-125HA | LG-200HA Pro | |||
Input Power | V/Hz | 3～380±15％ 50/60 | ||
Rated Input Capacity | KVA | 21.7 | 52.3 | |
Rated Input Current | A | 33 | 78 | |
Rated Output Current/Voltage | A/V | 125/130 | 200/200 | |
Rated Opend Circuit Voltage | V | 310 | 360 | |
Rated Duty Cycle | - | 100%（40℃） | ||
Efficiency | - | 90% | 92% | |
Power Factor | - | 0.82 | 0.83 | |
Output Current Adjust Range | A | 30-125 | 40-200 | |
Arc Voltage Output Ratio | - | 1:1 | ||
Arc Strike Mode | - | Non-contact | ||
Plasma Gas | - | Air | Air/N2/O2 | |
Shielding Gas | - | - | Air/N2 | |
Air Pressure | Mpa | 0.4～0.6 | ||
Quality Cut Thickness(Carbon Steel) | mm | 25（580mm/min） | 32（500mm/min） | |
Insulation Grade | - | F | ||
Power Source Cooling Mode | - | Air cooling | ||
Ingress Protection | - | IP21S | ||
Dimension(LxWxH) | mm | 670*320*600 | 875*410*935 | |

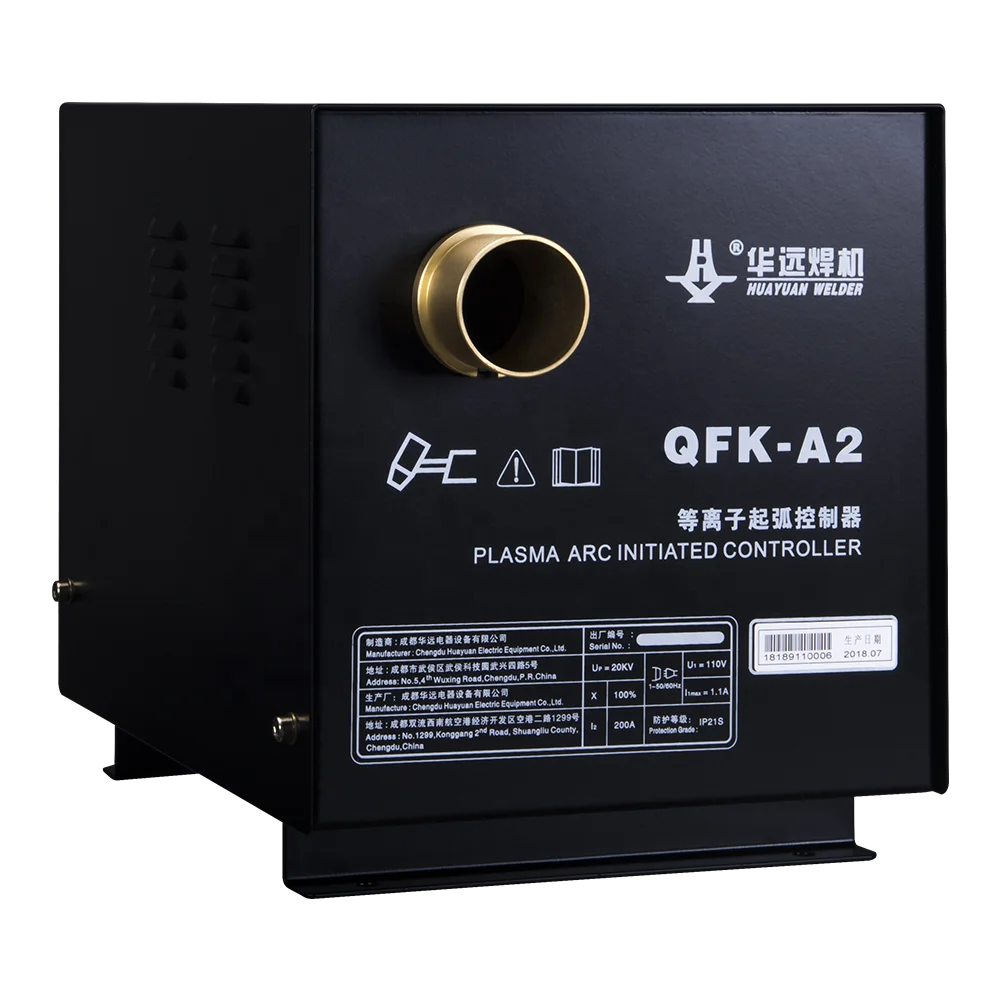

Arc Ignition Controller Net Weight | Kg | 4.5 | 7.8 | |
Power Source Net Weight | Kg | 49 | 116 | |

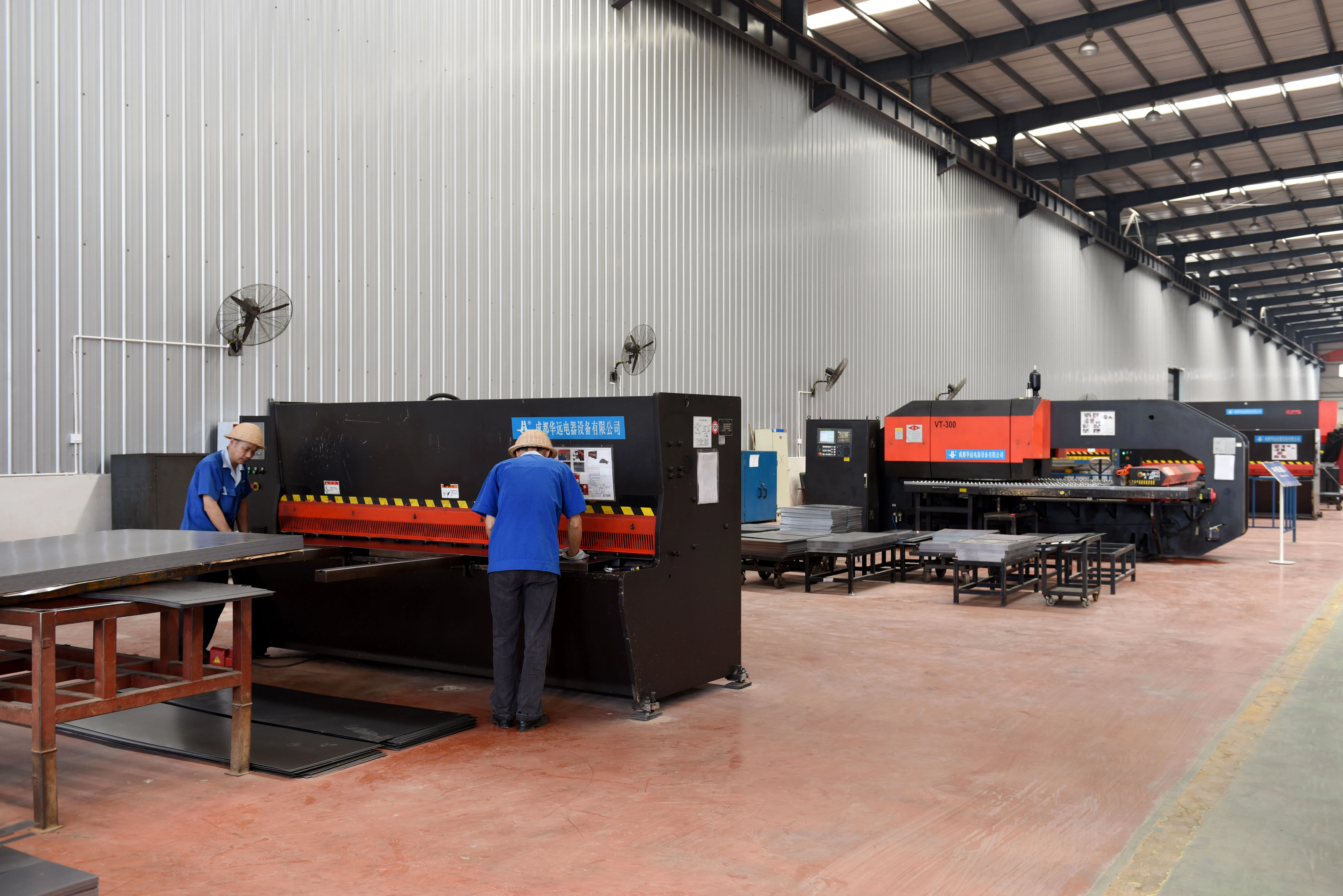

Company Profie
Exhibition
Customer Photos
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
