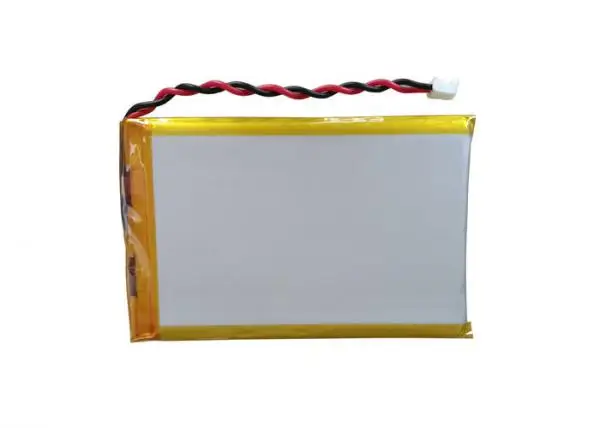

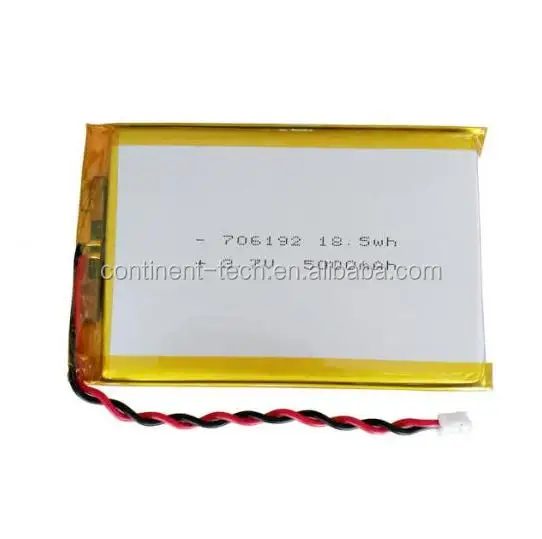

706192 3.7V 5000mAh with PCB UN38.3 Approved Lipo Rechargeable Battery

Product Overview

Description

 Mobile Power Supply Rechargeable Lithium 3.7V Li-ion Polymer Battery 5000mah

Lipo battery Specification:

Model	CTLP706192-5000
Battery Type	Lithium polymer battery
Power Wh:	18.5Wh
Accembly Composed Type	1S/ 1 cell
Nominal Capacity	5000 mAh	@0.2C discharge
Nominal Voltage	3.7 V
Charge Voltage	4.2±0.12 V
Cut-off Voltage	3.0 V
Standard charge Current	1000 mA	@0.2C charge
Max. charge current	5000 mA	@1C charge
Standard Discharge Current	1000 mA	@0.2C discharge
Max. Discharge Current	5000 mA	@1C discharge
Resistance
Cycle Life:	Over 500 times
Weight (Approx.)	90g
Dimensions(T.W.L.)	7.0*61*92 (mm)
Charge Temperature	0 ~ 45℃
Discharge Temperature	-10 ~ 60℃
Storage Temperature	0~40℃	Less than one month
	10~30℃	More than one month

Battery OEM Service:

-Selected color of shrinkable tube.
-Selected Discharge plug and Balance connector
-High quality OEM label are welcomed

Advantages:
1, High energy density
2, Factory price& High quality
4, Pollution-free
6, Good consistency, low self discharge
2, High working voltage for single battery cells
5, Safe and reliable, With short-circuit protection function,

Battery Warranty:
The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.

Our services:

1.Your enquiry will be replied in 8 working hours.
3.Professional engineers & Exclusive and unique battery solution
5.Good sales: From begining to end,any quality problem with our products,new free one will be replaced.
4.Good quality assurance:All the cells are A grade cells,100% quality check and full one year warranty.
