8 тонн, сильный против барабана, дорожный каток, уплотнитель, цена

Share on (60817791803):


Price:20 000,00 $ - 26 800,00 $

Quantity:


Product Overview

Description


ABOUT US

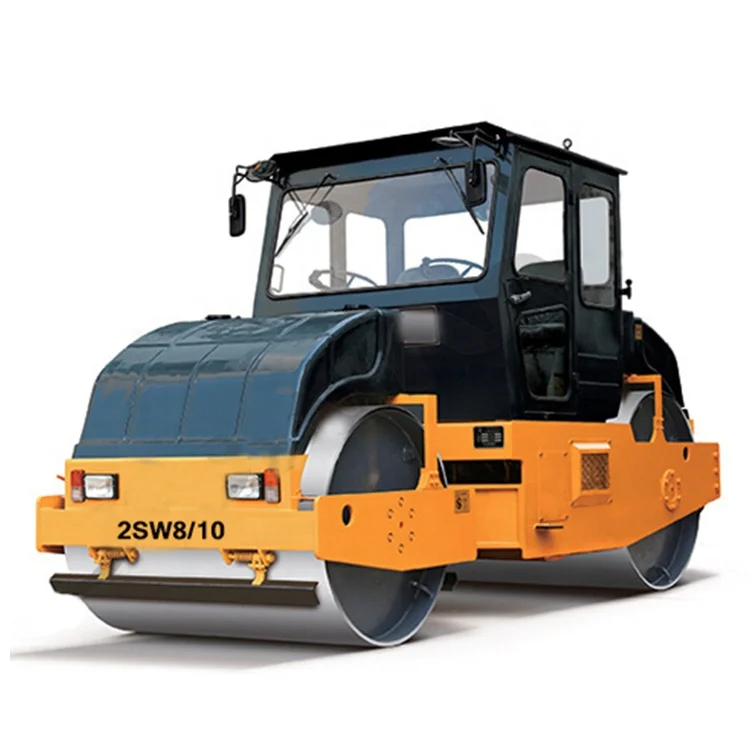

2SW8 10



SEENWON OEM ROAD ROLLER MANUFACTURE is a regular member unit of the Ministry of Communications China Highway Construction Association, has specialized in producing complete sets of mini and medium road machinery since the 1980s. Our products have passed the quality authentication of ISO9001: 2000 control system and product quality is supervised by the State Bureau of Quality and Technical Supervision.



Having won the honors of "Certificate for Product Exemption from Quality Surveillance Inspection", "National Standard Product with Steady Quality",  "AAA Credit Enterprise" and others one after another, as well as some national patents. Our products were named as "Major Promotion Brand" by China Highway Construction Association and "One of the Top 50 of China Annual Construction and Machinery Products" in the year of 2007.



Our major products, model SWZ07, SW1 and SW2 vibratory rollers are suitable for working in the narrow and limited sites, and model SWC3, SWC3H, SWC3.5H, SW4, SWC4.5H, SWC6, SW6C, SWC10J, SWC12J, SW12 and YZ14b vibratory rollers are suitable for compacting the base of highroads, streets, airports, industry zones or parking ground. Among the above rollers, model SWD4, SWDC6 and SWD6C can be used for compacting roadbed as well as road surface especially the areas subject to vibration. Model 2SW8/10, 3SW10/12, and 3SW15/18 rollers are fit for deep-compacting work.



Our business scope: making and selling compacting machinery, road surface machinery, construction machinery as well as importing and exporting above mentioned products.



Based on the principle of "Technique Advanced, Quality Best and Customers Superior", we offer wholehearted service to clients at home and abroad. Our products have been exported to Bangladesh, Indonesia, Serbia and other countries and regions, and have got a good reputation among consumers.



Applications

Compacting and repairing the general road base and asphalt pavement, city road, inter-city and country road, stadium, other projects and so on.



Main Features

1) Modern design, streamlined shape and human design. Beautiful and comfortable.

2) This roller has articulated frame with reliable function, flexible steering, good stability and smooth compact.

3) Two sets of brake devices, a hand brake and a foot pedal brake, assure the machine's safety and dependability.

4) Two sets of separate gravity nature sprinkler system. (Electric control pressurized sprinkler system is optional)

5) It is equipped with double direction device and smooth compact.

6) Other domestic diesel engines are optional.



Technical Data

Without ballast weight

8000

kg

Minimum steering radius

6.5

m

With ballast weight

10

t

Moving speed Range    I  II  III

2 / 4 / 7

km/h

Diameter of rear-wheel

φ1200

mm

Grade ability

20%



Compacted width

1450

mm

Diesel engine Model
 Rated rotation speed
 Rated power

495AY
 35.3
 2000



kw
 r/min

Maximum linear pressure

414

N/cm

Overall dimensions              L W H

4360x1790x2550

mm







--1_07



--1_09(1)

--1_11

--1_12

Q: How can we trust your company?

A: We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and

VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting.

Certificates including ISO9001 can also be provided.





Q: How about your warranty item?

A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our

experienced engineer can go abroad to your place for technical support.





Q: How about your product quality?

A: All our products are from the original manufacturers and the quality is 100% guaranteed.

Q:Can I be your agent in my country ?





Q:Can I be your agent in my country ?

A: It's OK if the order quantity is appropriate. We looks forward to long-term cooperation.
