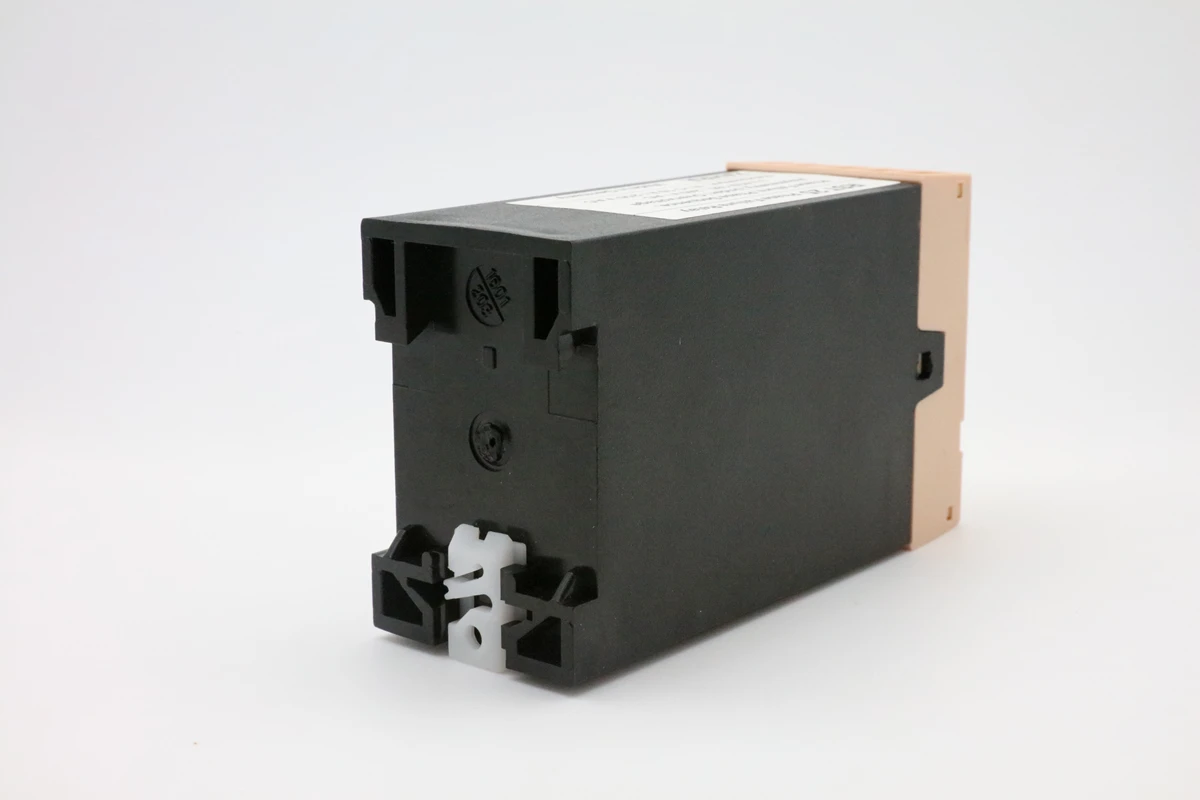

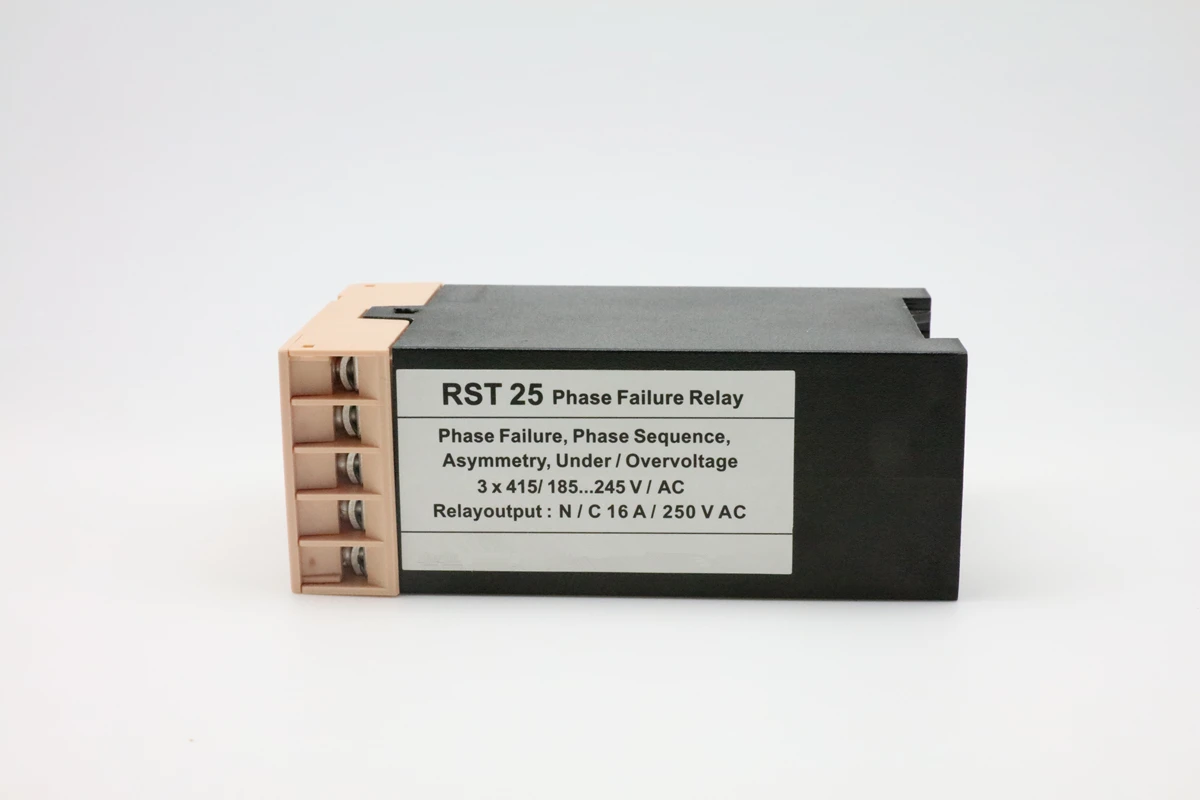

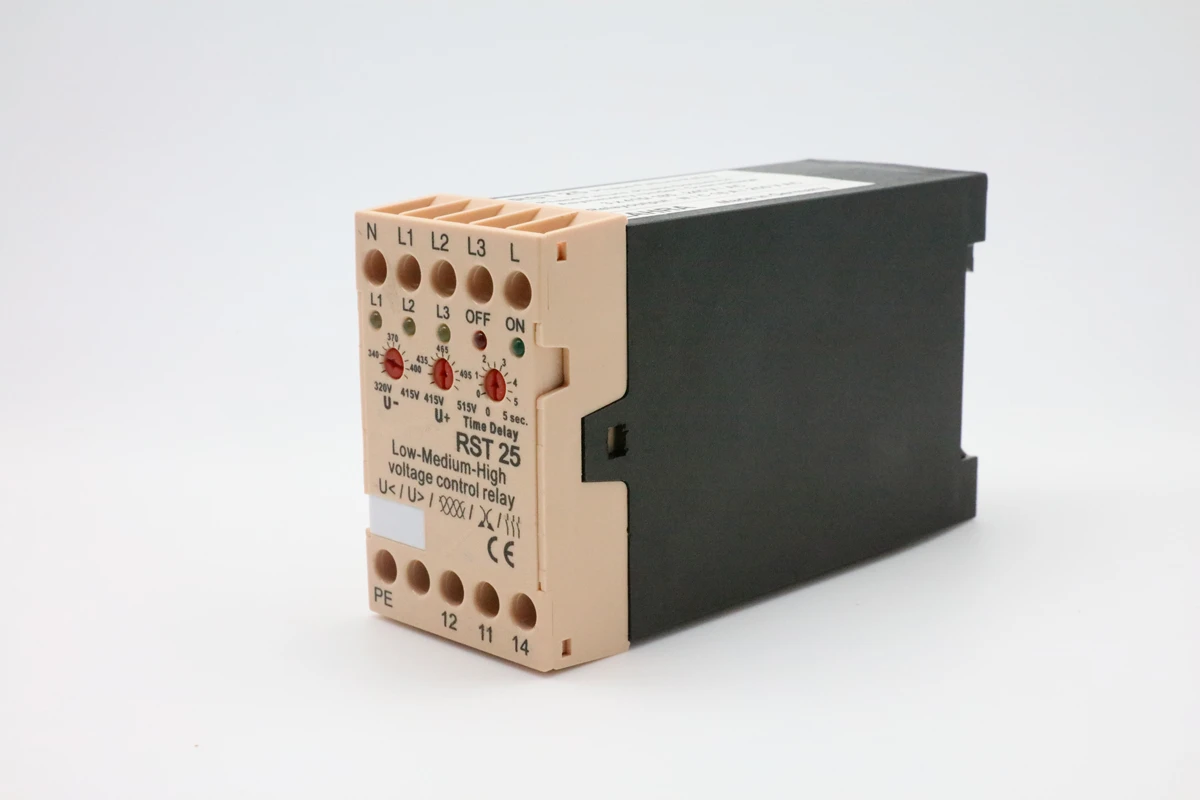

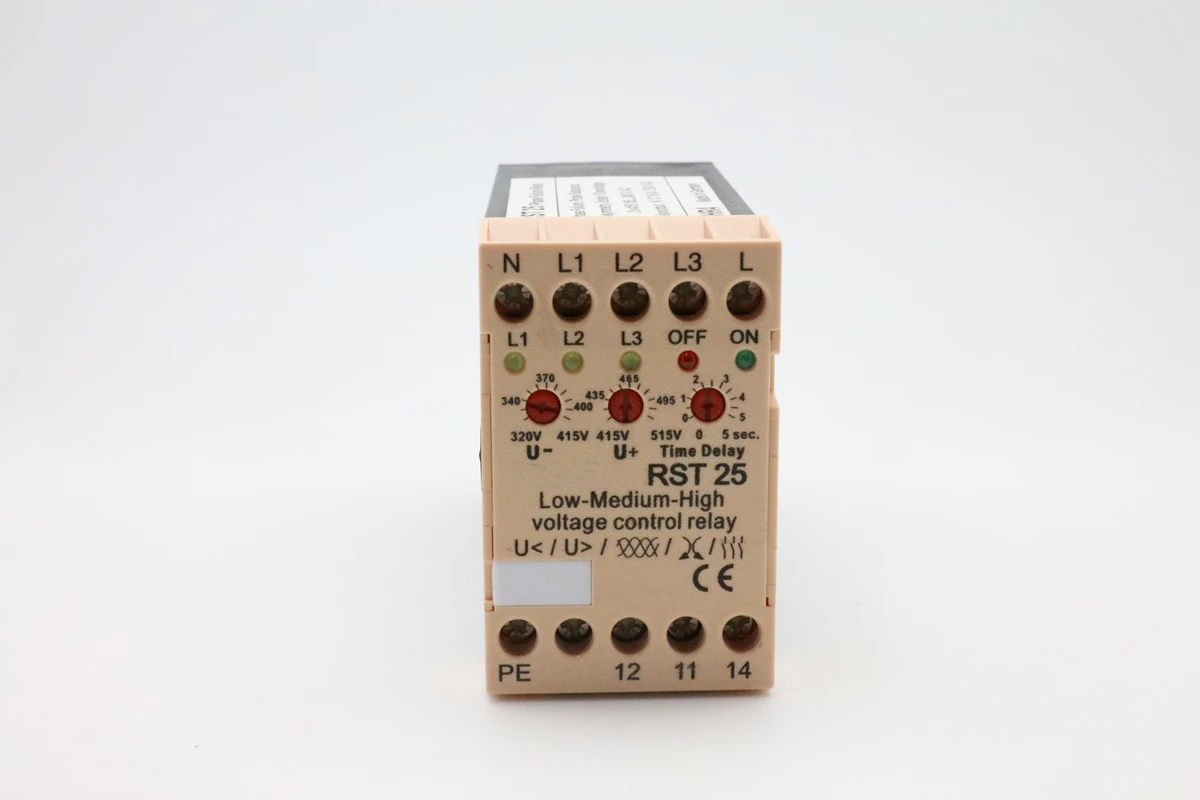

OEM RST25 Voltage Control Relay Overload Relay Protection Relay

Part NO.

Dimension

28.8*12.7*28

Contact Feature

Form

1A,1B,1C

2A,2B,2C

Rated load

NC 12A/240VAC 28VDC

NO 15A/240VAC 28VDC

8A/240VAC 28VDC

Contact resistance

≤100mΩ

Material

Silver Alloy

Electrical life

≥1*105

Mechanical life

≥1*107

Operate voltage (23℃)

DC:≤75%*Rated voltage

AC:≤80%*Rated voltage

Release voltage (23℃)

DC:≥10%*Rated voltage

AC:≥30%*Rated voltage

Maximum voltage (23℃)

110%*Rated voltage

Normal coil voltage

DC

3-11OV

AC

6-220V

Normal coil power

DC

0.53W

AC

1.0VA

Pick-up time

≤20ms

Release time

≤10ms

Dielectric strength

Between Same-pole contacts

1000VAC/1min(leakage current 1mA)

Between Opposite-pole contacts

Between contacts and coil

5000VAC/1min(leakage current 1mA)

Insulation resistance

≥100mΩ(500VDC)

Ambient temperature

-55℃ ~70℃

Ambient humidity

35%-80%RH

Atmospheric pressure

86-106KPa

Shock resistance

10G (sinusoidal half-wave pulse: 11ms)

Vibration resistance

10-55Hz (double amplitude: 1.5mm)

Installation

PCB,Socket
