Price:$6,800.00

Quantity:


Product Overview

Description


Product Description

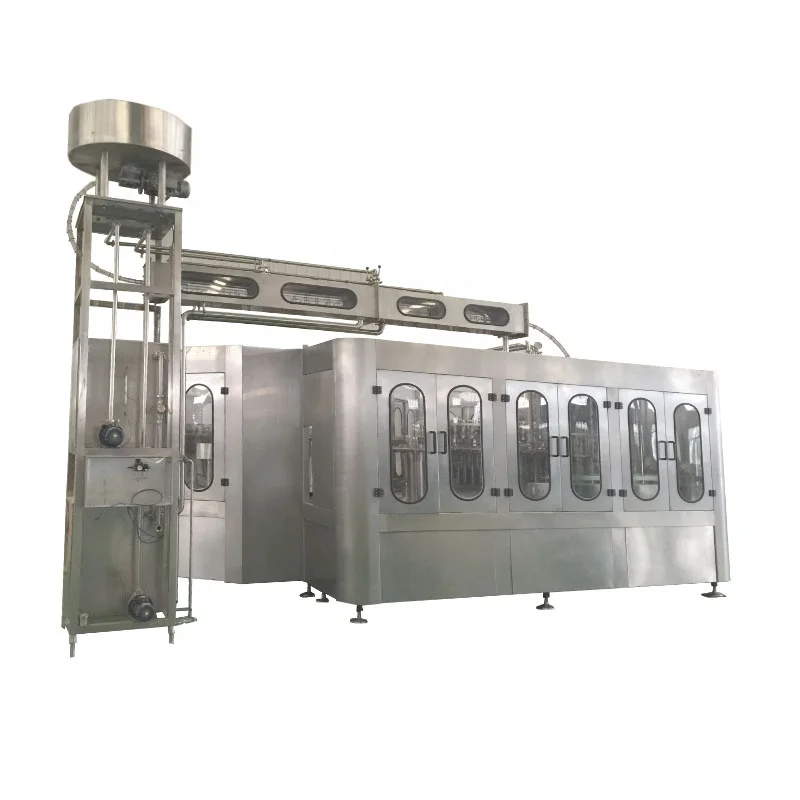

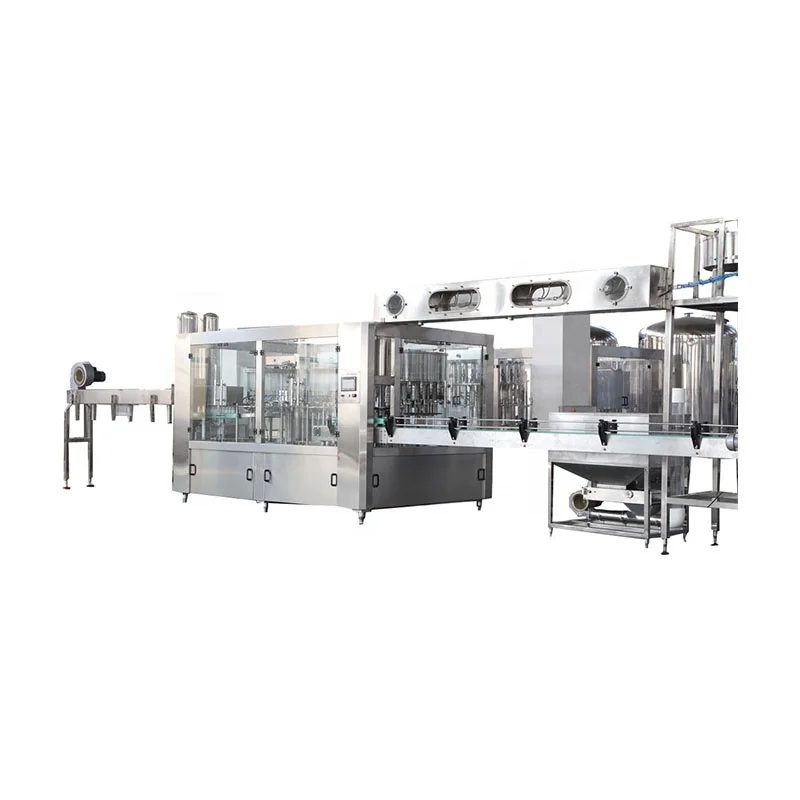

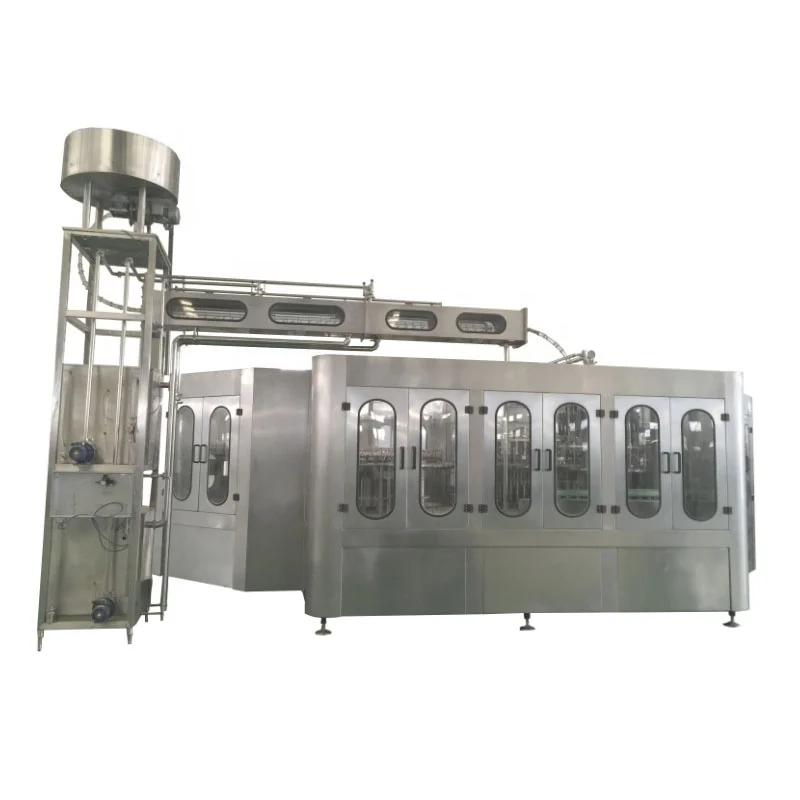

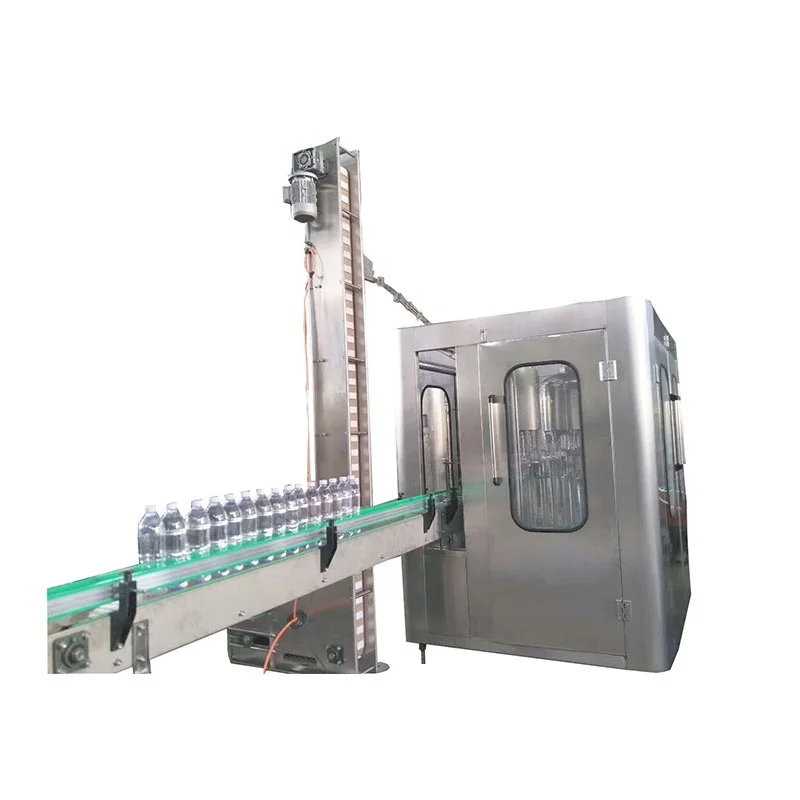

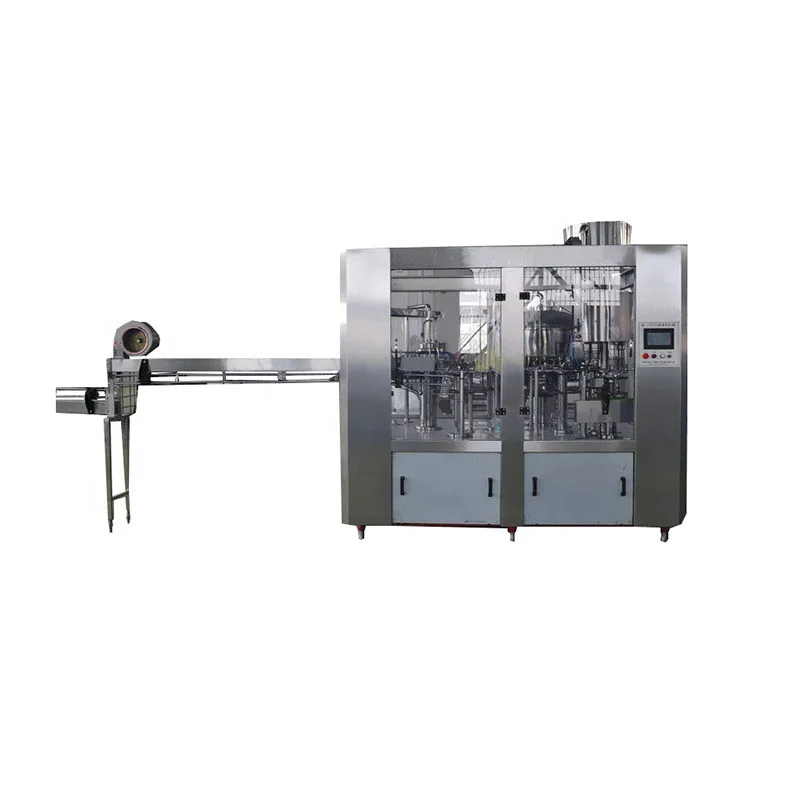

Automatic Bottled Water Pure Water Filling Machine

CGF series bottled water filling machine line is used to filling mineral water of purified water into PET bottle from 200ml-2000ml.Different models can satisfy various requirement of output from 2000B/H to 36000B/H.The machine combines washing,filling and capping three function in a body.The whole process is automatic,suitable for PET bottle,plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling,make the speed is faster and more satble,so with the same model our mavhine output is higher and more feeicient,The machine adopts advanced Mitsubishi programmable controller(PLC) to control the machine to run automatically,interworking with inverter running more satble and reliable.The photoelectric sensor detect all part running state,with high degree of automatic,easy operation.

Main Parts:
This machine is comprised of rinsing, filling and capping system.

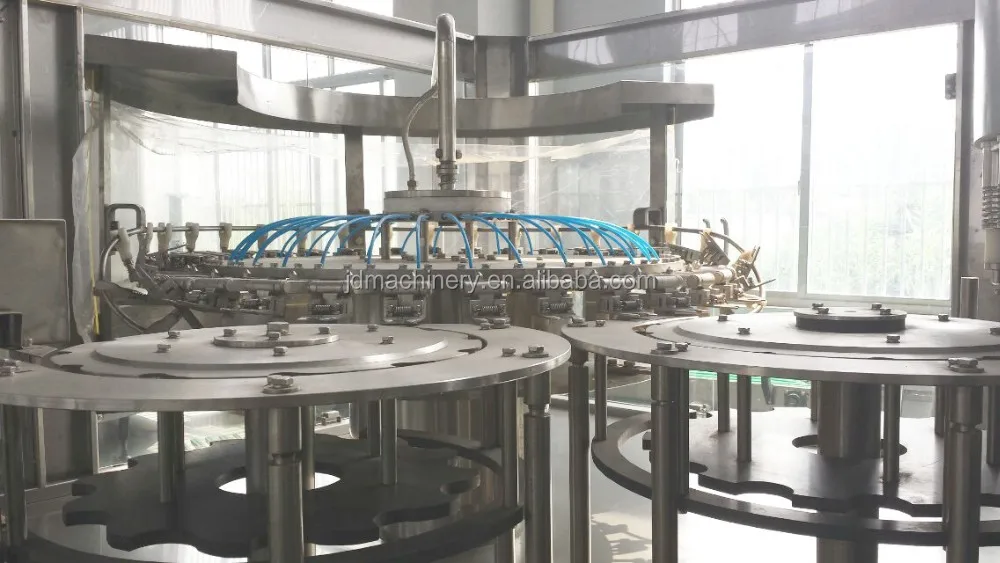

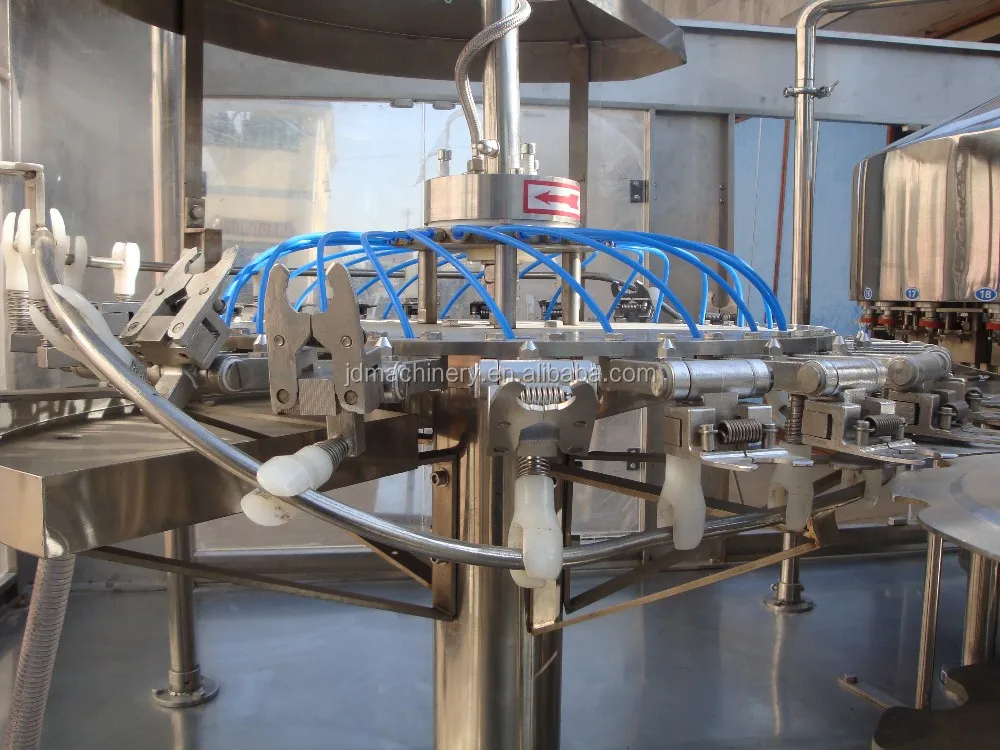

Rinsing Parts: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.

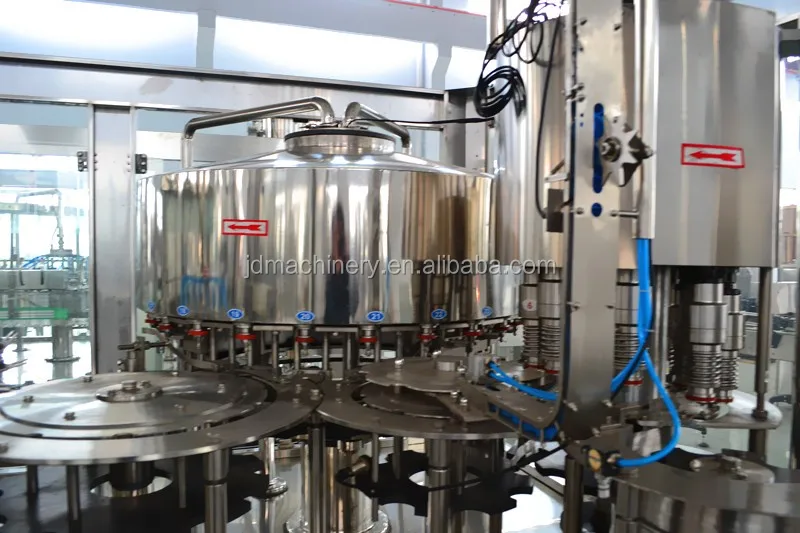

Filling Parts: gravity filling with holding bottle neck; the special back flow type of the filling valve can avoid leakageafter filling and also control liquid level accurately.

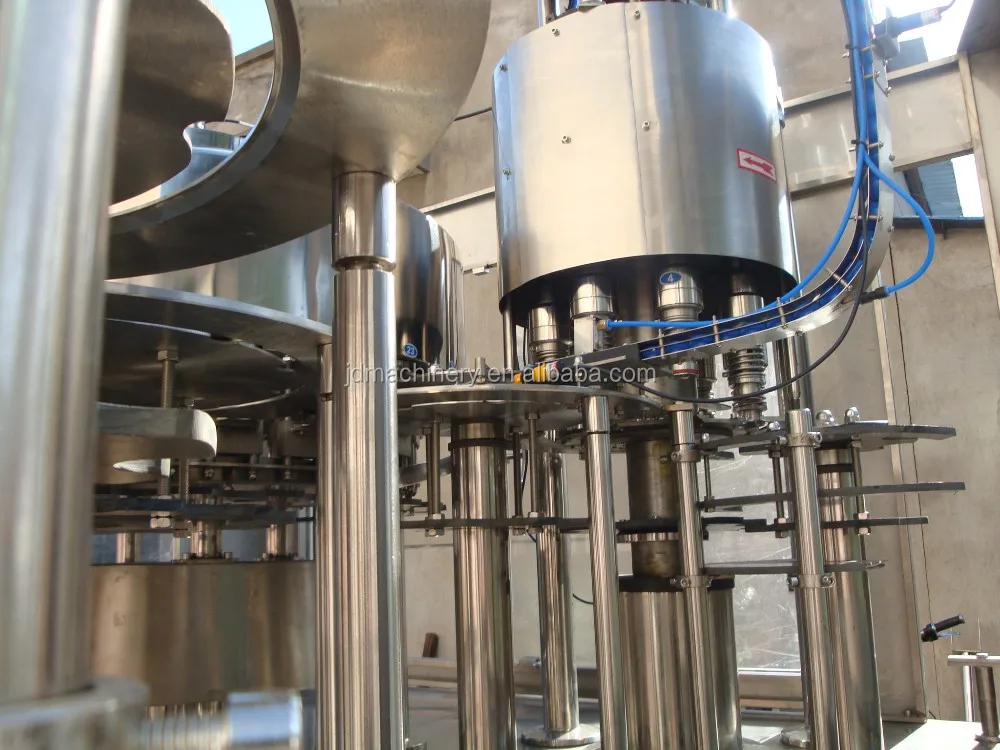

Capping Parts: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
Reasonable, stable and safe design:
Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.


Technical Parameters

\t
Model
\t
CGF8-8-4
\t
CGF12-12-6
\t
CGF18-18-6
\t
CGF24-24-8
\t
CGF32-32-10
\t
CGF40-40-12
\t
Heads Of Wshing, Filling ,Capping
\t
8-8-4
\t
12-12-6
\t
18-18-6
\t
24-24-8
\t
32-32-10
\t
40-40-12
\t
Capacity(500ml B/H)
\t
2000BPH
\t
3000BPH
\t
6000BPH
\t
10000BPH
\t
12000BPH
\t
16000BPH
\t
Suitable Bottle Size
\t
Φ=50-95mm 330ml-1500ml
\t
Φ=50-105mm 330ml-2000ml
\t
Φ=50-110mm
\t
Spraying Pressure(Mpa)
\t
0.25-0.3Mpa
\t
Power Supply(Kw)
\t
3.5
\t
5
\t
6.6
\t
7
\t
10.4
\t
11.5
\t
Overall Dimentsion(LxWxH)mm
\t
2000x1500x2300
\t
2300x1700 x2500
\t
2500x1850 x2500
\t
3100x2100 x2500
\t
4600x2160 x2500
\t
4600x3800 x2500

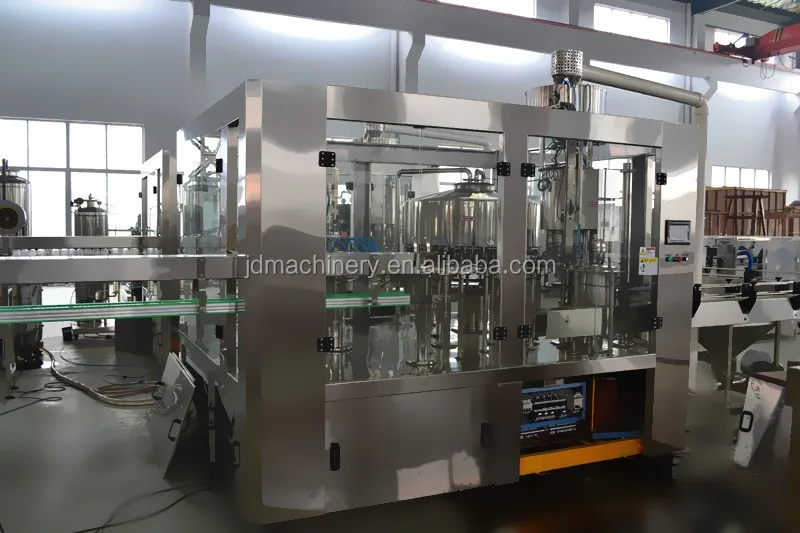

Detailed Images
Certifications
Packing & Delivery
\t
Packaging
\t
Size(m)
\t
2.5(L) * 1.89 (W) * 2.13 (D)
\t
Weight
\t
2.2 T-9T
\t
Packaging Details
\t
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Delivery
\t
Port
\t
Shanghai
\t
Transportation
\t
Sea and Overland transportation
\t
 Delivery details
\t
The supplier will deliver the goods 100 days after the advance payment to the account (the date of the telegraphic transfer certificate) and the contract to be effective.
Our Service

Pre-Sales Service


1). We can send you the video of mechanical operation.
2). Welcome to our company, we can show you the equipment in our factory. If you come to China and don't know the location of our company, you can contact us to pick you up.
3). We can design the machines according your requirements.(material ,power,filling type,the kinds of the bottles,and so on)

After-Sales Service


1). We can send you the video of mechanical operation.
2). Welcome to our company, we can show you the equipment in our factory. If you come to China and don't know the location of our company, you can contact us to pick you up.
3). We can design the machines according your requirements.(material ,power,filling type,the kinds of the bottles,and so on)

FAQ

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine.



Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!



Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.



Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.



Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
