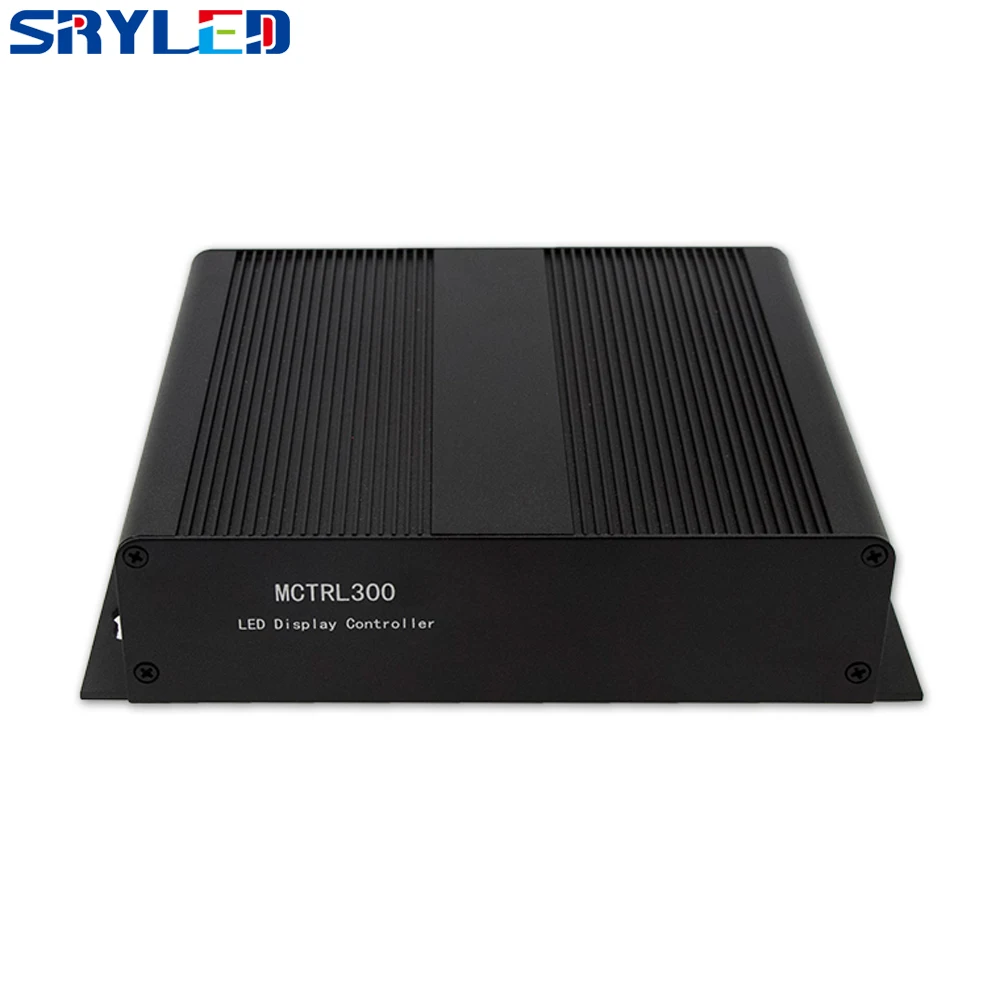

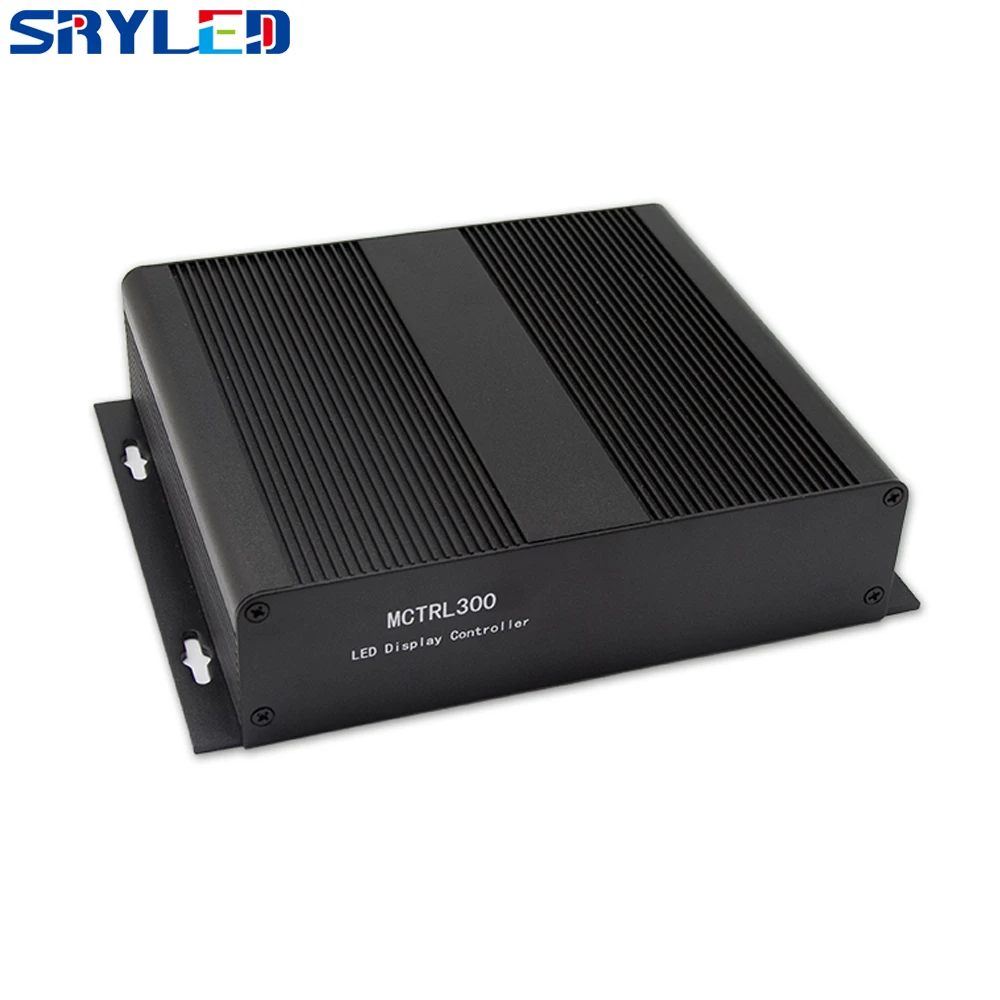

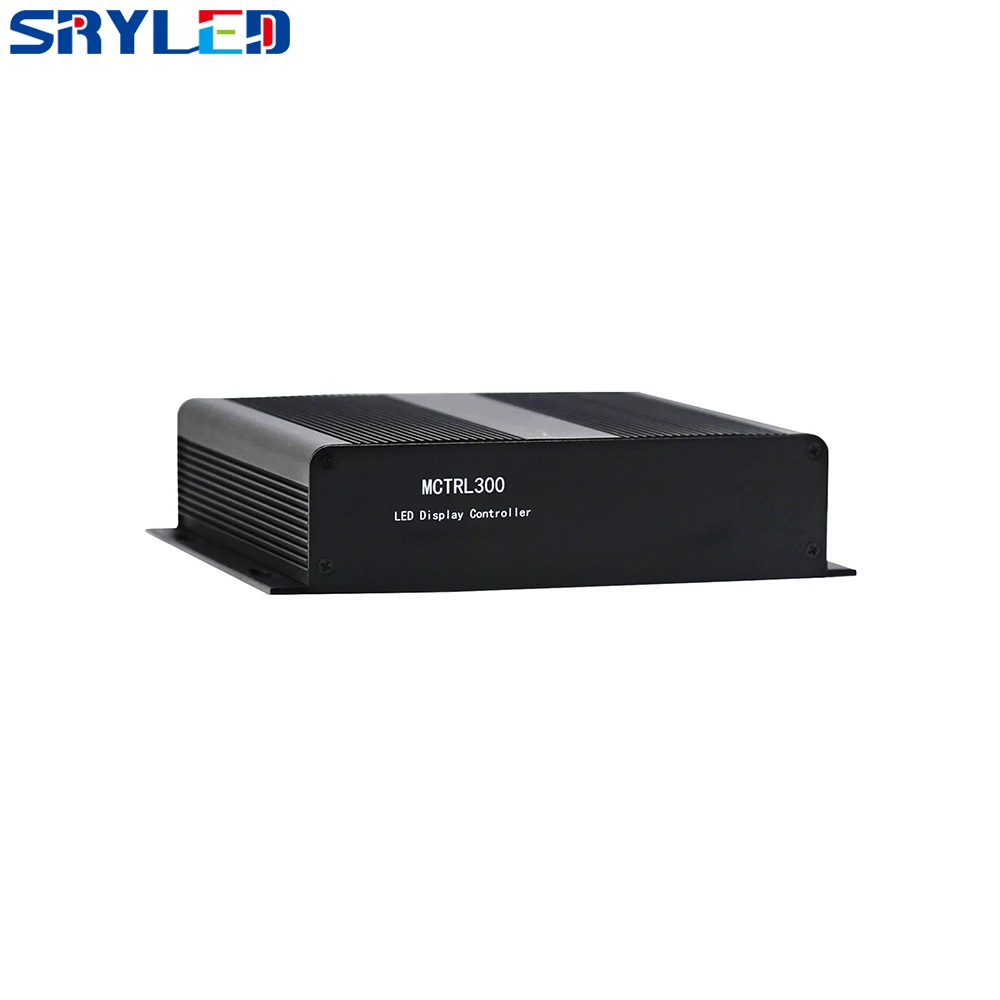

Novastar Sending Box MCTRL300 Led Display Controller Support 1280 x 1024 Pixels

Product Overview

Description

China NovaStar MCTRL300 Synchronous LED Display Controller



OverView

MCTRL300 is a standardmodel of Nova controllers. It has the same characteristics as sending card MSD300.

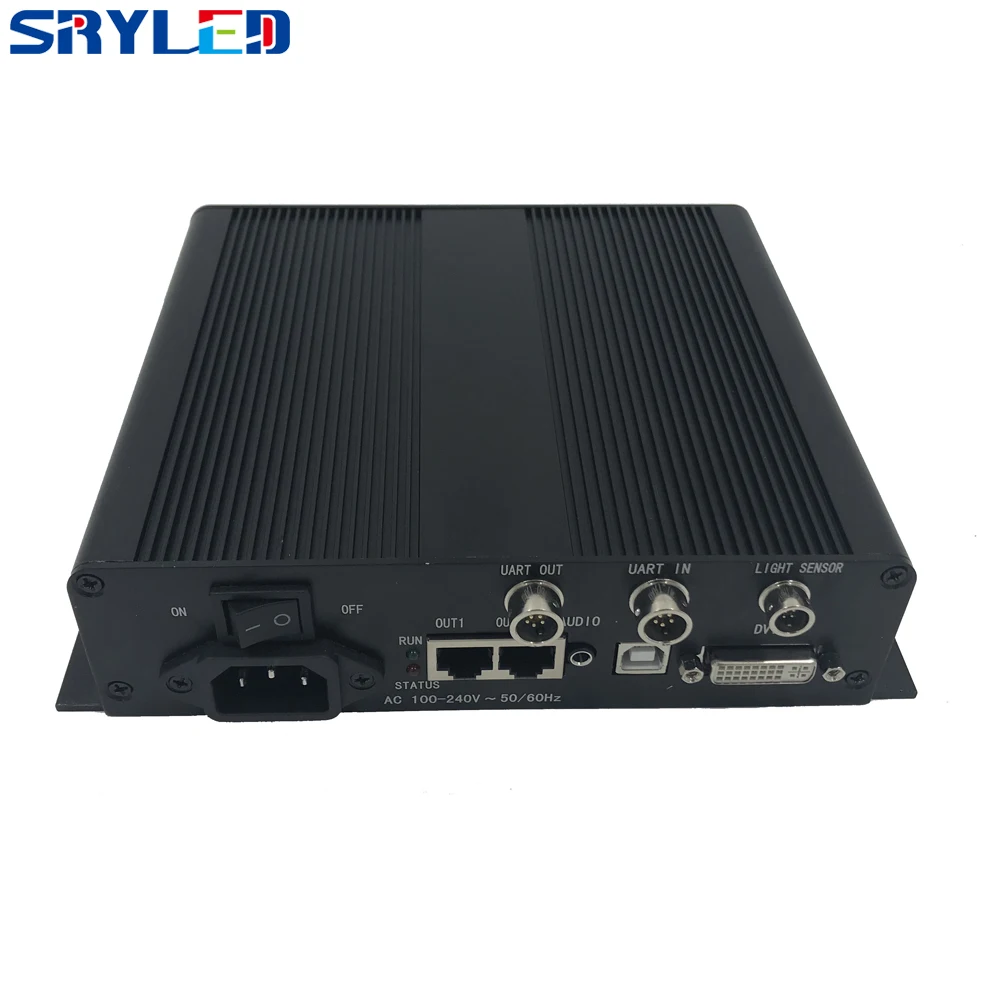

Features

1) 1 DVI video input;
2) 1 audio input;
3) 2 Ethernet port outputs;
4) USB interface which can be cascaded for uniform control;
5) Single sending card supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668;
6) 1 light sensor interface;
7) Independent power supply;
8) Cascading ports (UART OUT/IN) have adopted aviation plug which is stable and reliable.





Specifications



Item	Specification
Transmitting card model No.	MCTRL300
Control port	USB
Video signal input	DVI
Signal output	RJ45/Fiber-optic
Weight	1.75Kg
Net weight	1Kg
USB Cable	1.5M Length
DVI Cable	1.5M Length



Rated voltage AC (V)	220	Maximum	240	Minimum	100
Rated current (A)	0.5	Maximum	0. 7	Minimum	0.4
Rated power (W)	2.5	Maximum	2.9	Minimum	2.2
Temperature of working environment (Celsius)	-20Celsius - +75Celsius
Humidity of working environment (%)	0% - 95%

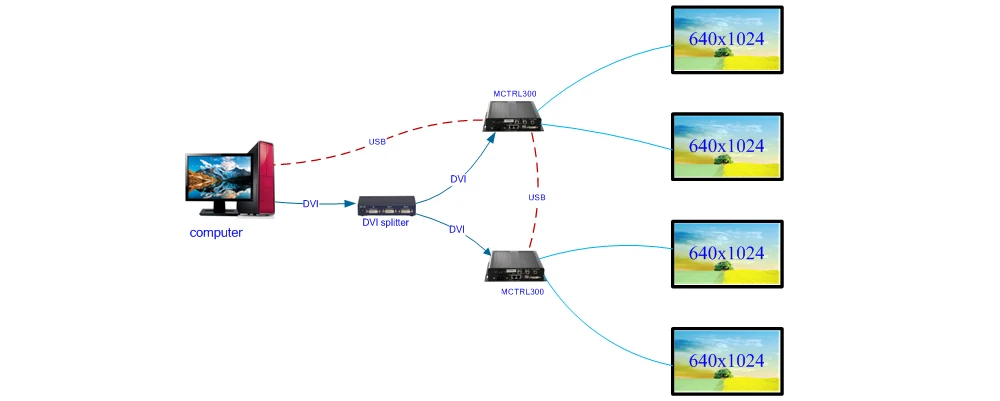

Diagram

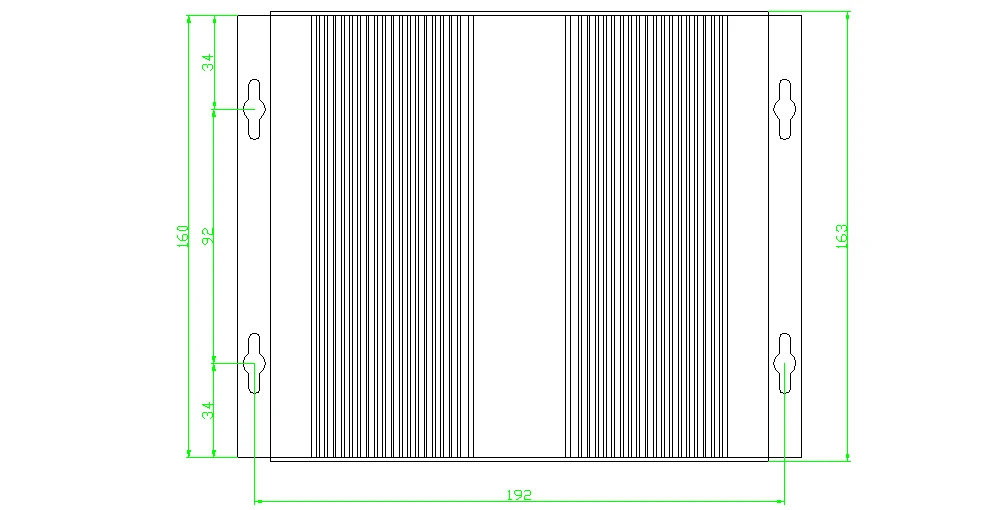

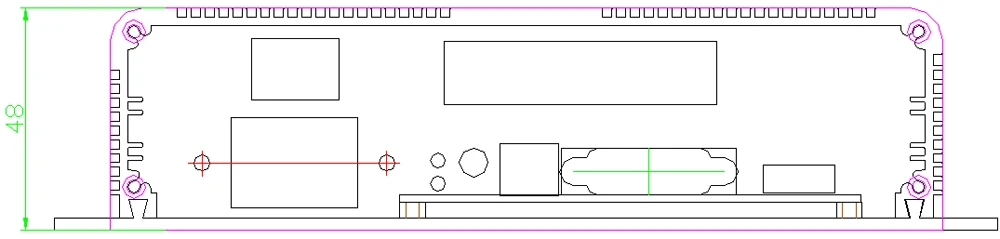

Dimension







Packaging & Shipping





Express delivery: Fast, efficient, safe and convenient.



About Us

Shenzhen SRYLED Photoelectric Co.,Ltd (SRYLED LIMITED) is a high & new technology enterprise. We are specialized in high quality LED components, LED displays products including research, development, production and marketing. Experienced with many years of development, nowadays SRYLED LIMITED owns its factory workshop area about 3,000sqm, monthly capacity is 2,000sqm, number of employees more than 100. Company has the international first-class technology development talents and advanced production equipments, a comprehensive standardized management and perfect production process.



1. Advanced Production Equipments



2. Perfect Production Process

Our Projects

SRYLED LIMITED service team always uphold the core values of “Professional, Team, Integrity, Effectiveness, Communication”, provide professional, caring, attentive after-sales service for global customers. Nowadays, SRYLED LIMITED’s products selling to all over the world by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries’ customers, like in USA, UK, Spain, France, Thailand, Mexico, Chile, Italy etc.

SRYLED LIMITED with its reliable quality, excellent service and good faith strives for realism style, won the user´s high praise from all walks of life.



Certificates







Valuable Comments



FAQ

1) Q: What is the minimum order?A: Our company mainly deals with wholesale deals, but if you insist buying one set,or you just need one set, we would be very likely to make the MOQ as 1 piece for you though.2) Q: What payment methods your company accept?A: We accept most ofthe payment methods,but mainly accept T/T,Western Union and PayPal.3) Q: How long is the warranty time for your products?A: Our officially promised warranty time is two full years after delivery at best.4) Q: What's the shipment terms and delivery time of your company?A: Well, they depends on the quantity of your order. Our products usually taking three kinds packaging. Carton, plywood case and flight case. Normally modules using carton. Fixed install cabinets using plywood case. Rental use cabinets using flight case. Depends on customer’s choice.5) Q: Do you give any discount ?A: I'll surely try my best to help you get those by the best price and good service at the same time.6) Q: I would like to ask you if it's possible to have my logo on the product.A: We hope you know that our company perfectly support customized logo service.

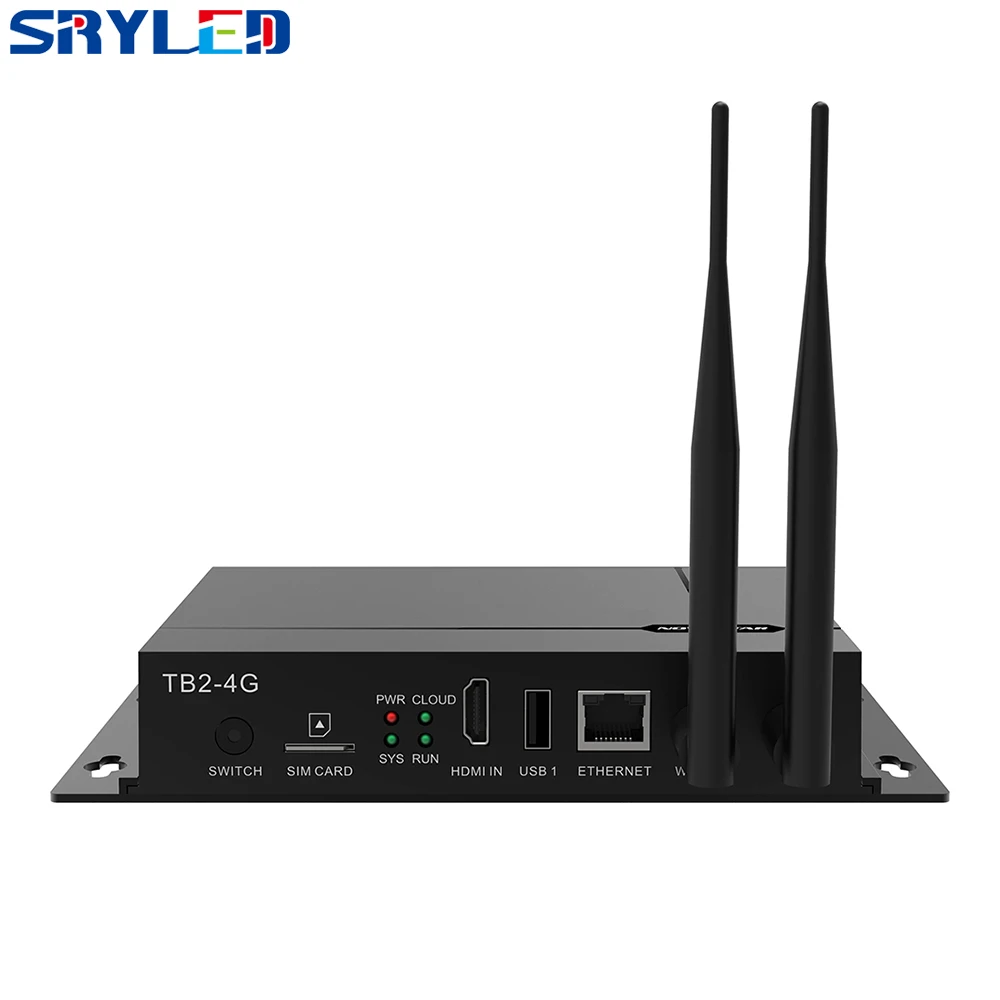

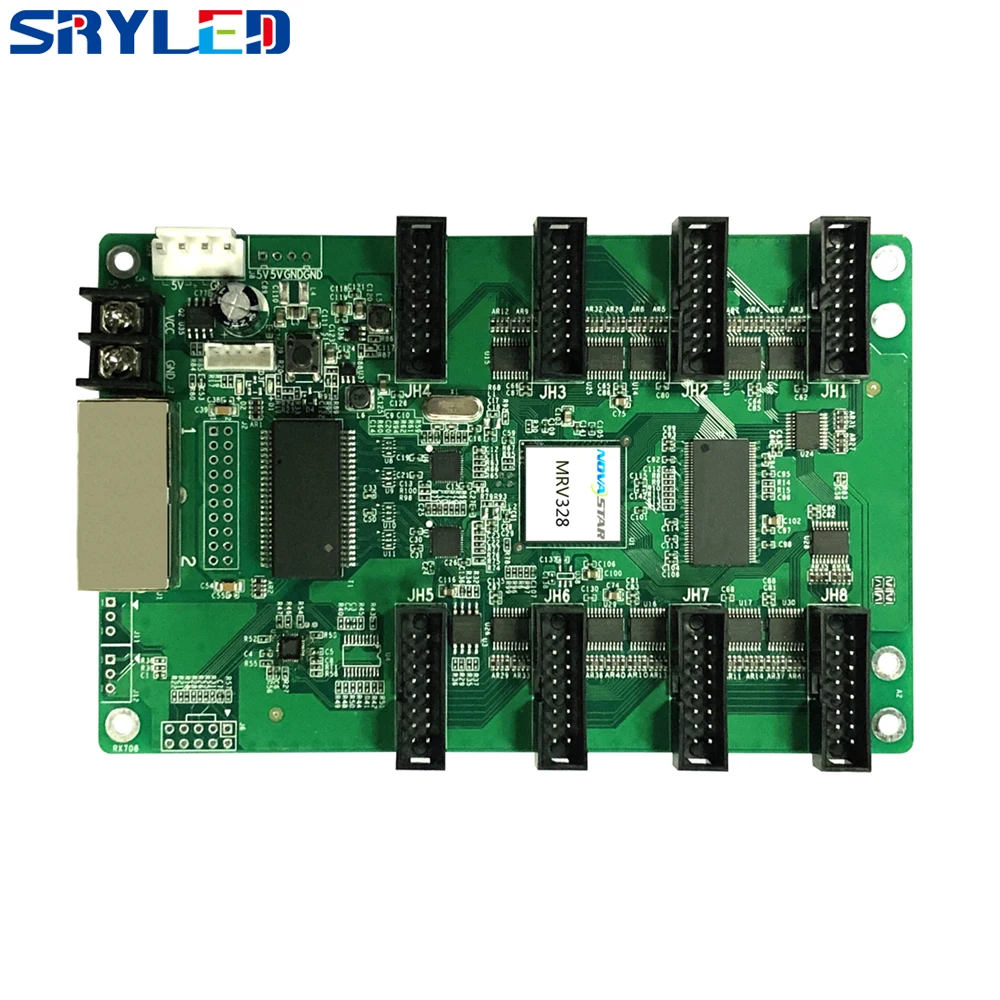

Other accessories we have
