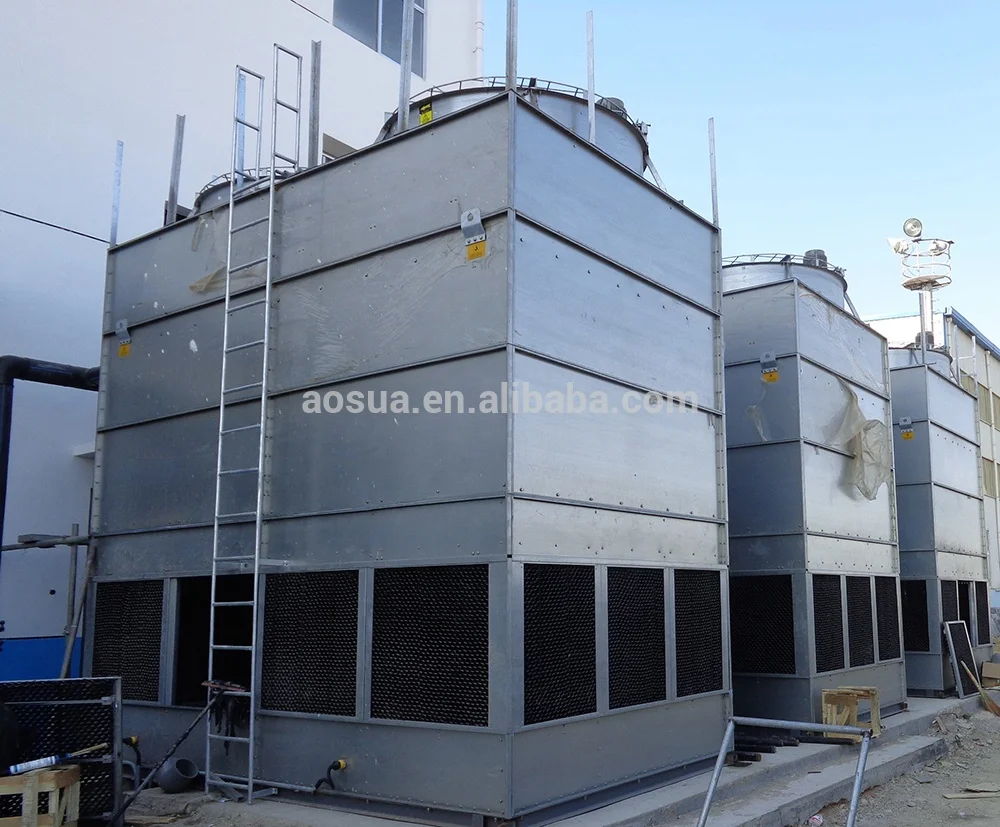

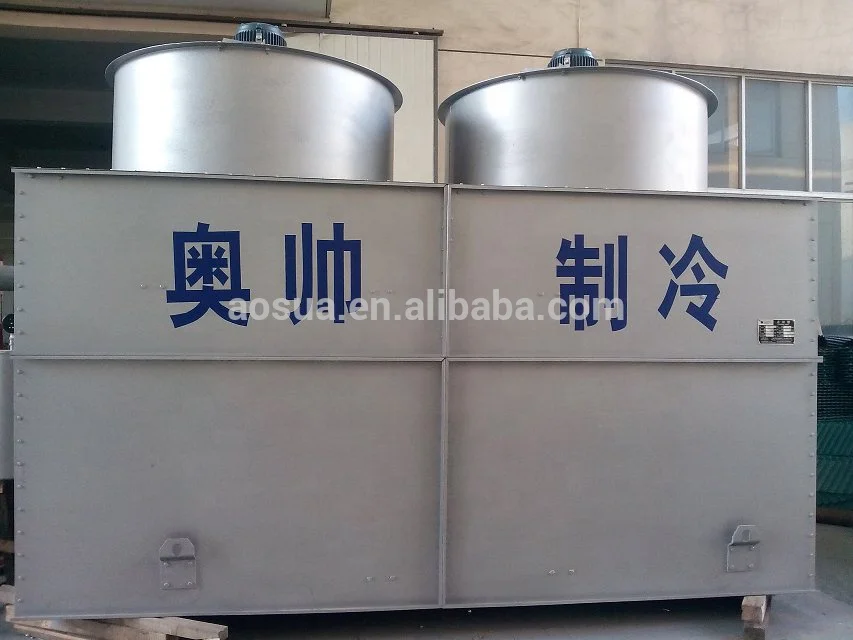

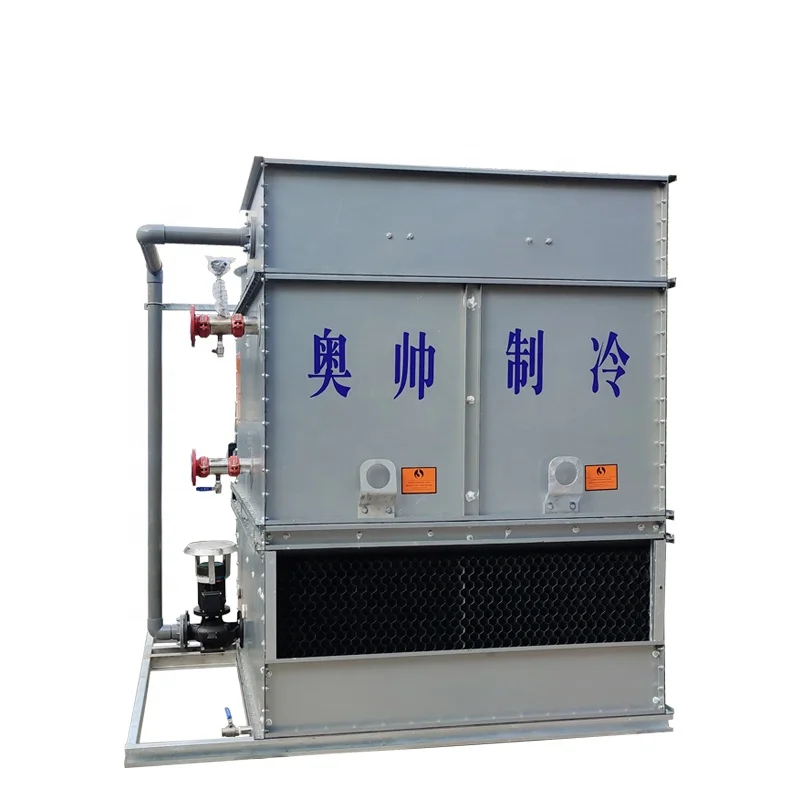

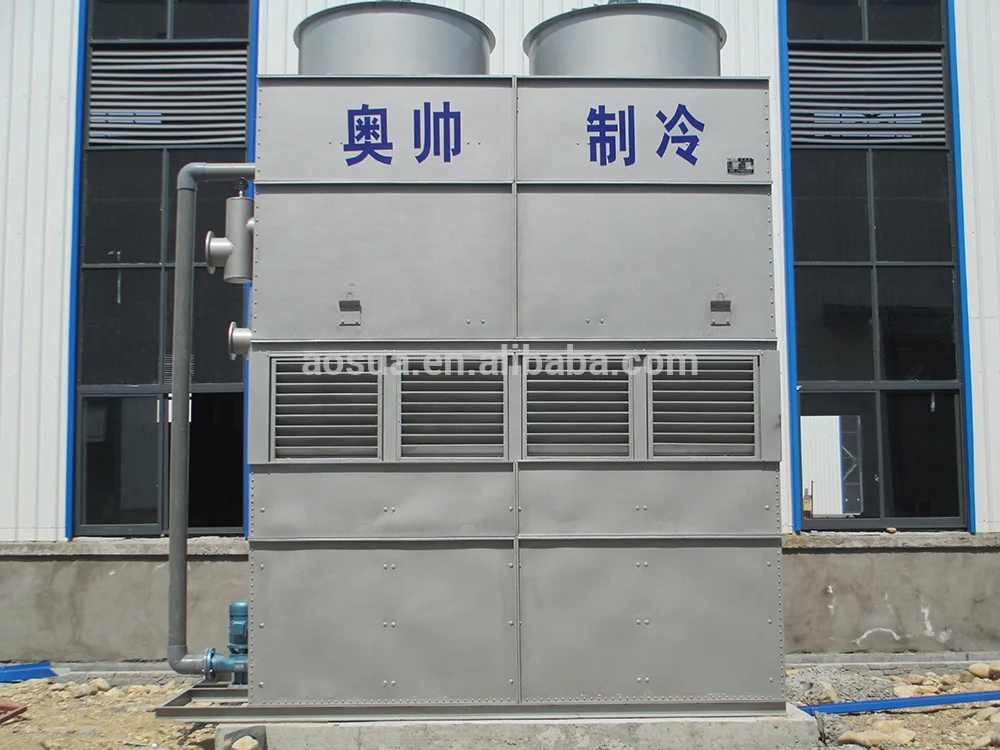

80per Mini Closed Loop Industrial Water FRP Cooling Tower
80per Mini Closed Loop Industrial Water FRP Cooling Tower
80per Mini Closed Loop Industrial Water FRP Cooling Tower
80per Mini Closed Loop Industrial Water FRP Cooling Tower
80per Mini Closed Loop Industrial Water FRP Cooling Tower
80per Mini Closed Loop Industrial Water FRP Cooling Tower
80per Mini Closed Loop Industrial Water FRP Cooling Tower

80per Mini Closed Loop Industrial Water FRP Cooling Tower

Share on (60817822782):


Price:$9,300.00

Quantity:


Product Overview

Description



Product Description


Closed circuit cooling towers are one of the methods of heat transfers. They are hybrids that pass the working fluid through a tube bundle, upon which clean water is sprayed and a fan-induced draft applied. The resulting heat transfer performance is much closer to that of a wet cooling tower, with the advantage provided by a dry cooler of protecting the working fluid from environmental exposure and contamination.





TECHNICAL SPECIFICATIONS







Cooling Tower
Design Diameter
Content
State
Cooling Tower Type
Counter Flow Closed Cooling Tower
Cooling Tower Model
AFC-80
Circular Water Flow
80m3/h
Inlet/Outlet Temp
37℃/32℃
Environment/Wet-bult Temp
31.5℃/28℃
Heat Removal Capacity
400000kcal/h
Using Environment/Temp
Outdoor/10℃-50℃
Inlet Water pressure
0.3Mpa
Net/Operating Weight
1450kg/3150kg






Mainframe
Fan Type
Axial Flow
Fan Qty
2 Sets
Blowing Rate
22000m3/h
Fan Power
1.5kw*2
Spray Pump Power
3kw
Spray Pump Flow
12.5m³/h
Mainframe L*W*H
2800x1500x3200
Inlet/Outlet Pipe Diameter
DN100/DN100




Auxiliary Systems
Circulate Pump Power
3kw
Circulate Pump Water Flow
12.5m3/h
Circulate Pump Lift
17.5M
Water Tank Backwater Diameter
DN150
Water Tank Water Outlet Diameter
DN150













Material
Cooler
Nation Standard T2 Depickle Copper Tube.Pipe Diameter:16mm;Thickness:0.6
Shell
Using Super Galum With 2mm Thickness.
Dewaterer
PVC Efficient Flow Dewaterer.Recycle
Surface Moraine Of Copper Pipe
Exhaust System
Aluminum Shell Three-Proofing Fan Motor.IP55,Insulation Level:F
Shield
Corrugated Shield,Avoid Fan Motor From Varia.
Intake System
Adoption Efficient Round Air Intake Grating With Sun And Splash Protection PVC.
It Can Reduce Spray Water Splash And Avoid Algal.
Automatic Sprinkler System
It Is Water Tank Spray Pump,PVC Spray Pipe,ABS New Syle Orchid Spray Header As A Whole.
It Has Advantage Of Thin Water Drop,Blance And Large Area Water Distribution.
Fan Control System
Hand Operation And Auto
Spray Pump System
Hand Operation And Auto
Temp Control System
Digital Display
Fault Alarm System
Sound-Light Alarm
Indicator Light
Power On,Working And Shut Down
Electrical System
(Thermal Relay And a.c. Contactor Etc)Using Chint Brand
Color
Silvery




Prinicple











Our Company


Zhejiang Aoshuai Refrigeration Co., Ltd.

In May 2011,AOSUA got ISO9001:2008 IAF(International Accreditation Forum)That same year become a membership of CTI(Cooling Technology Institute) and The Chinese Association Of Refrigeration.
AOSUA's powerful combination of financial strength and technical expertise has established the company as a recognized manufacturer of market-leading products on a worldwide basis.



Our Service

1.Provide install video if necessary.
2.Quality guarantee is 12 months.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.
4.Oversea technical guidance.
5.Provide foundation drawing.
